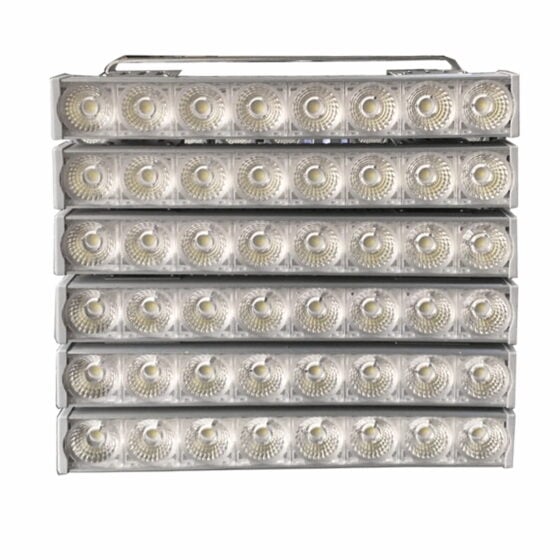

200 Watt LED High Temperature Light | 30000 Lumens | 5000K | 100-277V | Rated to 212F

Product Overview

This 200 watt LED high temperature fixture delivers 30,000 lumens at 5000K. It is built for continuous operation in environments with ambient temperatures ranging from -40°F up to 212°F.

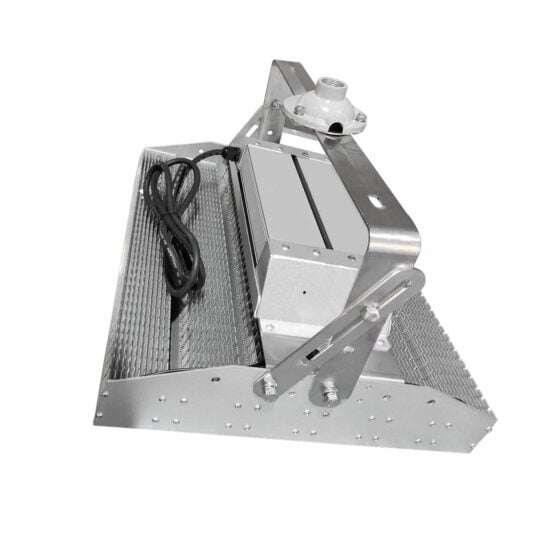

The fixture uses an aluminum alloy housing and a large heat sink to manage thermal loads in both extreme hot and cold conditions. It is designed as a direct replacement for 400 watt metal halide systems.

Voltage compatibility covers 100V to 277V at 50/60 Hz. The fixture is available with multiple beam angle options and supports three mounting methods: eye-hook, pendant, or trunnion.

It is finished in gray and uses a polycarbonate lens for durability. The fixture weighs 33.5 lbs and measures 13.14 x 10.31 x 5.11 inches.

Where This Product Fits Best

This fixture is suited for industrial and commercial spaces where high ambient temperatures are present, such as foundries, steel mills, glass plants, and other process environments with sustained heat.

It is also appropriate for cold storage, freezers, or any location with wide temperature swings. The IP66 rating allows use in areas exposed to dust, water jets, or washdown conditions.

Applications requiring high output, long life, and minimal maintenance in harsh environments will benefit from this fixture?s construction and thermal management.

It is not dimmable and is best used where fixed output is required.

Performance and Functional Considerations

The fixture outputs 30,000 lumens at 200 watts, providing 150 lumens per watt. It is designed to replace 400 watt metal halide fixtures in high temperature settings.

Beam angle options include 25°, 40°, 60°, and 90°, allowing for targeted or wide-area illumination as needed. The CRI is 70+ for general industrial visibility.

Power factor is greater than 0.95 and total harmonic distortion is less than 15%. The fixture operates on 100V to 277V input.

Surge protection is rated at 6kV. The fixture is not equipped with dimming capability.

Installation and Long-Term Use

Mounting options include eye-hook, pendant, or trunnion, supporting installation flexibility for overhead, pendant, or surface-mount applications.

The fixture?s weight and dimensions should be considered when planning mounting points and support structures. At 33.5 lbs, secure attachment is required.

The aluminum alloy housing and polycarbonate lens are designed for durability in demanding environments. The IP66 rating allows for use in areas subject to dust and water exposure.

Lifespan is rated at 50,000 hours (L70). The fixture is designed for minimal maintenance in high temperature or harsh conditions.

How This Fixture Is Commonly Used

Once installed, this fixture provides consistent, high-output lighting in spaces where ambient temperatures can reach up to 212°F. You can select the beam angle that matches your coverage needs before installation.

The fixture operates at full output with no dimming adjustment. After installation, there are no user controls or settings to manage. The fixture is designed to be left in place and relied on for continuous operation.

Routine cleaning may be required in dusty or wet environments, but the IP66 rating allows for washdown without risk to the fixture. The polycarbonate lens and aluminum housing hold up to impacts and exposure typical in industrial settings.

Mounting method is determined at installation and does not require adjustment during normal use. The fixture is intended for long-term, low-maintenance operation in challenging environments.

Safety, Certifications, and Warranty

This fixture is ETL listed.

It carries an IP66 rating, allowing use in areas exposed to dust and high-pressure water jets.

Surge protection is rated at 6kV for electrical safety in industrial environments.

Warranty coverage is provided by LED Lighting Supply.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100V to 277V input.

What is the maximum ambient temperature rating?
The fixture is rated for continuous operation in environments up to 212°F.

What mounting options are available?
Mounting options include eye-hook, pendant, or trunnion.

Is this fixture dimmable?
No, this fixture does not support dimming.

What certifications does this fixture carry?
This fixture is ETL listed.

What is the IP rating?
The fixture is rated IP66 for dust and water resistance.

What is the warranty coverage?
Warranty is provided by LED Lighting Supply.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
