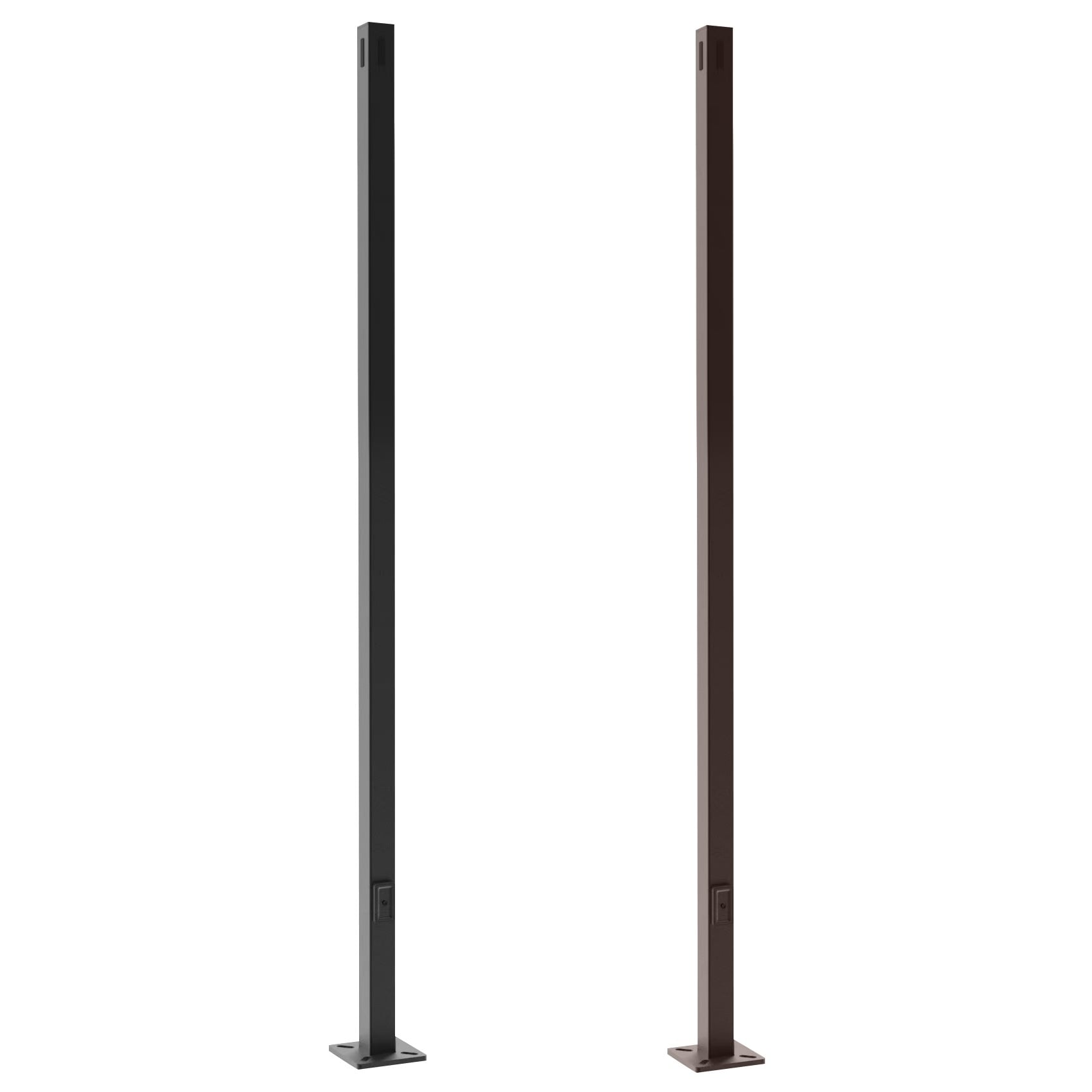

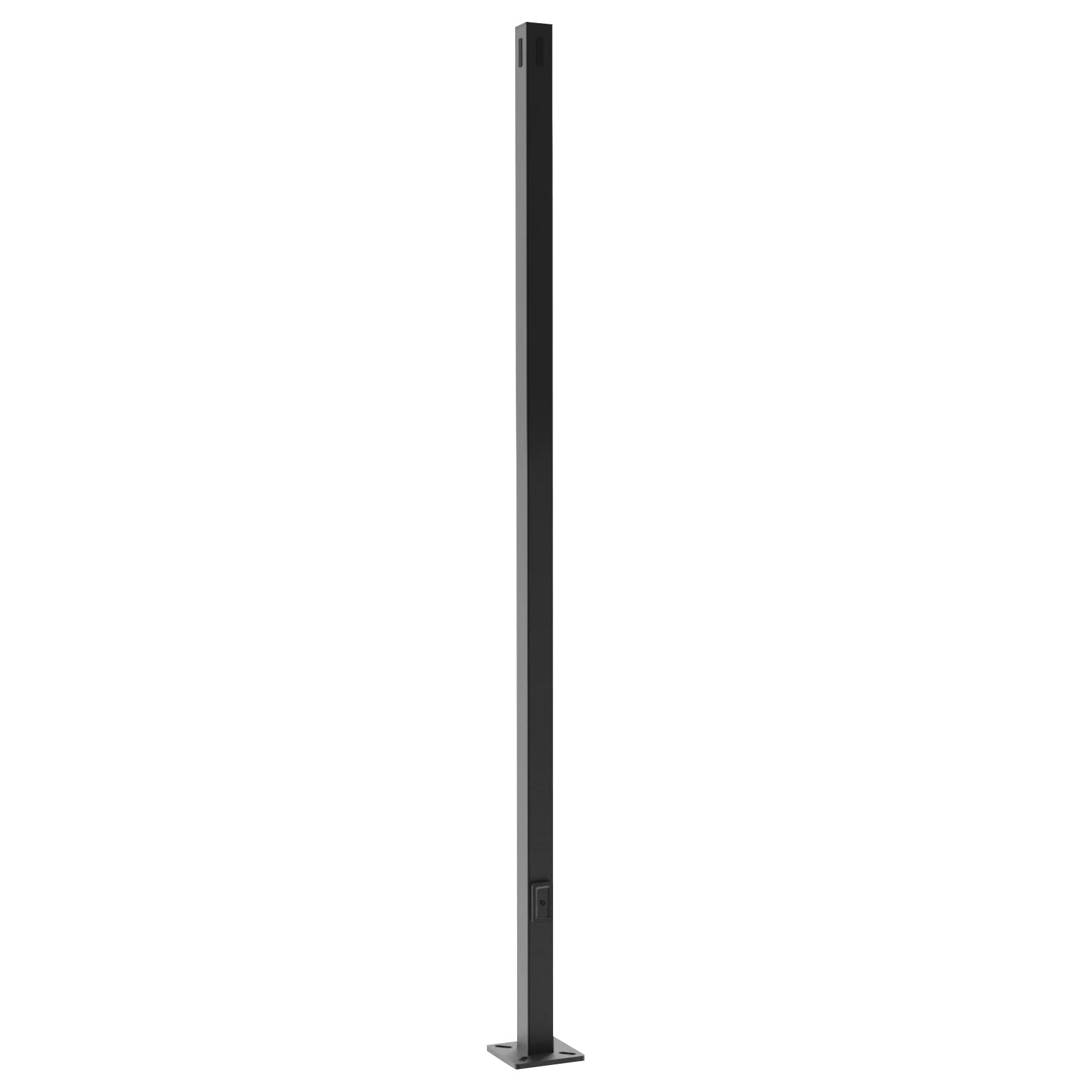

20 Foot Square Steel Light Pole | 4 Inches Wide | Anchor Base | Bronze or Black
This 20 foot steel light pole is a solid choice for commercial outdoor lighting where durability and wind resistance are priorities. Its 11 gauge steel construction and 160 pound weight provide robust support for fixtures, while the anchor base simplifies installation on concrete pads. The pole's EPA ratings up to 120 mph ensure reliable performance in areas exposed to high winds, which is critical for parking lots, outdoor retail spaces, and facility perimeters. With a 4 inch width and available bronze or black finish, it offers both strength and a clean appearance for demanding exterior environments.
Cory Peterson | Director of Sales and Marketing
Out of stock
Product Description
Key Features
- Total Height (ft): 20
- Material: Steel
- Pole Weight (lbs): 160
- Pole Width (in): 4
- Pole Bolt Circle (in): 8-11
- Pole Color: Bronze | Black
- Pole Gauge: 11
- Bolt Projection (in): 3.75
- Pole Installation: Anchor Base
- Warranty: 1 year
- EPA at 90 mph: 8
- EPA at 100 mph: 5.7
- EPA at 110 mph: 4.3
- EPA at 120 mph: 3.1
Anchor bolts, base covers, top covers, tenons and bullhorns sold sepratley.
Disclaimer: LED Lighting Supply is not responsible for improper loading of light fixtures or other attachments, use, or foundation design of light poles. Final pole assembly is the responsibility of the purchaser. Dimensions and specifications of a 15 foot steel square light pole are subject to change without notice. See the data sheet for current pole data charts. Custom sizing is only available for large order quantities.
Please be advised that our steel poles are covered solely by a 1-year workmanship warranty, which ensures that the poles are free from defects from the manufacturing process, such as welds and structural integrity, for a period of one year from the date of purchase. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Product SKU Variations
- SKU: LLS-X-POLE-20FT-4-SQ-BZ
- Pole Color: Bronze
- SKU: LLS-X-POLE-20FT-4-SQ-BK
- Pole Color: Black
Web ID: 2735 | 0
Product Overview
This 20 foot square steel light pole is designed for outdoor area lighting in commercial and industrial environments. The pole is fabricated from 11 gauge steel, weighs 160 pounds, and features a 4 inch wide square profile. It is available in bronze or black finishes. Anchor base installation is required. The pole is engineered for wind load ratings up to 120 mph, with EPA values specified for multiple wind speeds. Anchor bolts, base covers, top covers, tenons, and bullhorns are not included and must be sourced separately.
The pole supports a range of area and site lighting fixtures. It is intended for use where structural integrity and long-term durability are required. The finish is suitable for outdoor exposure. The 20 foot height provides elevated mounting for broad light distribution in open spaces.
Where This Product Fits Best
This steel light pole is used in outdoor commercial and industrial settings where elevated lighting is required for safety, security, and operational visibility. Typical installations include parking lots, perimeter roadways, loading zones, and exterior walkways. The pole is also used in sports and recreation areas where consistent, elevated lighting is needed for nighttime activities.
- Parking lot and exterior roadway lighting
- Warehouse and distribution center perimeter lighting
- Manufacturing facility and industrial site area lighting
- Outdoor sports court and recreation area lighting
- Commercial property and retail exterior lighting
The pole is specified for environments with exposure to wind, precipitation, and temperature fluctuations. It is selected for locations where structural stability and wind load compliance are required. The finish and material are suited for long-term outdoor use in both urban and industrial settings.
Performance and Functional Considerations
The 20 foot height allows for wide-area light coverage and minimizes shadowing in open spaces. The 4 inch square profile provides rigidity and supports a range of fixture mounting options. The 11 gauge steel construction delivers strength for demanding environments and supports EPA ratings up to 3.1 at 120 mph wind speeds.
Anchor base installation provides a secure foundation and allows for straightforward replacement or maintenance. The pole is compatible with standard mounting hardware and accessories, including tenons and bullhorns, which must be selected based on fixture requirements. The finish options offer corrosion resistance for outdoor exposure.
EPA ratings at multiple wind speeds allow for site-specific engineering and compliance with local codes. The pole is intended for use with fixtures that do not exceed the specified EPA limits. The bolt circle and projection dimensions are compatible with common anchor base patterns.
The pole?s weight and construction require appropriate equipment for handling and installation. It is not intended for environments with extreme corrosive exposure or where higher wind ratings are required.
Installation and Long-Term Use
Installation requires an anchor base foundation with properly sized anchor bolts. The pole must be set and leveled before fixture mounting. All mounting hardware and accessories must be compatible with the 4 inch square profile and specified bolt circle.
Routine inspection of the base, finish, and mounting hardware is recommended to maintain structural integrity. The steel construction and finish are designed for long-term outdoor use, but periodic maintenance may be required in harsh environments. The pole can be repainted or refinished as needed to address surface wear.
Fixture mounting options include direct arm, tenon, or bullhorn configurations. Accessories must be selected based on fixture type and site requirements. The pole is designed for straightforward replacement in retrofit applications using standard anchor base patterns.
Handling and installation should be performed with appropriate lifting equipment due to the pole?s weight. All work should comply with local codes and safety standards.
How This Fixture Is Commonly Used
After installation, this pole provides a stable mounting point for area lighting fixtures. It is used to elevate luminaires above parking lots, drive lanes, and walkways to deliver uniform illumination and reduce glare. In warehouse and distribution environments, the pole supports perimeter lighting for security and operational safety.
In manufacturing and industrial sites, the pole is used to mount fixtures that illuminate loading docks, storage yards, and exterior work areas. For sports and recreation areas, it provides the necessary height for even light distribution across courts and fields. On commercial properties, the pole is used to support lighting that enhances visibility and security for building exteriors and pedestrian zones.
Maintenance teams interact with the pole during fixture replacement, periodic inspections, and finish touch-ups. The anchor base design allows for access to mounting hardware and straightforward removal if replacement is required.
Safety, Certifications, and Warranty
This steel light pole is engineered for wind load compliance with EPA ratings specified for 90, 100, 110, and 120 mph wind speeds. The finish is designed for outdoor durability. The pole is covered by a 1 year warranty. No additional certifications are stated for this product.
All installation and maintenance activities should follow applicable safety standards and local codes. The pole?s structural ratings must be observed when selecting and mounting fixtures.
Routine inspection of anchor bolts, base, and finish is recommended to ensure ongoing safety and performance. The pole is intended for use in environments where wind load compliance and structural integrity are required.
Frequently Asked Questions
What voltage is supported by this pole?
This product is a structural component and does not have a voltage rating. Fixture voltage compatibility must be determined separately.
What mounting method is required?
This pole is designed for anchor base installation using a compatible foundation and anchor bolts.
What certifications apply to this pole?
No additional certifications are stated for this product.
What environments can this pole be used in?
The pole is intended for outdoor use in commercial and industrial environments with wind exposure up to 120 mph, as specified by the EPA ratings.
