180 / 240 / 300 Watt Adjustable LED Shoebox Area Light | 27900 to 46500 Lumens | 3000K / 4000K / 5000K Color Adjustable | 100V-277V

Product Overview

This 150 Watt LED Shoebox Area Light delivers 19,972 lumens at 5000K. It is designed for use on 100-277V circuits and provides a Type 3 distribution as standard, with Type 2, 4, and 5 optics available as options.

The fixture uses a die-cast aluminum housing and a polycarbonate lens. It is available in black or silver finish. The unit supports 1-10V dimming and is rated for 50,000 hours (L70).

Dimensions are 16 7/8 inches by 11 7/8 inches by 4 1/8 inches, and the fixture weighs 8.4 lbs. The EPA rating is 1.5.

It replaces 400 Watt metal halide area lights and is suitable for outdoor environments requiring high output and durability.

Where This Product Fits Best

This area light is suited for parking lots, roadways, perimeter lighting, and general outdoor area illumination where a 400 Watt metal halide fixture would have been used previously.

It is compatible with poles and mounting structures that accept arm, slip fitter, or trunnion mounting. The IP66 rating allows use in locations exposed to rain, dust, and harsh weather.

Facilities requiring high-output, uniform lighting with a 5000K color temperature will find this fixture appropriate for security and visibility needs.

It can be used in commercial, industrial, and institutional settings where reliable outdoor lighting is required.

Performance and Functional Considerations

The fixture produces 133 lumens per watt, providing efficient illumination for large outdoor areas. The 80+ CRI supports accurate color rendering in exterior environments.

It operates on 100-277V circuits at 50-60Hz, with a power factor of 0.9 and total harmonic distortion of 15%. The 1-10V dimming capability allows for integration with compatible dimming controls.

The polycarbonate lens is impact-resistant and suitable for outdoor use. Surge protection is rated at 10 kV, supporting operation in areas prone to electrical disturbances.

The fixture is rated for operation from -40°F to 122°F, allowing installation in a wide range of climates.

Installation and Long-Term Use

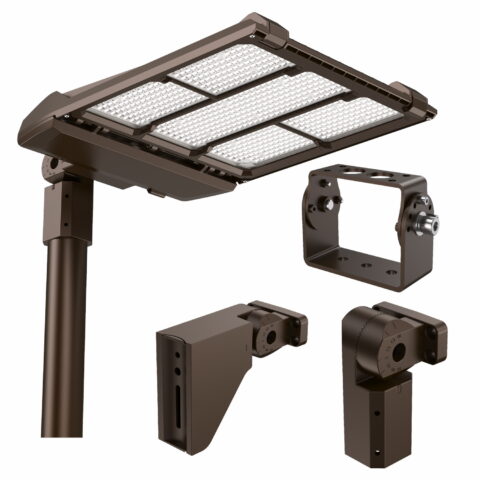

This area light supports arm, slip fitter, or trunnion mounting, providing flexibility for attachment to various pole types and mounting structures.

The die-cast aluminum housing is designed for durability and corrosion resistance in outdoor environments. The IP66 rating means the fixture can withstand direct exposure to rain and dust without risk of water ingress.

At 8.4 lbs, the fixture is manageable for one-person installation on standard poles or brackets. The EPA rating of 1.5 should be considered when evaluating wind load on existing poles.

The 50,000 hour (L70) rated lifespan supports long-term operation with minimal maintenance requirements.

How This Fixture Is Commonly Used

Once installed, this fixture provides consistent, high-output lighting for outdoor areas. The 5000K color temperature delivers a daylight-like appearance, supporting visibility and security in parking lots and perimeter zones.

The 1-10V dimming feature allows you to adjust light levels as needed when connected to compatible controls. This can be used to reduce output during low-traffic periods or to meet site-specific lighting requirements.

The fixture?s polycarbonate lens and die-cast aluminum housing hold up to impacts and weather exposure, so routine cleaning and inspection are typically all that is required for ongoing use.

Mounting options allow for straightforward replacement of legacy fixtures or adaptation to new installations, with the ability to select the most suitable mounting method for your site.

Safety, Certifications, and Warranty

This fixture is UL listed.

It is rebate eligible.

The product carries a 5-year warranty from LED Lighting Supply.

The IP66 rating allows use in wet and dusty outdoor environments. Surge protection is rated at 10 kV.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100-277V circuits.

What is the lumen output?
The fixture delivers 19,972 lumens.

What mounting options are available?
Arm, slip fitter, and trunnion mounting options are supported.

Is this fixture UL listed?
Yes, this fixture is UL listed.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty.

What is the environmental rating?
The fixture is rated IP66 for wet and dusty outdoor environments.

Is this fixture eligible for rebates?
Yes, this fixture is rebate eligible.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
