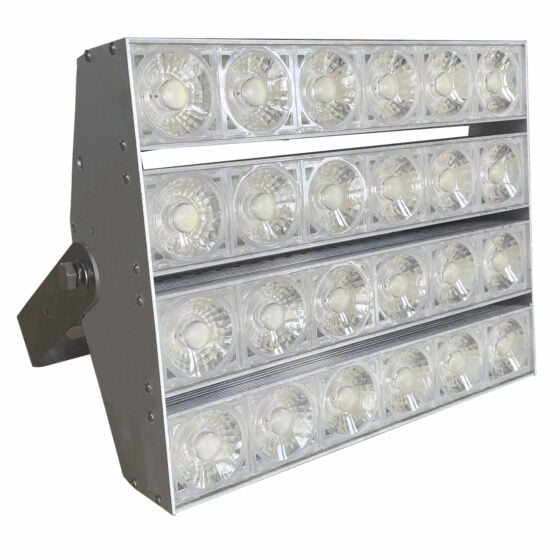

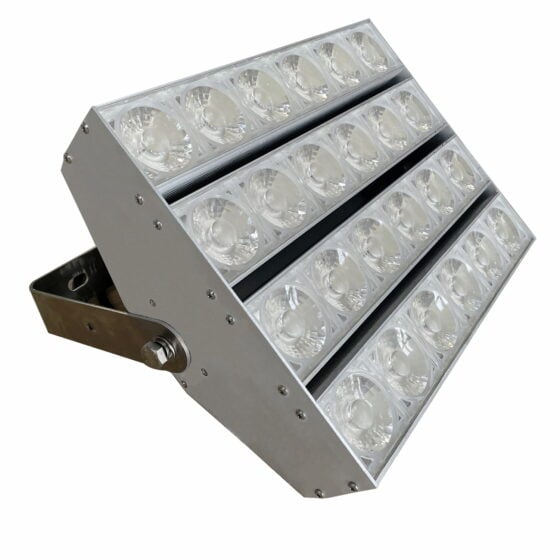

150 Watt LED High Temperature Light | 22500 Lumens | 5000K | 100-277V | Rated to 212F

Product Overview

This 150 watt LED high temperature fixture delivers 22,500 lumens at 5000K. It is built for continuous operation in environments ranging from -40°F up to 212°F. The fixture uses a large heat sink and an aluminum alloy housing to manage thermal loads in both extreme hot and cold conditions.

The fixture is designed as a direct replacement for 400 watt metal halide systems. It operates on 100V to 277V input and supports 50/60 Hz frequency. The fixture is gray in color and weighs 21 lbs.

Beam angle options include 10°, 25°, 40°, 60°, and 90°, all with a polycarbonate lens. The fixture is non-dimming and has a CRI of 80+.

Mounting options include eye-hook, pendant, or trunnion. The fixture measures 13.14 x 10.31 x 5.11 inches.

Where This Product Fits Best

This fixture is suited for facilities with high ambient temperatures, such as foundries, steel mills, glass plants, and industrial process areas. It is also appropriate for cold storage or freezer environments due to its wide operating temperature range.

It is designed for use in locations where exposure to dust, water, or washdown is expected. The IP66 rating allows for installation in areas subject to heavy moisture or airborne particulates.

Applications that require a robust fixture with a long service life and minimal maintenance benefit from the 70,000 hour rated lifespan and durable construction.

It is compatible with standard 100V to 277V electrical systems, making it suitable for most commercial and industrial power supplies.

Performance and Functional Considerations

The fixture delivers 150 lumens per watt, providing high output for its wattage class. The available beam angles allow for targeted or wide-area illumination, depending on the needs of the space.

The power factor is greater than 0.95 and total harmonic distortion is less than 15%, supporting stable operation on facility electrical systems. Surge protection is rated to 6kV.

The polycarbonate lens and aluminum alloy housing contribute to impact resistance and durability in demanding environments. The fixture is non-dimming and does not support integrated controls.

With a CRI of 80+, the fixture provides good color rendering for general industrial and commercial tasks.

Installation and Long-Term Use

Mounting options include eye-hook, pendant, or trunnion, supporting a range of installation methods for different ceiling types and structural conditions. The fixture?s weight and dimensions should be considered when planning installation points and support hardware.

The IP66 rating allows for installation in wet or dusty locations, including areas subject to washdown or airborne particulates. The fixture is designed for continuous operation in ambient temperatures from -40°F to 212°F.

The large heat sink and aluminum alloy housing manage thermal loads, reducing the risk of overheating in high temperature environments. The fixture is rated for a 70,000 hour lifespan, minimizing maintenance intervals.

Routine inspection of mounting hardware and electrical connections is recommended to ensure long-term reliability in harsh conditions.

How This Fixture Is Commonly Used

Once installed, this fixture provides consistent illumination in areas with high ambient temperatures or exposure to dust and moisture. The available beam angle options allow you to adjust the light distribution to match the specific needs of your space, whether you need focused task lighting or broader area coverage.

The fixture does not support dimming or integrated controls, so operation is straightforward?either on or off via the facility?s switching or circuit controls. The robust housing and lens require minimal attention beyond standard cleaning and periodic inspection.

In day-to-day use, the fixture is relied on for stable output and long service intervals, even in environments where other lighting systems may fail due to heat or contamination. The fixture?s construction and ratings support use in areas where reliability and durability are critical.

Safety, Certifications, and Warranty

This fixture is ETL listed.

The IP66 rating allows the fixture to withstand direct exposure to water jets and heavy dust, supporting use in washdown and dusty environments.

Surge protection is rated to 6kV, providing resilience against electrical disturbances common in industrial settings.

LED Lighting Supply provides warranty coverage as stated in our warranty terms.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100V to 277V input.

What is the rated output?
The fixture delivers 22,500 lumens at 150 watts.

What environments can this fixture be used in?
The fixture is rated for operation in ambient temperatures from -40°F to 212°F and is IP66 rated for wet and dusty locations.

What mounting options are available?
Mounting options include eye-hook, pendant, or trunnion.

Is this fixture DLC qualified?
DLC qualification is not listed in the provided specifications.

What certifications does this fixture carry?
This fixture is ETL listed.

What is the warranty coverage?
Warranty coverage is provided by LED Lighting Supply as stated in our warranty terms.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
