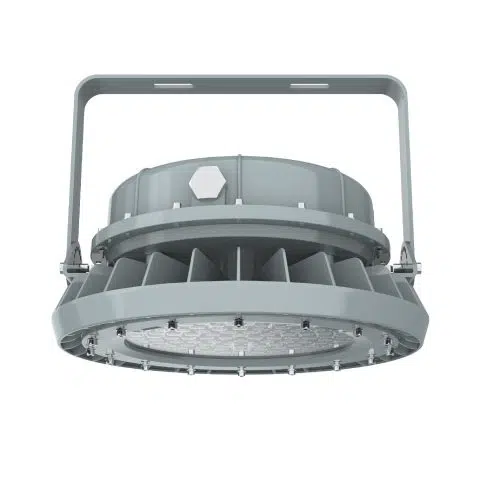

150 Watt Round High Temperature Explosion Proof LED Light | 15000 Lumens | Class 1 Div 2 | Class 2 Div 2 | 5000K | 120V | Rated to 158F

Product Overview

This 150 Watt Round High Temperature Explosion Proof LED Light delivers 15,000 lumens at 5000K. It is designed for hazardous locations requiring Class I Division 2, Class II Division 1 and 2, and Class III protection.

The fixture operates at 120V and is built with a copper free aluminum housing and a tempered glass lens. It is rated for continuous operation in environments up to 176°F (80°C).

Standard beam angle is 120°, with optional 40°, 60°, or 90° optics available. The fixture is non-dimming and has a CRI of 70+.

Mounting options include yoke or 3/4 inch NPT pendant. The fixture measures 14 x 11.3 inches and weighs 28 lbs.

Where This Product Fits Best

This fixture is suitable for hazardous locations where explosive gases, vapors, or dusts may be present under abnormal conditions. It meets UL 844 requirements for Class I Division 2 (Groups A, B, C, D), Class II Division 1 (Groups E, F, G), Class II Division 2 (Groups F, G), and Class III environments.

It is also UL 1598 rated for wet locations and UL 1598A Marine Outside Type, supporting use in outdoor, marine, or washdown areas. The ABS certification supports use in marine and offshore applications.

The fixture is designed for high ambient temperature environments, with an operating range from -40°F to 176°F. It is suitable for areas where legacy 400W metal halide fixtures are being replaced.

Common installation sites include chemical plants, refineries, grain processing, wastewater treatment, and marine facilities requiring explosion proof and high temperature rated lighting.

Performance and Functional Considerations

This fixture provides 100 lumens per watt and a total output of 15,000 lumens. The 5000K color temperature delivers a neutral white light suitable for task visibility in industrial settings.

The fixture is non-dimming and operates at 50-60Hz with a power factor greater than 0.95 and total harmonic distortion below 10%. It is designed for 120V input only.

Beam angle can be specified as 120° standard, or 40°, 60°, or 90° for more focused distribution. The tempered glass lens supports durability in harsh environments.

The fixture is rated for 50,000 hours (L70) and includes 10kV surge protection. The IP66 rating allows for use in areas exposed to dust and powerful water jets. IK10 impact rating supports resistance to mechanical impacts.

Installation and Long-Term Use

Mounting options include yoke or 3/4 inch NPT pendant, supporting ceiling, wall, or pendant installations. The fixture weighs 28 lbs and measures 14 x 11.3 inches, so ensure mounting surfaces and hardware are rated for the load.

The copper free aluminum housing resists corrosion in chemical, marine, and outdoor environments. The fixture color is gray for industrial compatibility.

With an operating temperature range from -40°F to 176°F, the fixture is suitable for high heat environments where standard LED fixtures may not be appropriate.

Routine maintenance is minimized by the 50,000 hour rated life and robust construction. The tempered glass lens and IP66 enclosure allow for washdown and cleaning as required in industrial settings.

How This Fixture Is Commonly Used

Once installed, this fixture provides consistent illumination in hazardous and high temperature areas. The 5000K light output supports visibility for inspection, production, or maintenance tasks.

You can select the beam angle that matches your area?s needs?wide for general coverage or narrow for focused lighting. The fixture does not support dimming, so output remains constant during operation.

The housing and lens tolerate exposure to dust, water, and impacts, so the fixture can be cleaned or hosed down as part of regular facility maintenance. The high temperature rating allows the fixture to remain in service in areas where ambient heat is a concern.

After installation, the fixture operates without user adjustment. The robust build and surge protection reduce the need for unplanned service calls in demanding environments.

Safety, Certifications, and Warranty

This fixture is UL 844 listed for hazardous locations, including Class I Division 2, Class II Division 1 and 2, and Class III.

It is UL 1598 rated for wet locations and UL 1598A Marine Outside Type. The fixture carries ABS certification.

The product carries ETL and DLC Premium listings. It is rebate eligible where applicable.

LED Lighting Supply provides a 5 year warranty on this fixture.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates at 120V only.

What is the lumen output and wattage?
The fixture delivers 15,000 lumens at 150 watts.

What environmental ratings does this fixture have?
This fixture is rated IP66 for dust and water resistance and IK10 for impact resistance. It is suitable for wet locations and marine outside type environments.

What mounting options are available?
Mounting options include yoke or 3/4 inch NPT pendant.

What certifications does this fixture carry?
This fixture is UL 844, UL 1598, UL 1598A, ABS, ETL, and DLC Premium listed.

What is the warranty period?
LED Lighting Supply provides a 5 year warranty.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
