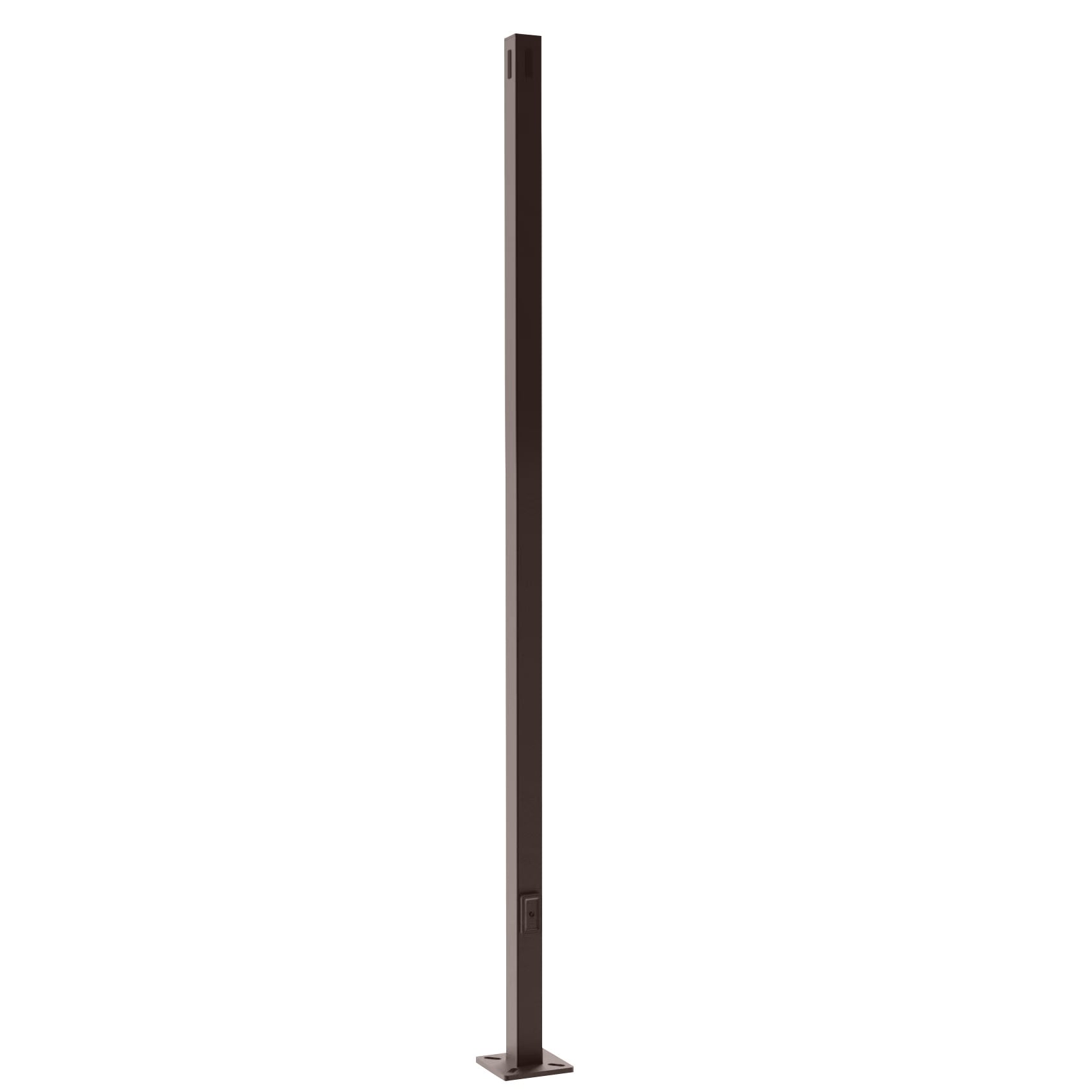

15 Foot Square Steel Light Pole | 4 Inches Wide | Anchor Base | Bronze
This 15 foot, 4 inch wide steel light pole is a solid choice for outdoor lighting projects requiring reliable structural support and straightforward installation. Its 11 gauge steel construction and 130 pound weight provide durability, while the anchor base design and 8-11 inch bolt circle simplify mounting on concrete pads. The pole's EPA ratings up to 120 mph make it suitable for areas exposed to high winds, and the included top cap helps protect against weather ingress. This pole is well-suited for parking lots, outdoor walkways, and general site lighting where strength and ease of installation are priorities.
Cory Peterson | Director of Sales and Marketing
Out of stock
Product Description
Key Features
- Total Height (ft): 15
- Material: Steel
- Pole Weight (lbs): 130
- Pole Width (in): 4
- Pole Bolt Circle (in): 8-11
- Pole Color: Bronze
- Pole Gauge: 11
- Bolt Projection (in): 3.75
- Pole Installation: Anchor Base
- Warranty: 1 year
- EPA at 90 mph: 12.5
- EPA at 100 mph: 9.75
- EPA at 110 mph: 7.75
- EPA at 120 mph: 6.2
Anchor bolts, base covers, top covers, tenons and bullhorns sold sepratley.
Disclaimer: LED Lighting Supply is not responsible for improper loading of light fixtures or other attachments, use, or foundation design of light poles. Final pole assembly is the responsibility of the purchaser. Dimensions and specifications of a 15 foot steel square light pole are subject to change without notice. See the data sheet for current pole data charts. Custom sizing is only available for large order quantities.
Please be advised that our steel poles are covered solely by a 1-year workmanship warranty, which ensures that the poles are free from defects from the manufacturing process, such as welds and structural integrity, for a period of one year from the date of purchase. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Web ID: 2732
Product Overview
This 15 foot square steel light pole is designed for outdoor area lighting applications where structural integrity and long-term durability are required. The pole is fabricated from 11 gauge steel, finished in bronze, and measures 4 inches wide. It weighs 130 pounds and is engineered for anchor base installation. The pole includes a top cap and is EPA rated for wind loads up to 120 mph. Anchor bolts, base covers, tenons, and bullhorns are not included and must be sourced separately.
The 8 to 11 inch bolt circle accommodates a range of standard anchor base mounting patterns. The pole is intended for use with area lights, flood lights, and sports lighting fixtures where a 15 foot mounting height is specified. The bronze finish provides a neutral appearance that blends with most exterior environments.
Where This Product Fits Best
This steel light pole is used in outdoor environments that require elevated mounting for area and security lighting. Common installations include commercial parking lots, perimeter lighting for warehouses and distribution centers, and exterior lighting for manufacturing facilities. The pole is also used in sports and recreational areas where 15 foot mounting heights are specified for courts or field perimeters.
- Parking lot and perimeter lighting for commercial properties
- Warehouse and distribution center exterior lighting
- Manufacturing facility site lighting
- Outdoor sports court and recreational area lighting
- General area lighting for campuses and municipal sites
The pole is specified for environments where wind loading, corrosion resistance, and structural stability are required. It is suited for locations exposed to weather, vehicle traffic, and public access. The anchor base design allows for secure installation on concrete foundations.
Performance and Functional Considerations
The 11 gauge steel construction provides strength for supporting area and flood lighting fixtures at a 15 foot mounting height. The pole is EPA rated for wind speeds up to 120 mph, supporting a range of fixture and bracket combinations within published EPA limits. The 4 inch width and 8-11 inch bolt circle are compatible with standard anchor base hardware.
The bronze finish offers resistance to weathering and blends with most exterior color schemes. The included top cap protects the pole interior from moisture and debris. The pole is designed for use with fixtures that require a square mounting interface or can be adapted with tenons or bullhorns as needed.
EPA ratings at 90, 100, 110, and 120 mph allow for site-specific engineering based on fixture size and local wind codes. The pole is not intended for use in coastal or highly corrosive environments without additional protective measures.
Weight and dimensions support manual handling with equipment during installation. The pole is not pre-drilled for fixture mounting, allowing for field adaptation as required.
Installation and Long-Term Use
This pole is installed using an anchor base system on a concrete foundation. The 8-11 inch bolt circle accommodates a range of standard anchor bolt patterns. Anchor bolts and base covers are not included and must be selected to match site requirements.
The 130 pound weight requires mechanical lifting or multiple personnel for safe handling. The pole is shipped with a top cap to prevent ingress of water and debris during storage and after installation. Field drilling may be required for fixture mounting or accessory installation.
Routine inspection of the anchor base, finish, and mounting hardware is recommended to ensure long-term structural integrity. The bronze finish provides basic corrosion resistance but should be monitored in environments with high exposure to de-icing chemicals or salt spray.
The pole is designed for permanent installation and is not intended for temporary or portable use. Maintenance access is limited to the exterior and base area.
How This Fixture Is Commonly Used
After installation, this pole provides a stable mounting point for area lights, flood lights, or sports lighting fixtures. The 15 foot height positions luminaires above vehicle and pedestrian traffic, supporting uniform light distribution and minimizing glare at ground level.
In parking lots and perimeter applications, the pole is used to mount fixtures that provide security and wayfinding illumination. For warehouse and manufacturing sites, it supports exterior lighting that enhances safety and operational visibility during night shifts or low-light conditions.
On sports courts and recreational areas, the pole is used to mount fixtures that deliver consistent lighting for play surfaces. The square profile allows for direct mounting of fixtures or adaptation with tenons and bullhorns for multi-fixture configurations.
Facility teams interact with the pole primarily during fixture maintenance, aiming, or replacement. The anchor base design allows for straightforward access to mounting hardware when required.
Safety, Certifications, and Warranty
This steel light pole is engineered for outdoor use and is EPA rated for wind loads up to 120 mph. The 11 gauge steel construction and anchor base design provide structural stability when installed according to standard practices. The pole includes a 1 year warranty from the date of installation.
All installation and maintenance activities should follow applicable safety standards for working at height and handling heavy materials. The pole is not certified for use in hazardous or classified locations.
Routine inspection of the anchor base, mounting hardware, and finish is recommended to maintain safety and performance over time.
Frequently Asked Questions
What mounting method does this pole use?
This pole uses an anchor base mounting system with an 8-11 inch bolt circle.
What is the maximum wind speed rating?
The pole is EPA rated for wind speeds up to 120 mph, with specific EPA values at 90, 100, 110, and 120 mph.
What is the pole made of?
The pole is constructed from 11 gauge steel and finished in bronze.
Is this pole certified for hazardous locations?
No, this pole is not certified for hazardous or classified environments.
What is the warranty period?
The pole includes a 1 year warranty.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
