120 / 160 / 200 Watt Adjustable UFO High Bay | 19800 to 33000 Lumens | 4000K / 5000K | 100-277V | Clear Lens

Product Overview

This adjustable UFO high bay fixture provides selectable wattage settings of 120, 160, or 200 watts, delivering up to 33,000 lumens. It is available in 4000K or 5000K color temperatures and supports 1-10V dimming. The fixture uses a polycarbonate lens and an aluminum alloy housing, with a standard 120-degree beam angle. It is designed for use on 100-277V circuits and includes a motion sensor. The fixture is rated for 134,000 hours (L70) and is available in black or white finishes.

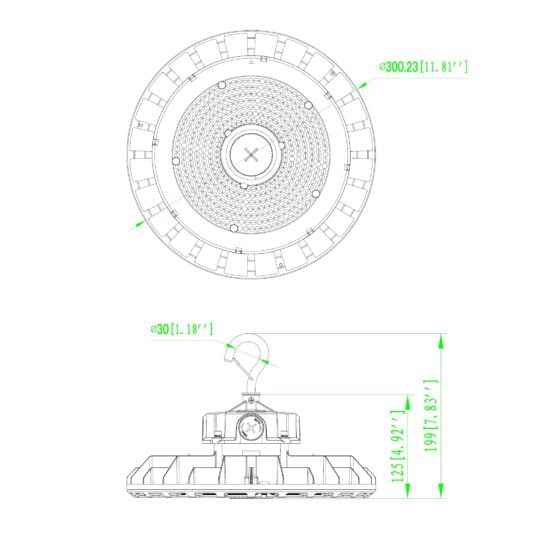

The fixture is IP65 and IK08 rated, with 6kV surge protection and an operating temperature range from -22°F to 122°F. Mounting options include hook (standard), pendant, or surface. The fixture measures 11.8 inches wide by 6.6 inches high and weighs 5.1 pounds. Cord length is 4 feet, with an 8-inch dimming cord.

Where This Product Fits Best

This fixture is installed in a range of commercial and industrial environments where high mounting heights and broad, uniform illumination are required. It is used in both new construction and retrofit projects across sports, manufacturing, warehousing, and specialized facilities. The fixture is commonly selected for indoor sports venues, large-scale storage, and production areas where durability and flexible output are necessary.

• Warehouse and distribution center lighting
• Industrial factory and manufacturing facility lighting
• Basketball court, pickleball court, and gymnasium lighting
• Ice rink, natatorium, and swimming pool lighting
• Horse arena, horse barn, and stable lighting
• Pole barn, agricultural building, and quonset hut lighting
• Hangar and military base lighting
• Convention center, event facility, and auditorium lighting
• Car dealership and commercial facility lighting

Environments where this fixture is used typically require resistance to dust and water, tolerance for wide temperature swings, and the ability to withstand impacts. These spaces often have high ceilings, open layouts, and demand for consistent, glare-controlled lighting. The fixture?s adjustable output and color temperature support adaptation to changing operational needs.

Performance and Functional Considerations

Selectable wattage and color temperature allow adjustment of light output and appearance to match specific site requirements. The fixture delivers up to 165 lumens per watt, supporting energy efficiency targets in large spaces. The 120-degree beam angle provides broad coverage, reducing the number of fixtures needed in open areas.

The polycarbonate lens and aluminum housing contribute to impact resistance and long-term durability. The fixture is rated for 134,000 hours (L70), minimizing maintenance intervals. 1-10V dimming is supported for integration with lighting controls or energy management systems.

IP65 and IK08 ratings allow installation in locations exposed to dust, moisture, and incidental contact. The fixture operates reliably in ambient temperatures from -22°F to 122°F. Surge protection is built in to address electrical disturbances common in industrial settings.

The motion sensor is integrated for occupancy-based control. Default sensor settings are provided, with remote adjustment available if required. The fixture is compatible with standard 100-277V electrical systems.

Installation and Long-Term Use

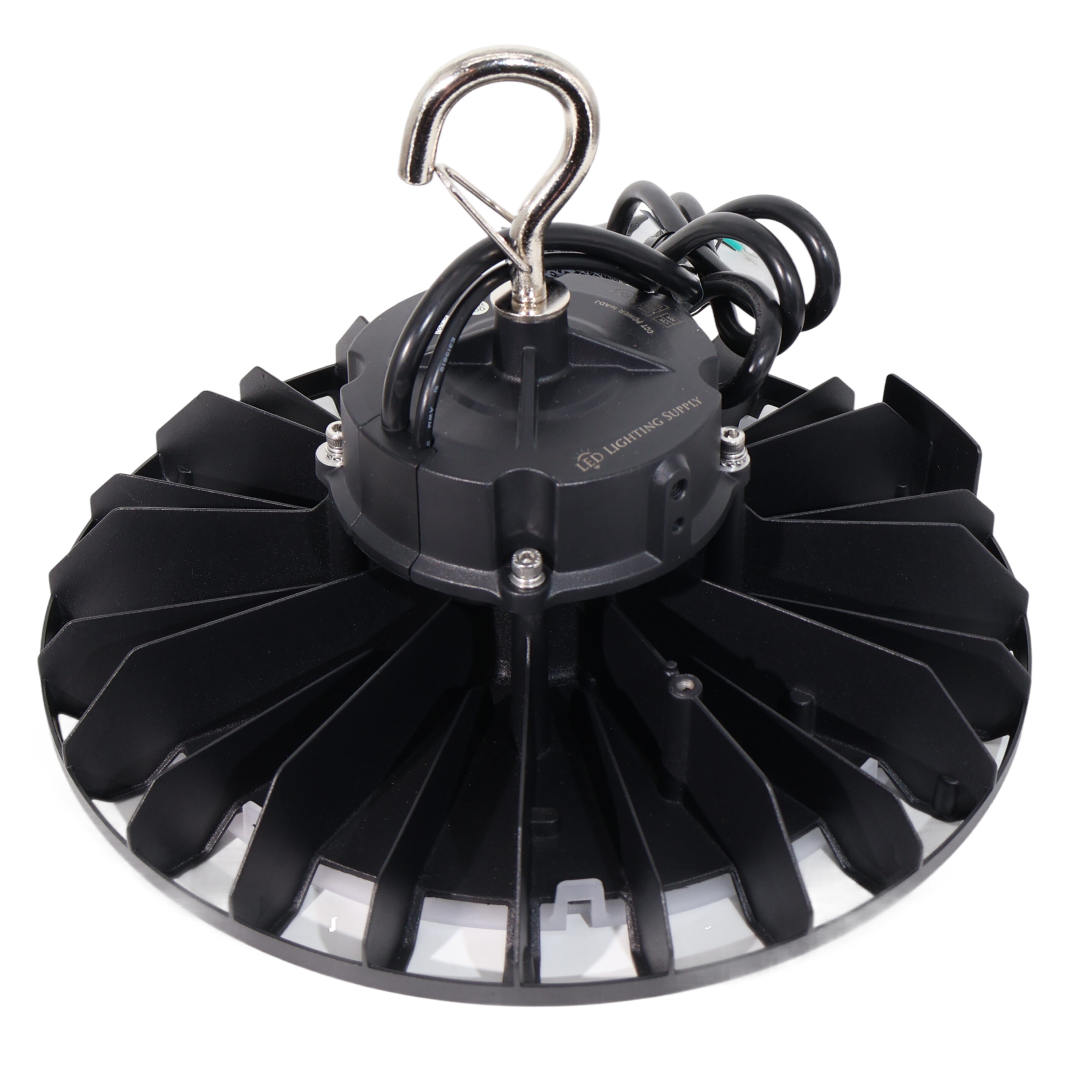

Standard hook mounting supports rapid installation on existing ceiling structures or trusses. Pendant and surface mounting options are available for alternate ceiling types or where additional security is needed. The fixture?s compact size and moderate weight simplify handling during installation.

A 4-foot cord is provided for connection to power, with an 8-inch dimming cord for control wiring. The fixture?s aluminum housing and polycarbonate lens are designed for environments where cleaning and maintenance access may be limited.

Routine inspection is recommended to ensure lens clarity and verify sensor operation. The fixture?s long rated life reduces the frequency of lamp changes and associated downtime. The IP65 rating allows for use in areas subject to washdown or high humidity.

Color and wattage adjustment can be performed prior to installation or during scheduled maintenance, supporting changes in facility layout or lighting requirements over time.

How This Fixture Is Commonly Used

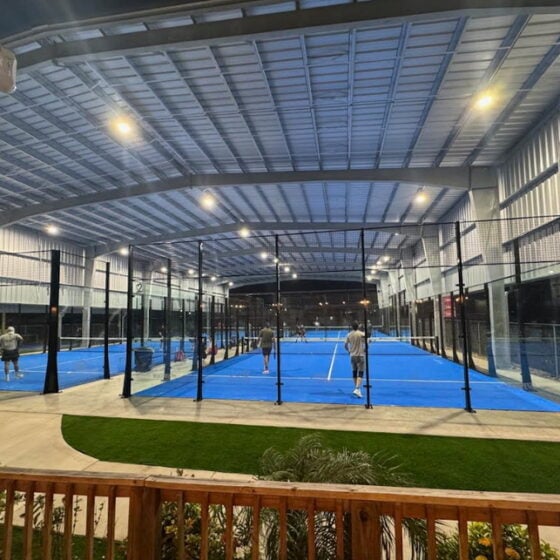

After installation, this fixture is typically set to the required wattage and color temperature based on the lighting needs of the space. In sports venues, it is used to provide uniform illumination across playing surfaces and seating areas, supporting visibility and safety during events.

In warehouses and manufacturing facilities, the fixture is positioned to minimize shadows and support safe movement of personnel and equipment. The broad beam angle helps reduce dark spots between racking or machinery.

The integrated motion sensor is used to reduce energy consumption in areas with intermittent occupancy, such as storage aisles or seldom-used zones. Dimming capability allows for integration with daylight harvesting or scheduled lighting controls.

In agricultural and specialty environments, the fixture?s resistance to dust and moisture supports reliable operation in barns, arenas, and similar spaces. The fixture is often adjusted or repositioned as facility layouts change.

Safety, Certifications, and Warranty

This fixture is ETL and DLC Premium certified. It is rated IP65 for dust and water ingress and IK08 for impact resistance. Surge protection is rated at 6kV.

The fixture is designed for safe operation in ambient temperatures from -22°F to 122°F. The polycarbonate lens and aluminum housing provide additional protection against accidental impact and environmental exposure.

A five-year warranty is provided. All certifications and ratings are stated as supplied by the manufacturer.

Routine safety checks should include inspection of mounting hardware, electrical connections, and sensor function as part of standard facility maintenance.

Frequently Asked Questions

What input voltage does this fixture support?

This fixture operates on 100-277V circuits.

What mounting options are available?

Standard hook mounting is included. Pendant and surface mounting options are available.

What certifications does this fixture carry?

This fixture is ETL and DLC Premium certified.

Can this fixture be used in wet or dusty environments?

The fixture is rated IP65 for dust and water resistance.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
