12 Foot HVLS Ceiling Fan | 8 Blades | 8,500 Square Foot Coverage | 48759 CFM

Product Overview

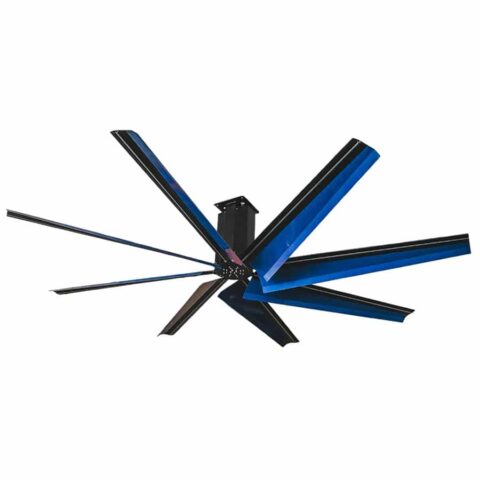

This is a 12 foot diameter HVLS ceiling fan with 8 aluminum blades and a maximum airflow of 48,759 CFM. The fan is designed for large, open commercial and industrial spaces up to 8,500 square feet.

It operates at a variable speed with a maximum RPM of 44 and produces less than 57 dBA at full speed. The fan is powered by a 0.5 HP gear drive motor and is compatible with 208V-240V, 110V-120V, and 460V-480V electrical systems in both single and three phase configurations.

The fan includes a NEMA 1 wall mounted VFD controller with safety disconnect, on/off toggle, and speed regulator. The total fan weight is 124 lbs.

Color options include brushed aluminum, black, blue, and white. Downrod extensions are available in 1 ft, 2 ft, 3 ft, and 6 ft lengths to accommodate different mounting heights.

Where This Product Fits Best

This 12 foot HVLS fan is suited for large, open areas where consistent air movement is needed across wide floor spaces. Typical environments include warehouses, manufacturing plants, distribution centers, airplane hangars, and gymnasiums.

It is designed for installation on I-beams, Z-purlins, or open joist structures. Minimum mounting height is 10 feet, with at least 3-4 feet of ceiling clearance and 2 feet of horizontal clearance required for safe operation.

The fan is appropriate for facilities seeking to improve air circulation, occupant comfort, and air stratification in high-ceiling spaces.

It is not intended for small rooms or spaces with significant obstructions near the fan sweep area.

Performance and Functional Considerations

The 8-blade aluminum design delivers high airflow at low rotational speeds, supporting even air distribution without excessive noise. Maximum sound output is below 57 dBA.

The wall-mounted VFD controller allows for variable speed adjustment to match changing conditions or occupancy levels. The controller includes a safety disconnect and on/off toggle for straightforward operation.

Electrical compatibility covers 208V-240V, 110V-120V, and 460V-480V systems, supporting both single and three phase power. Maximum current draw is 1.90 A at 208-240V 3P and 0.95 A at 460-480V 3P.

Coverage area is up to 8,500 square feet, with optimal performance in open-plan layouts free from significant airflow obstructions.

Installation and Long-Term Use

The fan can be mounted to I-beams, Z-purlins, or open joists using the appropriate hardware. Downrod extensions in multiple lengths allow for adjustment to the required mounting height and ceiling clearance.

Minimum mounting height is 10 feet, with a minimum of 3-4 feet of ceiling clearance and 2 feet of horizontal clearance from obstructions. The fan weighs 124 lbs and should be installed on structurally sound supports.

Safety features include a safety cable, hub clips, hub retainer, dual-method fastening for all joined components, and integrated sprinkler shut-off. These features are designed to support safe operation in commercial and industrial environments.

Routine inspection of mounting hardware and safety components is recommended to maintain long-term reliability.

How This Fixture Is Commonly Used

Once installed, the fan is operated using the wall-mounted VFD controller. You can adjust the speed to match seasonal needs or occupancy levels. The on/off toggle and safety disconnect are used for daily operation and maintenance access.

The fan?s low speed and high blade count provide consistent, gentle air movement across large areas without creating drafts or excessive noise. This supports occupant comfort and helps manage air stratification in high-ceiling spaces.

Color options allow the fan to blend with facility aesthetics or safety color schemes. Downrod length can be selected to position the fan at the optimal height for your ceiling and clearance requirements.

After installation, the fan requires minimal interaction beyond periodic speed adjustments and routine safety checks.

Safety, Certifications, and Warranty

Safety features include a safety cable, hub clips, hub retainer, dual-method fastening of all joined components, and integrated sprinkler shut-off.

The fan is supplied with a NEMA 1 rated wall-mounted VFD controller.

LED Lighting Supply provides a 5 year warranty on this fan.

Frequently Asked Questions

What voltages is this fan compatible with?
This fan supports 208V-240V, 110V-120V, and 460V-480V in both single and three phase configurations.

What is the maximum coverage area?
The fan is rated for up to 8,500 square feet of coverage.

What mounting options are available?
Mounting is supported on I-beams, Z-purlins, and open joists. Downrod extensions are available in 1 ft, 2 ft, 3 ft, and 6 ft lengths.

What is the warranty period?
LED Lighting Supply provides a 5 year warranty for this fan.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
