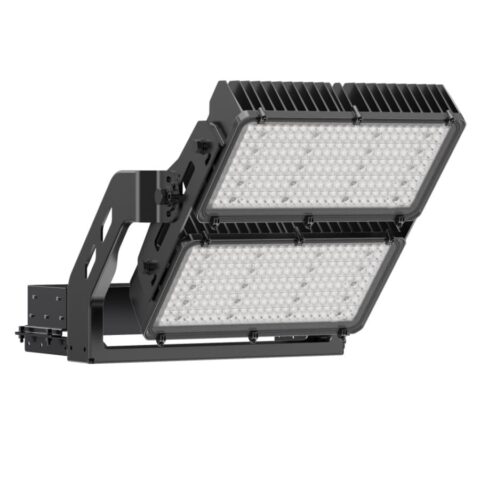

960 Watt LED Stadium Light | 144000 Lumens | 5700K | 100-277V | Optional Remote Driver

Product Overview

This 960 Watt LED stadium light delivers 144,000 lumens at 150 lumens per watt. It is designed to replace 1500 Watt metal halide fixtures in high-output sports and area lighting applications.

The fixture uses modular aluminum lighting sections that can be adjusted individually. It comes standard with a 1-10V dimmable driver and built-in 20kVA surge protection.

Standard configuration includes a 100-277V driver, 5700K color temperature, and a 60° beam angle. Optional configurations are available for high voltage (277-480V), alternative color temperatures (3000K, 4000K), and beam angles (10°, 30°, 45°, T3).

The trunnion-style mount supports bracket or remote driver installation. Visors and a precision aiming laser are available as options.

Where This Product Fits Best

This fixture is suited for outdoor sports venues, stadiums, and large area lighting where high lumen output and precise aiming are required. The modular design and multiple beam angle options allow for tailored light distribution in complex layouts.

It is appropriate for new installations or as a direct replacement for legacy 1500 Watt metal halide flood lights. The IP66 wet location rating and IK08 impact rating support use in exposed environments subject to weather and physical contact.

Facilities requiring high mounting heights, wide coverage, or focused beam control will benefit from the available beam angle and aiming options. The fixture can be used in both pole-mounted and structure-mounted applications.

Remote driver mounting supports installations where driver access or heat management is a concern, such as enclosed poles or high-access locations.

Performance and Functional Considerations

The fixture produces 144,000 lumens at 960 Watts, supporting high-visibility requirements for sports and large area lighting. The 1-10V dimmable driver allows for output adjustment to match site needs or event requirements.

Standard 5700K color temperature provides a daylight-white appearance. 3000K and 4000K options are available for sites requiring warmer or neutral white light.

Beam angle options (10°, 30°, 45°, T3, and 60° standard) allow for precise control of light spread, minimizing spill and optimizing coverage. The modular design enables individual aiming of each lighting section for targeted illumination.

Built-in 20kVA surge protection supports operation in areas with electrical instability or frequent storms. The fixture operates on 100-277V as standard, with a 277-480V driver available for high-voltage sites.

Installation and Long-Term Use

The trunnion mount supports secure attachment to poles, brackets, or structural members. The driver can be mounted directly on the fixture bracket or remotely on or inside the pole, depending on site requirements and access preferences.

IP66 wet location rating allows for installation in exposed outdoor environments, including direct rain and washdown conditions. IK08 impact rating supports use in areas with potential for physical contact or incidental impact.

Modular lighting sections can be adjusted individually during installation to achieve the desired aiming and coverage. Optional visors and aiming laser assist with precise alignment and glare control.

All components are designed for long-term outdoor use, with surge protection included to reduce risk of electrical damage over time.

How This Fixture Is Commonly Used

After installation, you can adjust each lighting module independently to fine-tune the direction and coverage. This is useful for targeting specific field zones or minimizing light spill into unwanted areas.

The 1-10V dimming capability allows you to control light output as needed for different events or operational requirements. This can be managed through compatible dimming systems already in place.

If you select a remote driver configuration, driver access for maintenance is simplified, especially for pole-mounted applications. The trunnion mount provides flexibility for aiming and securing the fixture during and after installation.

Optional visors and the aiming laser can be used to further refine light placement and reduce glare, supporting site-specific lighting goals and compliance with local requirements.

Safety, Certifications, and Warranty

This fixture is IP66 rated for wet locations. It can be used outdoors in direct rain and washdown environments.

The IK08 impact rating allows the fixture to tolerate incidental physical contact or impact without damage.

Built-in 20kVA surge protection is included for electrical safety in unstable power conditions.

LED Lighting Supply provides a warranty for this fixture. Contact us for warranty terms and coverage details.

Frequently Asked Questions

What voltage does this fixture support?
Standard configuration operates on 100-277V. A 277-480V driver is available as an option.

What is the lumen output and wattage?
This fixture delivers 144,000 lumens at 960 Watts.

What environmental ratings does this fixture carry?
The fixture is IP66 rated for wet locations and IK08 rated for impact resistance.

What mounting method is used?
The fixture uses a trunnion-style mount for attachment to poles or structures.

Is this fixture DLC or ETL listed?
No DLC or ETL listing is stated in the provided specifications.

What warranty is provided?
LED Lighting Supply provides a warranty for this fixture. Contact us for warranty details.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
