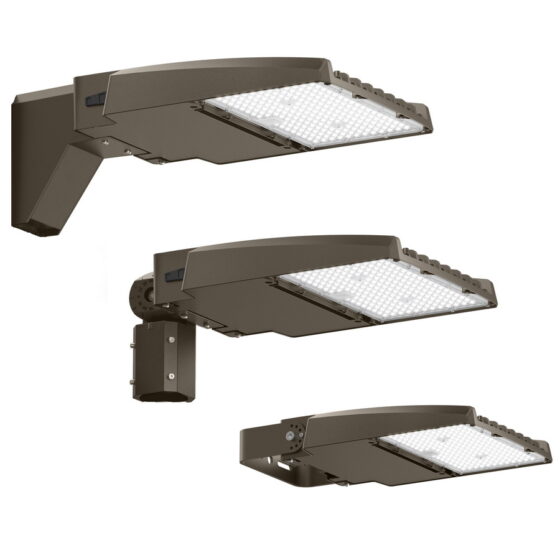

100 Watt LED Shoebox Area Light | 16000 Lumens | 5000K | 100V-277V
Out of stock
Dwayne Kula | President, CTO and Founder
Product Description
100 Watt shoebox - parking lot fixture produces 16000 lumens at 160 lumens / watt and has durable die-cast aluminum housing that is electrophoresis and powder coated with strong anti-corrosion performance for years of maintenance-free lighting.
Available in both Type 3 or Type 5 - perfect for parking lots. Optional photocell allows for further energy saving. It comes with a [Driver] dimmable driver at 100V-277V or 277V-480V Optional Voltage LED Driver, Color Temperature is: 4000K or 5000K. The fixture comes equipped with built-in 10 kVa surge protection. The fixture comes in a dark BRONZE finish.
This shoebox lighting can be pole, post, or wall mounted using the following brackets: Wall or Yoke or Arm or Slip Fitter. All brackets are sold separately. It is also IP65 Wet location rated, high impact rating of IK08, and can operate in temperatures ranging from -22°F to +113°F
Options
4000K Color Temperature (Special Order)
277-480V Driver (Special Order)
Product Overview
This 100 Watt LED shoebox area light delivers 16,000 lumens at 160 lumens per watt. It is built with a die-cast aluminum housing that is electrophoresis and powder coated for strong anti-corrosion performance.
The fixture is available in a 5000K color temperature, with 4000K available as a special order. It supports 100V-277V input as standard, with a 277V-480V driver available as a special order.
Type 3 and Type 5 optics are available for different distribution needs. The fixture includes a dimmable driver and built-in 10 kVa surge protection.
The housing is finished in dark bronze. An optional photocell is available for additional energy management.
Where This Product Fits Best
This fixture is designed for outdoor area lighting applications, including parking lots and general site lighting where pole, post, or wall mounting is required.
Type 3 and Type 5 distribution options allow for coverage flexibility depending on site layout and lighting requirements.
The IP65 wet location rating and IK08 impact rating make this fixture suitable for exposed environments where weather and physical contact are expected.
Operating temperature range of -22°F to +113°F supports use in a wide range of climates and outdoor conditions.
Performance and Functional Considerations
At 16,000 lumens, this fixture is suitable for replacing legacy HID area lights in the 250-400 watt range, depending on site requirements and mounting height.
The 160 lumens per watt efficacy supports energy reduction goals in retrofit or new construction projects.
Type 3 and Type 5 optics allow for selection based on desired light distribution pattern. Type 3 is typically used for roadway or perimeter lighting, while Type 5 provides a more uniform, circular distribution.
The built-in 10 kVa surge protection helps protect the fixture from voltage spikes common in outdoor electrical systems.
Installation and Long-Term Use
This fixture can be mounted to poles, posts, or walls using wall, yoke, arm, or slip fitter brackets. Brackets are not included and must be selected based on the mounting surface and application.
The die-cast aluminum housing and powder coated finish provide long-term resistance to corrosion and weathering in outdoor environments.
IP65 rating allows for installation in wet locations, including direct exposure to rain and snow. IK08 impact rating supports use in areas with potential for incidental contact or vandalism.
Maintenance requirements are minimal due to the sealed housing and solid-state LED design.
How This Fixture Is Commonly Used
Once installed, this fixture provides consistent area lighting for parking lots, drive lanes, and general outdoor spaces. The 5000K color temperature delivers a daylight-white appearance that supports visibility and security.
Type 3 or Type 5 optics determine how the light is distributed across the site. You can select the optic that matches your coverage needs before installation.
The dimmable driver allows for integration with compatible dimming controls if required. An optional photocell can be used to automate dusk-to-dawn operation based on ambient light levels.
Routine operation is hands-off, with no lamp changes or regular maintenance required under normal conditions.
Safety, Certifications, and Warranty
This fixture is IP65 rated for wet locations. It is rated IK08 for impact resistance.
Built-in 10 kVa surge protection is included as standard.
The fixture is covered by a 5-year warranty from LED Lighting Supply.
Contact LED Lighting Supply for documentation on additional certifications or listings if required for your project.
Frequently Asked Questions
What voltage does this fixture support?
Standard input is 100V-277V. A 277V-480V driver is available as a special order.
What mounting options are available?
This fixture can be mounted using wall, yoke, arm, or slip fitter brackets. Brackets are not included.
Is this fixture suitable for wet locations?
Yes, it is IP65 rated for wet location use.
What is the warranty period?
This fixture is covered by a 5-year warranty from LED Lighting Supply.
Does this fixture qualify for DLC rebates?
DLC qualification is not specified in the provided product specifications.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
