100 Watt LED Wall Pack | 13695 Lumens | 5000K | 100-277V | Forward Throw | Built-In Photocell

Product Overview

The 100 Watt LED Wall Pack is designed for outdoor applications, providing a robust and efficient lighting solution. With a forward throw beam pattern, this fixture is ideal for illuminating building exteriors and enhancing security. It features a built-in photocell for automatic dusk-to-dawn operation, making it suitable for various commercial and industrial environments.

This wall pack replaces traditional 400 Watt metal halide fixtures, offering significant energy savings and reduced maintenance costs. The heavy-duty die-cast aluminum housing and tempered glass lens ensure durability and longevity, even in harsh outdoor conditions. The fixture’s dark bronze finish provides excellent impact, corrosion, and UV resistance.

Core Performance and Output

Delivering 13,695 lumens at 100 watts, this LED wall pack achieves an efficiency of 137 lumens per watt. The 5000K color temperature provides a bright, daylight-like illumination, enhancing visibility and safety. The fixture operates within a voltage range of 100-277V, accommodating various electrical systems.

The 120-degree beam angle ensures wide coverage, making it suitable for large areas. However, excessive output may occur at low mounting heights, potentially leading to glare. The fixture is best utilized at appropriate heights to maintain uniformity and minimize light spill.

Adjustability and Control Options

This LED wall pack includes a built-in photocell, enabling automatic on/off functionality based on ambient light levels. This feature enhances energy efficiency by ensuring the fixture operates only when necessary. While the fixture does not support dimming, the photocell provides a level of control suitable for most exterior applications.

The fixture’s design allows for straightforward installation and maintenance, with a removable hinge door and multiple points of entry. This facilitates easy access for wiring and adjustments, reducing installation time and complexity.

Longevity and Reliability

With a rated lifespan of 50,000 hours, this LED wall pack offers long-term reliability and reduced maintenance requirements. The robust construction and high-quality components ensure consistent performance over time, even in challenging outdoor environments.

The fixture’s IP65 rating guarantees protection against dust and water ingress, making it suitable for various weather conditions. Operating temperatures range from -40°F to 122°F, ensuring reliable performance in both extreme cold and heat.

Build Quality and Physical Characteristics

The fixture’s die-cast aluminum housing provides excellent structural integrity and resistance to environmental stressors. The tempered glass lens ensures durability and impact resistance, while the dark bronze polyester powder finish enhances corrosion and UV resistance.

Measuring 13.1 inches in length, 9.5 inches in width, and 7.5 inches in height, the fixture is compact yet powerful. The 1/2-inch threaded conduit entry with a coin plug allows for flexible installation options, accommodating various mounting configurations.

Where This Product Fits Best

This LED wall pack is designed for outdoor environments where reliable and efficient lighting is essential. It is particularly well-suited for:

• security lighting
• building facade lighting
• building exterior lighting
• commercial exterior wall lighting
• perimeter lighting
• entry lighting

The fixture’s robust construction and IP65 rating make it ideal for areas exposed to the elements, ensuring consistent performance in various weather conditions.

Installation and Long-Term Use

Installation is straightforward, thanks to the fixture’s removable hinge door and multiple points of entry. The 1/2-inch threaded conduit entry with a coin plug allows for flexible wiring options, accommodating different installation scenarios.

For optimal performance, the fixture should be mounted at appropriate heights to ensure uniform light distribution and minimize glare. Regular maintenance is minimal, primarily involving periodic cleaning of the lens to maintain light output.

How This Fixture Is Commonly Used

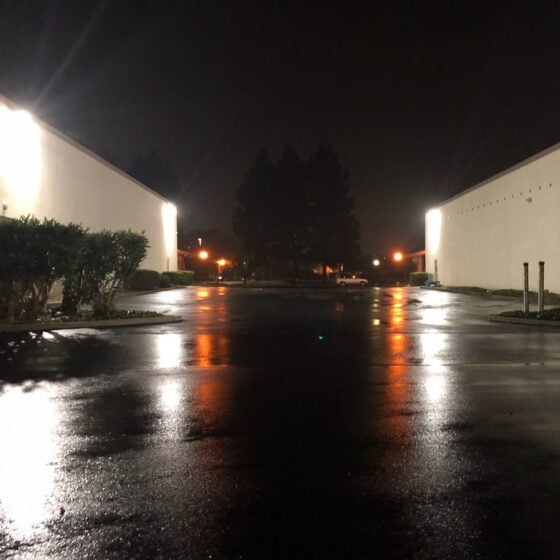

This LED wall pack is typically mounted on building exteriors at heights that maximize its forward throw beam pattern. Commonly used in security and perimeter lighting applications, it provides wide coverage and enhances safety.

Spacing and layout patterns depend on the specific lighting requirements and site conditions. While higher output reduces the number of fixtures needed, careful consideration of mounting height and spacing is necessary to avoid excessive glare.

Safety, Certifications, and Warranty

The 100 Watt LED Wall Pack is UL Listed, ensuring compliance with safety standards. It is also rebate eligible, providing potential cost savings through energy efficiency programs. The fixture comes with a 5-year warranty, offering peace of mind and protection against defects.

Its IP65 rating confirms its suitability for outdoor use, providing protection against dust and water ingress. The fixture’s robust construction and high-quality components contribute to its reliability and long-term performance.

Frequently Asked Questions

Q: What is the beam angle of this LED wall pack

A: The beam angle is 120 degrees, providing wide coverage for outdoor applications.

Q: Does this fixture support dimming

A: No, this fixture does not support dimming. It includes a built-in photocell for automatic on/off control.

Q: What is the operating temperature range for this fixture

A: The operating temperature range is -40°F to 122°F, ensuring reliable performance in various climates.

Q: How does the built-in photocell work

A: The photocell automatically turns the fixture on at dusk and off at dawn, enhancing energy efficiency.

Q: What is the recommended mounting height for this fixture

A: The recommended mounting height varies based on the specific application and desired light distribution. It is important to consider site conditions to minimize glare and ensure uniformity.

Application Questions and Clarification

Q: Can this fixture be used for perimeter lighting

A: Yes, this fixture is suitable for perimeter lighting, providing wide coverage and enhancing security.

Q: Is this wall pack suitable for entry lighting

A: Yes, it is well-suited for entry lighting, offering reliable illumination for building entrances.

Q: What are the primary applications for this LED wall pack

A: Primary applications include security lighting, building facade lighting, and commercial exterior wall lighting.

Q: Can this fixture be used in service area lighting

A: Yes, it is suitable for service area lighting, providing efficient and reliable illumination.
