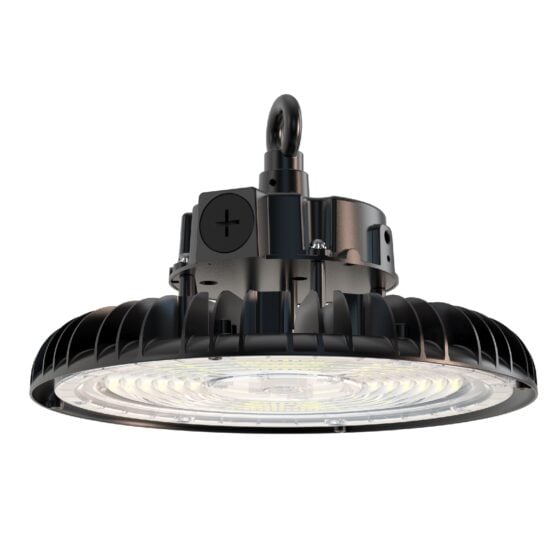

100 / 150 / 200 Watt Adjustable UFO High Bay | 16500 to 33000 Lumens | 3000K / 4000K / 5000K Adjustable | 277-480V
The 100 | 150 | 200 wattage adjustable and 3000K | 4000K | 5000K color adjustable UFO high bay provides reliable indoor lighting, delivering 33,000 lumens with an efficiency of 165 lumens per watt. This fixture is designed for durability and versatility for various commercial and industrial applications.
Neil Peterson | CEO and Chief Lighting Specialist
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 | 150 | 200 |
| Lumens | 16500 | 25500 | 33000 |
| Lumens Per Watt | 165 |
| Replaces | 400 or 1000 Watt Metal Halide |
| Voltage | 277V-480V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 90° |
| Optics | Polycarbonate Lens |
| Lifespan | 100,000 (L70) hours |
| Mounting | Eye-Hook |
| Mounting (Opt) | Pendant or Surface |
| Fixture Color | Black |
| Frequency (Hz) | 50 / 60 hz |
| Power Factor | .95 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP69K |
| IK Rating | IK08 |
| Surge Protection | 6kV |
| Operating Temperature | -31°F to 131°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 11 X 6.9 Inches |
| Weight (lbs) | 5 lbs |
| Cord Length | 4 Feet |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
IES Files
Product Description
Key Features
- Brand: LED Lighting Supply
- Watts: 100 | 150 | 200
- Lumens: 16500 | 25500 | 33000
- Lumens Per Watt: 165
- Replaces: 400 or 1000 Watt Metal Halide
- Voltage: 277V-480V
- Color Temperature: 3000K or 4000K or 5000K
- CRI: 80+
- Dimming: 0-10V
- Beam Angles (Std): 90°
- Optics: Polycarbonate Lens
- Lifespan: 100,000 (L70) hours
- Mounting: Eye-Hook
- Mounting (Opt): Pendant or Surface
- Fixture Color: Black
- Frequency (Hz): 50 / 60 hz
- Power Factor: .95
Durable Construction
- Housing: Die-Cast Aluminum
- IP Rating: IP69K
- IK Rating: IK08
- Surge Protection: 6kV
- Operating Temperature: -31°F to 131°F
- Certifications: UL | Rebate Eligible
- Warranty: 5 years
Measurements
- Dimensions (in): 11 X 6.9 Inches
- Weight (lbs): 5 lbs
- Cord Length: 4 Feet
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room light use factor to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room Light Use Factor: Suggested starting points: open warehouse 0.85–0.90, clean light-colored space 0.75–0.85, typical warehouse 0.65–0.75, racked or obstructed space 0.50–0.65, dark or complex space 0.40–0.55.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room light use factor, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This UFO high bay fixture offers field-adjustable wattage settings of 100, 150, or 200 watts, delivering lumen outputs from 16,500 to 33,000. Color temperature can be set to 3000K, 4000K, or 5000K as needed for the application.
The fixture operates on 277-480V input and supports 0-10V dimming. It is designed to replace 400 or 1000 watt metal halide systems in commercial and industrial environments.
Standard beam angle is 90 degrees with a polycarbonate lens. The fixture uses a die-cast aluminum housing and is finished in black.
Dimensions are 11 by 6.9 inches, with a weight of 5 lbs and a 4-foot cord. Mounting options include eye-hook (standard), pendant, or surface mount.
Where This Product Fits Best
This fixture is suitable for high bay applications in warehouses, manufacturing plants, distribution centers, and similar facilities requiring high-output lighting.
It is designed for use in areas with 277-480V power supply and where adjustable output and color temperature are needed to match existing lighting or specific visual tasks.
The fixture is appropriate for environments where durability and resistance to dust, water, and impact are required.
It can be used in locations with ambient temperatures ranging from -31°F to 131°F.
Performance and Functional Considerations
The fixture provides up to 165 lumens per watt, supporting energy-efficient operation at all wattage settings. The 0-10V dimming capability allows for integration with compatible dimming controls.
Color temperature and wattage can be adjusted on-site to meet changing requirements or to standardize lighting across different areas.
The IP69K rating allows the fixture to withstand high-pressure, high-temperature washdowns and protects against dust ingress. The IK08 rating provides resistance to moderate impacts.
Surge protection is rated at 6kV. The fixture is designed for a service life of 100,000 hours (L70).
Installation and Long-Term Use
Standard mounting is via eye-hook, with pendant and surface mounting options available. The fixture weighs 5 lbs and includes a 4-foot cord for electrical connection.
The die-cast aluminum housing and polycarbonate lens are built for durability in demanding environments. The fixture can be installed in areas subject to frequent cleaning or exposure to water and dust.
Operating temperature range supports installation in both cold storage and high-heat industrial spaces. The fixture is designed for minimal maintenance over its rated lifespan.
Wattage and color temperature adjustments can be made during installation or as needed during operation, without replacing the fixture.
How This Fixture Is Commonly Used
After installation, you can set the wattage and color temperature to match the lighting requirements of the space. This allows for on-site adjustment if lighting needs change or if you want to standardize output across different areas.
The fixture supports 0-10V dimming, so you can connect it to compatible dimming systems for further control over light levels. The 90-degree beam angle provides focused illumination for high bay applications.
The housing and lens are designed to handle regular washdowns and impacts, so the fixture can be cleaned or maintained as part of routine facility operations without concern for water or dust ingress.
A motion sensor is available for use with this fixture, allowing for occupancy-based control if desired.
Safety, Certifications, and Warranty
This fixture is UL listed.
The product is rebate eligible.
IP69K rating allows use in environments with high-pressure, high-temperature washdowns and complete dust protection.
IK08 rating provides resistance to moderate impacts. The fixture carries a 5-year warranty from LED Lighting Supply.
Frequently Asked Questions
What voltage does this fixture support?
This fixture operates on 277-480V.
What is the output range?
The fixture provides 16,500 to 33,000 lumens, depending on the selected wattage.
What mounting options are available?
Standard mounting is eye-hook. Pendant and surface mounting options are also supported.
Is this fixture UL listed and rebate eligible?
This fixture is UL listed and rebate eligible.
What is the warranty period?
LED Lighting Supply provides a 5-year warranty for this fixture.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
