100 / 150 / 200 Watt Adjustable UFO High Bay | 16500 to 33000 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V

Product Overview

This UFO high bay fixture supports adjustable wattage settings of 100, 150, or 200 watts. Output ranges from 16,500 to 33,000 lumens, with a maximum efficacy of 165 lumens per watt.

Color temperature is field adjustable between 3000K, 4000K, and 5000K. The fixture operates on 100-277V input and supports 0-10V dimming. The standard beam angle is 90 degrees, delivered through a polycarbonate lens.

The fixture body is die-cast aluminum with a black finish. It measures 11.6 by 6.5 inches and weighs 3.8 pounds. The cord length is 4 feet.

Mounting options include eye-hook (standard), with pendant and surface mounting available. The fixture is UL listed and rebate eligible.

Where This Product Fits Best

This fixture is designed for commercial and industrial spaces requiring high-output, energy-efficient lighting. It is suitable for replacing 400 or 1000 watt metal halide high bays.

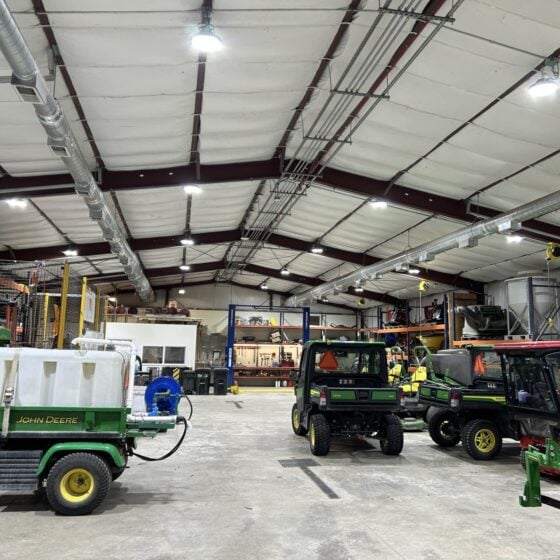

Common applications include warehouses, manufacturing areas, distribution centers, and gymnasiums. The adjustable wattage and color temperature allow adaptation to different ceiling heights and visual requirements.

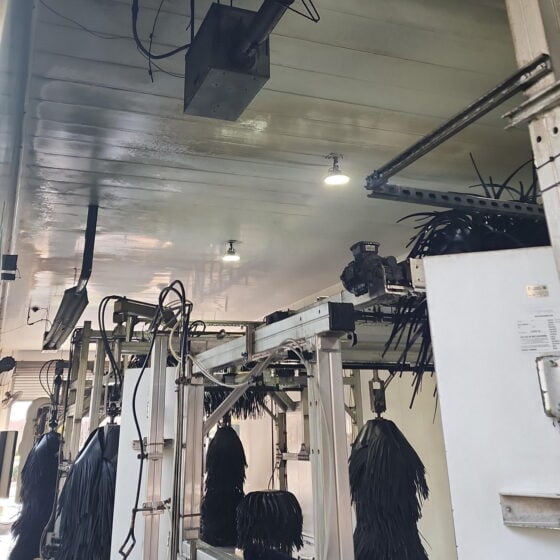

The fixture is rated for environments where washdown, dust, or moisture are present. The IP69K rating supports use in areas requiring high-pressure cleaning or exposure to water and particulates.

Operating temperature range is -31°F to 131°F, supporting use in both refrigerated and high-heat environments.

Performance and Functional Considerations

Wattage and color temperature can be set during installation to match site requirements. The fixture delivers consistent output across the adjustable range, with a CRI of 80+ for accurate color rendering.

The 90-degree beam angle provides focused illumination suitable for high bay mounting. The polycarbonate lens is impact resistant and supports uniform light distribution.

Power factor is .95, supporting efficient operation on 100-277V circuits at 50 or 60 Hz. Surge protection is rated at 6kV.

The fixture is rated for 100,000 hours (L70), supporting long-term use with minimal maintenance.

Installation and Long-Term Use

Standard mounting is by eye-hook. Pendant and surface mounting options are available for alternate installation requirements. The fixture?s compact size and 3.8 lb weight allow for single-person handling during installation.

The 4-foot cord provides flexibility for connection to overhead power. The fixture supports 0-10V dimming integration with compatible controls.

Die-cast aluminum housing and polycarbonate lens withstand impacts and harsh environments. The IK08 rating supports resistance to moderate mechanical impact.

IP69K rating allows for installation in areas subject to high-pressure washdown or heavy dust and moisture exposure. The fixture is suitable for both indoor and demanding industrial environments.

How This Fixture Is Commonly Used

After installation, you can set the wattage and color temperature to match the lighting needs of your space. These adjustments are made at the fixture and allow you to fine-tune output and appearance without changing equipment.

The fixture supports 0-10V dimming, so you can integrate it with existing dimming systems for energy management or occupant comfort. The motion sensor option allows for occupancy-based control if required by your application.

Routine cleaning and maintenance are simplified by the IP69K and IK08 ratings. The fixture can be washed down and will tolerate impacts typical in industrial settings.

Once installed, the fixture operates reliably across a wide temperature range and does not require frequent relamping or servicing due to its 100,000-hour rated life.

Safety, Certifications, and Warranty

This fixture is UL listed and rebate eligible.

IP69K rating allows for use in environments with high-pressure water and dust exposure. IK08 rating supports resistance to moderate impact.

Surge protection is rated at 6kV. The fixture is covered by a 5-year warranty from LED Lighting Supply.

Operating temperature range is -31°F to 131°F, supporting use in cold storage and high-heat areas.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100-277V input.

What is the output range?
Output is adjustable from 16,500 to 33,000 lumens, depending on the selected wattage.

What mounting methods are available?
Standard mounting is eye-hook. Pendant and surface mounting options are available.

Is this fixture UL listed and rebate eligible?
Yes, this fixture is UL listed and rebate eligible.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty on this fixture.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
