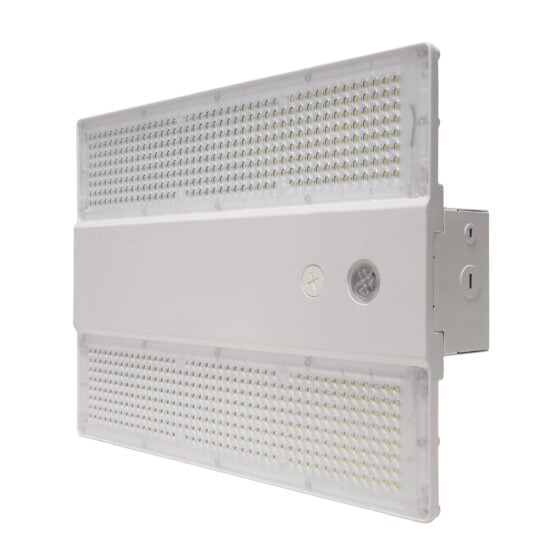

100 / 130 / 160 Watt Adjustable Linear LED High Bay | 15900 to 25500 Lumens | 3500K / 4000K / 5000K | 100-277V | 1 Foot 3 Inches | High Impact Rated

Product Overview

This adjustable linear LED high bay offers selectable wattage settings of 100, 130, or 160 watts, delivering between 15,900 and 25,500 lumens. The fixture supports color temperature adjustment between 3500K, 4000K, and 5000K. Output is rated at 159 lumens per watt with a CRI of 80+.

The fixture is designed to replace 250 or 400 watt metal halide systems. It operates on 100-277V input and supports 0-10V dimming. The standard beam angle is 90 degrees. The housing is die-cast aluminum and finished in white.

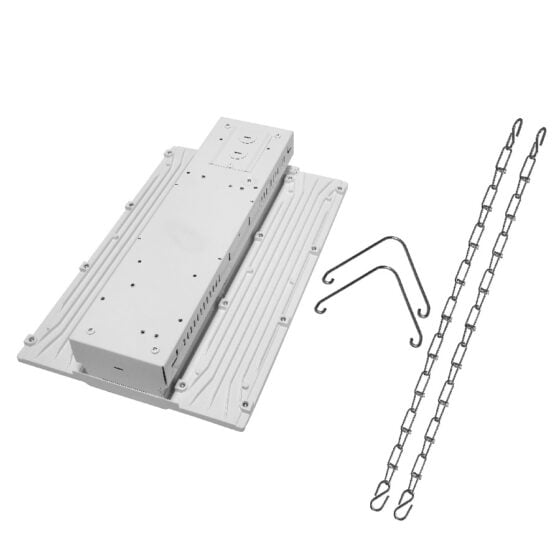

Dimensions are 14.9 by 9.8 by 2.9 inches, with a total weight of 5 pounds. The fixture is supplied without a cord. Mounting options include chain-cable as standard, with pendant and surface mounting available as alternatives.

Rated lifespan is 170,000 hours (L70). The fixture includes a motion sensor and supports both wattage and color adjustability. Surge protection is rated at 6kV.

Where This Product Fits Best

This fixture is suitable for commercial and industrial spaces requiring high bay lighting, such as warehouses, manufacturing areas, and distribution centers. It is designed for environments where impact resistance and long operational life are priorities.

The selectable wattage and color temperature allow adaptation to changing lighting requirements or retrofit scenarios. The fixture is appropriate for locations with 100-277V electrical infrastructure.

Operating temperature range is -40°F to 122°F, supporting use in both cold storage and high-heat environments. The IK10 rating allows installation in areas where fixtures may be subject to high impact.

Chain-cable mounting is standard, with pendant and surface mounting options for spaces with different ceiling structures or installation preferences.

Performance and Functional Considerations

The fixture provides three selectable wattage levels, allowing adjustment of light output to match application needs or energy targets. Lumen output ranges from 15,900 to 25,500, supporting replacement of 250 or 400 watt metal halide fixtures.

Color temperature can be set to 3500K, 4000K, or 5000K, providing flexibility for visual comfort or task requirements. The 0-10V dimming interface supports integration with compatible dimming controls.

The 90-degree beam angle delivers focused distribution suitable for high bay mounting heights. Power factor is rated at 0.90, with total harmonic distortion not exceeding 20%.

Surge protection is rated at 6kV, supporting operation in facilities with electrical disturbances. The fixture is designed for 50/60 Hz frequency environments.

Installation and Long-Term Use

The fixture weighs 5 pounds and measures 14.9 by 9.8 by 2.9 inches, allowing for manageable handling during installation. Chain-cable mounting is standard, with pendant and surface mounting options available for different ceiling types.

No cord is supplied, so field wiring is required. The die-cast aluminum housing provides durability and supports the IK10 impact rating.

Operating temperature range is -40°F to 122°F, allowing installation in both refrigerated and high-temperature environments. The fixture is rated for a 170,000 hour (L70) lifespan, supporting long-term use with minimal maintenance.

Motion sensor functionality is available for applications where occupancy-based control is required. Surge protection at 6kV supports reliability in areas with power fluctuations.

How This Fixture Is Commonly Used

After installation, you can set the wattage and color temperature to match the lighting needs of your space. Adjustments can be made during commissioning to fine-tune output and appearance for the area being illuminated.

The fixture supports 0-10V dimming, so you can connect it to compatible dimming systems for further control over light levels. The 90-degree beam angle provides focused coverage, reducing spill and directing light where it is needed.

The IK10 rating means the fixture can withstand high impacts, so it is suitable for areas where equipment or materials may come into contact with lighting. The die-cast aluminum housing holds up well in demanding environments.

With the motion sensor, occupancy-based lighting control is available for energy management or safety requirements. The fixture is designed for minimal maintenance over its rated lifespan.

Safety, Certifications, and Warranty

This fixture is UL listed. It is rebate eligible.

The housing is rated IK10, allowing it to withstand high impact in industrial environments. Surge protection is rated at 6kV.

Operating temperature range is -40°F to 122°F. The fixture carries a 5-year warranty from LED Lighting Supply.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100-277V.

What is the output range?
Output is selectable between 15,900 and 25,500 lumens, depending on wattage setting.

What mounting options are available?
Chain-cable mounting is standard. Pendant and surface mounting options are available.

Is this fixture UL listed?
Yes, this fixture is UL listed.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty.

Is this fixture eligible for rebates?
Yes, this fixture is rebate eligible.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
