100 / 130 / 160 Watt Adjustable Linear LED High Bay | 16400 to 26240 Lumens | 3500K / 4000K / 5000K Adjustable | 100-277V | Optional Motion Sensor | 1 Foot 7 Inches
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 | 130 | 160 |
| Lumens | 16400 | 21320 | 26240 |
| Lumens Per Watt | 164 |
| Replaces | 250 or 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 90° |
| Beam Angles (Alt) | 90° |
| Lifespan | 170,000 (L70) hours |
| Mounting | Pendant or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50 / 60 hz |
| Power Factor | .90 |
| THD | 20% Max |
Durable Construction
| Housing | Aluminum Alloy |
| IP Rating | IP20 |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | Rebate Eligible |
Measurements
| Dimensions (in) | 19.7 x 11.8 x 2 in |
| Weight (lbs) | 4 lbs |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Emergency Backup Battery
- Motion Sensor
Product Description
Key Features
- Brand: LED Lighting Supply
- Watts: 100 | 130 | 160
- Lumens: 16400 | 21320 | 26240
- Lumens Per Watt: 164
- Replaces: 250 or 400 Watt Metal Halide
- Voltage: 100V-277V
- Color Temperature: 3500K or 4000K or 5000K
- CRI: 80+
- Dimming: 0-10V
- Beam Angles (Std): 90°
- Beam Angles (Alt): 90°
- Lifespan: 170,000 (L70) hours
- Mounting: Pendant or Surface
- Fixture Color: White
- Frequency (Hz): 50 / 60 hz
- Power Factor: .90
- THD: 20% Max
Durable Construction
- Housing: Aluminum Alloy
- IP Rating: IP20
- Surge Protection: 6kV
- Operating Temperature: -40°F to 122°F
- Certifications: UL | Rebate Eligible
Measurements
- Dimensions (in): 19.7 x 11.8 x 2 in
- Weight (lbs): 4 lbs
- Cord Length: No Cord
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Emergency Backup Battery
- Motion Sensor

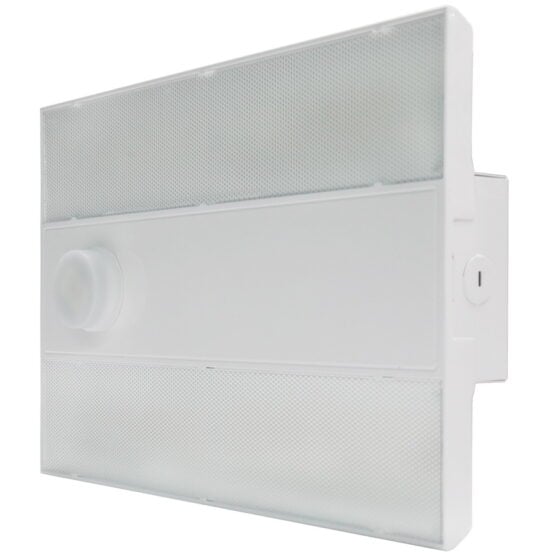

Optional Motion Sensor is also available
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room light use factor to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room Light Use Factor: Suggested starting points: open warehouse 0.85–0.90, clean light-colored space 0.75–0.85, typical warehouse 0.65–0.75, racked or obstructed space 0.50–0.65, dark or complex space 0.40–0.55.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room light use factor, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

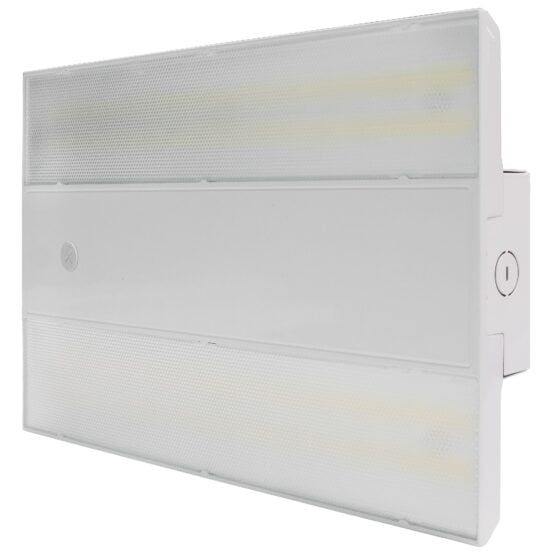

This is a linear LED high bay fixture with selectable wattage settings of 100, 130, or 160 watts. Output ranges from 16,400 to 26,240 lumens, with a maximum efficacy of 164 lumens per watt.
The fixture supports color temperature adjustment between 3500K, 4000K, and 5000K. It operates on 100-277V input and is compatible with 50 or 60 Hz power systems.
Standard beam angle is 90 degrees. The fixture is designed to replace 250 or 400 watt metal halide systems in commercial and industrial environments.
Housing is constructed from aluminum alloy and finished in white. The fixture measures 19.7 by 11.8 by 2 inches and weighs 4 pounds.
Where This Product Fits Best
This fixture is suitable for indoor environments where moderate to high mounting heights are required, such as warehouses, manufacturing areas, and distribution centers.
It is intended for use in locations where legacy 250 or 400 watt metal halide high bays are being replaced or upgraded to LED.
The IP20 rating limits use to dry, indoor spaces without exposure to dust or moisture. The fixture is not intended for wet or damp locations.
Selectable wattage and color temperature allow adaptation to changing lighting needs or site-specific requirements within the supported range.
Performance and Functional Considerations
The fixture offers three selectable wattage settings, allowing adjustment of light output to match the application. Maximum output is 26,240 lumens at 160 watts.
Color temperature can be set to 3500K, 4000K, or 5000K, supporting a range of visual environments from neutral to cool white.
0-10V dimming is supported for integration with compatible dimming controls. Power factor is 0.90, and total harmonic distortion is 20% max.
Operating temperature range is -40°F to 122°F. Surge protection is rated at 6kV. The fixture is rated for 170,000 hours (L70).
Installation and Long-Term Use

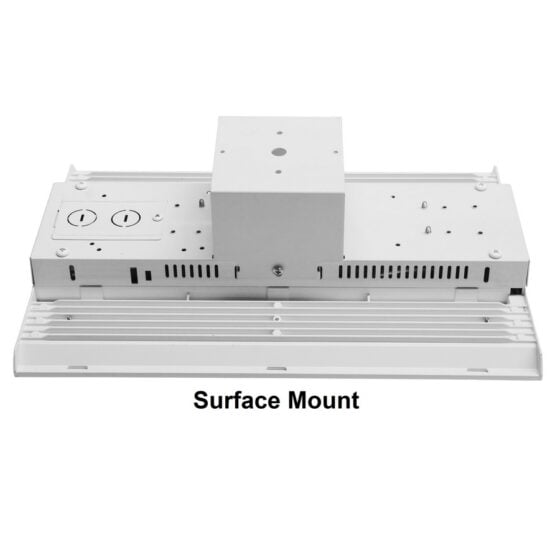

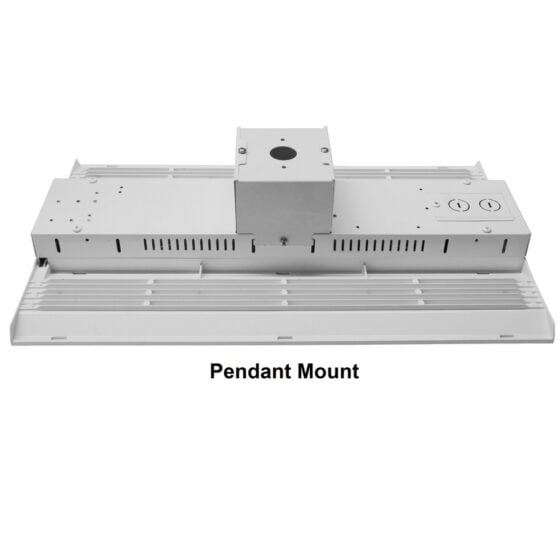

Mounting options include chain-cable (standard), pendant, or surface installation. No cord is supplied with the fixture.
The aluminum alloy housing provides durability for typical commercial and industrial environments. The fixture weighs 4 pounds, which supports straightforward handling during installation.
IP20 rating restricts use to indoor, dry locations. The fixture is not designed for areas with water exposure or high levels of airborne particulates.

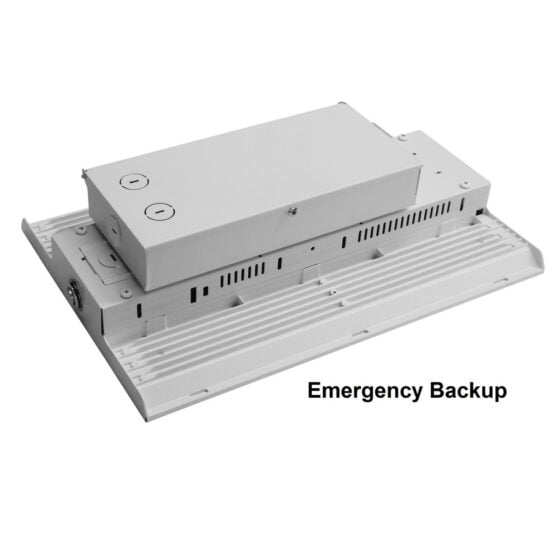

Long service life and surge protection reduce maintenance requirements over time. Emergency backup battery and motion sensor options are available for specific operational needs.
How This Fixture Is Commonly Used
After installation, you can adjust the wattage and color temperature settings to match the lighting requirements of your space. This allows you to fine-tune light levels and color appearance without changing fixtures.
The fixture supports 0-10V dimming, so you can connect it to compatible dimming systems for further control over light output during daily operation.
Chain-cable, pendant, or surface mounting options allow you to select the most practical installation method for your ceiling structure or layout.
If a motion sensor or emergency backup battery is installed, these features can be used to support energy management or safety protocols as needed.
Safety, Certifications, and Warranty
This fixture is UL listed.
It is rebate eligible.
Surge protection is rated at 6kV. The fixture is designed for safe operation in indoor, dry environments within the specified temperature range.
Warranty coverage is provided by LED Lighting Supply.
Frequently Asked Questions
What voltage does this fixture support?
This fixture operates on 100-277V input.
What is the output range?
Output ranges from 16,400 to 26,240 lumens, depending on the selected wattage.
What environments is this fixture rated for?
This fixture is rated IP20 and is suitable for indoor, dry locations only.
What mounting methods are supported?
Chain-cable (standard), pendant, and surface mounting options are available.
Is this fixture UL listed?
Yes, this fixture is UL listed.
Is this fixture eligible for rebates?
Yes, this fixture is rebate eligible.
What warranty is provided?
Warranty coverage is provided by LED Lighting Supply.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
