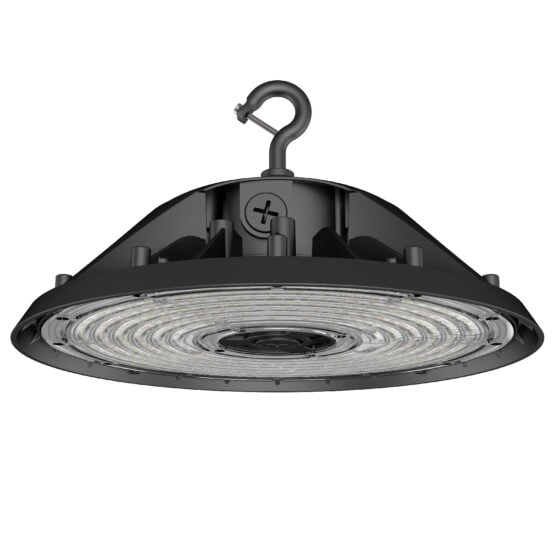

100 / 120 / 150 Watt Adjustable LED UFO High Bay | 15000 to 22500 Lumens | 4000K / 5000K Adjustable | 100-277V

Product Overview

This LED UFO high bay offers selectable wattage settings of 100, 120, or 150 watts, delivering lumen outputs from 15,000 to 22,500. The fixture supports both 4000K and 5000K color temperatures, adjustable on site.

It is designed to replace 250 or 400 watt metal halide fixtures. The fixture operates on 100-277V and supports 0-10V dimming. The standard beam angle is 120 degrees, with a polycarbonate lens and die-cast aluminum housing.

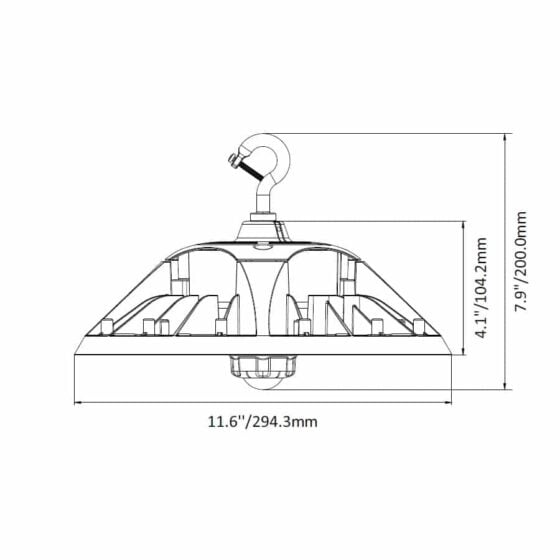

The fixture is rated for 50,000 hours (L70) and includes a 5-foot power cord and an 8-inch dimming cord. The fixture color is black, and the unit weighs 4.5 lbs with dimensions of 11.6 by 8 inches.

Mounting options include hook (standard) and surface mounting. The fixture includes surge protection rated at 4kV and is equipped with a motion sensor.

Where This Product Fits Best

This fixture is suited for commercial and industrial spaces requiring high bay lighting, such as warehouses, manufacturing areas, and distribution centers. It is appropriate for locations where legacy 250 or 400 watt metal halide fixtures are being replaced.

The adjustable wattage and color temperature allow for on-site tuning to match existing lighting or to meet specific visual requirements. The fixture can be used in environments where flexibility in output and color is needed.

With an IP65 rating, the fixture can be installed in areas exposed to dust and water jets. The IK10 rating allows use in locations where fixtures may be subject to impact.

Operating temperature range of -40°F to 113°F supports use in both cold storage and high-heat environments within the specified limits.

Performance and Functional Considerations

The fixture delivers 150 lumens per watt, supporting energy-efficient operation. The 0-10V dimming capability allows for integration with compatible dimming controls.

Power factor is rated at 0.90, and total harmonic distortion is 20% maximum. The fixture operates at 50 or 60 Hz, supporting a range of electrical environments.

Surge protection is rated at 4kV, providing resilience against electrical disturbances within the specified range. The polycarbonate lens and die-cast aluminum housing contribute to durability in demanding settings.

The fixture supports both hook and surface mounting, allowing adaptation to different ceiling structures and installation preferences.

Installation and Long-Term Use

The fixture is designed for straightforward installation using the included hook mount, with an option for surface mounting if required. The 5-foot power cord provides flexibility for connection to overhead power sources.

The fixture weight of 4.5 lbs and compact dimensions allow for single-person handling during installation. The 8-inch dimming cord supports integration with 0-10V dimming systems.

With an IP65 rating, the fixture can be cleaned with low-pressure water jets and is protected against dust ingress. The IK10 rating allows the fixture to withstand impacts from incidental contact or equipment movement.

The rated lifespan of 50,000 hours (L70) supports long-term use with minimal maintenance requirements under normal operating conditions.

How This Fixture Is Commonly Used

After installation, you can adjust the wattage and color temperature directly on the fixture to match the lighting needs of the space. This allows for tuning output and color to suit changes in facility layout or task requirements without replacing the fixture.

The fixture can be dimmed using a 0-10V control system, providing flexibility in light levels throughout the day or for different operational needs. The motion sensor can be used to automate lighting based on occupancy, reducing manual intervention.

Routine cleaning and inspection are supported by the fixture?s IP65 and IK10 ratings, allowing for maintenance in environments with dust, moisture, or occasional impacts. The die-cast aluminum housing and polycarbonate lens are designed for durability in active industrial settings.

Once installed, the fixture operates reliably within the specified temperature range, supporting use in both refrigerated and high-temperature areas as long as ambient conditions remain within -40°F to 113°F.

Safety, Certifications, and Warranty

This fixture is UL listed and DLC Premium qualified.

The fixture is rated IP65 for protection against dust and water jets. IK10 rating allows the fixture to tolerate high levels of impact.

Surge protection is rated at 4kV. The fixture is covered by a 5-year warranty from LED Lighting Supply.

All certifications and ratings are stated as provided in the product specifications.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100-277V.

What is the output range?
The fixture provides selectable outputs of 15,000, 18,000, or 22,500 lumens.

What are the environmental ratings?
The fixture is rated IP65 and IK10.

What mounting methods are supported?
Hook mounting is standard, with an option for surface mounting.

Is this fixture DLC Premium qualified?
Yes, this fixture is DLC Premium qualified.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty for this fixture.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
