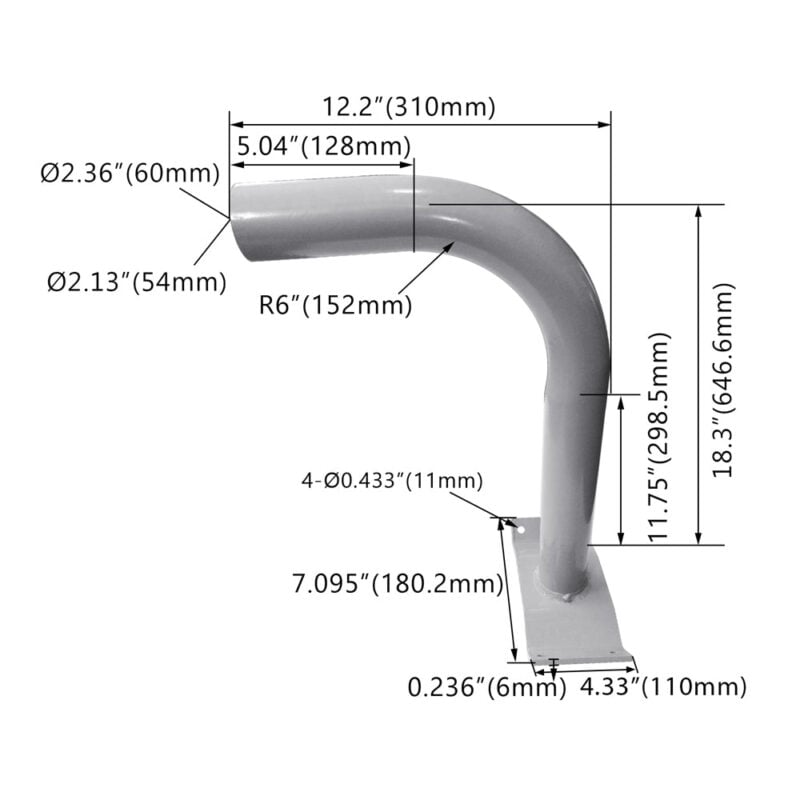

Wood Pole Bullhorn Wrap Mount | 2 3/8 Inch Tenon | Gray | Arm Only
Arm mount used in parking lot lighting and roadway lighting. Includes gray powder-coated galvanized steel, 2 3/8 inch tenon size, and fits 6 to 9.5 inch diameter wood poles. Supports up to 200 pounds.
Dwayne Kula | President, CTO and Founder
120 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Pole Weight (lbs) | 20 |
| Type | Arm Only |
| Color | Gray Powder Coated Galvanized Steel |
| Tenon Size | 2 3/8 inch |
| Fits | 6 to 9.5 Inch Diameter Wood Poles |
| Warranty | 1 year |
Product Overview
This wood pole bullhorn wrap mount arm provides a 2 3/8 inch tenon for mounting a fixture on a compatible wood pole. It is an arm-only component used with the matching wood pole bullhorn plate when the selected configuration requires plates.
The gray powder-coated galvanized steel arm fits wood poles with a 6 to 9.5 inch diameter. It supports up to 200 pounds and is intended for multi-fixture bullhorn assemblies.
Core Performance and Output
This arm provides structural support rather than light output. The 2 3/8 inch tenon establishes the fixture connection point, while the arm and wood-pole wrap assembly carry the fixture load.
Support capacity is rated up to 200 pounds. Final loading must account for fixture weight and the complete bullhorn configuration; the supplied data does not establish wind or EPA ratings.
Adjustability and Control Options
This is a fixed arm-only mounting component. It does not provide fixture aiming, dimming, photocontrol, or electrical control functions.
Bullhorn configuration is established by the number of arms and matching plates used around the wood pole. Four-arm configurations require four arms and no plates.
Longevity and Reliability
The arm is constructed from galvanized steel with a gray powder-coated finish. This construction is intended for mounted outdoor pole assemblies.
The warranty is one year. Periodic inspection should confirm that the arm, plates, fixture, and wood pole remain securely fastened.
Build Quality and Physical Characteristics
The arm is supplied in gray powder-coated galvanized steel and uses a 2 3/8 inch tenon. It fits wood poles with a 6 to 9.5 inch diameter.
This product is the arm only. Three-fixture configurations require three arms and one plate, two-fixture configurations require two arms and two plates, and one-fixture configurations require one arm and three plates.
Where This Product Fits Best
This arm is suited to wood-pole bullhorn assemblies supporting multiple fixtures for field, roadway, and site lighting layouts. The pole diameter, fixture load, and required bullhorn configuration must match the available installation conditions.
- baseball field lighting
- softball field lighting
- soccer field lighting
- football field lighting
- driving range lighting
- recreational field lighting
- parking lot lighting
- rural roadway lighting
The mounting arm fits 6 to 9.5 inch diameter wood poles and provides a 2 3/8 inch tenon. Use the required number of matching plates when configuring fewer than four fixture positions.
Installation and Long-Term Use
Install the arm as part of the complete wood pole bullhorn assembly. The installer must verify wood pole diameter, fixture weight, arm position, and the required number of arms and plates before mounting fixtures.
Mounting height is determined by the wood pole and lighting layout. The supplied product data does not establish a mounting-height range, spacing value, or wind-load rating.
How This Fixture Is Commonly Used
For baseball field lighting, softball field lighting, soccer field lighting, football field lighting, driving range lighting, and recreational field lighting, multiple arms are arranged around the wood pole to create the required fixture positions. The arm count is selected from the intended bullhorn configuration.
For parking lot lighting and rural roadway lighting, the fixture arrangement follows the pole location and lighting layout. More fixture positions can reduce the number of poles required, but fixture loading must remain within the 200 pound support rating.
Safety, Certifications, and Warranty
This arm supports up to 200 pounds. The complete installed assembly must account for fixture weight and all mounting components.
No certifications are provided in the supplied product data. The warranty is one year.
Frequently Asked Questions
Q: What wood pole diameter does this arm fit?
A: This arm fits wood poles with a 6 to 9.5 inch diameter.
Q: What tenon size does this arm use?
A: The arm uses a 2 3/8 inch tenon.
Q: What is the support capacity of this arm?
A: The arm supports up to 200 pounds.
Q: How are arms and plates arranged for a one-fixture bullhorn?
A: A one-fixture bullhorn requires one arm and three matching wood pole bullhorn plates.
Q: What should be reviewed when planning a bullhorn layout?
A: Review the wood pole diameter, required fixture positions, fixture weight, and the number of arms and plates needed for the selected configuration. The supplied data does not establish fixture spacing or mounting-height values.
Application Questions and Clarification
Q: Can this arm be used for baseball field lighting or football field lighting?
A: The arm is suitable for wood-pole bullhorn assemblies in baseball field lighting and football field lighting when the pole diameter, fixture load, and configuration match the supplied product data.
Q: Can this arm support parking lot lighting or rural roadway lighting fixtures?
A: The arm can be used in parking lot lighting and rural roadway lighting assemblies when the wood pole is 6 to 9.5 inches in diameter and the supported load does not exceed 200 pounds.
Q: What is required for a three-fixture bullhorn configuration?
A: A three-fixture bullhorn configuration requires three arms and one matching wood pole bullhorn plate.
