4 Inch Steel Round Pole Installation Kit with Base Cover

Product Overview

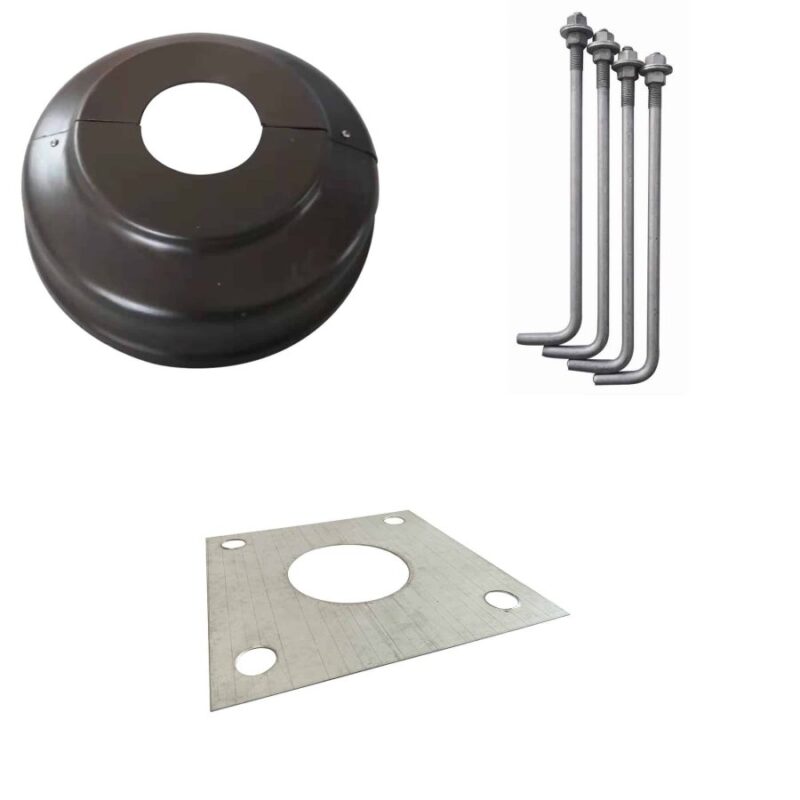

This 4 Inch Steel Round Pole Installation Kit with Base Cover is designed for mounting 4-inch round steel light poles in exterior site lighting applications. The kit includes four 19.69-inch anchor bolts, a 9.25 x 9.25-inch positioning plate, and a bronze base cover. It is intended for use with 15, 20, and 25 foot steel poles in parking lots, roadways, and commercial sites.

The components are sized and specified for compatibility with standard 4-inch round steel poles. This kit supports installations where a secure, code-compliant foundation and finished base appearance are required. The bronze base cover provides a finished look and protects the anchor bolt assembly at grade.

Core Performance and Output

This installation kit is engineered to provide stable anchoring for 4-inch round steel poles up to 25 feet in height. The included anchor bolts and positioning plate are sized for typical wind load and EPA requirements associated with area and roadway lighting at these mounting heights. The steel construction delivers reliable structural performance in commercial exterior environments.

The kit is not intended for use with poles above 25 feet or with non-standard base plates. Excessive fixture weight or high EPA fixtures may require additional engineering review. The base cover is decorative and does not contribute to structural performance.

Adjustability and Control Options

This kit does not include adjustable or electrical control features. The anchor bolt positioning plate allows for precise alignment of the pole base during concrete pour and installation. All hardware is fixed in size and configuration for 4-inch round steel pole bases.

No integrated leveling or adjustment mechanisms are included beyond standard nut and washer assembly. Final pole plumb and orientation are set during installation using the provided hardware.

Longevity and Reliability

All components are constructed from steel for long-term durability in outdoor environments. The bronze base cover is designed to resist corrosion and maintain appearance over time. Anchor bolts and hardware are specified for permanent embedded installation in concrete foundations.

Routine inspection of exposed hardware and base covers is recommended as part of site maintenance. The kit is covered by a 1-year warranty from date of installation.

Build Quality and Physical Characteristics

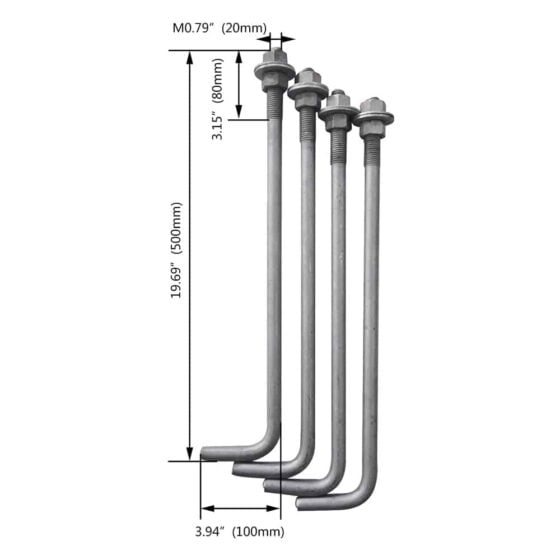

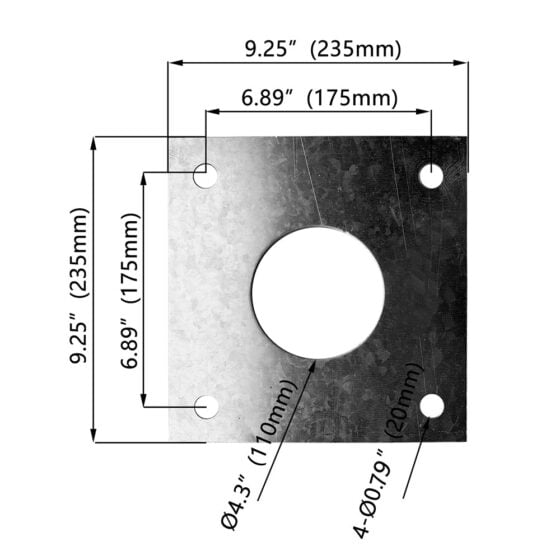

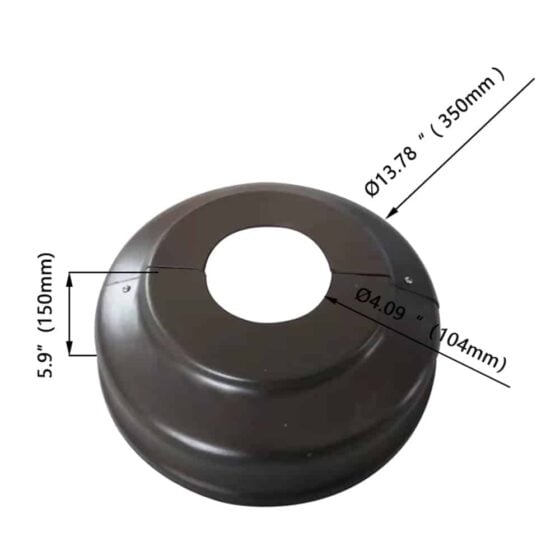

The kit includes four M20x2.5 threaded anchor bolts, eight M20 nuts, eight M20 washers, a 9.25 x 9.25-inch positioning plate, and a bronze base cover measuring 13.78 inches in diameter by 5.9 inches in height. All steel components are finished for exterior use and compatibility with standard pole base plates.

The base cover provides a clean transition at grade and conceals the anchor bolt assembly. Hardware is sized for use with 4-inch round steel poles and is not compatible with other pole sizes or shapes.

Where This Product Fits Best

This installation kit is intended for use in exterior lighting projects requiring 4-inch round steel poles at 15, 20, or 25 foot mounting heights. It is suitable for commercial, municipal, and industrial sites where secure pole anchoring and a finished base appearance are required.

• parking lot lighting
• roadway lighting
• area lighting
• commercial site lighting
• sports facility lighting
• campus lighting
• industrial yard lighting
• dealership lighting

All components are designed for outdoor use and are compatible with standard concrete foundations. The kit is not intended for use in corrosive or marine environments without additional protection.

Installation and Long-Term Use

Installation requires setting the anchor bolts and positioning plate in a concrete foundation per pole manufacturer guidelines. The pole base is secured using the provided nuts and washers. The bronze base cover is installed after pole erection to conceal the anchor bolts and provide a finished appearance.

Routine inspection of the base cover and exposed hardware is recommended to ensure ongoing integrity. Replacement of the base cover may be required if damaged by impact or corrosion over time. The kit is designed for permanent installations and is not intended for temporary or relocatable pole mounting.

How This Fixture Is Commonly Used

This installation kit is typically used for new pole installations in parking lots, roadways, and commercial sites. Anchor bolts are set in concrete with the positioning plate to ensure correct bolt spacing and alignment. Poles are mounted after concrete cure, and the base cover is installed last for a finished look.

Spacing between poles is determined by lighting layout and site requirements. Using taller poles may reduce the number of poles needed but can increase wind load and require larger foundations.

Safety, Certifications, and Warranty

All steel components are manufactured to standard industry tolerances for exterior pole mounting. The kit is intended for use in code-compliant installations. No additional electrical or safety certifications apply to this hardware kit. The product is covered by a 1-year warranty.

Follow all local codes and engineering requirements for foundation design and pole installation. Use only with compatible 4-inch round steel poles as specified.

Frequently Asked Questions

Q: What pole sizes are compatible with this installation kit?

A: This kit is compatible with 4-inch round steel poles at 15, 20, and 25 foot mounting heights.

Q: Does the kit include all hardware needed for installation?

A: The kit includes anchor bolts, nuts, washers, a positioning plate, and a bronze base cover. Pole and foundation materials are not included.

Q: Can this kit be used with poles taller than 25 feet?

A: No, this kit is not intended for use with poles above 25 feet. Taller poles may require different anchor bolt sizing and engineering review.

Q: Is the base cover structural?

A: The base cover is decorative and does not contribute to the structural performance of the pole installation.

Q: How should anchor bolts be set for proper alignment?

A: Use the included positioning plate to maintain correct bolt spacing and alignment during concrete pour and curing.

Q: What is the recommended spacing between poles for parking lot lighting?

A: Spacing depends on pole height, fixture output, and site lighting requirements. Typical layouts range from 60 to 120 feet between poles.

Application Questions and Clarification

Q: Is this kit suitable for use in marine or corrosive environments?

A: This kit is not designed for marine or highly corrosive environments. Additional protection or alternative materials may be required for those conditions.

Q: Can this kit be used with square or tapered poles?

A: No, this kit is designed specifically for 4-inch round steel poles and is not compatible with other pole shapes.

Q: Does the kit support multiple fixture mounting on a single pole?

A: The kit supports standard 4-inch round steel poles. Fixture mounting capability depends on the pole?s EPA and weight ratings, not the installation kit itself.
