4 Fixture 90 Degree Bullhorn Mount | 2 3/8 Inch Tenon | Bronze | Low Profile

Product Overview

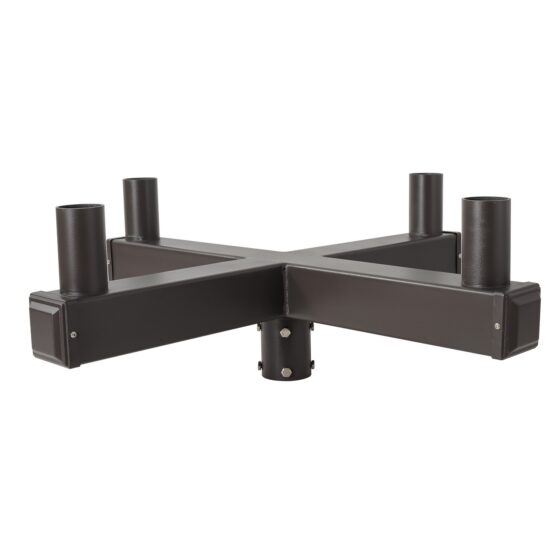

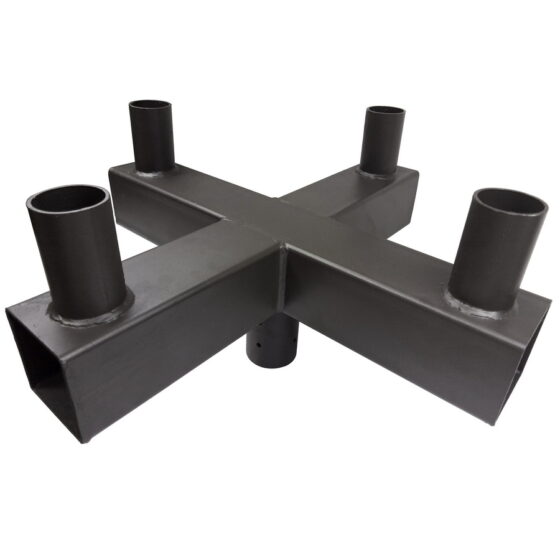

This 4 Fixture 90 Degree Bullhorn Mount is designed for mounting up to four area or post top fixtures in a symmetrical 90-degree configuration. It fits a standard 2 3/8 inch tenon and features a low-profile design with a bronze finish. The mount is commonly used on steel or aluminum poles in parking lots, commercial sites, and roadway perimeter lighting projects where multi-directional fixture orientation is required.

The bullhorn configuration allows for even distribution of light fixtures around a single pole, supporting uniform coverage in large exterior environments. Typical mounting heights align with standard area lighting pole installations.

Core Performance and Output

This bullhorn mount supports four fixtures, each positioned at 90 degrees for balanced coverage. The EPA (Effective Projected Area) rating is 1.6, which is critical for calculating wind load and ensuring pole stability. The mount weighs 29 lbs and is compatible with fixtures designed for 2 3/8 inch tenon mounting.

Structural performance is determined by the combined EPA and weight of the mount and attached fixtures. Exceeding the pole?s rated EPA or wind load capacity can compromise safety and performance. This mount is not suitable for use on poles with limited EPA ratings or in locations with extreme wind exposure without proper engineering review.

Adjustability and Control Options

The bullhorn provides fixed 90-degree arms for each fixture, ensuring consistent orientation and spacing. Each arm is designed for standard slipfitter or tenon-mount fixtures. There are no integrated aiming or tilt adjustments on the mount itself; fixture adjustability depends on the mounting hardware of the attached luminaires.

No electrical controls or wiring provisions are included with this mount. All fixture wiring and control integration must be managed at the fixture or pole level.

Longevity and Reliability

The mount is constructed for long-term outdoor use, with a durable bronze finish that resists corrosion and weathering. The welded steel construction provides structural integrity for multi-fixture installations.

Reliability is dependent on proper installation, adherence to EPA and weight limits, and routine inspection for corrosion or mechanical wear. The product includes a 1-year warranty covering material and workmanship.

Build Quality and Physical Characteristics

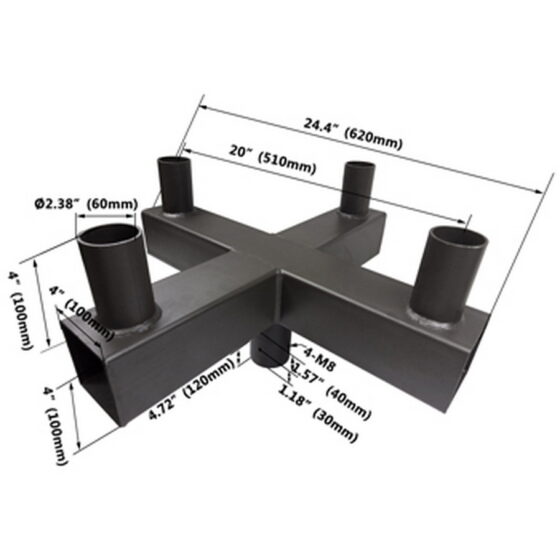

This bullhorn mount is fabricated from heavy-duty steel and finished in bronze powder coat. The low-profile design minimizes wind resistance while supporting up to four fixtures. The tenon opening is sized for a 2 3/8 inch round pole top or adapter.

All welds and joints are reinforced for outdoor structural use. The mount?s 29 lb weight should be factored into total pole loading calculations. No electrical components or weatherproofing features are included.

Where This Product Fits Best

This bullhorn mount is intended for exterior pole installations where multiple fixtures are required for area, parking lot, or roadway perimeter lighting. It is suitable for commercial and municipal sites that require symmetrical light distribution from a single pole location.

• parking lot lighting
• area lighting
• roadway lighting
• commercial site lighting
• sports facility lighting
• campus lighting
• industrial yard lighting
• dealership lighting

The mount is designed for outdoor use and is compatible with standard steel or aluminum poles. It is not intended for use in corrosive or marine environments without additional protective measures.

Installation and Long-Term Use

Installation requires a pole or adapter with a 2 3/8 inch tenon. The mount slides over the tenon and is secured with set screws or bolts. All fixtures must be installed according to their manufacturer?s instructions and within the EPA and weight limits of the pole and mount.

Routine inspection is recommended to check for corrosion, loose hardware, or fixture misalignment. The mount should not be used on poles that are undersized for the combined EPA and weight of the mount and fixtures.

How This Fixture Is Commonly Used

This bullhorn mount is typically installed at mounting heights ranging from 15 to 30 feet, depending on site requirements and fixture type. Fixtures are spaced at 90-degree intervals to provide uniform coverage around the pole.

Spacing between poles is determined by the light distribution of the attached fixtures and the required illumination levels. Using higher output fixtures can reduce the number of poles needed but may increase glare if not properly aimed.

Safety, Certifications, and Warranty

This product does not carry electrical ratings or third-party certifications. Structural safety is based on adherence to EPA, weight, and installation guidelines. The mount is covered by a 1-year warranty for material and workmanship defects.

Always verify that the pole and foundation are rated for the total EPA and weight of the mount and fixtures under local wind load conditions.

Frequently Asked Questions

Q: What is the maximum EPA rating for this bullhorn mount?

A: The EPA rating for this mount is 1.6. Total EPA must include both the mount and all attached fixtures.

Q: What tenon size is required for installation?

A: This mount fits a 2 3/8 inch round tenon.

Q: Can this mount be used with any fixture type?

A: It is compatible with fixtures designed for 2 3/8 inch tenon mounting. Always confirm fixture weight and EPA before installation.

Q: Is the mount suitable for coastal or marine environments?

A: The standard bronze finish is not intended for corrosive or marine environments without additional protection.

Q: How should I plan pole spacing when using this mount?

A: Pole spacing depends on fixture output, beam distribution, and site lighting requirements. Consult fixture photometrics for layout planning.

Application Questions and Clarification

Q: Can this bullhorn mount be used for sports facility lighting?

A: Yes, it is commonly used for sports facility lighting when multiple fixtures are needed on a single pole.

Q: Is this mount compatible with both steel and aluminum poles?

A: Yes, as long as the pole has a 2 3/8 inch tenon and meets EPA and weight requirements.

Q: What is the recommended mounting height for this bullhorn mount?

A: Typical mounting heights range from 15 to 30 feet, depending on fixture type and site needs.

Q: Does this mount include any electrical wiring provisions?

A: No, all electrical wiring must be managed at the fixture or pole level.
