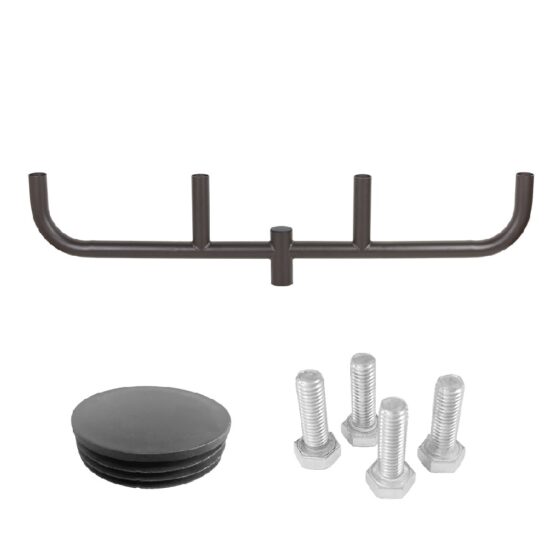

4 Fixture 180 Degree Bullhorn Mount | 2 3/8 Inch Tenon | Bronze

Product Overview

This 4 Fixture 180 Degree Bullhorn Mount is designed for mounting up to four light fixtures in a 180-degree configuration on a single pole. It is built to fit a standard 2 3/8 inch tenon and finished in bronze for compatibility with most site lighting standards. Typical use includes post top lighting and architectural site lighting where multi-directional coverage is required from a single mounting point.

The bullhorn mount is commonly installed in parking lots, commercial campuses, and pedestrian areas where multiple fixtures need to be oriented for wide area coverage. The design supports even fixture spacing and consistent aiming for uniform light distribution.

Core Performance and Output

This bullhorn mount supports four fixtures arranged in a 180-degree spread, allowing for broad area coverage from a single pole location. The EPA (Effective Projected Area) rating is 2.6, which is a critical factor for wind load calculations and structural pole selection. The mount weighs 28.5 lbs, which must be included in total pole load calculations along with fixture weight and EPA.

Structural performance is suitable for standard site lighting poles rated for the combined EPA and weight of this mount and attached fixtures. Excessive fixture size or weight may exceed pole or mount capacity?verify all loads before installation. The 2 3/8 inch tenon interface is compatible with most commercial and architectural site lighting poles.

Adjustability and Control Options

Each arm of the bullhorn provides a fixed mounting position for a fixture, with the 180-degree layout ensuring wide coverage. Fixture aiming is determined by the mounting orientation and the adjustability of the attached fixtures themselves. The mount does not include integrated tilt or rotation adjustment; all directional control is provided by the fixture?s own bracket or yoke.

No electrical control or wiring features are integrated into the mount. All fixture wiring and control options must be managed at the fixture or pole level.

Longevity and Reliability

The mount is constructed from materials suitable for outdoor use and finished in bronze for corrosion resistance. The design is intended for long-term exterior installation in typical site lighting environments. The 1-year warranty covers material and manufacturing defects.

Routine inspection of mounting hardware and finish is recommended, especially in coastal or high-corrosion environments. The mount?s structural integrity is maintained when installed according to load and EPA guidelines.

Build Quality and Physical Characteristics

This bullhorn mount is fabricated for strength and durability, supporting up to four fixtures in a balanced 180-degree configuration. The bronze finish provides a standard architectural appearance and additional weather resistance. The 2 3/8 inch tenon interface is industry standard for post top and site lighting applications.

At 28.5 lbs, the mount requires secure handling during installation. All welds and connections are designed for outdoor structural use. The EPA rating of 2.6 must be included in all pole and foundation calculations.

Where This Product Fits Best

This bullhorn mount is intended for exterior site lighting environments where multiple fixtures are required on a single pole. It is most often used in locations that demand wide, multi-directional coverage and architectural consistency.

• post top lighting
• architectural site lighting
• pedestrian area lighting
• decorative outdoor lighting
• park lighting
• campus lighting

Suitable for outdoor installation in commercial, municipal, and campus environments. The bronze finish and standard tenon size support integration with most site lighting systems. Not recommended for use with poles or fixtures that exceed the specified EPA or weight limits.

Installation and Long-Term Use

The mount installs onto a standard 2 3/8 inch tenon using set screws or bolts, depending on pole design. All fixtures should be securely attached to the bullhorn arms using compatible hardware. Ensure that the combined weight and EPA of the mount and fixtures do not exceed the pole?s rated capacity.

Periodic inspection of mounting hardware and finish is advised, especially in areas with high wind or corrosive exposure. Re-tighten all fasteners as part of routine maintenance. The mount is designed for permanent exterior use with minimal ongoing adjustment required.

How This Fixture Is Commonly Used

Commonly deployed at mounting heights ranging from 12 to 25 feet, depending on fixture type and site requirements. The 180-degree configuration allows for even coverage of adjacent areas such as walkways, parking zones, or plazas from a single pole location.

Spacing between poles is determined by fixture output and site lighting standards. Using higher output fixtures can reduce the number of poles required but may increase glare or require careful aiming. The mount is typically used where uniform, multi-directional lighting is needed without cluttering the site with additional poles.

Safety, Certifications, and Warranty

This bullhorn mount is designed and manufactured for structural safety in outdoor lighting applications. The EPA rating of 2.6 and weight of 28.5 lbs must be included in all pole and foundation calculations. The product is covered by a 1-year warranty.

No additional certifications are specified for this mount. All installations must comply with local codes and standards for structural and electrical safety.

Frequently Asked Questions

Q: What is the maximum EPA and weight this bullhorn mount adds to a pole?

A: The mount has an EPA of 2.6 and weighs 28.5 lbs. Include these values in all pole and foundation calculations.

Q: What tenon size is required for installation?

A: The mount fits a standard 2 3/8 inch tenon.

Q: Can this mount be used with any type of fixture?

A: It is compatible with fixtures designed for 2 3/8 inch tenon bullhorn arms and within the pole?s EPA and weight limits.

Q: How should fixture spacing and aiming be planned with this mount?

A: Fixtures are spaced at 180 degrees. Aiming is determined by the fixture?s own bracket or yoke. Plan for uniform coverage and avoid exceeding pole load limits.

Application Questions and Clarification

Q: Is this bullhorn mount suitable for single fixture or dual fixture applications?

A: This model is designed specifically for four fixtures in a 180-degree configuration. For fewer fixtures, use a mount designed for the required number of arms.

Q: Can this mount be used in coastal or high-corrosion environments?

A: The bronze finish provides some corrosion resistance, but additional protection or maintenance may be needed in harsh environments.

Q: What is the recommended mounting height for this bullhorn mount?

A: Typical mounting heights range from 12 to 25 feet, depending on fixture type and site requirements.
