3 Fixture 120 Degree Bullhorn Mount | 2 3/8 Inch Tenon | Bronze | Low Profile
75 in stock
This triple bullhorn mount is a practical solution for exterior or large-area lighting where three fixtures need to be positioned from a single pole, such as parking lots, sports courts, or perimeter lighting. Its fixed 120 degree arm spacing ensures broad, even coverage and minimizes shadowing, which is valuable for uniform illumination around a pole. The mount fits a 2 3/8 inch tenon and supports a combined EPA of 1.4 and 22 lbs, so wind load and pole strength must be considered.
Dwayne Kula | President, CTO and Founder
Product Description

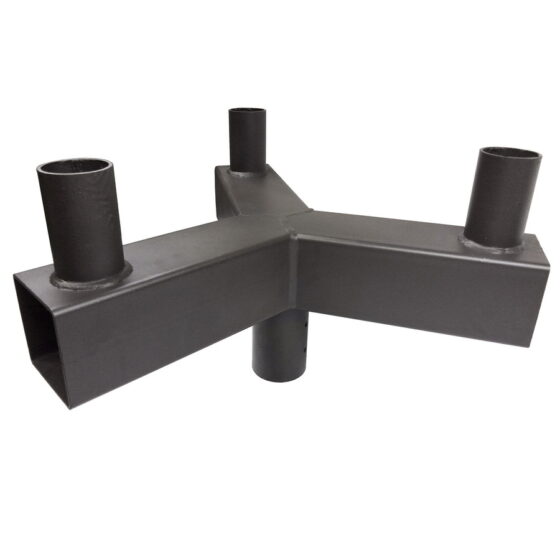

3 Fixture - 120 degree Triple Bullhorn Mount - Bronze. Mounts on a 2 3/8 inch Tenon.
Key Features
- Type: 3 fixture bull horn 120 degrees
- Color: Bronze
- Tenon Size: 2 3/8 inch
- EPA: 1.4
- Weight: 22 lbs
- Warranty: 1 year
Web ID: 2076
Product Overview
This 3 Fixture 120 Degree Bullhorn Mount is designed for mounting three area or post top fixtures on a single pole. The configuration spaces fixtures at 120 degrees for even coverage around the pole. It mounts to a standard 2 3/8 inch tenon and features a low-profile bronze finish. Typical use includes parking lot, roadway, or area lighting where multi-directional coverage is required from a single pole location.
The bullhorn mount is constructed for outdoor environments and supports common area lighting fixtures. It is suitable for new installations or retrofit projects where multiple fixtures need to be installed on a single pole for increased coverage and uniformity.
Core Performance and Output
This bullhorn mount supports three fixtures, each positioned at 120 degrees apart. The EPA rating is 1.4, which determines the wind load capacity and is critical for pole selection and structural safety. The mount weighs 22 lbs, which must be factored into the total load calculation for the pole and foundation.
The 2 3/8 inch tenon interface is compatible with standard area and post top fixtures. The mount?s low profile minimizes additional wind resistance. Exceeding the EPA or weight limits of the pole may compromise structural integrity, especially in high wind zones.
Adjustability and Control Options
This bullhorn mount provides fixed 120-degree spacing between fixtures. Each arm is set at a fixed angle and does not offer independent adjustability. Fixture aiming is determined by the orientation of the mount during installation.
No integrated control options are included. Fixture-level controls such as photocells or sensors must be specified at the fixture level, not the mount.
Longevity and Reliability
The mount is constructed from durable materials with a bronze finish for corrosion resistance in outdoor environments. The design is intended for long-term use with minimal maintenance requirements.
All welds and connections are designed for structural stability under typical area lighting loads. The product includes a 1-year warranty covering material and manufacturing defects.
Build Quality and Physical Characteristics
The bullhorn mount is fabricated for outdoor use, with a bronze powder-coated finish for weather resistance. The arms are engineered to support standard area lighting fixtures without excessive flex or vibration.
The mount?s 22 lb weight and 1.4 EPA rating must be included in pole loading calculations. The 2 3/8 inch tenon interface is standard for most commercial and industrial area lighting applications.
Where This Product Fits Best
This bullhorn mount is suited for exterior environments where multi-directional lighting is required from a single pole. It is commonly used in parking lots, commercial sites, and roadway perimeters where three fixtures are needed for uniform area coverage.
- parking lot lighting
- area lighting
- roadway lighting
- commercial site lighting
- sports facility lighting
- campus lighting
- industrial yard lighting
- dealership lighting
The mount is designed for outdoor use and is compatible with standard poles and fixtures. It is suitable for environments exposed to weather and wind, provided pole and foundation sizing are adequate for the combined EPA and weight.
Installation and Long-Term Use
The mount installs onto a 2 3/8 inch tenon, which is standard for most commercial light poles. Secure attachment is required to maintain alignment and structural integrity. All mounting hardware should be checked for tightness during installation and periodically during maintenance cycles.
Long-term use requires periodic inspection for corrosion, especially in coastal or high-humidity environments. The bronze finish provides resistance to weathering, but surface cleaning may be needed to maintain appearance.
How This Fixture Is Commonly Used
This bullhorn mount is typically installed at pole heights ranging from 15 to 30 feet, depending on fixture type and site requirements. Fixtures are spaced at 120 degrees to provide uniform coverage around the pole, reducing shadowing and dark spots.
Spacing between poles is determined by fixture output and site lighting criteria. Using three fixtures per pole can reduce the total number of poles required, but may increase wind load and structural requirements for each pole.
Safety, Certifications, and Warranty
This product is designed for structural safety in outdoor lighting applications. The EPA rating and weight must be included in all pole and foundation calculations. No additional safety certifications are specified for this mount.
The mount includes a 1-year warranty covering defects in materials and workmanship. All installations should follow local codes and standards for pole-mounted lighting systems.
Frequently Asked Questions
Q: What is the maximum EPA rating for this bullhorn mount?
A: The EPA rating for this mount is 1.4.
Q: What tenon size does this mount fit?
A: It fits a standard 2 3/8 inch tenon.
Q: How much does the mount weigh?
A: The mount weighs 22 lbs.
Q: Can the arms be adjusted after installation?
A: The arms are fixed at 120 degrees and are not adjustable.
Q: What is the recommended mounting height for this bullhorn mount?
A: Typical mounting heights range from 15 to 30 feet, depending on fixture type and site requirements.
Q: How should I plan pole selection with this mount?
A: Include the mount?s EPA and weight, plus the fixtures? EPA and weight, in all pole and foundation calculations to ensure structural safety.
Application Questions and Clarification
Q: Is this mount suitable for use in coastal or corrosive environments?
A: The bronze finish provides corrosion resistance, but additional inspection and maintenance may be required in coastal or high-humidity locations.
Q: Can this mount be used with any area lighting fixture?
A: It is compatible with fixtures designed for 2 3/8 inch tenon mounting and within the pole?s EPA and weight limits.
Q: Are there any restrictions on the type of pole used with this mount?
A: The pole must have a 2 3/8 inch tenon and be rated for the combined EPA and weight of the mount and fixtures.
