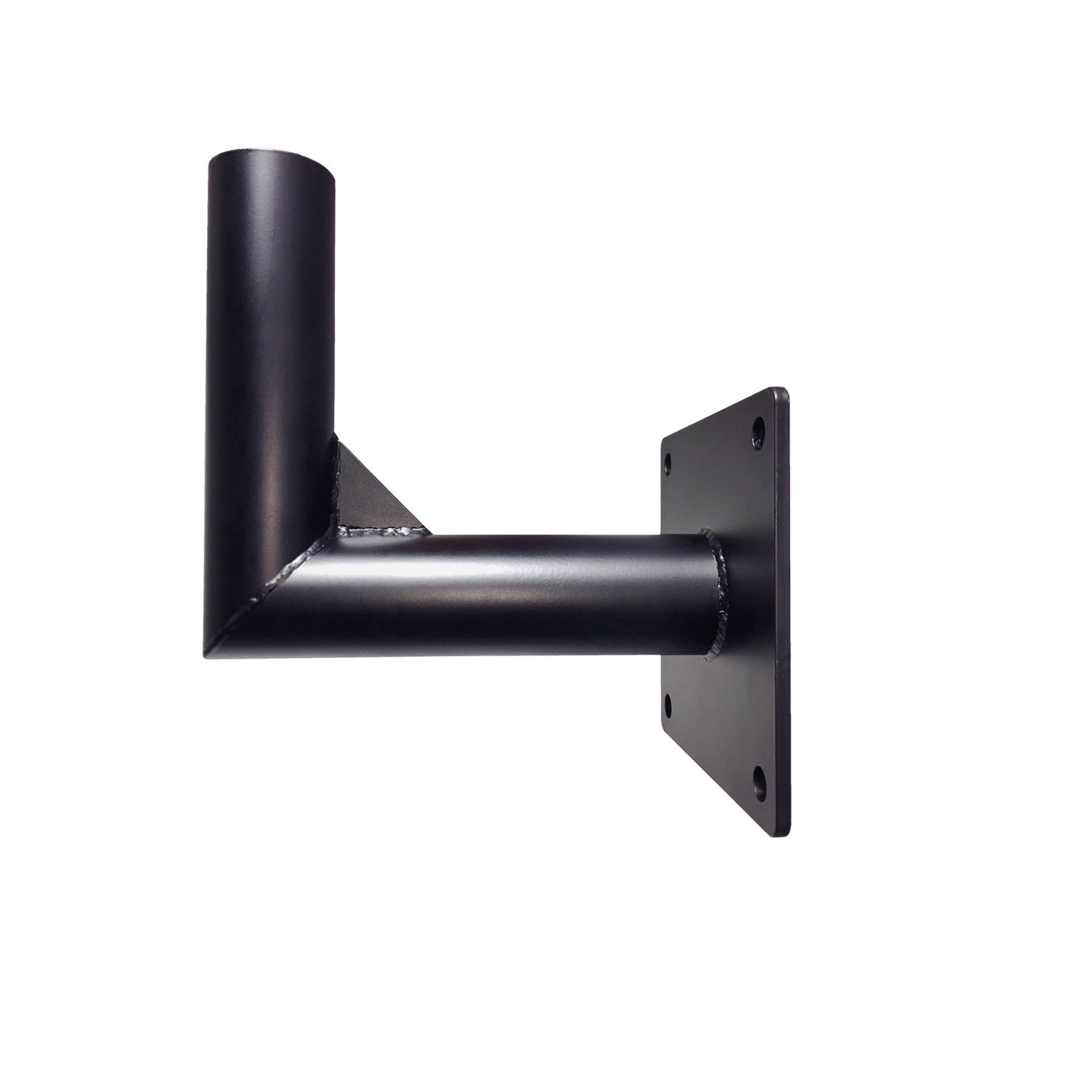

1 Fixture 90 Degree Wall Mount | 2 3/8 Inch Tenon | Bronze

Product Overview

This 90 Degree Wall Mount bracket is designed for mounting a single slip fitter-equipped LED fixture to a flat vertical surface. The bracket is fabricated from steel and finished in bronze, providing a robust mounting solution for area and parking lot lighting applications. It accepts fixtures with a standard 2 3/8 inch tenon and supports up to 5 lbs, making it suitable for lightweight LED area lights and flood lights where pole mounting is not feasible or desired.

Commonly used on building exteriors, parking garages, and perimeter walls, this bracket enables precise 90-degree fixture orientation for targeted illumination. The design is intended for permanent, fixed installations where surface mounting is required and electrical connections are managed separately from the bracket.

Core Performance and Output

This wall mount bracket provides a stable, rigid mounting point for fixtures with a 2 3/8 inch slip fitter. The steel construction supports up to 5 lbs, which is appropriate for compact LED area lights and small flood fixtures. The 90-degree orientation ensures the fixture projects outward from the wall for maximum coverage of parking lots, drive lanes, or building perimeters.

The bracket does not include electrical components or weatherproofing features. It is not intended for use with fixtures exceeding the weight limit or for applications requiring vibration isolation. Excessive fixture weight or wind loading may compromise mounting integrity.

Adjustability and Control Options

This bracket provides a fixed 90-degree mounting angle. The tenon interface allows for fixture rotation and tilt adjustments if supported by the slip fitter on the attached fixture. No integrated aiming, tilt, or articulation features are present in the bracket itself.

Lighting control options, such as photocells or motion sensors, must be integrated into the fixture or managed externally. The bracket does not provide provisions for accessory mounting or integrated wiring channels.

Longevity and Reliability

The bracket is constructed from steel and finished in bronze for corrosion resistance in typical outdoor environments. The design is intended for long-term, stationary use with minimal maintenance requirements. The 1-year warranty covers material and manufacturing defects under normal operating conditions.

Routine inspection of mounting hardware and surface integrity is recommended, especially in coastal or high-humidity environments. The bracket is not rated for marine or highly corrosive locations.

Build Quality and Physical Characteristics

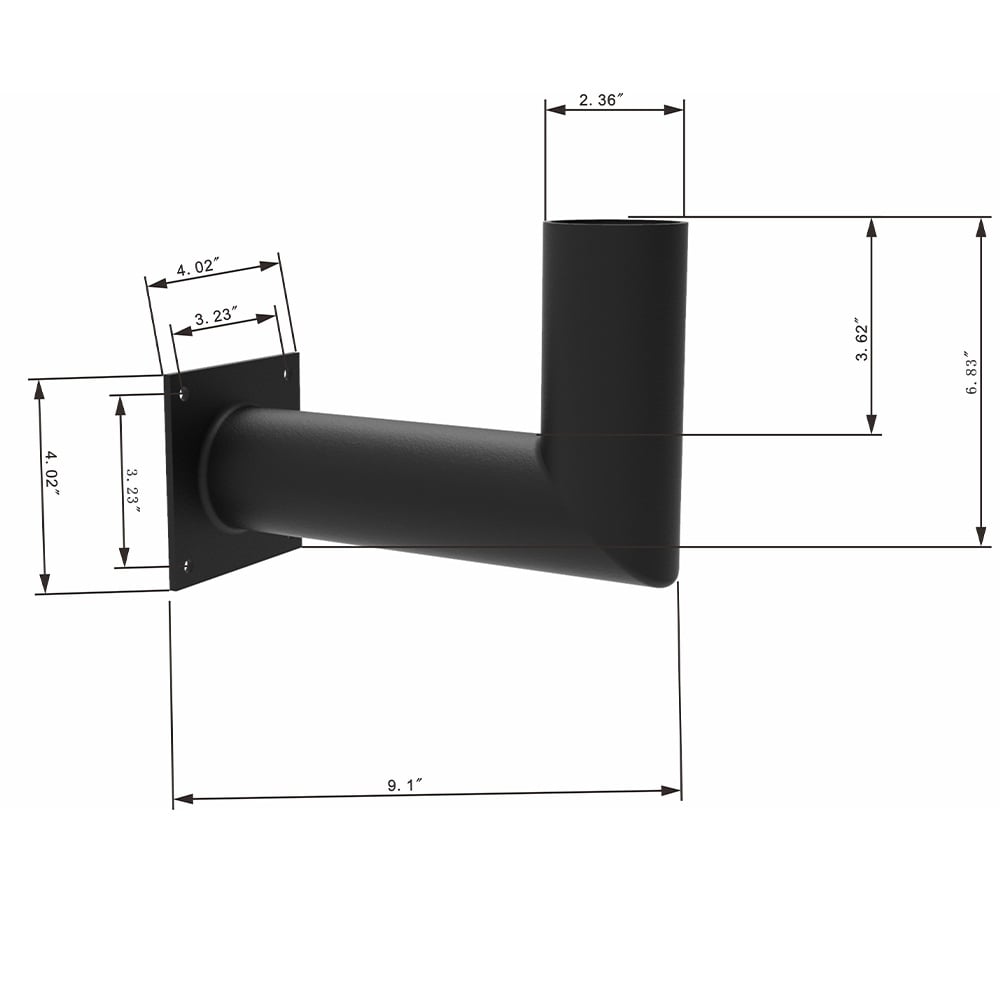

This wall mount bracket weighs 5 lbs and is fabricated from steel for strength and rigidity. The bronze finish provides a neutral appearance compatible with most commercial and industrial building exteriors. The tenon is sized for standard 2 3/8 inch slip fitters, which is the most common interface for area and parking lot fixtures.

All mounting hardware and electrical connections must be specified separately. The bracket is designed for direct surface mounting to concrete, masonry, or structural steel walls using appropriate anchors or bolts.

Where This Product Fits Best

This bracket is suited for environments where pole mounting is impractical or where wall-mounted area lighting is required. Typical installations include building exteriors, parking garages, and perimeter security lighting on commercial or industrial sites. The bracket is compatible with lightweight LED fixtures using a 2 3/8 inch slip fitter and is not intended for heavy or high-wind applications.

• parking lot lighting
• area lighting
• building facade lighting
• commercial site lighting
• security lighting
• loading area lighting

The bracket is suitable for outdoor use in standard commercial environments. It is not recommended for marine, corrosive, or high-vibration locations.

Installation and Long-Term Use

Installation requires secure attachment to a flat, structurally sound surface using anchors or bolts appropriate for the wall material. The bracket?s tenon accepts fixtures with a standard 2 3/8 inch slip fitter. Ensure the combined weight of the fixture and any accessories does not exceed 5 lbs.

Long-term use is supported by the steel construction and corrosion-resistant finish. Periodic inspection of mounting hardware is advised, especially in areas exposed to weather or vibration. The bracket does not provide integrated wiring or weatherproofing; electrical connections must be managed separately and protected as required by code.

How This Fixture Is Commonly Used

This bracket is typically installed at mounting heights ranging from 8 to 20 feet, depending on the lighting requirements and fixture output. Spacing between brackets is determined by the desired light coverage and fixture beam pattern. In parking lot and perimeter applications, brackets are often spaced to provide overlapping coverage and minimize dark spots.

Using higher output fixtures may reduce the number of brackets needed but can increase glare if not properly aimed. Fixture orientation and tilt are set using the slip fitter adjustment on the attached fixture, not the bracket itself.

Safety, Certifications, and Warranty

This bracket does not carry electrical ratings or third-party safety certifications. It is designed for mechanical support only and must be installed according to local building codes and fixture manufacturer guidelines. The product includes a 1-year warranty covering material and manufacturing defects.

All electrical work must be performed by qualified personnel. Ensure the bracket is securely anchored and that the fixture weight does not exceed the specified limit.

Frequently Asked Questions

Q: What is the maximum fixture weight this bracket can support?

A: The bracket supports fixtures up to 5 lbs, including any accessories.

Q: What tenon size does this bracket accept?

A: The bracket is designed for fixtures with a standard 2 3/8 inch slip fitter.

Q: Is this bracket suitable for marine or corrosive environments?

A: No, the bracket is not rated for marine or highly corrosive locations.

Q: Does the bracket include mounting hardware or electrical provisions?

A: No, mounting hardware and electrical connections must be specified and installed separately.

Q: What is the recommended mounting height for this bracket?

A: Typical mounting heights range from 8 to 20 feet, depending on the application and fixture output.

Application Questions and Clarification

Q: Can this bracket be used for wall mounting area lights in a parking lot?

A: Yes, it is commonly used for wall mounting lightweight area lights in parking lot and perimeter applications.

Q: Is this bracket compatible with all LED fixtures?

A: It is compatible with LED fixtures that use a 2 3/8 inch slip fitter and do not exceed the 5 lb weight limit.

Q: How should spacing between brackets be determined?

A: Spacing depends on the fixture beam pattern and desired light coverage; overlapping coverage is typical for uniform illumination.
