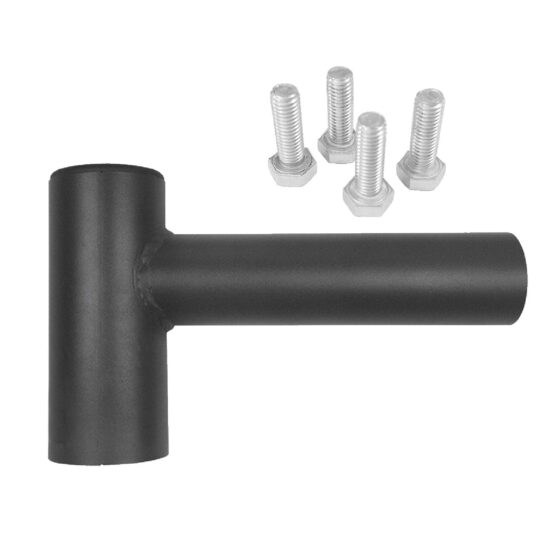

1 Fixture 90 Degree Spoke Mount | 2 3/8 Inch Tenon | Bronze
244 in stock
This bronze powder coated steel fixture spoke is a practical choice for mounting a single area lighting fixture at a 90-degree angle from a pole, especially in parking lots, perimeter lighting, and outdoor area applications. Its 2 3/8 inch tenon compatibility ensures straightforward integration with standard commercial poles and fixtures, while the 0.5 EPA and 5 lb weight support manageable installation and reliable performance in demanding environments. The powder coated finish offers corrosion resistance and a neutral appearance, making it suitable for sites with specific aesthetic or durability requirements.
Dwayne Kula | President, CTO and Founder
Product Description
Key Features
- Pole Color: Bronze
- Type: 1 Fixture Spoke 90 degrees
- Tenon Size: 2 3/8 inch
- Material: Powder Coated Steel
- EPA: 0.5
- Weight: 5 lbs
- Warranty: 1 year
Web ID: 2582
Product Overview
This 1 Fixture 90 Degree Spoke Mount is a steel pole accessory designed for mounting a single light fixture at a right angle to the pole. It features a 2 3/8 inch tenon and a bronze powder coated finish. The bracket is intended for use with area and parking lot lighting systems where a single fixture needs to be positioned perpendicular to the pole for targeted illumination.
The spoke mount is commonly installed on steel or aluminum poles in outdoor environments such as parking lots, commercial sites, and roadway perimeters. It is suitable for new installations or retrofit projects where fixture orientation and secure attachment are required.
Core Performance and Output
This spoke mount supports one fixture with a 90 degree orientation from the pole. The 2 3/8 inch tenon is compatible with most standard slipfitter fixtures used in area and parking lot lighting. The bracket has an EPA (Effective Projected Area) rating of 0.5 and a weight of 5 lbs, supporting typical LED or HID area fixtures within these limits.
Structural performance is suitable for standard pole heights and fixture sizes used in parking lot and area lighting. Exceeding the EPA or weight rating may compromise pole stability, especially in high wind zones or with oversized fixtures. Always verify total pole load calculations before installation.
Adjustability and Control Options
This mount provides a fixed 90 degree orientation for the fixture. There are no integrated aiming or tilt adjustments on the bracket itself. Fixture adjustability depends on the slipfitter or mounting hardware used with the luminaire.
No electrical or control features are included. All wiring and controls must be managed through the fixture and pole system.
Longevity and Reliability
The bracket is constructed from powder coated steel for corrosion resistance and outdoor durability. The finish provides protection against weathering and abrasion in typical exterior environments.
Mechanical reliability is consistent with standard steel mounting accessories. Routine inspection is recommended to check for corrosion or mechanical loosening over time, especially in coastal or high-humidity locations.
Build Quality and Physical Characteristics

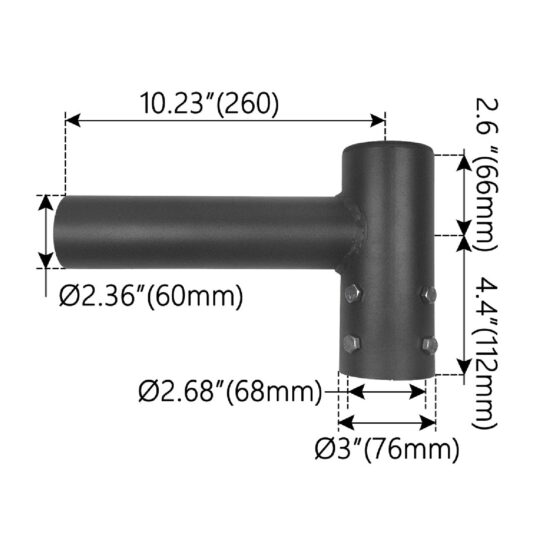

This spoke mount is fabricated from steel and finished in bronze powder coat. The tenon measures 2 3/8 inches in diameter, which is standard for most area and parking lot fixtures. The bracket weighs 5 lbs and is designed for direct attachment to compatible poles.
The EPA rating of 0.5 defines the maximum wind load contribution of the bracket and fixture combination. The bracket is intended for use with a single fixture only. No additional mounting holes or accessory points are provided.
Where This Product Fits Best
This spoke mount is intended for outdoor pole-mounted lighting systems where a single fixture needs to be oriented at 90 degrees from the pole. It is most commonly used in commercial and municipal exterior lighting projects.
- parking lot lighting
- area lighting
- roadway lighting
- commercial site lighting
- sports facility lighting
- campus lighting
- industrial yard lighting
The powder coated steel construction is suitable for standard outdoor environments. Not recommended for marine or highly corrosive locations without additional protection.
Installation and Long-Term Use
The bracket is designed for direct mounting to steel or aluminum poles using standard hardware. The 2 3/8 inch tenon accepts most slipfitter fixtures used in area and parking lot lighting. Installation requires basic hand tools and access equipment appropriate for the pole height.
Long-term use depends on maintaining the integrity of the powder coat finish and periodically checking mechanical fasteners. In regions with high wind or severe weather, verify that the total EPA and weight of all mounted fixtures and accessories remain within the pole?s rated limits.
How This Fixture Is Commonly Used
This spoke mount is typically installed at heights ranging from 15 to 30 feet, depending on the pole and fixture type. It is used to position a single fixture perpendicular to the pole for targeted area coverage, such as illuminating parking bays, drive lanes, or site perimeters.
Spacing and layout are determined by the lighting design and fixture output. Using higher output fixtures may reduce the number of poles required but can increase wind load and glare if not properly aimed. Always confirm that the bracket and pole combination meets local wind and structural codes.
Safety, Certifications, and Warranty
This product does not carry electrical ratings or third-party certifications. It is a mechanical mounting accessory constructed from powder coated steel. The bracket includes a 1 year warranty covering material and manufacturing defects under normal use.
Follow all applicable safety procedures during installation, including lockout/tagout and fall protection when working at height. Ensure all mounting hardware is properly torqued and periodically inspected.
Frequently Asked Questions
Q: What is the maximum fixture size or weight this spoke mount can support?
A: The bracket supports fixtures up to a combined EPA of 0.5 and a weight of 5 lbs. Always check the fixture?s EPA and weight before installation.
Q: Is this mount compatible with all pole types?
A: It is designed for use with steel or aluminum poles that accept standard mounting hardware. Verify pole wall thickness and hardware compatibility before installation.
Q: Can the fixture angle be adjusted after installation?
A: The bracket provides a fixed 90 degree orientation. Any aiming adjustments must be made at the fixture slipfitter or mounting head.
Q: What maintenance is required for this bracket?
A: Inspect periodically for corrosion, finish degradation, and mechanical loosening. Touch up the powder coat as needed to maintain corrosion resistance.
Q: How do I determine the correct spacing or number of mounts for a parking lot?
A: Spacing and fixture count depend on the lighting design, fixture output, and site requirements. Consult a lighting layout or photometric plan for optimal results.
Application Questions and Clarification
Q: Is this spoke mount suitable for use in sports facility lighting projects?
A: Yes, it is commonly used to mount fixtures for sports facility lighting when a single fixture needs to be oriented at 90 degrees from the pole.
Q: Can this bracket be used in industrial yard lighting applications?
A: Yes, it is suitable for mounting area fixtures in industrial yard environments, provided the EPA and weight limits are not exceeded.
Q: Is this accessory recommended for marine or coastal environments?
A: The powder coated steel construction is not intended for marine or highly corrosive environments without additional protective measures.
Q: Does this mount support multiple fixtures or only one?
A: This bracket is designed for a single fixture only. For multiple fixtures, use a multi-spoke or cross-arm bracket.
