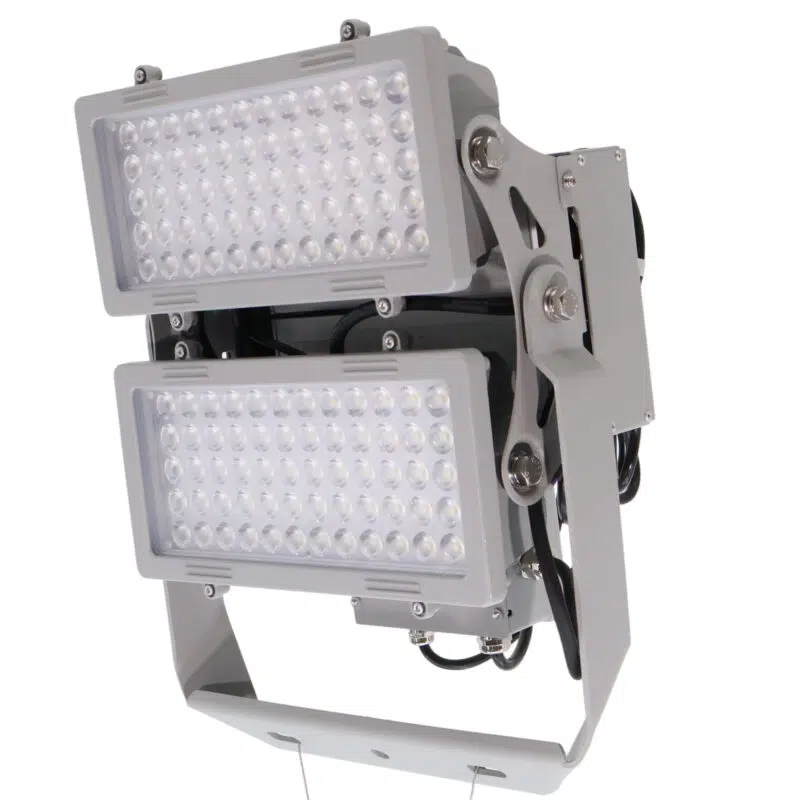

400 Watt LED Area Flood Light | 56000 Lumens | 5000K | 100V-277V or 277V-480V | Optional Marine Grade Finish
100V-277V Standard Finish:33 In StockShips 2-3 Days277V-480V Standard Finish:101 In StockShips 2-3 Days100V-277V Marine Grade:Built to Order 8 WeeksRetail Price: $564.42 -
600 Watt LED Flood Light | 84000 Lumens | 5000K | 100V-277V or 277V-480V
100V-277V:196 In StockShips 2-3 Days277V-480V:33 In StockShips 2-3 DaysRetail Price: $686.09 -
8 Foot Wood Crossarm | Treated | Southern Yellow Pine | 4 in x 6 in x 8 ft | Hardware Included
Minimum Order: 4Minimum Order Total: $1,192.84Built to Order 4 WeeksRetail Price: $298.21 -
10 Foot Wood Crossarm | Treated | Southern Yellow Pine | 4 in x 6 in x 10 ft | Hardware Included
Minimum Order: 4Minimum Order Total: $1,285.72Built to Order 4 WeeksRetail Price: $321.43
60 Foot Wood Pole | Class 3 | Treated | Southern Yellow Pine
Dwayne Kula | President, CTO and Founder
Product Description
Key Features
- Total Height (ft): 60
- Height Above Grade (ft): 52
- Buried Depth Below Grade (ft): 8
- ANSI Class: Class 3
- Material: Wood Southern Yellow Pine
- Pole Weight (lbs): 2370-2800
- Min Pole Top Circ (in): 23
- Min Circ 6ft from Butt (in): 42
- Min Pole Top OD (in): 7.3
- Pole OD 6ft From Butt (in): 13.4
- Treatment: CCA
- Pole Installation: Direct Burial
- Warranty: 1 year
Our 60 foot Class 3 CCA Treated Southern Yellow Pine Poles are grown, debarked, and treated in the United States. They are manufactured to ANSI O5.1 specification. Poles are treated with preservatives to the latest American Wood Preservers Association standards to ensure rot and decay prevention. The long term durability of a wood utility pole is one of its main benefits
Cross arms are available for our Southern Yellow Pine poles as an optional accessory. Configuration and sizing are determined based on project requirements, as well as the height and class of the selected pole. We offer both 8-foot and 10-foot cross arms, our product specialists can help confirm the appropriate size for your application.
Delivery is made with a standard flatbed truck depending on pole lengths and the customer is responsible for offloading. Offloading requires a fork lift or appropriate similar vehicle to offload - customer supplied. Customer is responsible for any costs associated with delivery rescheduling because of improper scheduling or not having the proper offloading equipment available at time of delivery. Installation should be done by a trained professional.
Pricing: Does not include price of shipping. Shipping is available to the lower 48 USA states. We can supply a budgetary shipping quote or a firm shipping quote that is good for 14 days.
Disclaimer: LED Lighting Supply is not responsible for improper loading (ie what is mounted to the pole), installation costs, or foundation design of light poles. Dimensions and specifications of poles are subject to change without notice but the pole top and butt dimensions will always be within ANSI specifications. Wood poles are the ideal option for most field projects as concrete poles require more frequent maintenance and replacement. While our main product line is southern yellow pine, we at times are able to offer other species including Douglas fir and red pine. CCA treatment generally will result in the poles being free of insects for decades to come.
Please be advised that our wood poles are covered solely by a 1-year workmanship warranty, which ensures that the poles are free from defects from the manufacturing process, and structural integrity, for a period of one year from the date of purchase. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Download our Pole Circumference Chart for Wood Poles
Web ID: 2260
Product Overview
This 60 foot Class 3 wood pole is manufactured from Southern Yellow Pine and treated with CCA preservative. It is designed for direct burial installation and meets ANSI O5.1 standards. The pole is intended for use in large-scale outdoor lighting systems, including athletic fields and stadiums, where mounting heights above 50 feet are required for proper light distribution and coverage. Typical installations include baseball, softball, soccer, and football fields, as well as municipal and utility distribution projects.
Each pole is grown, debarked, and treated in the United States. The Class 3 rating provides a balance of strength and manageable weight for field handling and installation. Optional cross arms in 8-foot and 10-foot lengths are available to support multiple luminaires or electrical lines, depending on project requirements.
Core Performance and Output
This pole supports mounting heights up to 52 feet above grade, with 8 feet of the pole buried for stability. The Class 3 designation ensures structural capacity for typical sports lighting loads, including multiple high-output floodlights or area lights. Minimum top circumference is 23 inches, with a 7.3 inch top outside diameter, providing adequate surface for mounting brackets and hardware.
Wind load and EPA (Effective Projected Area) capacity are determined by pole class, wood species, and installation depth. This pole is suitable for most athletic field lighting layouts and utility distribution where wind exposure is moderate to high. Excessive fixture weight or large sail area may require engineering review for site-specific wind conditions.
Direct burial installation eliminates the need for anchor bolts or base plates, but requires proper soil compaction and backfill to achieve full structural performance. CCA treatment protects against rot and decay in ground contact environments.
Adjustability and Control Options
Cross arms are available in 8-foot and 10-foot lengths to accommodate various fixture mounting patterns or electrical distribution needs. The pole top and cross arm configuration can be specified to match the number and type of luminaires required for the project.
Drilling for hardware and bracket installation is field-adaptable. There are no integrated electrical control options; all controls and wiring must be specified and installed separately according to project requirements.
Longevity and Reliability
Southern Yellow Pine treated with CCA preservative provides long-term resistance to rot, decay, and insect damage. Typical service life for properly installed and maintained poles exceeds 30 years in most environments.
Periodic inspection is recommended to monitor for mechanical damage, ground line decay, or hardware corrosion. The pole is covered by a 1-year warranty against manufacturing defects.
Build Quality and Physical Characteristics
The pole weighs between 2,370 and 2,800 pounds, depending on natural wood variation. Minimum circumference at 6 feet from the butt is 42 inches, with a 13.4 inch outside diameter at that point. The pole is debarked and treated to American Wood Preservers Association standards.
All poles are manufactured to ANSI O5.1 specification. The natural taper and grain of Southern Yellow Pine provide strength and flexibility under wind and load. CCA treatment is pressure-applied for full penetration and long-term durability.
Where This Product Fits Best
This 60 foot Class 3 wood pole is suited for large outdoor lighting and utility distribution projects requiring high mounting heights and robust structural performance. Typical environments include athletic fields, municipal sites, and rural utility installations.
- baseball field lighting
- football field lighting
- soccer field lighting
- sports field lighting
- driving range lighting
- recreational field lighting
- area lighting
- utility distribution
CCA treatment and direct burial design allow installation in a range of soil conditions, including rural and agricultural properties. The pole is not suitable for environments requiring non-wood materials or where above-ground base mounting is required.
Installation and Long-Term Use
Direct burial installation requires excavation to a depth of 8 feet, with proper backfill and compaction to achieve full load capacity. Lifting and handling equipment is required due to pole weight and length. Cross arms and hardware are field-installed based on project layout.
Routine inspection should focus on ground line condition, hardware integrity, and any signs of mechanical or environmental damage. Replacement of cross arms or hardware may be required over the service life of the pole. CCA treatment minimizes maintenance related to decay and insect activity.
How This Fixture Is Commonly Used
Poles of this size are typically installed at mounting heights of 50 to 52 feet above grade, supporting multiple floodlights or area lights for uniform field illumination. Spacing between poles is determined by field size, light level requirements, and fixture beam distribution.
Common layouts for athletic fields use four to eight poles per field, with cross arms configured to support the required number of luminaires. Higher mounting heights reduce glare and improve uniformity, but may require higher wattage fixtures and careful aiming to avoid spill light.
Safety, Certifications, and Warranty
This pole is manufactured to ANSI O5.1 standards and treated to American Wood Preservers Association specifications. CCA treatment provides resistance to rot and decay in ground contact applications.
The product includes a 1-year warranty against manufacturing defects. All handling and installation should follow applicable safety guidelines for heavy timber poles and overhead work.
Frequently Asked Questions
Q: What is the maximum mounting height above grade for this pole?
A: The maximum mounting height above grade is 52 feet, with 8 feet of the pole buried below ground.
Q: What types of lighting fixtures can be supported by this pole?
A: The pole is designed to support multiple high-output floodlights or area lights, typically used for athletic field and area lighting applications.
Q: Are cross arms included with the pole?
A: Cross arms are available as optional accessories in 8-foot and 10-foot lengths and must be specified separately.
Q: What equipment is required for installation?
A: Installation requires excavation equipment for the burial depth, as well as lifting and rigging equipment to handle the pole?s weight and length.
Q: How should pole spacing be determined for a sports field?
A: Pole spacing depends on field size, light level requirements, and fixture beam angles. Typical layouts use four to eight poles per field, spaced to achieve uniform coverage.
Application Questions and Clarification
Q: Is this pole suitable for use in coastal or marine environments?
A: This pole is not recommended for coastal or marine environments where salt exposure is present. Fiberglass or steel poles are preferred in those conditions.
Q: Can this pole be used for utility distribution as well as lighting?
A: Yes, the pole is suitable for both lighting and utility distribution applications, provided the loading and hardware are within the Class 3 rating.
Q: What maintenance is required over the life of the pole?
A: Routine inspection for ground line decay, hardware condition, and mechanical damage is recommended. CCA treatment minimizes decay-related maintenance.
Q: Does the pole require a concrete base or anchor bolts?
A: No, this pole is designed for direct burial installation and does not require a concrete base or anchor bolts.
