60 Foot Stadium Light Pole | 2 Cross Arms | 115 MPH Wind Rating

Product Overview

We supply a 60 Foot Stadium Light Pole designed for large-scale sports lighting and athletic field illumination. This pole is fabricated from 8 gauge S235 steel and finished with hot dip galvanizing for corrosion resistance in outdoor environments. The 60 ft height and dual 10 ft cross arms support high-mounting requirements typical of stadium and field lighting layouts.

This configuration is engineered for anchor base installation with eight 49-inch anchor bolts, providing structural stability for elevated wind exposure. The 115 mph wind load rating addresses open field and stadium conditions where wind forces are a primary design factor. This pole is commonly specified for new sports lighting installations or major upgrades where tall, robust mounting is required.

Core Performance and Output

This 60 ft steel pole is rated for 115 mph wind loads, supporting large-area flood and sports lighting fixtures in exposed environments. The 8 gauge S235 steel construction and hot dip galvanized finish provide structural integrity and long-term corrosion resistance. Dual 10 ft cross arms allow for multiple fixture mounting points, distributing luminaire weight and EPA efficiently.

The pole?s anchor base design and eight anchor bolts ensure secure installation on engineered concrete foundations. At 60 ft, fixture EPA and weight must be evaluated to maintain wind load compliance. Excessive fixture loading or non-uniform mounting can reduce structural performance, especially in high wind zones.

Adjustability and Control Options

This pole includes two 10 ft cross arms for flexible fixture placement and aiming. Cross arms accommodate multiple luminaires, allowing for tailored light distribution across fields or stadiums. Fixture orientation and spacing can be adjusted during installation to meet project-specific lighting requirements.

No integrated electrical controls or wiring are included with the pole. All fixture-level controls, wiring, and aiming adjustments are managed at the luminaire and cross arm level. The pole?s design supports standard sports lighting brackets and mounting hardware.

Longevity and Reliability

The hot dip galvanized finish protects the steel substrate from corrosion, extending service life in outdoor and high-humidity environments. S235 steel provides high strength and durability for long-term structural reliability. The anchor base and bolt configuration are designed for repeated wind loading and seasonal temperature changes.

Routine inspection of anchor bolts, cross arms, and galvanizing is recommended to maintain structural integrity. Galvanized surfaces may require periodic touch-up in areas of abrasion or mechanical damage. The pole is covered by a 1-year warranty.

Build Quality and Physical Characteristics

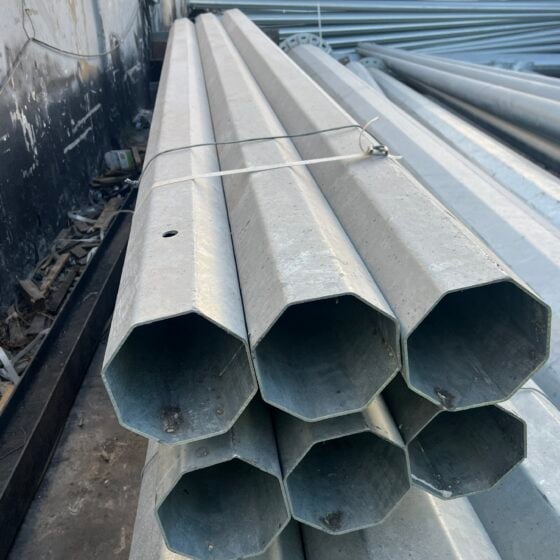

This pole is constructed from 8 gauge S235 steel, weighing 2,072 lbs, and finished with hot dip galvanizing. The 60 ft height and robust wall thickness are engineered for high-mounting applications and large fixture arrays. The pole tapers to a smaller diameter at the top for optimal strength-to-weight ratio.

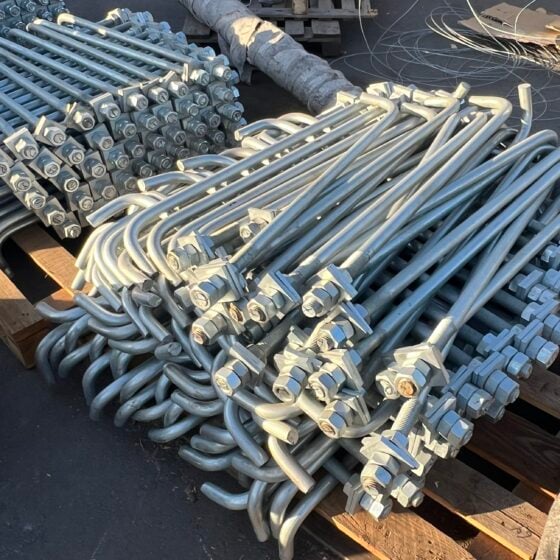

The anchor base design uses eight 1.18-inch diameter, 49-inch long anchor bolts for secure foundation attachment. Two 10 ft cross arms provide ample mounting space for sports lighting fixtures. All components are designed for compatibility with standard sports lighting hardware.

Where This Product Fits Best

This 60 ft steel pole is intended for large outdoor environments requiring elevated lighting and robust structural performance. It is most commonly used in stadiums, athletic fields, and commercial sites where tall mounting heights and high wind ratings are required.

• sports facility lighting
• area lighting
• parking lot lighting
• commercial site lighting
• roadway lighting
• industrial yard lighting
• dealership lighting
• campus lighting

The hot dip galvanized finish and S235 steel construction provide durability in outdoor and high-exposure locations. The 115 mph wind rating supports use in open fields and stadiums subject to elevated wind loads.

Installation and Long-Term Use

Installation requires a properly engineered concrete foundation and precise anchor bolt placement. The pole?s weight and height demand appropriate lifting equipment and experienced installation crews. Cross arms are attached at the specified mounting heights for fixture installation and aiming.

Long-term use involves periodic inspection of anchor bolts, cross arms, and galvanizing. Fixture loading and EPA must remain within design limits to maintain wind load compliance. The pole is designed for permanent outdoor installation and is not intended for relocation after initial setup.

How This Fixture Is Commonly Used

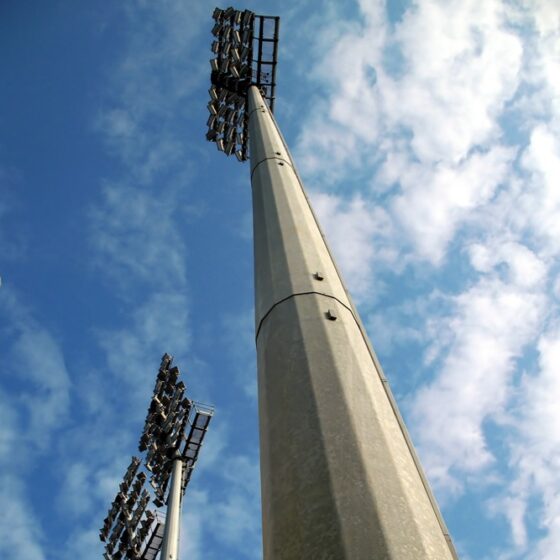

This 60 ft pole is typically installed in stadiums, athletic fields, and large parking areas where high-mounting is required for uniform light distribution. Cross arms are used to mount multiple flood or sports lighting fixtures, with spacing and aiming determined by field layout and lighting design.

Mounting heights of 60 ft allow for wide-area coverage and reduced glare at ground level. Fixture spacing and orientation on the cross arms are adjusted to achieve target light levels and uniformity. Higher mounting heights can reduce the number of poles required but may increase fixture count or wattage to maintain desired illumination.

Safety, Certifications, and Warranty

This pole is fabricated from S235 steel and finished with hot dip galvanizing for corrosion resistance. The 115 mph wind load rating is based on standard engineering calculations for open field and stadium environments. All components are designed for compliance with typical sports lighting and area lighting standards.

The pole includes a 1-year warranty covering material and manufacturing defects. Routine inspection and maintenance are required to ensure ongoing structural safety and performance.

Frequently Asked Questions

Q: What is the maximum wind load this pole can support?

A: This pole is rated for a 115 mph wind load when installed with the specified anchor base and bolt configuration.

Q: How many fixtures can be mounted on the cross arms?

A: The two 10 ft cross arms can accommodate multiple fixtures, but total EPA and weight must remain within the pole?s structural limits.

Q: What type of foundation is required for installation?

A: A properly engineered concrete foundation with eight 49-inch anchor bolts is required for secure installation.

Q: Is the pole suitable for coastal or corrosive environments?

A: The hot dip galvanized finish provides corrosion resistance suitable for most outdoor environments. Additional coatings may be required for highly corrosive or coastal sites.

Q: How should fixture spacing and aiming be planned at 60 ft mounting height?

A: Fixture spacing and aiming depend on field layout and lighting requirements. Higher mounting heights allow for wider coverage but may require higher wattage or more fixtures for uniform illumination.

Application Questions and Clarification

Q: Can this pole be used for both sports facility lighting and area lighting?

A: Yes, this pole is suitable for both sports facility lighting and large area lighting where tall mounting and high wind ratings are required.

Q: Is this pole compatible with standard sports lighting fixtures?

A: The cross arms are designed to accept standard sports lighting brackets and mounting hardware.

Q: What maintenance is required over the life of the pole?

A: Routine inspection of anchor bolts, cross arms, and galvanized surfaces is recommended. Touch-up of galvanizing may be needed if surfaces are damaged.

Q: Are there limitations on fixture EPA or weight at this height?

A: Yes, total fixture EPA and weight must remain within the pole?s structural and wind load limits to maintain safety and compliance.
