39 Foot Square Steel Light Pole | 6 Inch Wide | Anchor Base
These high-strength steel poles are perfect for parking lot lighting. Our tenon and bullhorn adapters also allow multiple fixtures to be attached to a single pole.
Neil Peterson | CEO and Chief Lighting Specialist
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Material | Steel |
| Pole Weight (lbs) | 585 |
| Pole Width (in) | 6 |
| Pole Bolt Circle (in) | 12 |
| Pole Finish | Hot Dip Galvanized and Powder Coated |
| Pole Color | Bronze |
| Pole Gauge | 7 |
| Pole Installation | Anchor Base |
| Includes | 2 3/8 Inch Tenon |
| Warranty | 1 year |
| EPA at 90 mph | 11. |
| EPA at 100 mph | 9.5 |
| EPA at 110 mph | 8.2 |
| EPA at 120 mph | 5.9 |
| EPA at 130 mph | 3.8 |
| EPA at 140 mph | 2 |
Mounting hardware for this pole is not included; anchor bolts and base covers can be purchased separately. This pole comes standard with a 2 3/8 inch tenon top.
Disclaimer: LED Lighting Supply is not responsible for improper loading of light fixtures or other attachments, use, or foundation design of light poles. Final pole assembly is the responsibility of the purchaser. Dimensions and specifications of a 39 foot round or square steel light pole are subject to change without notice. See the data sheet for current pole data charts. Custom sizing is only available for large order quantities. Pole caps are used in place of other mounting options when necessary.
Please be advised that our steel poles are covered solely by a 1-year workmanship warranty, which ensures that the poles are free from defects from the manufacturing process, such as welds and structural integrity, for a period of one year from the date of purchase. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Additional Resources
Product Overview

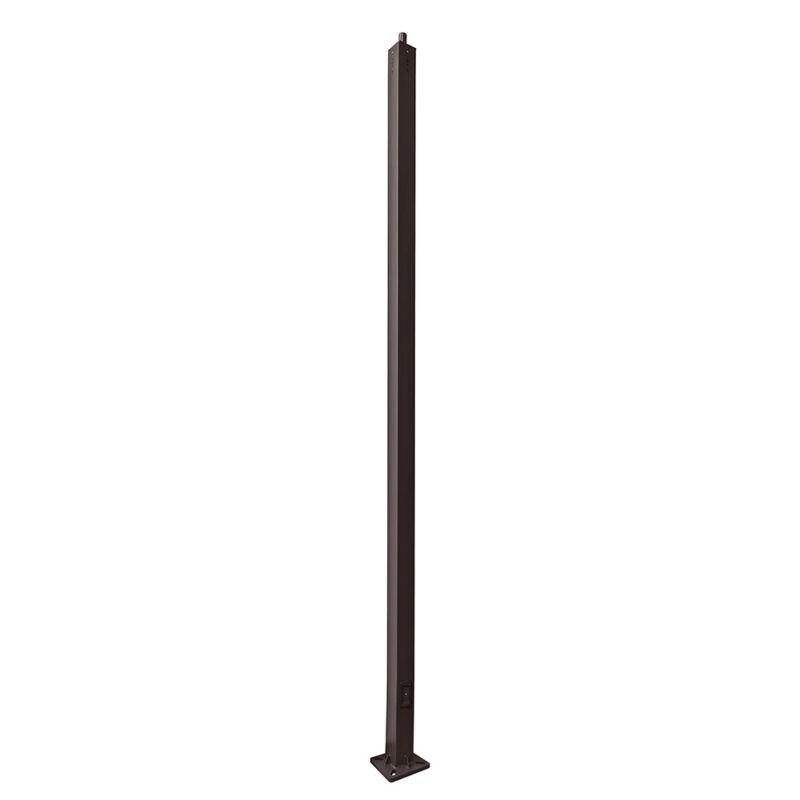

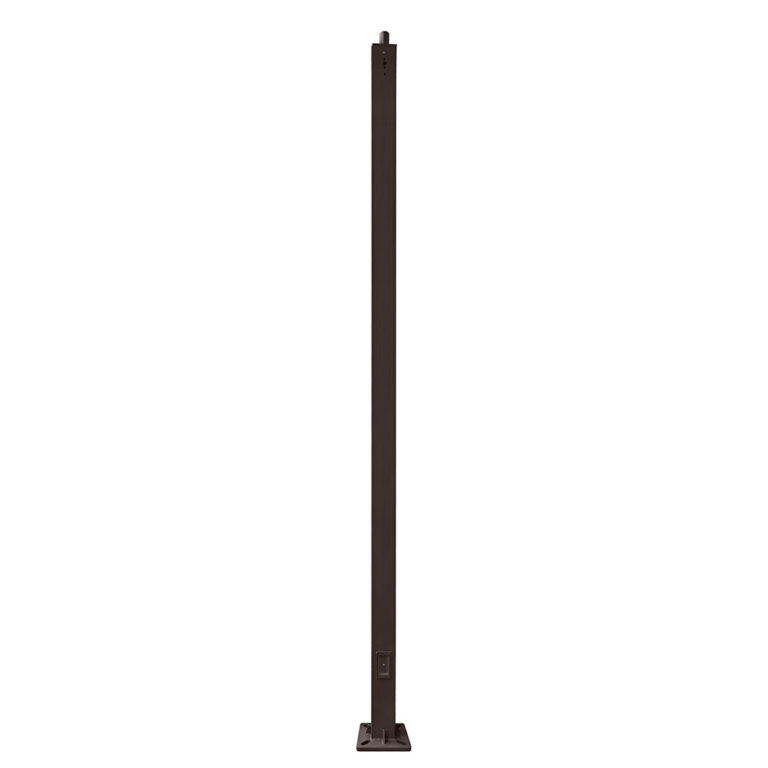

This 39-foot square steel light pole provides an anchor-base support structure for pole-mounted lighting. It has a 6-inch-wide shaft, bronze powder-coated finish, and a standard 2 3/8-inch tenon top.
The pole is intended for parking lot lighting, roadway lighting, area lighting, and commercial site lighting where a tall steel mounting structure is required. Its 7-gauge steel construction and hot dip galvanized finish support long-term outdoor installation.
Core Performance and Output
Structural capacity is defined by EPA ratings that vary with wind speed. The pole is rated for 11 EPA at 90 mph, 9.5 EPA at 100 mph, 8.2 EPA at 110 mph, 5.9 EPA at 120 mph, 3.8 EPA at 130 mph, and 2 EPA at 140 mph.
Fixture selection must remain within the applicable EPA rating for the site wind speed. Higher wind conditions reduce the available EPA capacity, which can limit the fixture size and mounting configuration.
Adjustability and Control Options
This pole includes a fixed 2 3/8-inch tenon top for compatible pole-mounted fixture assemblies. The tenon establishes the fixture mounting point at the top of the 39-foot pole.
No integral lighting controls or adjustable mounting features are specified for the pole. Controls, fixtures, and related electrical equipment are separate components of the lighting system.
Longevity and Reliability
The steel pole has a hot dip galvanized and powder-coated finish. The exterior finish is bronze.
Its 7-gauge steel construction and 585-pound pole weight reflect a substantial fixed installation. Long-term performance depends on proper anchor-base installation and keeping the installed fixture load within the applicable EPA rating.
Build Quality and Physical Characteristics

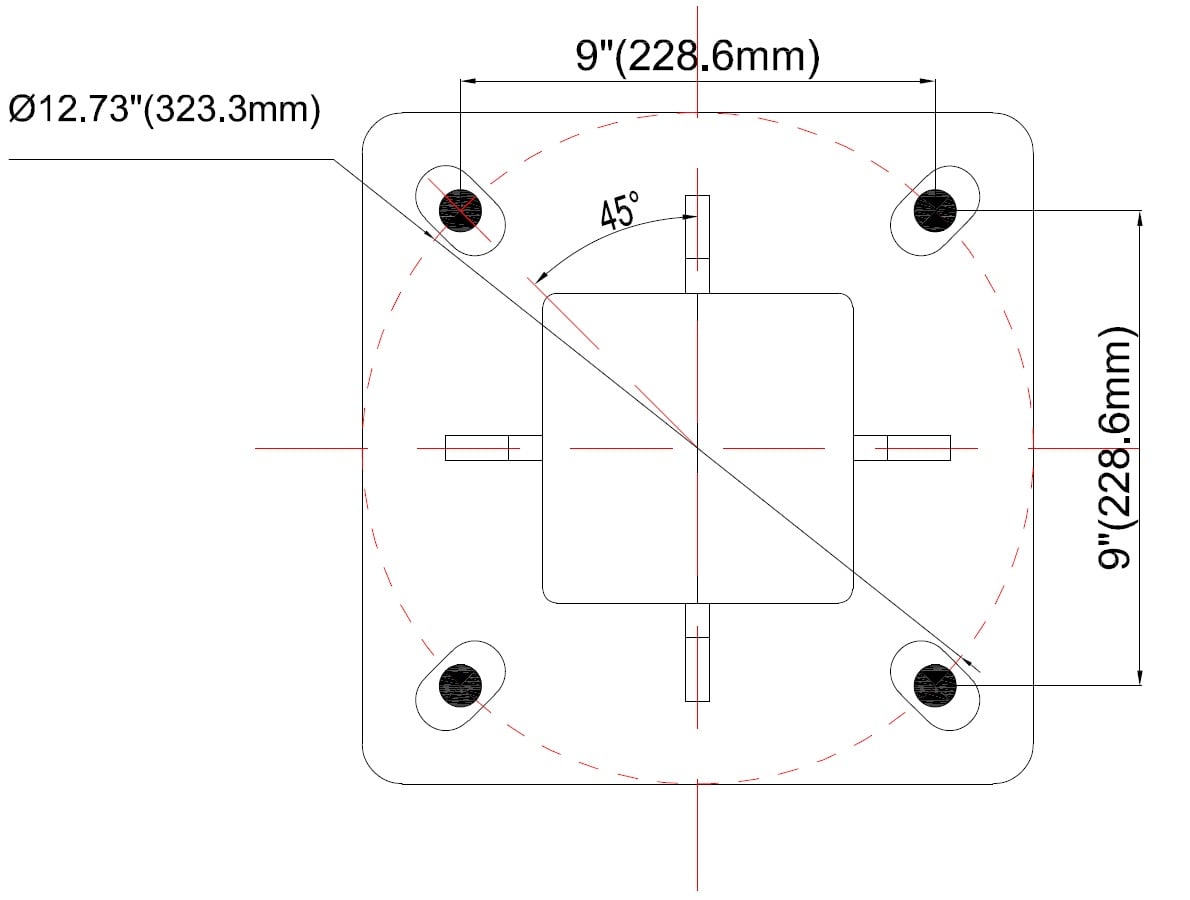

The pole has a square 6-inch-wide steel shaft and a 39-foot overall height. It uses an anchor-base installation with a 12-inch bolt circle.
The standard top includes a 2 3/8-inch tenon. Anchor bolts and base covers are not included with the pole.
Where This Product Fits Best
This pole fits outdoor lighting systems that require a 39-foot support height and an anchor-base steel structure. It is suited to sites where fixture EPA and local wind conditions can be matched to the published pole ratings.
- parking lot lighting
- roadway lighting
- commercial site lighting
- area lighting
- industrial yard lighting
- campus lighting
The galvanized and powder-coated steel construction is intended for outdoor exposure. Wind speed, fixture EPA, and anchor-base design remain critical site-specific factors.
Installation and Long-Term Use
Installation requires an anchor-base foundation and anchor bolts matching the 12-inch bolt circle. Anchor bolts and base covers are separate items and must be accounted for before installation.
The 2 3/8-inch tenon provides the top mounting interface. Fixture loading must be reviewed against the pole EPA rating at the applicable site wind speed before the final assembly is installed.
How This Fixture Is Commonly Used
At 39 feet, this pole is used where elevated fixture placement is part of the lighting layout for parking lot lighting, roadway lighting, area lighting, and commercial site lighting. The tenon-mounted fixture assembly is installed at the pole top after the anchor-base structure is in place.
Layout patterns depend on the selected fixture, target light levels, pole locations, and site wind conditions. Larger fixture EPA can reduce available structural capacity as wind speed increases.
Safety, Certifications, and Warranty
This pole carries a 1-year warranty.
No certifications are specified in the supplied product data. Installation must use a suitable anchor-base foundation and fixture configuration within the published EPA ratings.
Frequently Asked Questions
Q: What is the height and shaft width of this steel light pole?
A: The pole is 39 feet high with a 6-inch-wide square steel shaft.
Q: What mounting top is included?
A: The pole includes a standard 2 3/8-inch tenon top.
Q: Are anchor bolts included with the pole?
A: No. Anchor bolts and base covers are not included.
Q: How should fixture loading be planned for this pole?
A: Fixture EPA must be matched to the pole EPA rating at the applicable site wind speed. The published rating ranges from 11 EPA at 90 mph to 2 EPA at 140 mph.
Application Questions and Clarification
Q: Is this pole appropriate for parking lot lighting and roadway lighting?
A: The supplied application data identifies parking lot lighting and roadway lighting as primary applications for steel light poles. Final fit depends on the fixture EPA and site wind speed.
Q: What should be reviewed for an industrial yard lighting installation?
A: Industrial yard lighting is a listed secondary application. Review the fixture EPA against the applicable wind-speed rating and confirm the anchor-base foundation requirements.
Q: Can this pole be used for campus lighting?
A: Campus lighting is a listed secondary application for steel light poles. The 39-foot height, fixture EPA, and site wind conditions should be evaluated for the planned layout.
Web ID: 2748
