39 Foot Round Steel Light Pole | 6 Inch Diameter | Anchor Base
These high-strength steel poles are perfect for parking lot lighting. Our tenon and bullhorn adapters also allow multiple fixtures to be attached to a single pole.
Neil Peterson | CEO and Chief Lighting Specialist
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Material | Steel |
| Pole Weight (lbs) | 451 |
| Pole Diameter (in) | 6 |
| Pole Bolt Circle (in) | 10.5 |
| Pole Finish | Hot Dip Galvanized and Powder Coated |
| Pole Color | Bronze |
| Pole Gauge | 7 |
| Pole Installation | Anchor Base |
| Includes | Top Cap |
| Warranty | 1 year |
| EPA at 70 mph | 8.9 |
| EPA at 80 mph | 6.9 |
| EPA at 90 mph | 6.0 |
| EPA at 100 mph | 5.3 |
| EPA at 110 mph | 4.4 |
| EPA at 120 mph | 3.0 |
Disclaimer: LED Lighting Supply is not responsible for improper loading of light fixtures or other attachments, use, or foundation design of light poles. Final pole assembly is the responsibility of the purchaser. Dimensions and specifications of the 39 foot round or square steel light pole are subject to change without notice. See the data sheet for current pole data charts. Custom sizing is only available for large order quantities. Pole caps are used in place of other mounting options when necessary.
Please be advised that our steel poles are covered solely by a 1-year workmanship warranty, which ensures that the poles are free from defects from the manufacturing process, such as welds and structural integrity, for a period of one year from the date of purchase. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Additional Resources
Product Overview

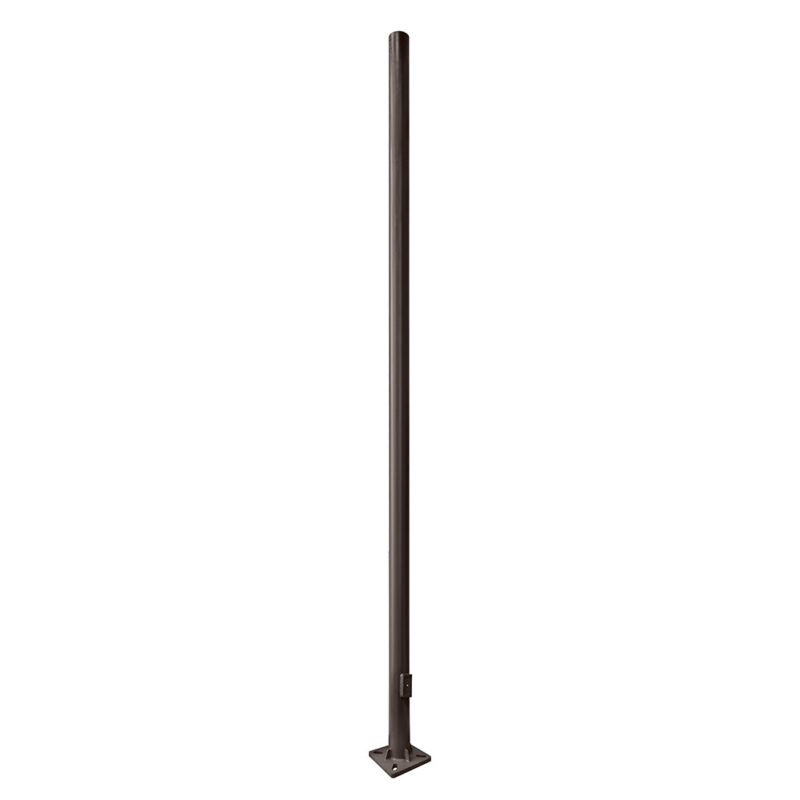

This 39-foot round steel light pole is an anchor-base structure for supporting exterior lighting fixtures in parking lot lighting, roadway lighting, area lighting, and commercial site lighting. The pole has a 6-inch diameter, 7-gauge steel construction, and a bronze powder-coated finish over hot dip galvanizing.
The anchor-base design is intended for foundation-mounted installation. It includes a flat top cap and does not include installation hardware or tenons.
Core Performance and Output
This pole is rated for a maximum EPA of 8.9 at 70 mph, 6.9 at 80 mph, 6.0 at 90 mph, 5.3 at 100 mph, 4.4 at 110 mph, and 3.0 at 120 mph. Fixture and bracket EPA must remain within the applicable rating for the site wind speed.
The 39-foot height supports elevated lighting layouts where wider fixture distribution is required. Higher fixture mounting can increase coverage area, but the selected fixture optics and EPA loading must be reviewed together.
Adjustability and Control Options
This is a fixed-height, anchor-base steel pole with no integrated adjustment or control components. Fixture aiming and control capability depend on the installed fixture, mounting arm, tenon, and related equipment.
The flat top cap is included. Tenons are available separately when the fixture mounting configuration requires one.
Longevity and Reliability
The pole uses steel construction with hot dip galvanizing and a powder-coated bronze finish. These finishes provide a finished exterior surface for long-term outdoor installation.
The pole weight is 451 pounds. Foundation condition, anchor hardware, fixture loading, and wind exposure affect long-term structural performance.
Build Quality and Physical Characteristics

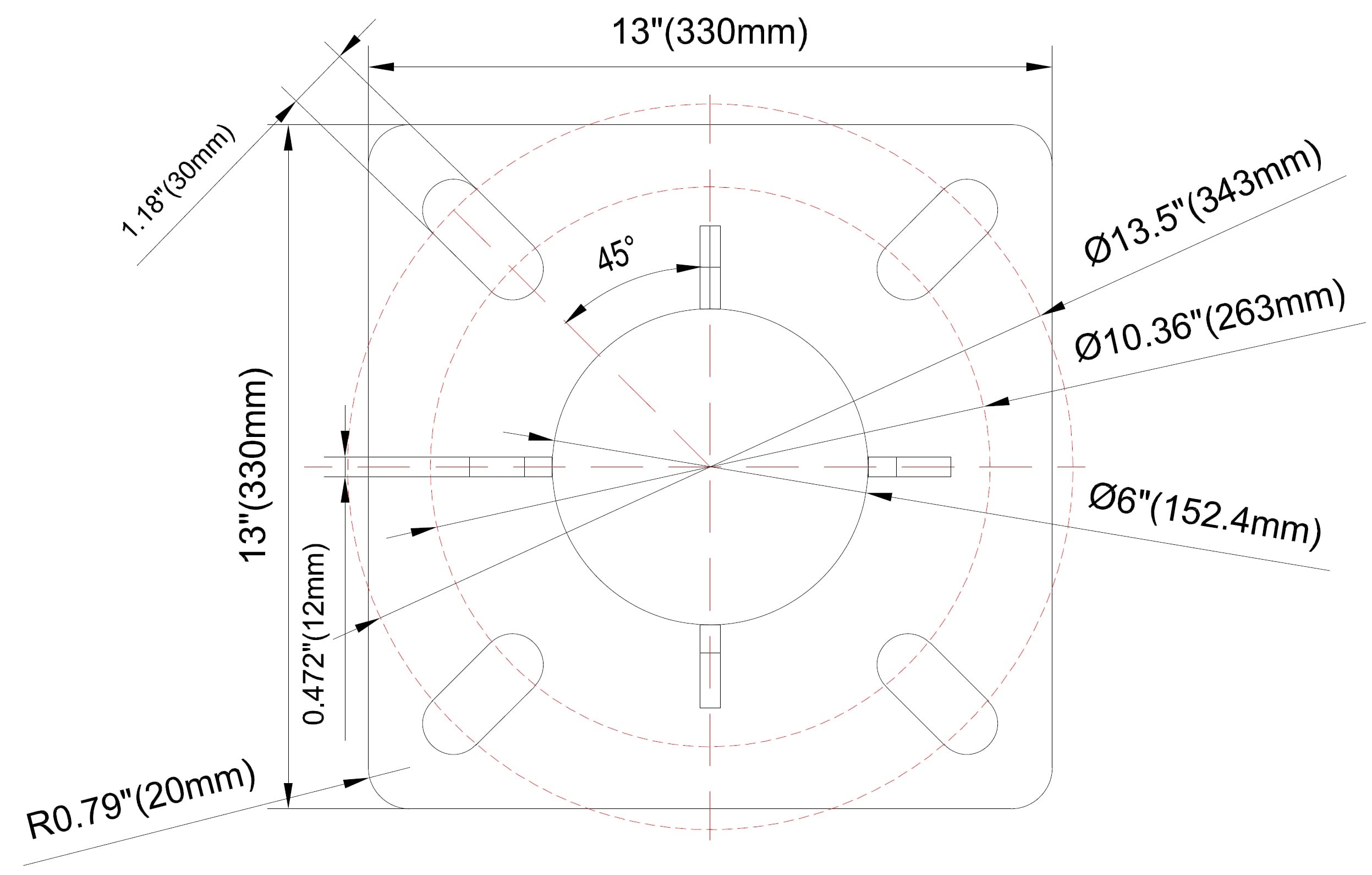

This round pole has a 6-inch diameter and 7-gauge steel construction. The anchor-base configuration uses a 10.5-inch bolt circle.
The pole includes a flat top cap. Installation hardware is not included.
Where This Product Fits Best
This pole fits exterior lighting layouts requiring a 39-foot mounting height and anchor-base foundation installation. Its EPA ratings support fixture and bracket selection based on local wind conditions.
- parking lot lighting
- roadway lighting
- commercial site lighting
- area lighting
- industrial yard lighting
- campus lighting
Steel construction, hot dip galvanizing, and powder coating suit exposed exterior installations. The applicable wind-speed EPA rating remains a primary structural selection factor.
Installation and Long-Term Use
Installation requires an anchor-base foundation arrangement matching the 10.5-inch bolt circle. The 451-pound pole weight should be accounted for during unloading, lifting, and erection planning.
Mounting hardware is not included. The installed fixture, arm, or tenon must be selected with the pole EPA rating and site wind speed in mind.
How This Fixture Is Commonly Used
The 39-foot mounting height is used for elevated layouts in parking lot lighting, roadway lighting, area lighting, commercial site lighting, industrial yard lighting, and campus lighting. Fixture distribution is established through pole placement and the selected fixture optics.
Layout spacing varies with the fixture output, optical distribution, target light levels, and mounting configuration. A larger coverage pattern can reduce pole count, but fixture EPA loading must remain within the pole rating.
Safety, Certifications, and Warranty
Installation hardware is not included with the pole. The flat top cap is included.
This steel light pole carries a 1-year warranty.
Frequently Asked Questions
Q: What is the height and diameter of this steel light pole?
A: The pole is 39 feet high and has a 6-inch diameter.
Q: What are the EPA ratings for this pole?
A: The EPA ratings are 8.9 at 70 mph, 6.9 at 80 mph, 6.0 at 90 mph, 5.3 at 100 mph, 4.4 at 110 mph, and 3.0 at 120 mph.
Q: Does this pole include mounting hardware or a tenon?
A: No. The pole includes a flat top cap but does not include installation hardware or a tenon.
Q: What should be reviewed when planning fixture support on this pole?
A: Review the fixture and bracket EPA, the site wind speed, and the applicable pole EPA rating. The fixture support loading must remain within the listed EPA rating.
Application Questions and Clarification
Q: Can this pole be used for parking lot lighting and roadway lighting?
A: Parking lot lighting and roadway lighting are primary applications for this steel light pole category. Fixture and bracket EPA must be evaluated against the site wind speed.
Q: Is this pole applicable for industrial yard lighting or campus lighting?
A: Industrial yard lighting and campus lighting are secondary applications for this steel light pole category. The 39-foot height, anchor-base installation, and EPA requirements should match the project layout.
Q: What foundation connection dimension is provided?
A: The pole has a 10.5-inch bolt circle for the anchor-base connection.
