30 Foot Round Steel Light Pole | 5 Inch Diameter | Anchor Base

Product Overview

This 30 Foot Round Steel Light Pole is designed for outdoor area and site lighting applications that require elevated mounting heights and robust structural support. The pole features a 5-inch diameter, 11-gauge steel construction, and an anchor base for secure installation on concrete foundations. Hot dip galvanizing and a powder coated bronze finish provide corrosion resistance for long-term exterior use. Typical installations include parking lots, commercial sites, and roadway perimeters where 30-foot mounting heights are needed for uniform light distribution and reduced fixture count.

The pole is supplied with a top cap and is engineered to support a range of area, roadway, and sports facility lighting fixtures within its EPA and weight limits. This model is commonly specified for new construction and retrofit projects where structural integrity and wind load compliance are required.

Core Performance and Output

The 30-foot height and 5-inch diameter provide a balance of structural strength and fixture mounting flexibility. The pole supports effective projected area (EPA) ratings up to 8.5 at 70 mph and 2.1 at 120 mph, allowing for multiple fixtures or larger luminaires depending on site wind conditions. The 11-gauge steel construction delivers rigidity for high-mount installations and minimizes vibration under load.

Anchor base design enables precise alignment and secure attachment to engineered concrete pads. The pole?s EPA and weight limits must be observed to maintain structural safety, especially in regions with higher wind speeds. Excessive fixture weight or EPA beyond rated limits can compromise pole performance and longevity.

Adjustability and Control Options

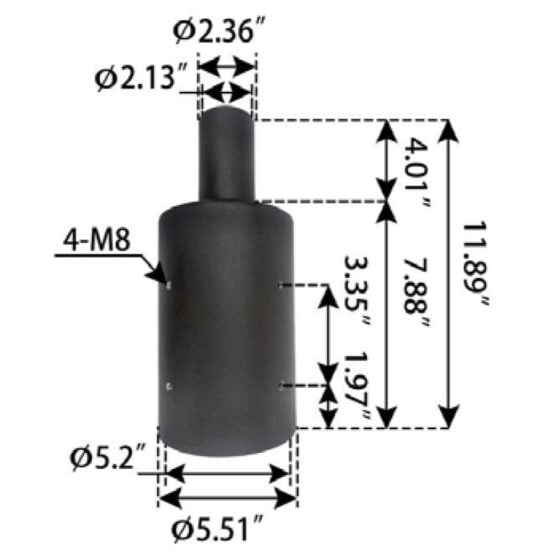

This pole is compatible with a wide range of area, roadway, and sports lighting fixtures that utilize standard mounting brackets or tenons. The 5-inch diameter accommodates most commercial and industrial fixture mounting hardware. Fixture orientation and aiming are determined by the selected luminaire and bracket system, not by the pole itself.

No integrated control or wiring features are included; all control systems, photocells, or sensors must be specified and installed with the lighting fixtures or within the pole base as required by the project. The pole provides a continuous conduit path for fixture wiring from base to top cap.

Longevity and Reliability

Hot dip galvanizing followed by a powder coated finish protects the steel from corrosion, abrasion, and environmental exposure. This dual-layer protection is suitable for most commercial and industrial exterior environments, including areas with moderate exposure to de-icing salts or urban pollutants.

Routine inspection of the finish and anchor hardware is recommended to maintain long-term reliability. The pole?s structural integrity is maintained when EPA and weight limits are not exceeded and when installed on properly engineered foundations.

Build Quality and Physical Characteristics

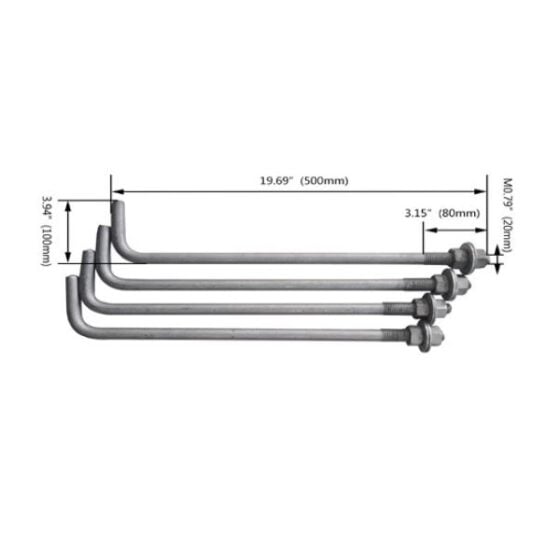

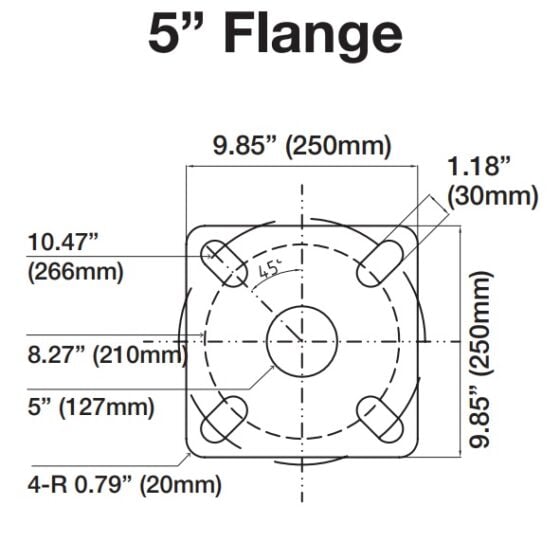

The pole is fabricated from 11-gauge steel, providing a strong balance of weight and rigidity for 30-foot mounting heights. The 5-inch round profile is compatible with standard area and roadway lighting brackets. The anchor base design includes an 8-inch bolt circle and 3.15-inch bolt projection for secure foundation attachment.

The bronze powder coated finish offers a neutral appearance suitable for most commercial sites. The pole is supplied with a top cap to prevent moisture ingress and debris accumulation. Total pole weight is 242 lbs, which should be considered during handling and installation.

Where This Product Fits Best

This 30-foot steel pole is intended for exterior environments that require elevated lighting for safety, security, and site visibility. It is commonly used in:

• parking lot lighting
• roadway lighting
• area lighting
• commercial site lighting
• sports facility lighting
• campus lighting
• industrial yard lighting
• dealership lighting

The pole?s finish and structural design are suitable for most non-coastal, non-marine exterior environments. For installations in high-wind or corrosive locations, verify EPA ratings and consider additional protective measures as needed.

Installation and Long-Term Use

Anchor base installation requires a properly engineered concrete foundation with the specified bolt circle and projection. The pole?s weight and length require equipment for safe handling and vertical placement. All mounting hardware and anchor bolts must be torqued to manufacturer specifications.

Routine maintenance includes inspection of the finish, anchor hardware, and fixture mounting points. The pole?s conduit path supports standard fixture wiring practices. For long-term performance, avoid exceeding EPA or weight ratings and monitor for signs of corrosion or mechanical stress.

How This Fixture Is Commonly Used

Typical mounting height is 30 feet, supporting wide-area illumination with reduced fixture count compared to shorter poles. Spacing between poles is determined by fixture output, site geometry, and required light levels. In parking lots and commercial sites, poles are often spaced 80?120 feet apart depending on the lighting layout.

Multiple fixtures may be mounted per pole if total EPA and weight remain within rated limits. Higher mounting heights improve uniformity but may require higher output fixtures. Closer pole spacing increases uniformity but raises installation costs.

Safety, Certifications, and Warranty

The pole is manufactured to meet structural and wind load requirements for commercial and industrial exterior lighting. EPA ratings are provided for wind speeds from 70 mph to 120 mph. The hot dip galvanized and powder coated finish supports corrosion resistance in standard outdoor environments.

Warranty is 1 year. All installations must comply with local codes and engineering requirements for pole foundations and wind loading. No additional certifications are claimed for this product.

Frequently Asked Questions

Q: What is the maximum fixture EPA this pole can support at 100 mph wind speed?

A: The maximum EPA at 100 mph is 4.2.

Q: Can this pole be used for multiple fixtures?

A: Yes, as long as the combined EPA and weight of all fixtures and brackets do not exceed the pole?s rated limits for the site wind speed.

Q: What type of foundation is required for anchor base installation?

A: A reinforced concrete foundation engineered for the pole height, weight, and wind load is required. Follow local code and engineering guidelines.

Q: Is the pole suitable for coastal or marine environments?

A: The pole is hot dip galvanized and powder coated, but additional protection may be needed for highly corrosive environments.

Q: How should I plan pole spacing for parking lot lighting?

A: Typical spacing ranges from 80 to 120 feet, depending on fixture output, site layout, and required light levels.

Application Questions and Clarification

Q: Can this pole be used for sports facility lighting?

A: Yes, within the EPA and weight limits, this pole is suitable for mounting sports facility lighting fixtures.

Q: Is this pole compatible with both area and roadway lighting fixtures?

A: Yes, the 5-inch diameter and anchor base design are compatible with standard area and roadway lighting brackets and tenons.

Q: What is the recommended maintenance for this pole?

A: Inspect the finish, anchor hardware, and fixture mounting points periodically. Address any signs of corrosion or mechanical stress promptly.
