20 Foot Wood Pole | Class 6 | Treated | Ponderosa Pine
Product Description
Key Features
- Total Height (ft): 20
- Height Above Grade (ft): 16
- Buried Depth Below Grade (ft): 4
- ANSI Class: Class 6
- Material: Wood Ponderosa Pine
- Pole Weight (lbs): 200-300
- Min Pole Top Circ (in): 17
- Min Circ 6ft from Butt (in): 23
- Min Pole Top OD (in): 5.4
- Pole OD 6ft From Butt (in): 7.32
- Pole Treatment: CCA
- Pole Installation: Direct Burial
- Warranty: 1 year

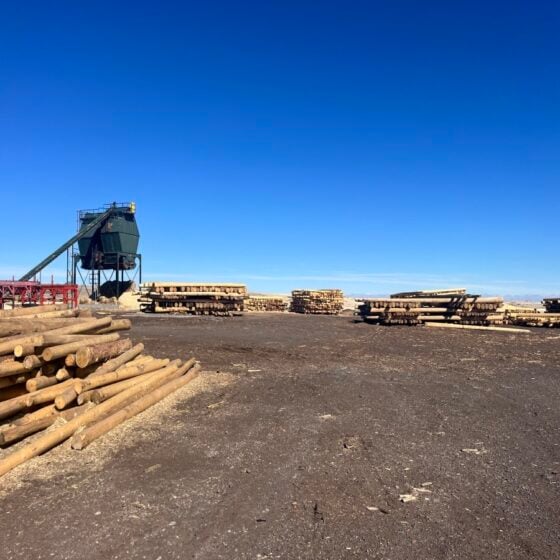

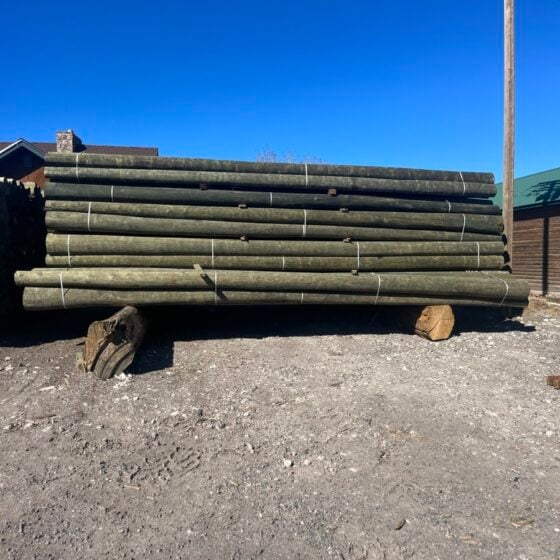

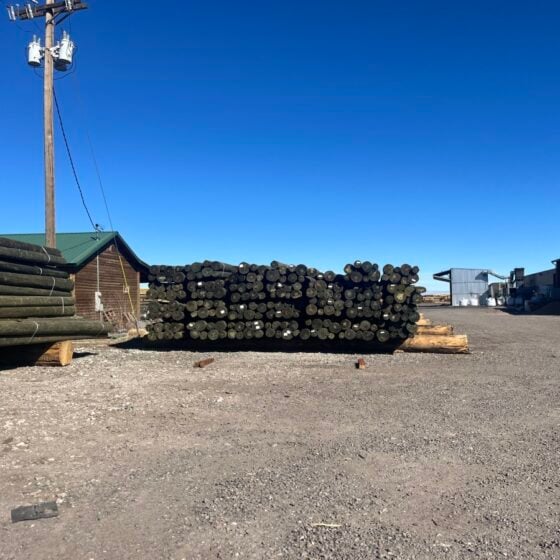

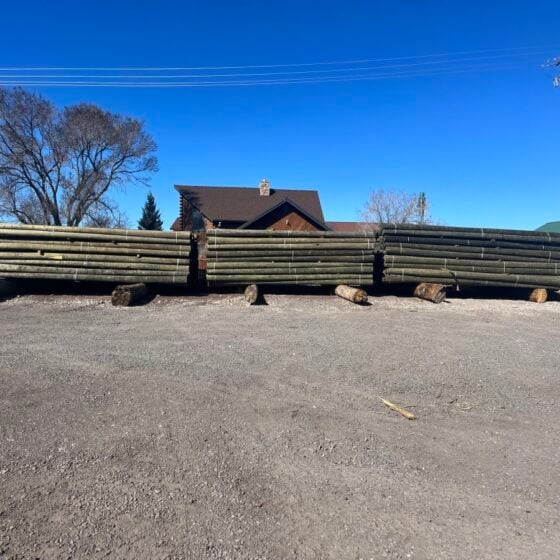

Our CCA Treated 20 Foot Wood Pole Class 6 Treated Ponderosa Pine Poles are grown, debarked, and treated in the United States. They are manufactured to ANSI O5.1 specification. Poles are pressure treated and preservative treated to the latest American Wood Preservers Association standards to prevent damage from termites, decay and rot regardless of the species used.
Our 20 ft round wood poles are perfect for sports fields, baseball fields, and a utility pole project. You can add up to 2 light arms per pole. Each arm can accommodate 240 lbs per arm. Number of arms and lights depends on the class of pole you select. The class will determine the diameter at the base. Availability can change based on the quantity and length required as different sizes can have different lead times. Our poles are built with durability in mind to ensure long-lasting performance.
Options Available:
Cross Arms (2 per pole, 1 per side) and Mounting Brackets. Customer is responsible for mounting Cross Arm after poles are delivered. Poles do not ship with cross arms attached.
These are the lights we typically mount on the cross arms. Up to 6 lights per arm, not to exceed 240 total pounds of fixtures and hardware.
Delivery is made with a flatbed truck and the customer is responsible for offloading. Offloading requires a fork lift or appropriate similar vehicle to offload - customer supplied. Customers are responsible for any costs associated with delivery rescheduling because of improper scheduling or not having the proper offloading equipment or area to store poles available at the time of delivery. Please contact a sales representative prior to purchasing to ensure all the project details are clear.
Pricing: Does not include cost of shipping. Shipping is available to the lower 48 USA states. We can supply a budgetary shipping quote or a firm shipping quote that is good for 14 days.
Disclaimer: LED Lighting Supply is not responsible for improper loading (ie what is mounted to the pole), installation costs, or foundation design of light poles. Dimensions and specifications of poles are subject to change without notice but the pole top and butt dimensions will always be within ANSI specifications. Wood poles are the ideal option for most field projects as concrete poles require more frequent maintenance and replacement.
Please be advised that our wood poles are covered solely by a 1-year workmanship warranty, which ensures that the poles are free from defects from the manufacturing process, and structural integrity, for one year from the date of purchase. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Download our Pole Circumference Chart for Wood Poles
Web ID: 2190
Product Overview
This is a 20 foot direct burial wood pole, manufactured from Ponderosa Pine and treated with CCA. The pole is built to ANSI Class 6 specification and meets ANSI O5.1 requirements.
The total height is 20 feet, with 16 feet above grade and 4 feet buried below grade. Minimum pole top circumference is 17 inches, and minimum circumference 6 feet from the butt is 23 inches. The pole top outside diameter is 5.4 inches, and the outside diameter 6 feet from the butt is 7.32 inches.
Pole weight ranges from 200 to 300 pounds. The pole is pressure treated to resist termites, decay, and rot. All poles are grown, debarked, and treated in the United States.
Direct burial installation is required. Cross arms and mounting brackets are available as options but are not shipped attached to the pole.
Where This Product Fits Best
This pole is suitable for outdoor lighting and utility applications where a 20 foot mounting height is required. Common uses include sports fields, baseball fields, and similar open-area projects.
The pole supports up to two cross arms, one per side, with each arm rated for up to 240 pounds of fixtures and hardware. The number of arms and lights supported depends on the pole class and weight limits.
Use this pole in locations where direct burial installation is practical and where treated wood is preferred for environmental or aesthetic reasons.
It is not intended for use in locations requiring above-grade base plates or anchor bolt mounting.
Performance and Functional Considerations
The CCA treatment protects the pole against termites, decay, and rot. This extends the usable life of the pole in outdoor environments with soil contact.
ANSI Class 6 specification defines the minimum strength and dimensional requirements for this pole. The pole's diameter and circumference at key points are set by this class.
Each cross arm can support up to 240 pounds, including fixtures and mounting hardware. Do not exceed this load per arm.
The pole is designed for direct burial installation, with 4 feet below grade and 16 feet above grade after installation.
Installation and Long-Term Use
Install the pole by direct burial, ensuring 4 feet of the pole is set below grade. Proper backfill and compaction are required for stability.
Cross arms and mounting brackets are available but must be installed on site after delivery. Poles do not ship with cross arms attached.
Routine inspection for physical damage and ground line condition is recommended over the service life of the pole. The CCA treatment provides resistance to decay and insect damage, but periodic checks are standard practice.
The pole weight ranges from 200 to 300 pounds, so plan for appropriate lifting and handling equipment during installation.
How This Fixture Is Commonly Used
After installation, this pole provides a 16 foot mounting height for lighting or utility equipment. You can add up to two cross arms, one per side, to support fixtures or other hardware.
Each cross arm can hold up to 240 pounds, including lights and mounting hardware. This allows for multiple fixtures per arm, provided the total weight does not exceed the limit.
Operators typically use these poles for mounting area lights, flood lights, or utility equipment in sports fields and open outdoor spaces. The treated wood construction is selected for durability in direct soil contact.
Once installed, the pole requires minimal adjustment. Ongoing maintenance is limited to periodic inspection and any fixture or hardware changes as needed.
Safety, Certifications, and Warranty
This pole is manufactured to ANSI O5.1 specification and is classified as ANSI Class 6.
The pole is pressure treated with CCA to meet American Wood Preservers Association standards for resistance to termites, decay, and rot.
LED Lighting Supply provides a 1 year warranty on this pole.
Frequently Asked Questions
What is the total height and mounting height of this pole?
The total height is 20 feet, with 16 feet above grade after installation.
What material is the pole made from?
The pole is made from Ponderosa Pine and treated with CCA.
What is the installation method?
This pole is designed for direct burial installation with 4 feet below grade.
What is the maximum load per cross arm?
Each cross arm can support up to 240 pounds, including fixtures and hardware.
What certifications does this pole carry?
This pole is manufactured to ANSI O5.1 specification and is ANSI Class 6.
What is the warranty period?
LED Lighting Supply provides a 1 year warranty.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
