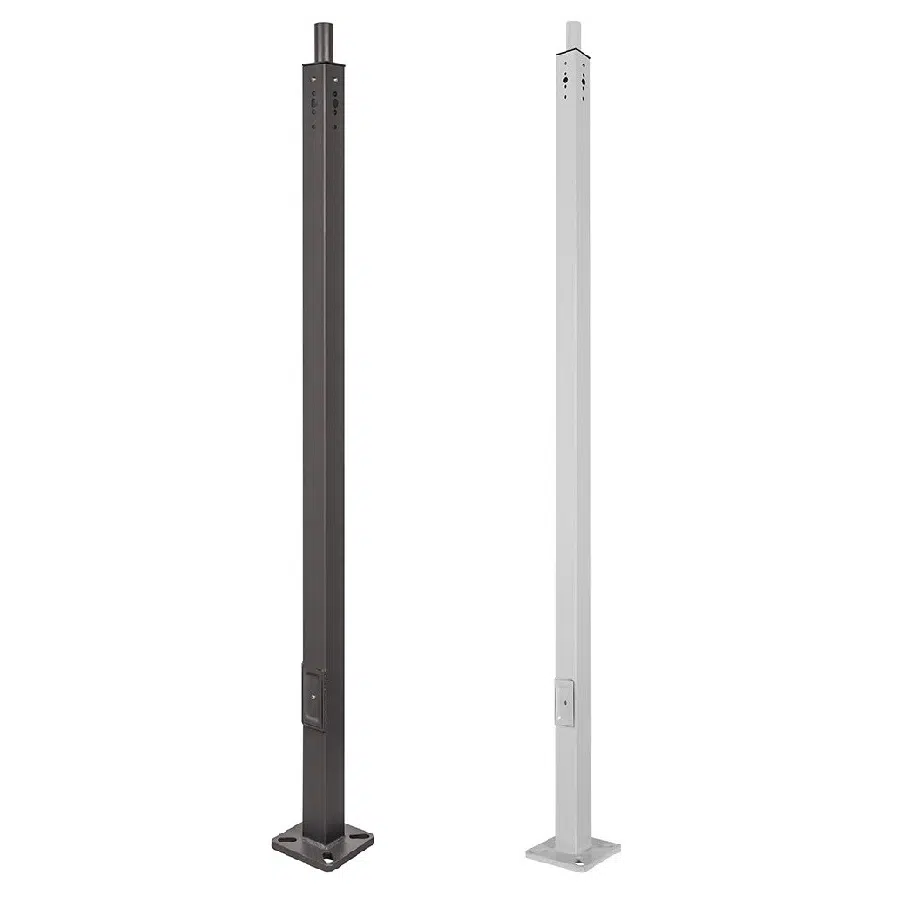

15 Foot Square Steel Light Pole | 4 Inches Wide | Anchor Base
These high-strength steel poles are perfect for parking lot lighting. Our tenon and bullhorn adapters also allow multiple fixtures to be attached to a single pole.
Cory Peterson | Director of Sales and Marketing
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Total Height (ft) | 15 |
| Material | Steel |
| Pole Weight (lbs) | 134 |
| Pole Width (in) | 4 |
| Pole Bolt Circle (in) | 8 |
| Pole Finish | Hot Dip Galvanized and Powder Coated |
| Pole Color | Bronze | White |
| Pole Gauge | 11 |
| Bolt Projection (in) | 2.75 |
| Pole Installation | Anchor Base |
| Includes | 2 3/8 Inch Tenon |
| Warranty | 1 year |
| EPA at 70 mph | 15.2 |
| EPA at 80 mph | 13.5 |
| EPA at 90 mph | 11.1 |
| EPA at 100 mph | 9.5 |
| EPA at 110 mph | 7.9 |
| EPA at 120 mph | 6.8 |
Product Description
These anchor base poles require the purchase of an installation kit unless they are being used to replace existing poles. Pricing on the installation kit can be found here.
Key Features
- Brand: LED Lighting Supply
- Total Height (ft): 15
- Material: Steel
- Pole Weight (lbs): 134
- Pole Width (in): 4
- Pole Bolt Circle (in): 8
- Pole Finish: Hot Dip Galvanized and Powder Coated
- Pole Color: Bronze | White
- Pole Gauge: 11
- Bolt Projection (in): 2.75
- Pole Installation: Anchor Base
- Includes: 2 3/8 Inch Tenon
- Warranty: 1 year
- EPA at 70 mph: 15.2
- EPA at 80 mph: 13.5
- EPA at 90 mph: 11.1
- EPA at 100 mph: 9.5
- EPA at 110 mph: 7.9
- EPA at 120 mph: 6.8
Disclaimer: LED Lighting Supply is not responsible for improper loading of light fixtures or other attachments, use, or foundation design of light poles. Final pole assembly is the responsibility of the purchaser. Dimensions and specifications of a 15 foot steel square light pole are subject to change without notice. See the data sheet for current pole data charts. Custom sizing is only available for large order quantities.
Please be advised that our steel poles are covered solely by a 1-year workmanship warranty, which ensures that the poles are free from defects from the manufacturing process, such as welds and structural integrity, for a period of one year from the date of purchase. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Product SKU Variations
- SKU: MLLG-WL-POLE-15FT-4-SQ-BZ-TN
- Pole Color: Bronze
- SKU: MLLG-WL-POLE-15FT-4-SQ-WH-TN
- Pole Color: White
Web ID: 1915
Product Overview
The 15 Foot Square Steel Light Pole is designed for robust outdoor lighting applications, providing a sturdy and reliable support structure for various lighting fixtures. With a 4-inch width and an anchor base, this pole is suitable for installations requiring a durable and stable foundation. It is constructed from 11-gauge steel, ensuring strength and longevity in demanding environments. The pole is hot dip galvanized and powder coated, offering enhanced corrosion resistance and a professional finish.
This light pole is particularly well-suited for street lighting and tennis court applications, where its 15-foot height provides optimal coverage and visibility. The inclusion of a 2 3/8 inch tenon allows for easy fixture mounting, making it a versatile choice for a range of lighting needs.
Core Performance and Output
The structural capacity of this steel light pole is defined by its EPA ratings, which indicate its ability to withstand wind loads. At 70 mph, the pole has an EPA rating of 15.2, decreasing to 6.8 at 120 mph. This makes it suitable for areas with moderate to high wind conditions, ensuring stability and safety. The pole's 134-pound weight and 8-inch bolt circle provide a solid anchor base installation, supporting various lighting fixtures without compromising structural integrity.
While the pole is designed to handle significant wind loads, it is important to consider the environmental conditions of the installation site to ensure optimal performance and longevity.
Adjustability and Control Options
This light pole features a fixed height of 15 feet, providing consistent and reliable support for mounted fixtures. The 2 3/8 inch tenon allows for straightforward attachment of compatible lighting fixtures, facilitating easy adjustments and replacements as needed. While the pole itself does not offer adjustable height, the tenon design supports a range of fixture orientations to achieve desired lighting angles and coverage.
Control options are dependent on the fixtures installed, allowing for integration with various lighting control systems to optimize energy efficiency and lighting performance.
Longevity and Reliability
Constructed from 11-gauge steel, this light pole is built to withstand the rigors of outdoor environments. The hot dip galvanized and powder coated finish provides excellent resistance to corrosion, extending the pole's lifespan even in harsh weather conditions. The robust design ensures reliable performance over time, reducing the need for frequent maintenance or replacement.
The pole's durability is further enhanced by its ability to handle significant wind loads, making it a dependable choice for long-term outdoor lighting applications.
Build Quality and Physical Characteristics
The 15 Foot Square Steel Light Pole is crafted from high-quality steel, offering a balance of strength and weight. Its 4-inch width and 11-gauge thickness provide a sturdy structure capable of supporting various lighting fixtures. The pole's bronze or white finish options allow for aesthetic customization to match the surrounding environment.
The anchor base installation method ensures a secure and stable foundation, while the 2.75-inch bolt projection facilitates straightforward installation and alignment.
Where This Product Fits Best
This light pole is ideal for environments requiring durable and stable lighting support structures. Its design and construction make it suitable for:
- parking lot lighting
- roadway lighting
- area lighting
- commercial site lighting
The pole's corrosion-resistant finish and robust construction make it well-suited for outdoor installations, providing reliable performance in various weather conditions.
Installation and Long-Term Use
Installation of this light pole requires an anchor base setup, which provides a secure and stable foundation. The 8-inch bolt circle and 2.75-inch bolt projection facilitate straightforward installation, ensuring proper alignment and stability. For new installations, an installation kit is necessary, while replacement of existing poles may not require additional components.
Long-term use is supported by the pole's durable construction and corrosion-resistant finish, minimizing maintenance requirements and ensuring consistent performance over time.
How This Fixture Is Commonly Used
This light pole is typically installed at a height of 15 feet, providing optimal coverage for parking lots, roadways, and commercial sites. The spacing and layout of poles depend on the specific lighting requirements and fixture types used, allowing for flexibility in design and implementation.
While higher output fixtures can reduce the number of poles needed, careful consideration of glare and light distribution is necessary to achieve desired lighting outcomes.
Safety, Certifications, and Warranty
This steel light pole is designed to meet industry standards for safety and performance. It is backed by a 1-year warranty, ensuring peace of mind and support for any manufacturing defects or issues that may arise during normal use.
The pole's construction and finish provide reliable performance in various environmental conditions, contributing to its overall safety and longevity.
Frequently Asked Questions
Q: What is the EPA rating of this light pole at 70 mph?
A: The EPA rating at 70 mph is 15.2.
Q: Can this pole be used in coastal environments?
A: Yes, the hot dip galvanized and powder coated finish provides corrosion resistance suitable for coastal environments.
Q: What is the bolt circle diameter for installation?
A: The bolt circle diameter is 8 inches.
Q: Is an installation kit required for new installations?
A: Yes, an installation kit is required for new installations unless replacing existing poles.
Q: What is the maximum wind speed this pole can withstand?
A: The pole can withstand wind speeds up to 120 mph with an EPA rating of 6.8.
Application Questions and Clarification
Q: What types of lighting fixtures can be mounted on this pole?
A: The pole includes a 2 3/8 inch tenon, compatible with a variety of outdoor lighting fixtures.
Q: How does the pole's height affect its suitability for different applications?
A: The 15-foot height is ideal for applications such as parking lot and roadway lighting, providing adequate coverage and visibility.
Q: Are there any specific environmental conditions to consider for installation?
A: The pole is designed for outdoor use and can withstand various weather conditions, but site-specific factors such as wind exposure should be considered.
Q: What is the typical spacing for poles in a parking lot application?
A: Spacing depends on the lighting requirements and fixture output, but typically ranges from 60 to 100 feet apart.
