15 Foot Round Steel Light Pole | 3 Inch Diameter | Anchor Base | Black
Dwayne Kula | President, CTO and Founder
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Total Height (ft) | 15 |
| Material | Steel |
| Pole Weight (lbs) | 90 |
| Pole Diameter (in) | 3 |
| Pole Bolt Circle (in) | 7.24 |
| Pole Finish | Hot Dip Galvanized and Powder Coated |
| Pole Color | Black |
| Pole Gauge | 11 |
| Bolt Projection (in) | 5.98 |
| Pole Installation | Anchor Base |
| Includes | Top Cap |
| Warranty | 1 year |
| EPA at 90 mph | 4.1 |
| EPA at 100 mph | 2.7 |
| EPA at 110 mph | 2.4 |
| EPA at 120 mph | 1.6 |
| EPA at 130 mph | 1.1 |
Anchor bolts, base cover and top cap included. Does not include tenon.
Disclaimer: LED Lighting Supply is not responsible for improper loading (ie what is mounted to the pole), use, or foundation design of light poles. Dimensions and specifications of poles are subject to change without notice.
Please be advised that our steel poles are covered solely by a 1-year workmanship warranty, which ensures that the poles are free from defects from the manufacturing process, such as welds and structural integrity, for a period of one year from the date of purchase. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Product Overview
This 15 foot round steel light pole provides an anchor-base support structure for exterior lighting fixtures. The pole has a 3 inch diameter, 11 gauge steel construction, and a black hot dip galvanized and powder coated finish.
The anchor-base design is used where the pole mounts to a prepared foundation with anchor bolts. This configuration includes anchor bolts, a base cover, and a top cap. A tenon is not included.
Core Performance and Output
This pole is rated for an EPA of 4.1 at 90 mph, 2.7 at 100 mph, 2.4 at 110 mph, 1.6 at 120 mph, and 1.1 at 130 mph. Fixture selection must remain within the applicable EPA rating for the project wind speed.
The 15 foot height supports lower-height exterior lighting layouts where a taller pole is not required. Fixture weight, fixture EPA, mounting hardware, and local wind conditions must be reviewed together.
Adjustability and Control Options

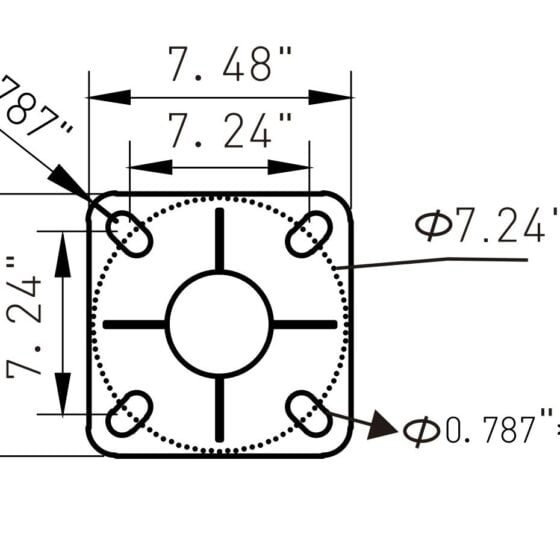

The pole uses an anchor-base mounting configuration with a 7.24 inch bolt circle and 5.98 inch bolt projection. The supplied anchor bolts support the specified base connection.
This pole does not include a tenon. Fixture mounting configuration must match the pole top arrangement or use separately selected compatible mounting hardware.
Longevity and Reliability
The steel pole has a hot dip galvanized and powder coated finish. This finish provides a protected exterior surface for long-term outdoor installation.
The pole carries a 1 year warranty. Periodic inspection of the base connection, anchor bolts, finish condition, and fixture mounting hardware supports continued structural service.
Build Quality and Physical Characteristics
This round pole is constructed from 11 gauge steel and weighs 90 pounds. Its 3 inch diameter profile is intended for compact exterior lighting installations.
The pole is black and includes a top cap and base cover. The anchor-base assembly requires a properly prepared foundation and correctly positioned anchor bolts.
Where This Product Fits Best
This pole fits lower-height exterior lighting installations with controlled fixture EPA requirements. Its 15 foot height and 4.1 EPA rating at 90 mph suit projects where fixture size and wind loading remain within the published limits.
- parking lot lighting
- commercial site lighting
- roadway lighting
- area lighting
- campus lighting
- dealership lighting
The galvanized and powder coated steel construction is suited to exposed outdoor locations. Higher wind speeds reduce the allowable EPA rating, so the complete pole and fixture assembly must be evaluated for the site conditions.
Installation and Long-Term Use
Installation requires an anchor-base foundation using the supplied anchor bolts. The bolt circle, bolt projection, foundation condition, and pole alignment should be confirmed before the pole is set.
The 15 foot total pole height should be coordinated with the selected fixture and site layout. Maintenance access should account for fixture servicing, base inspection, and periodic tightening checks at the anchor-base connection.
How This Fixture Is Commonly Used
This pole is deployed in parking lot lighting, roadway lighting, area lighting, and commercial site lighting layouts where a 15 foot support height is appropriate. Campus lighting and dealership lighting installations can use the same anchor-base arrangement when fixture loading remains within the published EPA limits.
Layout patterns depend on fixture distribution, target light levels, pole locations, and site boundaries. Larger fixture EPA values or higher local wind speeds can limit the fixture options that can be installed on this pole.
Safety, Certifications, and Warranty
The pole has a 1 year warranty. No certification information is provided in the supplied product data.
Structural loading must remain within the published EPA rating for the applicable wind speed. The foundation, anchor-base connection, fixture mounting hardware, and installed fixture must be evaluated as one assembly.
Frequently Asked Questions
Q: What is the total height of this steel light pole?
A: The total pole height is 15 feet.
Q: What are the EPA ratings for this pole?
A: The EPA rating is 4.1 at 90 mph, 2.7 at 100 mph, 2.4 at 110 mph, 1.6 at 120 mph, and 1.1 at 130 mph.
Q: What is included with the anchor-base pole?
A: Anchor bolts, a base cover, and a top cap are included. A tenon is not included.
Q: What should be reviewed when planning a fixture layout on this pole?
A: Review the site wind speed and the EPA of the selected fixture. The combined structural loading must remain within the pole’s published EPA rating.
Application Questions and Clarification
Q: Is this pole suitable for parking lot lighting and commercial site lighting?
A: Parking lot lighting and commercial site lighting are valid applications when the selected fixture EPA and local wind speed remain within the published pole ratings.
Q: Can this pole be used for campus lighting or dealership lighting?
A: Campus lighting and dealership lighting are valid applications. The 15 foot height, anchor-base foundation, fixture mounting arrangement, and EPA loading must match the project requirements.
Q: What mounting detail should be confirmed before installation?
A: Confirm the 7.24 inch bolt circle, 5.98 inch bolt projection, foundation preparation, and fixture mounting arrangement. A tenon is not included with the pole.
