7 / 10 / 13 Wattage Adjustable 4 Inch LED Downlight | 600 to 1050 Lumens | 2700K / 3000K / 3500K / 4000K / 5000K Adjustable | 100-277V
Dwayne Kula | President, CTO and Founder
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 7 | 10 | 13 |
| Lumens | 600 | 850 | 1050 |
| Lumens Per Watt | 86 |
| Replaces | 50 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 2700K or 3000K or 3500K or 4000K or 5000K |
| CRI | 90+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 120° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Recessed |
| Fixture Color | White |
| Power Factor | .95 |
Durable Construction
| Housing | Aluminum Alloy |
| IP Rating | Wet Location Rated |
| Operating Temperature | -4°F to 113°F |
| Certifications | ETL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 5 3/8 D x 3 1/16 H |
| Weight (lbs) | 1 lb |
Product Overview

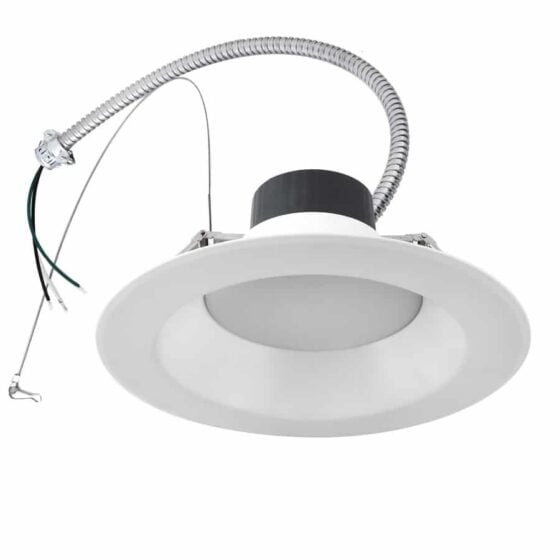

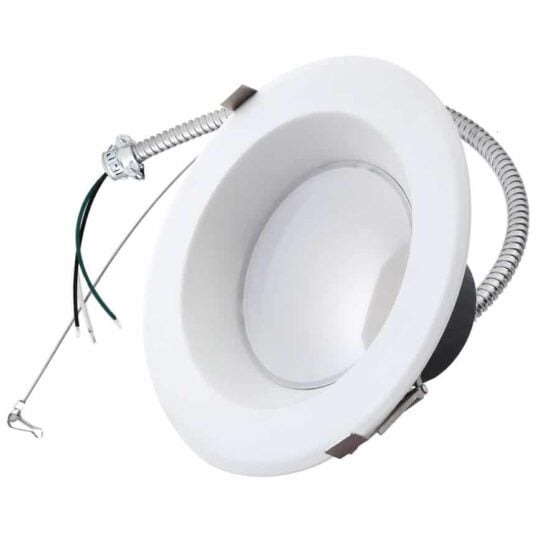

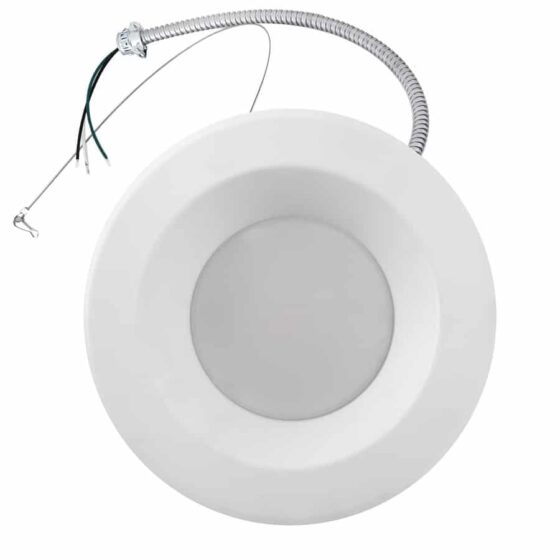

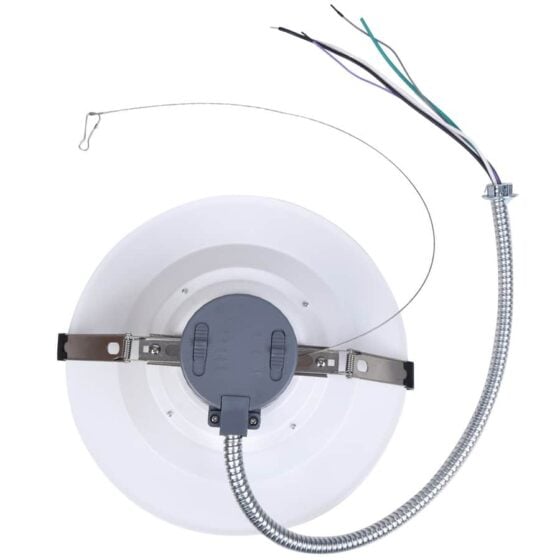

This 4 inch LED downlight is a recessed fixture with adjustable wattage and color temperature settings. It operates at 7, 10, or 13 watts and provides 600, 850, or 1050 lumens.
The fixture is used for commercial recessed lighting, office lighting, corridor lighting, and lobby lighting where a low-profile recessed installation is required. Its adjustable output supports spaces with different light level requirements without changing the fixture body.
Core Performance and Output
The selectable wattage settings provide 600 lumens at 7 watts, 850 lumens at 10 watts, and 1050 lumens at 13 watts. Fixture efficacy is 86 lumens per watt. The 120 degree beam distribution provides broad downward coverage from recessed ceiling locations.
The fixture operates on 100-277V power with a 0.95 power factor and supports 0-10V dimming. The 1050 lumen setting can be excessive in low-ceiling locations where lower light levels are required. Higher mounting heights can reduce light levels at the work or floor plane.
Adjustability and Control Options
Wattage is adjustable between 7, 10, and 13 watts. Color temperature is adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K.
The fixture supports 0-10V dimming. Wattage and color temperature settings should be established before final commissioning so adjacent fixtures operate at consistent output and color settings.
Longevity and Reliability
The LED system is rated for 50,000 hours at L70. This rating supports long operating intervals in recessed ceiling installations where fixture access may require ceiling access.
The operating temperature range is -4F to 113F. Long-term performance depends on operating within this temperature range and maintaining proper recessed installation conditions.
Build Quality and Physical Characteristics
The fixture uses an aluminum alloy housing, white trim, and a polycarbonate lens. It measures 5 3/8 inches in diameter by 3 1/16 inches high and weighs 1 pound.
Recessed mounting keeps the fixture body within the ceiling plane. The polycarbonate lens provides the standard 120 degree beam distribution.
Where This Product Fits Best
This downlight fits commercial recessed ceiling installations requiring adjustable color temperature, adjustable wattage, broad beam distribution, and 100-277V operation.
- office lighting
- commercial recessed lighting
- corridor lighting
- lobby lighting
- retail lighting
- hospitality lighting
The wet location rating supports use in locations exposed to moisture. The recessed form factor is intended for ceiling installations rather than surface-mounted fixture locations.
Installation and Long-Term Use
This fixture uses recessed mounting. Confirm the ceiling opening, fixture dimensions, available recess depth, supply voltage, and dimming arrangement before installation.
Set the wattage and color temperature consistently across each lighting area before final operation. Maintenance access should account for the recessed installation location and the fixture’s 1 pound weight.
How This Fixture Is Commonly Used
In office lighting, corridor lighting, lobby lighting, retail lighting, and hospitality lighting, fixtures are recessed into ceiling layouts to create broad downward illumination. Mounting height affects light levels, overlap between fixtures, and the final visual appearance of the ceiling.
Layouts commonly use repeated fixture rows or evenly distributed ceiling patterns. Spacing varies with the selected wattage, mounting height, target light levels, and required layout pattern.
Safety, Certifications, and Warranty
This fixture is ETL listed. It is wet location rated.
The fixture includes a 5 year warranty. Operating temperature is rated from -4F to 113F.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The fixture is adjustable between 7 watts and 600 lumens, 10 watts and 850 lumens, or 13 watts and 1050 lumens.
Q: What color temperature settings are available?
A: The selectable color temperatures are 2700K, 3000K, 3500K, 4000K, and 5000K.
Q: Does this downlight support dimming?
A: Yes. The fixture supports 0-10V dimming.
Q: What mounting method does this fixture use?
A: This fixture uses recessed mounting.
Q: Can this fixture be used for corridor lighting and office lighting?
A: Corridor lighting and office lighting are listed applications for this downlight.
Application Questions and Clarification
Q: What should be reviewed when setting output for office lighting or corridor lighting?
A: Review the selected wattage, selected color temperature, mounting height, target light levels, and layout requirements. The supplied product data does not establish a specific fixture spacing value.
Q: What environmental rating applies to retail lighting, hospitality lighting, and lobby lighting installations?
A: The fixture is wet location rated and has an operating temperature range of -4F to 113F.
