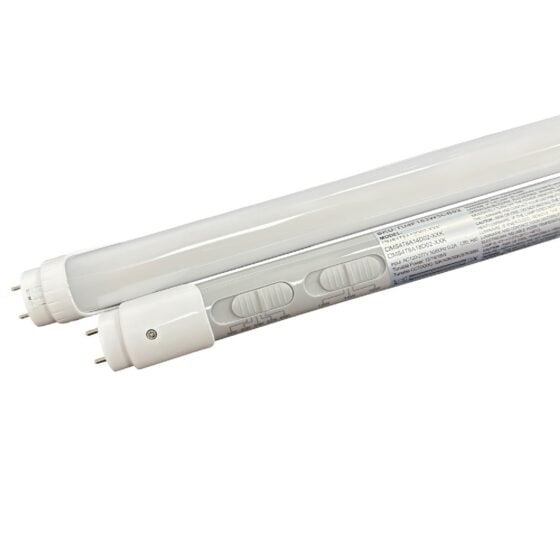

14 / 18 / 20 Watt Adjustable T8 LED Tube Light | 2100 to 3000 Lumens | 3500K to 6500K | 100V-277V | 25 Pack
Out of stock
Product Description
14 | 18 | 20 Wattage Adjustable 4 foot LED tube replaces 8ft Fluorescent produces 2100 | 2700 | 3000 lumens and is extremely efficient at 150 lumens/watt output. The tube has a frosted lens and supports 100V-277V. You can select 3500K or 4000K or 5000K or 5700K or 6500K color temperature
Three different install options are available - all in the same tube. Plug and play utilizing the existing fluorescent ballast, or remove the ballast and connect using single-ended power or double-ended power. This one tube covers all the connection options available on the market today. These tubes have a Bi-Pin Connection.
These are sold as a box of 25 Tubes.
Key Features
- Watts: 14 | 18 | 20
- Lumens: 2100 | 2700 | 3000
- Lumens Per Watt: 150
- Replaces: 8ft Fluorescent
- Voltage: 100V-277V
- Color Temperature: 3500K or 4000K or 5000K or 5700K or 6500K
- CRI: 80+
- Dimming: No
- Beam Angles (Std): 140°
- Optics: Frosted Lens
- Lifespan: 50,000 hours
- Frequency: 50 / 60 hz
- Power Factor: > .90
- THD: < 18%
Durable Construction
- Certifications: ETL | Rebate Eligible
- Warranty: 5 years
Measurements
- Dimensions: 4 ft
- Weight: 16.5 lbs per carton
Features/Accessories
- Color Adjustable
- Wattage Adjustable
Request IES Files
Web ID: 2281
Product Overview
This 4-foot T8 LED tube replaces 8-foot fluorescent lamps and operates at 14, 18, or 20 watts with corresponding lumen outputs of 2100, 2700, or 3000 lumens. The tube delivers 150 lumens per watt across all wattage settings. Color temperature is selectable between 3500K, 4000K, 5000K, 5700K, and 6500K.
The tube features a frosted lens with a 140-degree beam angle and bi-pin connection. Voltage compatibility spans 100V-277V at 50/60 Hz. CRI is rated at 80+, power factor exceeds 0.90, and THD remains below 18%. This tube does not support dimming.
This product is sold in boxes of 25 tubes. The carton weighs 16.5 lbs.
Where This Product Fits Best
This tube is designed as a direct replacement for 8-foot fluorescent systems using a 4-foot form factor. Facilities operating on voltage between 100V and 277V can use this tube without transformer or driver modifications. The 50/60 Hz frequency rating allows use in facilities with either electrical standard.
The 140-degree beam angle and frosted lens suit general-area lighting in commercial and industrial spaces where diffused, broad coverage is needed. The selectable color temperature range from 3500K to 6500K allows matching to existing lighting conditions or task-specific requirements.
Performance and Functional Considerations
Wattage and lumen output are adjustable, with three settings available: 14 watts at 2100 lumens, 18 watts at 2700 lumens, and 20 watts at 3000 lumens. All three settings maintain 150 lumens per watt efficiency. This allows output to be matched to specific space requirements without changing the tube.
Color temperature selection includes five options: 3500K, 4000K, 5000K, 5700K, and 6500K. CRI of 80+ supports acceptable color rendering for general commercial and industrial tasks. The frosted lens reduces glare and spreads light evenly across the 140-degree beam pattern.
Rated lifespan is 50,000 hours. This tube does not support dimming and should not be installed on dimmer circuits.
Installation and Long-Term Use
Three installation methods are supported in a single tube. The tube can operate as plug-and-play using an existing fluorescent ballast, or the ballast can be bypassed with either single-ended or double-ended direct-wire connections. All three connection options are compatible with the bi-pin base.
The 100V-277V input range accommodates most commercial and industrial electrical systems without additional conversion equipment. Facilities with mixed voltage infrastructure can standardize on this tube across different circuits.
At 50,000 hours rated life, the tube supports extended service intervals in applications where lamp access is limited or relamping is labor-intensive.
How This Fixture Is Commonly Used
The wattage selector allows installers or maintenance personnel to set output based on the light level needed in each space. A storage area may use the 14-watt setting for lower output, while a task-oriented workspace may use the 20-watt setting for maximum lumens. This adjustment is made once during installation and remains fixed during operation.
Color temperature selection works the same way. A facility with existing 4000K fixtures can match this tube to that color. Spaces requiring cooler, higher-contrast light for detailed work may use 5700K or 6500K. The selection is made before or during installation and does not change during use.
Because the tube supports plug-and-play, single-ended, and double-ended wiring, maintenance teams can install it in existing troffers regardless of how the previous lamp was connected. This simplifies relamping in facilities with mixed fixture types or unknown ballast conditions.
Safety, Certifications, and Warranty
This tube is ETL listed. It is rebate eligible through applicable utility programs.
We provide a 5-year warranty on this product.
Frequently Asked Questions
What wattage options are available?
The tube operates at 14, 18, or 20 watts. Output is selected via an onboard switch or setting prior to installation.
What voltage does this tube support?
The tube accepts 100V-277V input at 50/60 Hz.
Can this tube be dimmed?
No. This tube does not support dimming.
What color temperatures are available?
Five options are available: 3500K, 4000K, 5000K, 5700K, and 6500K.
Is this tube eligible for utility rebates?
Yes. This tube is rebate eligible.
What is the warranty coverage?
This tube is covered by a 5-year warranty.
What type of base does this tube use?
The tube has a bi-pin connection compatible with standard T8 sockets.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
