25 Watt Solar Area Light | 3750 Lumens | 5000K | 3 Year Warranty

Product Overview

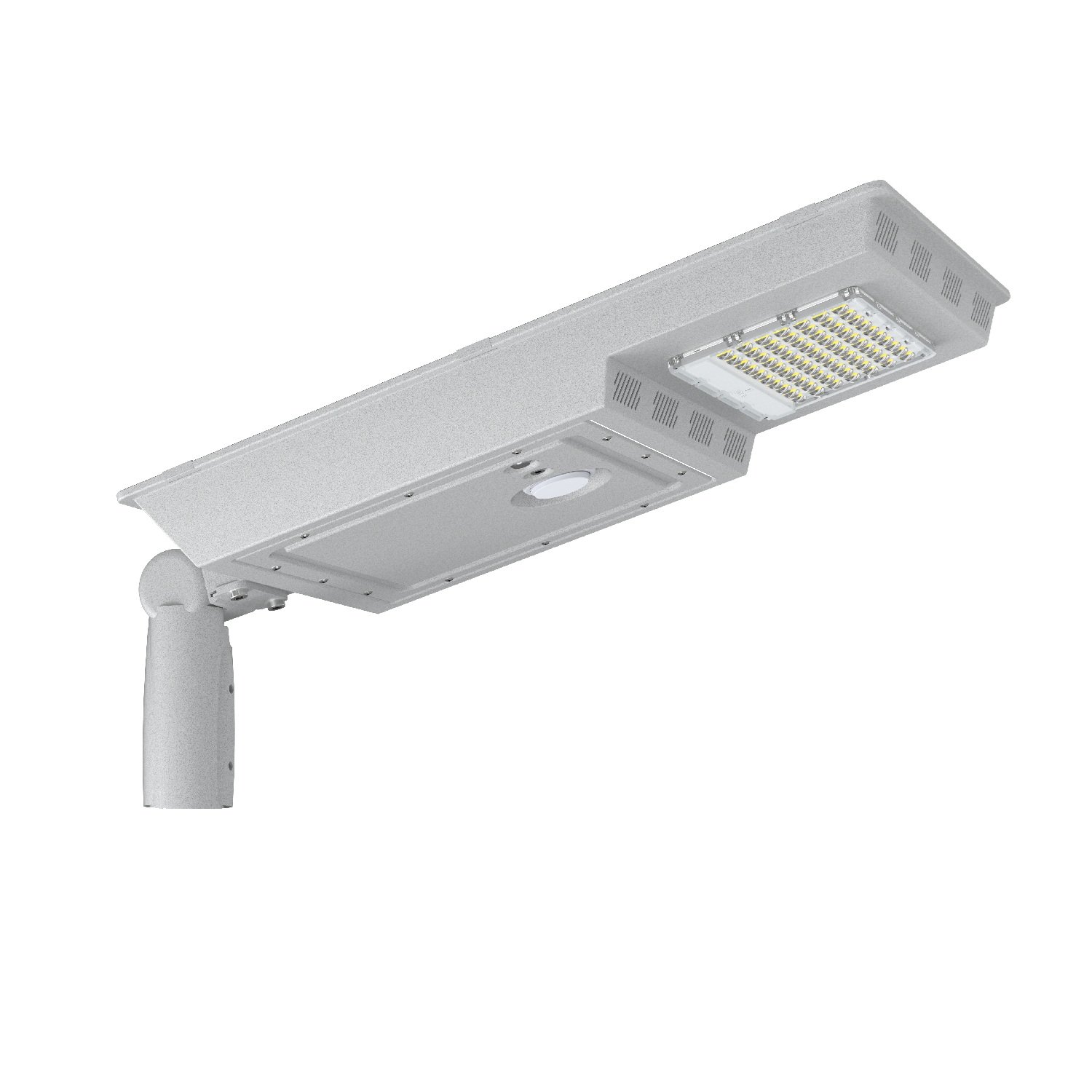

The 25 Watt Solar Area Light is a self-contained LED fixture designed for outdoor area and site lighting where grid power is unavailable or cost-prohibitive. This unit integrates a solar panel, battery, and LED light engine into a single assembly, supporting dusk-to-dawn operation with automatic photocell control. Typical installations include small parking lots, municipal pathways, and remote site lighting where a 100W metal halide replacement is required at moderate mounting heights.

The fixture is built for environments requiring reliable illumination with minimal infrastructure. The slip fitter mount and galvanized steel housing support pole-top installation in both new and retrofit projects. The 5000K color temperature and Type 3 distribution are suited for perimeter and area coverage in outdoor municipal and commercial settings.

Core Performance and Output

This solar area light delivers 3750 lumens at 25 watts, achieving 150 lumens per watt. The output is designed to replace legacy 100W metal halide fixtures in low to moderate traffic areas. The Type 3 beam pattern provides lateral spread for roadway edges, parking rows, and pathways, supporting uniform coverage along linear site features.

Photocell operation enables dusk-to-dawn functionality without manual intervention. Output is best suited for mounting heights between 12 and 18 feet. At lower mounting heights, output may be excessive for narrow walkways. At higher mounting heights, uniformity and ground-level illumination will decrease.

Adjustability and Control Options

The fixture includes an integrated photocell for automatic on/off control based on ambient light levels. No manual switching or external control wiring is required. The slip fitter mount allows for horizontal and vertical aiming adjustments during installation to optimize coverage along the intended area.

No dimming or advanced control features are included. The fixture operates at full output during active hours as determined by the photocell. Battery and solar charging are managed internally for autonomous operation.

Longevity and Reliability

The LED light engine is rated for long service life with minimal maintenance. The galvanized steel housing and IP65 rating protect internal components from dust, rain, and environmental exposure. The solar panel and battery system are designed for multi-year operation under typical outdoor conditions.

Routine inspection of the solar panel for debris and periodic battery replacement may be required depending on site conditions and usage patterns. The fixture is covered by a 3-year warranty.

Build Quality and Physical Characteristics

The fixture measures 26.5 x 16.2 x 3 inches and weighs 22 pounds. The housing is constructed from galvanized steel for corrosion resistance and structural durability. The gray finish is standard for municipal and commercial exterior environments.

The slip fitter mount is compatible with standard pole sizes and supports secure attachment for area and roadway applications. The EPA rating of 2.3 should be considered when selecting poles for wind load compliance.

Where This Product Fits Best

This solar area light is intended for outdoor environments where grid power is unavailable or unreliable, and where moderate light levels are required for safety and visibility. It is commonly installed in municipal, campus, and remote commercial sites where autonomous operation is critical.

• street lighting
• parking lot lighting
• pathway lighting
• remote site lighting
• park lighting
• trail lighting
• campus lighting
• municipal lighting

The fixture is suitable for outdoor use in wet locations and can operate in a range of climates. Solar performance may be reduced in heavily shaded or persistently overcast areas.

Installation and Long-Term Use

Installation is performed using the slip fitter mount on compatible poles. The fixture is pre-wired for autonomous operation, requiring no external power or control wiring. Proper orientation of the solar panel is necessary for optimal charging and battery performance.

Long-term use requires periodic inspection of the solar panel for dirt or debris and monitoring battery health. In high-traffic or critical safety areas, confirm that light levels meet site requirements, especially during winter months or extended periods of low sunlight.

How This Fixture Is Commonly Used

This fixture is typically installed at mounting heights between 12 and 18 feet, spaced to provide overlapping coverage along roadways, parking rows, or pedestrian paths. Layouts are determined by required light levels, pole spacing, and site geometry.

In parking lots and pathways, fixtures are often spaced 2 to 3 mounting heights apart for uniformity. Higher output reduces fixture count but may increase glare if installed too low or in confined areas.

Safety, Certifications, and Warranty

This fixture is IP65 rated for wet locations. The housing is constructed from galvanized steel for corrosion resistance. The product is covered by a 3-year warranty.

All components are designed for outdoor use and meet standard safety requirements for area lighting in commercial and municipal environments.

Frequently Asked Questions

Q: What is the recommended mounting height for this solar area light?

A: The recommended mounting height is between 12 and 18 feet for optimal ground illumination and uniformity.

Q: Does this fixture require any external wiring or power connection?

A: No, the fixture is fully solar-powered and operates autonomously with no external wiring required.

Q: How is the fixture controlled?

A: The integrated photocell provides automatic dusk-to-dawn operation based on ambient light levels.

Q: What type of pole is compatible with the slip fitter mount?

A: The slip fitter is compatible with standard round poles sized for area and street lighting applications.

Q: How often does the battery need to be replaced?

A: Battery replacement intervals depend on usage and climate, but typical service life is several years under normal conditions.

Q: How should fixtures be spaced for parking lot or pathway applications?

A: Fixtures are typically spaced 2 to 3 mounting heights apart, depending on required light levels and site layout.

Application Questions and Clarification

Q: Is this fixture suitable for municipal pathway lighting in areas without grid power?

A: Yes, this solar area light is designed for pathway and municipal lighting where grid power is not available.

Q: Can this fixture be used for park or trail lighting?

A: Yes, it is commonly installed for park and trail lighting in off-grid or remote locations.

Q: Is this fixture appropriate for large parking lots?

A: This fixture is best suited for small to medium parking lots. For large lots, additional fixtures or higher output models may be required.

Q: Does the fixture operate reliably in shaded or cloudy environments?

A: Solar performance may be reduced in shaded or persistently cloudy areas, which can affect nightly run time and output.
