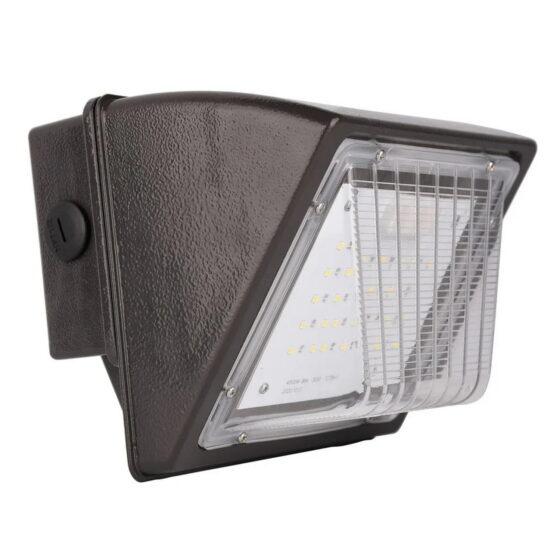

90 Watt Semi Cutoff LED Wall Pack | 10118 Lumens | 5000K | 100-277V

Product Overview

This 90 Watt Semi Cutoff LED Wall Pack is designed for exterior wall mounting on commercial and industrial buildings. It delivers 10,118 lumens at 5000K, providing high-output illumination for perimeter security and building facade applications. The fixture is built for environments where durability and consistent performance are required, such as replacing 250W metal halide wall packs on warehouses, service areas, and multifamily exteriors.

The housing is die-cast aluminum with a polycarbonate lens, offering impact resistance and protection against weather. The fixture operates on 100-277V, is IP65 rated, and is suitable for use in outdoor locations exposed to rain, dust, and temperature fluctuations.

Core Performance and Output

This wall pack produces 10,118 lumens at 90 watts, with an efficacy of 112 lumens per watt. The 120x90° beam angle provides broad, semi-cutoff distribution, balancing forward throw with controlled uplight. Color temperature is 5000K, supporting visibility and security around building exteriors.

Power factor is greater than 0.90, and total harmonic distortion is below 20%. The fixture is non-dimmable. At mounting heights below 8 feet, output may be excessive for pedestrian areas. Uniformity may decrease if spacing exceeds typical wall pack intervals on long building runs.

Adjustability and Control Options

This fixture is non-dimmable and does not include integrated motion or daylight sensors. The semi cutoff design directs light outward and downward, reducing glare and light trespass compared to full forward-throw wall packs. No field-adjustable output or color temperature options are provided.

Control integration is limited to external switching or circuit-based controls. The fixture is compatible with standard wall-mounted electrical enclosures and conduit entry points.

Longevity and Reliability

L70 rated life is 50,000 hours. The fixture is designed for continuous operation in outdoor environments, with an operating temperature range from -40°F to 113°F. The polycarbonate lens resists impact and UV degradation.

All components are sealed against dust and water ingress to IP65 standards. The LED driver and board are thermally managed within the die-cast aluminum housing to maintain consistent performance over time.

Build Quality and Physical Characteristics

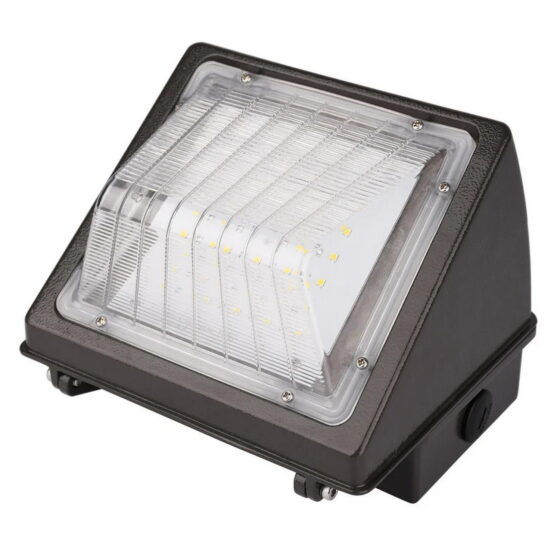

The fixture measures 10.71 x 8.39 x 8.78 inches and weighs 9 lbs. The housing is bronze-finished die-cast aluminum, providing corrosion resistance and structural rigidity. The lens is polycarbonate for vandal resistance and optical clarity.

All hardware is designed for exterior use. The fixture mounts directly to flat wall surfaces using standard wall pack mounting patterns. The enclosure supports conduit entry for surface wiring or through-wall connections.

Where This Product Fits Best

This wall pack is intended for exterior wall mounting on commercial and industrial buildings where high-output, vandal-resistant lighting is required. It is suitable for use in environments exposed to weather, dust, and physical impact.

• security lighting
• building facade lighting
• building exterior lighting
• commercial exterior wall lighting
• perimeter lighting
• entry lighting
• service area lighting
• multifamily exterior lighting

IP65 rating supports use in wet locations. The fixture is suitable for mounting heights from 8 to 15 feet on building perimeters, service entrances, and exterior corridors.

Installation and Long-Term Use

The fixture is designed for direct wall mounting using standard wall pack mounting holes. It accepts 100-277V input and is compatible with existing wall pack wiring and junction boxes. The enclosure supports surface conduit entry and through-wall wiring.

Routine maintenance is limited to periodic cleaning of the lens and inspection of mounting hardware. No relamping or internal servicing is required during the rated life. The fixture is suitable for retrofit or new construction where vandal resistance and weather protection are priorities.

How This Fixture Is Commonly Used

Typical mounting heights range from 8 to 15 feet, depending on the area to be illuminated and required light levels. Fixtures are commonly spaced 20 to 30 feet apart along building exteriors, with closer spacing at entries or high-traffic areas.

Layout patterns follow building perimeter lines, service entrances, and loading areas. Higher output reduces the number of fixtures needed for uniform coverage but may increase glare if mounted too low or spaced too closely.

Safety, Certifications, and Warranty

This fixture is ETL certified and IP65 rated for wet locations. The housing and lens are designed for vandal resistance and outdoor durability. The product is rebate eligible where applicable.

Operating temperature is -40°F to 113°F. The fixture includes a 5-year warranty covering manufacturing defects and performance.

Frequently Asked Questions

Q: What is the recommended mounting height for this wall pack?

A: Recommended mounting height is 8 to 15 feet for optimal coverage and uniformity.

Q: Can this fixture be used with motion sensors or photocells?

A: The fixture does not include integrated sensors but can be controlled by external motion sensors or photocells installed on the circuit.

Q: Is this wall pack suitable for coastal or corrosive environments?

A: The die-cast aluminum housing provides corrosion resistance for standard outdoor use, but it is not specifically rated for marine or highly corrosive environments.

Q: Does the fixture support dimming or adjustable output?

A: No, this model is non-dimmable and does not offer field-adjustable output.

Q: What is the expected lifespan of the LEDs?

A: The fixture is rated for 50,000 hours (L70).

Application Questions and Clarification

Q: Is this wall pack appropriate for lighting building perimeters in multifamily complexes?

A: Yes, it is commonly used for multifamily exterior lighting and perimeter security lighting.

Q: Can this fixture be installed above service doors or loading areas?

A: Yes, it is suitable for entry lighting, service area lighting, and loading area lighting on commercial buildings.

Q: What spacing should be used for uniform coverage along a building facade?

A: Typical spacing is 20 to 30 feet between fixtures, depending on mounting height and required light levels.

Q: Is this fixture suitable for use in alleys or narrow exterior corridors?

A: Yes, the semi cutoff distribution and output level are appropriate for alley lighting and exterior corridor applications.
