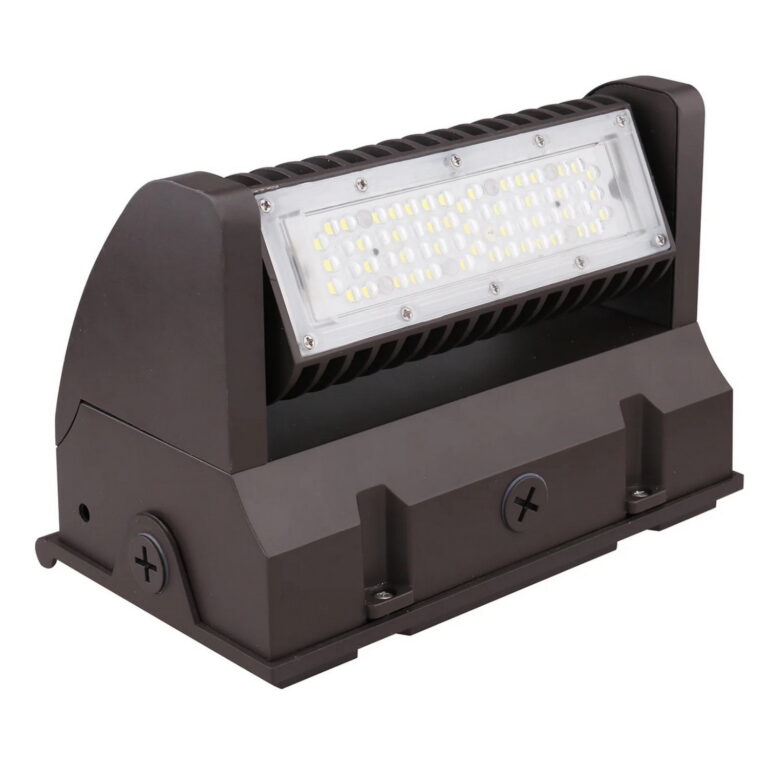

80 Watt Rotatable Full Cutoff LED Wall Pack | 10400 Lumens | 5000K | 100-277V

Product Overview

This 80 Watt Rotatable Full Cutoff LED Wall Pack is designed for exterior wall mounting on commercial and industrial buildings. It provides directional, full cutoff illumination for perimeter security, pathway visibility, and building facade lighting. The fixture operates at 100-277V and delivers 10,400 lumens at 5000K, making it suitable for replacing 150W to 400W metal halide wall packs in retrofit or new construction scenarios.

The rotatable design allows for precise aiming to control light distribution and minimize spill. Typical mounting heights range from 8 to 18 feet, commonly found on warehouses, loading docks, and multifamily building exteriors.

Core Performance and Output

This wall pack outputs 10,400 lumens at 80 watts, achieving 130 lumens per watt. The 5000K color temperature provides a neutral white light suitable for security and visibility. The fixture uses a 120° beam angle with a polycarbonate lens for broad, uniform coverage along building perimeters and entryways.

Electrical performance includes a power factor above 0.90 and THD below 20%. Output may be excessive for low mounting heights under 8 feet, and uniformity can decrease if spacing exceeds typical wall pack intervals.

Adjustability and Control Options

The rotatable housing enables on-site adjustment of the light direction, supporting targeted illumination and compliance with full cutoff requirements. This helps reduce glare and light trespass onto adjacent properties or upward into the sky.

Standard 1-10V dimming is included for integration with compatible controls or occupancy sensors. No onboard motion or photocell is provided; external controls can be added as needed for energy management or scheduling.

Longevity and Reliability

The fixture is rated for 50,000 hours of L70 life, supporting long-term operation in demanding exterior environments. The LED driver and components are designed for continuous use with minimal maintenance requirements.

Die-cast aluminum construction and a polycarbonate lens provide impact resistance and weather protection. The IP65 rating ensures reliable performance in rain, dust, and outdoor exposure.

Build Quality and Physical Characteristics

This wall pack features a bronze-finished die-cast aluminum housing for corrosion resistance and durability. The polycarbonate lens is impact-resistant and UV-stabilized to prevent yellowing over time. The fixture measures 5.7 x 9.2 x 5.2 inches and weighs 8 lbs, supporting secure wall mounting on masonry, concrete, or structural surfaces.

All hardware is designed for exterior use. The fixture is UL listed and suitable for wet locations.

Where This Product Fits Best

This wall pack is intended for exterior wall mounting on commercial, industrial, and multifamily buildings. It is commonly used to provide perimeter security, illuminate building facades, and support safe access at entries and service areas. The fixture is suitable for both retrofit and new construction where full cutoff, directional lighting is required.

• security lighting
• building facade lighting
• building exterior lighting
• commercial exterior wall lighting
• perimeter lighting
• entry lighting
• service area lighting
• multifamily exterior lighting

IP65 rating supports use in wet and exposed outdoor environments. The fixture is not intended for canopy, pole, or interior mounting.

Installation and Long-Term Use

The fixture mounts directly to exterior walls using standard hardware. It accepts 100-277V input and is compatible with existing junction boxes or surface conduit. The rotatable design allows for on-site aiming after installation.

Routine maintenance is limited to periodic cleaning of the lens and inspection of mounting hardware. No relamping is required. The fixture is designed for continuous dusk-to-dawn operation or integration with external controls for scheduled or sensor-based use.

How This Fixture Is Commonly Used

Typical mounting heights range from 8 to 18 feet, depending on the area to be illuminated and site security requirements. Fixtures are spaced to provide overlapping coverage along building perimeters, with closer spacing at entries or high-traffic areas.

Rotatable aiming is used to direct light downward or outward as needed for pathway or facade coverage. Higher output allows for wider spacing, but may increase glare if mounted too low or aimed improperly.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated for wet locations. It meets requirements for exterior commercial lighting and is eligible for utility rebates where applicable. The product includes a 5-year warranty covering manufacturing defects and component failure under normal use.

All materials and construction meet standard safety and durability requirements for exterior wall-mounted lighting.

Frequently Asked Questions

Q: What is the recommended mounting height for this wall pack?

A: Typical mounting heights are 8 to 18 feet, depending on the area and required light levels.

Q: Can the fixture be aimed after installation?

A: Yes, the rotatable design allows for on-site adjustment of the light direction.

Q: Is this fixture compatible with photocells or motion sensors?

A: The fixture includes 1-10V dimming and can be integrated with external controls, but does not have a built-in sensor or photocell.

Q: What is the expected lifespan of the LEDs?

A: The fixture is rated for 50,000 hours of L70 life.

Q: How should fixtures be spaced for uniform coverage?

A: Spacing depends on mounting height and desired light levels, but typical wall pack spacing is 2 to 3 times the mounting height for uniform perimeter coverage.

Application Questions and Clarification

Q: Is this wall pack suitable for use in loading area lighting?

A: Yes, it is commonly used for loading area lighting when mounted on exterior walls at appropriate heights.

Q: Can this fixture be used for multifamily exterior lighting?

A: Yes, it is suitable for multifamily building exteriors, including perimeter and entry lighting.

Q: Is this fixture appropriate for alley lighting?

A: Yes, when mounted on building walls along alleys, this fixture provides effective illumination for safety and visibility.

Q: Is this product intended for pole or canopy mounting?

A: No, this fixture is designed for wall mounting only and is not suitable for pole or canopy applications.
