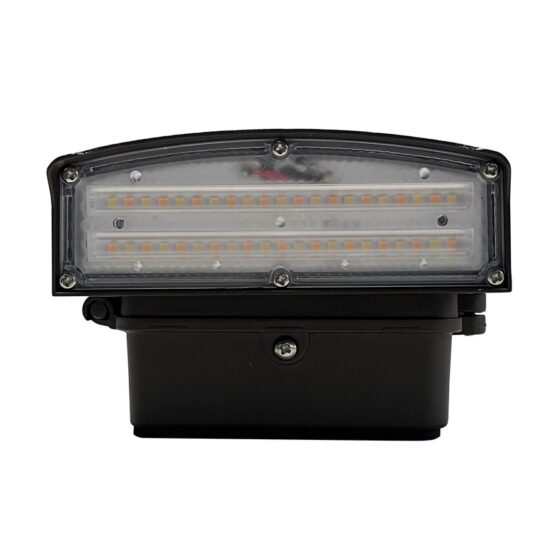

50 Watt Full Cutoff LED Wall Pack | 6400 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This 50 watt full cutoff LED wall pack is a wall-mounted exterior fixture for controlled building-side illumination. It produces 6400 lumens and includes selectable 3000K, 4000K, and 5000K color temperatures.

The fixture is configured for security lighting, building exterior lighting, and other wall-mounted exterior applications. It can replace a 150 watt metal halide fixture where the existing light level and layout are appropriate.

Core Performance and Output

The fixture delivers 6400 lumens at 128 lumens per watt. Its 120 degree beam distribution provides broad coverage from a wall-mounted position, while the full cutoff design directs light below the fixture.

Electrical operation is 100-277V at 50/60Hz. Power factor is greater than 0.90 and total harmonic distortion is less than 20%.

At low mounting heights, 6400 lumens can create excessive light levels near entrances or wall surfaces. Wider spacing can reduce overlap, but uniformity depends on mounting height, wall geometry, and required light levels.

Adjustability and Control Options

Selectable color temperatures include 3000K, 4000K, and 5000K. This allows color temperature selection to match the surrounding exterior lighting condition.

The fixture supports 0-10V dimming and includes a built-in photocell. The photocell supports automatic operation based on ambient light conditions.

Longevity and Reliability

Rated life is 50,000 hours L70. The fixture is designed for long-term exterior operation within its rated operating temperature range of -40F to 122F.

The IP65 rating supports use in exterior conditions where the fixture is exposed to dust and water. Long-term performance also depends on maintaining sealed wiring connections and the wall mounting surface.

Build Quality and Physical Characteristics

The housing is die-cast aluminum with a black finish. A polycarbonate lens protects the optical system.

This wall pack measures 9.2 by 7.7 by 4.7 inches and weighs 4.3 pounds. Wall mounting keeps the fixture close to the building surface and directs illumination outward from the wall plane.

Where This Product Fits Best

This fixture fits exterior wall locations requiring controlled illumination around building edges, access points, and service-side areas. Its full cutoff form is suited to wall-mounted layouts where light control below the fixture is required.

• security lighting
• building exterior lighting
• commercial exterior wall lighting
• building facade lighting
• perimeter lighting
• entry lighting
• service area lighting
• loading area lighting

The IP65 housing and -40F to 122F operating range support exterior exposure. Final placement should account for wall location, mounting height, adjacent surfaces, and required light levels.

Installation and Long-Term Use

The fixture mounts directly to a wall. Installers should confirm the wall surface, junction box condition, supply voltage, and wiring method before mounting.

Use the selected color temperature and dimming configuration consistently across the same lighting area where uniform appearance is required. The built-in photocell should remain unobstructed by building features or nearby light sources.

How This Fixture Is Commonly Used

For security lighting and perimeter lighting, fixtures are commonly arranged along exterior wall sections to maintain coverage around the building edge. Entry lighting and service area lighting layouts typically place fixtures near the wall-mounted access or work location.

Mounting height is determined by the building wall and required light distribution. The supplied product data does not establish a numerical mounting height range or fixture spacing value.

For building facade lighting, commercial exterior wall lighting, and loading area lighting, layout patterns follow wall length, access points, and target light levels. Wider spacing reduces fixture count but can reduce uniformity between fixtures.

Safety, Certifications, and Warranty

This fixture is UL certified and rebate eligible.

The fixture carries a 5-year warranty. It is rated IP65.

Frequently Asked Questions

Q: What is the light output of this LED wall pack?

A: This fixture produces 6400 lumens at 50 watts.

Q: What color temperatures are available?

A: The fixture has selectable 3000K, 4000K, and 5000K color temperatures.

Q: What voltage does this wall pack require?

A: The fixture operates on 100-277V power at 50/60Hz.

Q: Does this fixture support dimming?

A: Yes. This wall pack supports 0-10V dimming.

Q: Does the fixture include a photocell?

A: Yes. A built-in photocell is included.

Q: Is this wall pack rated for exterior use?

A: The fixture has an IP65 rating and an operating temperature range of -40F to 122F.

Application Questions and Clarification

Q: Can this fixture be used for perimeter lighting?

A: Perimeter lighting is a listed secondary application. Wall placement, mounting height, and required light levels affect the final layout.

Q: Is this fixture suitable for entry lighting?

A: Entry lighting is a listed secondary application. The 3000K, 4000K, and 5000K selectable color temperatures allow the installed color temperature to be selected for the project.

Q: What should be considered when planning fixture placement for building exterior lighting?

A: Wall location, mounting height, target light levels, and layout requirements affect fixture placement. A specific spacing value is not established by the supplied product data.
