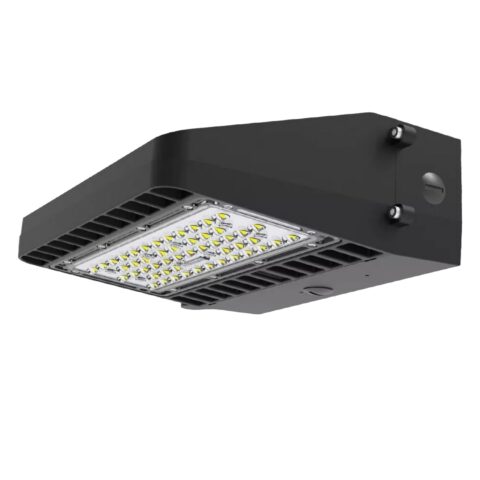

48 Watt Full Cutoff LED Wall Pack | 6400 Lumens | 5000K | 100-277V

Product Overview

The 48 Watt Full Cutoff LED Wall Pack is designed for efficient exterior lighting applications, providing 6400 lumens at a color temperature of 5000K. This fixture is suitable for replacing traditional 150 Watt metal halide wall packs, offering a modern solution for building exteriors. With its die-cast aluminum housing and polycarbonate lens, it is built to withstand various environmental conditions.

Operating within a voltage range of 100-277V, this wall pack is versatile for different electrical systems. Its full cutoff design ensures minimal light pollution, making it ideal for areas where controlled lighting is necessary. The fixture's compact dimensions allow for easy installation on building facades.

Core Performance and Output

This LED wall pack delivers a high output of 6400 lumens with an efficiency of 133 lumens per watt. The polycarbonate lens provides a uniform beam distribution, ensuring consistent lighting across the intended area. The fixture operates efficiently within a frequency range of 50/60 Hz, with a power factor greater than 0.90 and a total harmonic distortion of less than 20%.

While the fixture is suitable for most exterior wall applications, excessive output may occur at very low mounting heights, potentially causing glare. It is recommended to consider the mounting height to optimize performance and minimize any unwanted light spill.

Adjustability and Control Options

The 48 Watt Full Cutoff LED Wall Pack does not include adjustable features or dimming capabilities. It is designed for straightforward operation, providing consistent illumination without the need for additional control systems. This simplicity ensures reliable performance with minimal maintenance requirements.

Longevity and Reliability

With a lifespan of 50,000 hours (L70), this LED wall pack offers long-term reliability, reducing the need for frequent replacements. The fixture's robust construction and high-quality components contribute to its durability, making it a dependable choice for exterior lighting applications.

The fixture is backed by a 5-year warranty, providing assurance of its performance and quality over time.

Build Quality and Physical Characteristics

The fixture features a die-cast aluminum housing with a bronze finish, providing both durability and aesthetic appeal. Its IP65 rating ensures protection against dust and water ingress, making it suitable for outdoor environments. The operating temperature range of -40°F to 113°F allows for use in various climates.

Measuring 11.7 inches in length, 3.6 inches in width, and 8.6 inches in depth, the compact design facilitates easy installation on building exteriors.

Where This Product Fits Best

This LED wall pack is ideal for exterior lighting applications where controlled illumination is required. Its full cutoff design makes it suitable for environments where light pollution needs to be minimized.

• security lighting
• building facade lighting
• building exterior lighting
• commercial exterior wall lighting
• perimeter lighting
• entry lighting

The fixture's IP65 rating and robust construction make it well-suited for outdoor use, providing reliable performance in various weather conditions.

Installation and Long-Term Use

The wall pack is designed for wall mounting, providing a straightforward installation process. Its compact size and lightweight construction facilitate easy handling and positioning on building exteriors. The fixture's design ensures minimal maintenance, with no need for frequent bulb replacements.

For optimal performance, consider the mounting height and spacing to achieve the desired lighting effect. The fixture's high output may require careful placement to avoid excessive brightness in confined areas.

How This Fixture Is Commonly Used

This LED wall pack is typically mounted at heights ranging from 8 to 15 feet, providing effective illumination for building exteriors and perimeters. The fixture is often spaced at intervals that ensure uniform coverage without overlapping light beams.

While higher mounting heights can reduce the number of fixtures needed, they may also decrease uniformity. It is important to balance fixture count and placement to achieve the desired lighting levels and coverage.

Safety, Certifications, and Warranty

The 48 Watt Full Cutoff LED Wall Pack is ETL listed, ensuring compliance with safety standards. Its IP65 rating provides protection against dust and water ingress, making it suitable for outdoor environments. The fixture is rebate eligible, offering potential cost savings through energy efficiency programs.

A 5-year warranty covers the fixture, providing assurance of its quality and performance over time.

Frequently Asked Questions

Q: What is the recommended mounting height for this LED wall pack

A: The recommended mounting height ranges from 8 to 15 feet to ensure optimal illumination and coverage.

Q: Does this fixture support dimming

A: No, this LED wall pack does not include dimming capabilities. It is designed for consistent, full-output operation.

Q: What type of lens does this fixture use

A: The fixture uses a polycarbonate lens, providing uniform beam distribution and durability.

Q: Is this fixture suitable for coastal environments

A: While the fixture is IP65 rated, it is not specifically designed for corrosive coastal environments. Additional protection may be required in such areas.

Q: How many fixtures are needed for a typical building facade

A: The number of fixtures required depends on the facade's size and desired lighting levels. Consider spacing and mounting height to determine the optimal fixture count.

Application Questions and Clarification

Q: Can this wall pack be used for alley lighting

A: Yes, this fixture is suitable for alley lighting, providing effective illumination for narrow spaces.

Q: Is this fixture appropriate for multifamily exterior lighting

A: Yes, the fixture's design and output make it suitable for multifamily exterior lighting applications.

Q: What is the fixture's power factor

A: The fixture has a power factor greater than 0.90, ensuring efficient electrical performance.

Q: Does the fixture include a warranty

A: Yes, the fixture is covered by a 5-year warranty, providing assurance of its quality and performance.
