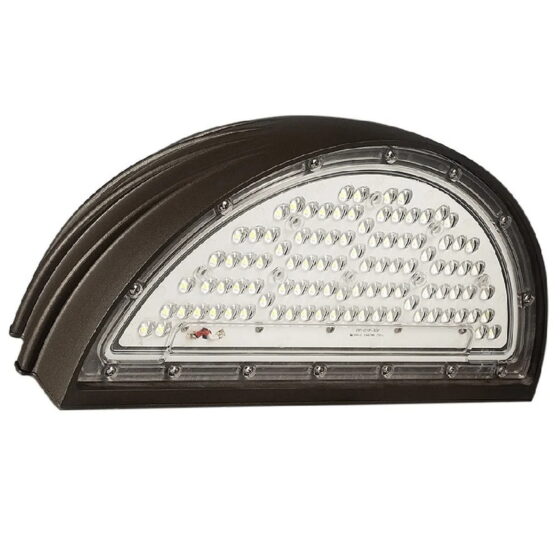

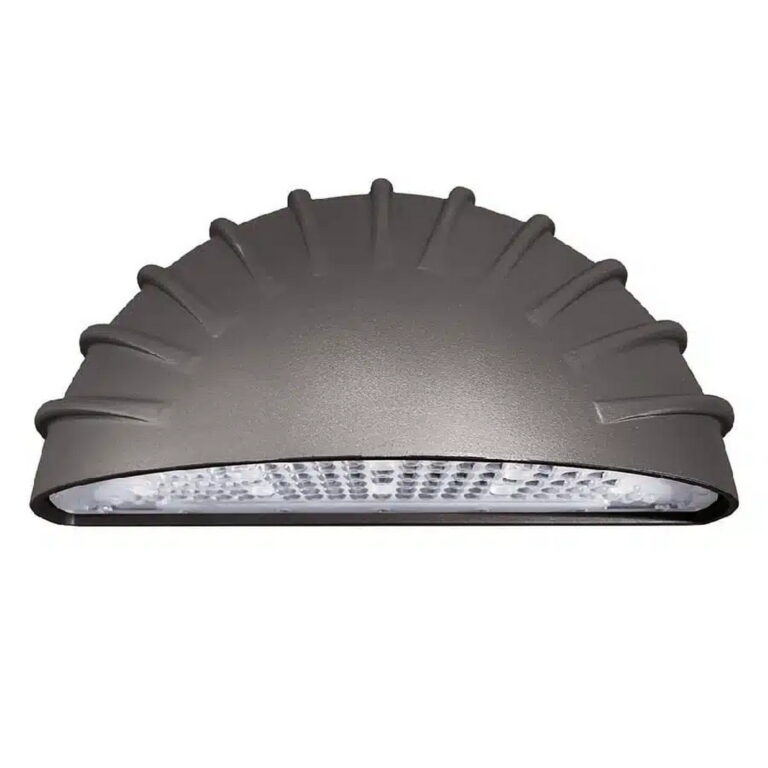

45 Watt Full Cutoff Half Moon LED Wall Pack | 6300 Lumens | 4000K or 5000K | 100-277V | Built-In Photocell
45 Watt architectural full-cutoff LED wall pack is a commercial-grade outdoor fixture. This fixture has die-cast aluminum housing and impact-resistant polycarbonate lens. These wall packs have a built-in photocell.
Cory Peterson | VP of Marketing and Sales Operations
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 45 |
| Lumens | 6300 |
| Lumens Per Watt | 140 |
| Replaces | 150 or 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K or 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 90° |
| Optics | Polycarbonate Lens |
| Lifespan | 70,000 hours |
| Mounting | Wall |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 20% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -22°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 14 X 7.5 X 7.5 |
| Weight (lbs) | 7.5 |
Features/Accessories
- Photocell
Product SKU Variations
- SKU: LLS-WD-WPHM-45-4-PC
- SKU: LLS-WD-WPHM-45-5-PC
Download IES Files
Product Overview
This 45-watt full cutoff half moon LED wall pack provides 6,300 lumens for exterior wall-mounted lighting. The fixture is available in 4000K or 5000K and uses a bronze die-cast aluminum housing with a polycarbonate lens.
The wall pack operates on 100-277V and includes a built-in photocell. It replaces 150W or 250W metal halide wall-mounted fixtures where a full cutoff exterior fixture is required.
Core Performance and Output
The fixture delivers 6,300 lumens at 140 lumens per watt. Its standard 90-degree beam angle provides a controlled distribution from the wall-mounted position.
Electrical performance includes 100-277V operation, 50/60Hz frequency, power factor above 0.90, and THD below 20 percent. The 6,300-lumen output can be excessive where wall mounting locations are close to occupied areas or where lower light levels are required.
Adjustability and Control Options
This wall pack supports 1-10V dimming. Dimming control wiring and compatibility should be verified with the selected control system.
A built-in photocell is included for photocell-controlled operation. The fixture is available in 4000K or 5000K color temperature options.
Longevity and Reliability
The rated lifespan is 70,000 hours. The IP65-rated enclosure protects the fixture from dust and water exposure in exterior wall-mounted installations.
The listed operating temperature range is -22 degrees F to 113 degrees F. Long-term operation depends on maintaining secure wall mounting, protected wiring connections, and a clean lens surface.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a bronze finish. A polycarbonate lens covers the optical assembly.
The fixture measures 14 x 7.5 x 7.5 inches and weighs 7.5 pounds. Wall mounting is the specified mounting method.
Where This Product Fits Best
This wall pack fits exterior wall locations that need controlled illumination from a compact, full cutoff fixture. Its IP65 rating supports exposed exterior conditions within the listed operating temperature range.
- building exterior lighting
- security lighting
- commercial exterior wall lighting
- building facade lighting
- perimeter lighting
- entry lighting
The die-cast aluminum housing, polycarbonate lens, bronze finish, and wall-mounted configuration suit fixed exterior wall installations. Fixture placement should account for the 90-degree beam angle and the relationship between the wall position and the intended illuminated area.
Installation and Long-Term Use
Install the fixture on a suitable wall surface using the specified wall-mount configuration. Verify that the available electrical supply is within the 100-277V input range before energizing the fixture.
For dimmed installations, connect the 1-10V control conductors as required by the control design. Inspect the lens, housing, wall attachment points, and wiring connections during routine exterior maintenance.
How This Fixture Is Commonly Used
For building exterior lighting, commercial exterior wall lighting, and perimeter lighting, fixtures are mounted at wall locations that direct the 90-degree distribution into the required exterior zone. Building facade lighting and entry lighting layouts typically follow wall sections, entrances, and exterior transitions.
Mounting height should be coordinated with the required light level, wall geometry, and fixture location. Wider spacing reduces fixture count but can reduce uniformity between wall pack locations.
Safety, Certifications, and Warranty
UL listed. Rebate eligible.
The fixture is IP65 rated and carries a 5-year warranty.
Frequently Asked Questions
Q: What is the light output of this LED wall pack?
A: This fixture delivers 6,300 lumens while using 45 watts.
Q: What voltage does this wall pack use?
A: The fixture operates on 100-277V at 50/60Hz.
Q: Does this wall pack support dimming?
A: Yes. It supports 1-10V dimming.
Q: What should be considered when planning wall pack placement?
A: Mounting height, target light levels, wall geometry, and the 90-degree beam angle affect fixture placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture intended for building exterior lighting?
A: Yes. Building exterior lighting is a primary application for this LED wall pack.
Q: Can this fixture be used for perimeter lighting?
A: Perimeter lighting is a listed secondary application. Fixture placement should account for the wall-mounted position and 90-degree beam angle.
Q: What environmental rating does this wall pack have?
A: The fixture is IP65 rated and has a listed operating temperature range of -22 degrees F to 113 degrees F.
