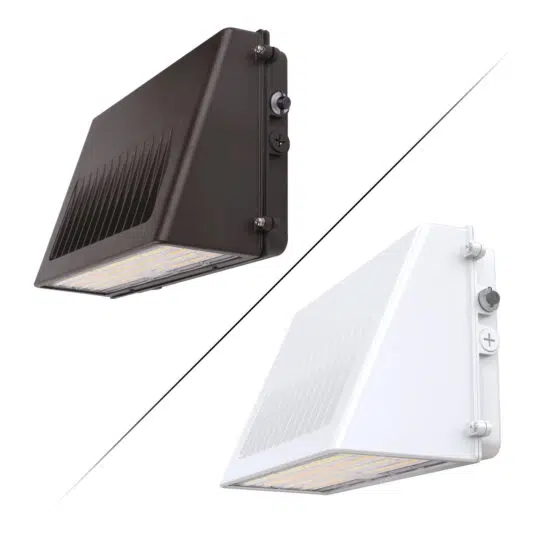

45 / 63 / 90 Watt Adjustable Full Cutoff LED Wall Pack | 7200 to 14000 Lumens | 3000K / 4000K / 5000K | 100-277V | Photocell | Bronze or White

Product Overview

The 45/63/90 Watt Adjustable Full Cutoff LED Wall Pack is designed for efficient and versatile exterior lighting applications. This fixture offers adjustable wattage and color temperature options, making it suitable for various lighting needs. It is ideal for replacing traditional 250 to 400 Watt metal halide fixtures, providing significant energy savings and reduced maintenance costs. The wall pack is typically mounted on building exteriors, providing reliable illumination for security and facade lighting.

Core Performance and Output

This LED wall pack delivers between 7200 and 14000 lumens, with a high efficacy of 150 lumens per watt. It operates on a voltage range of 100V-277V, ensuring compatibility with most electrical systems. The fixture features a polycarbonate lens for optimal light distribution and is available in color temperatures of 3000K, 4000K, and 5000K. While the fixture is suitable for a range of mounting heights, excessive output may occur at lower heights, potentially leading to increased glare.

Adjustability and Control Options

The wall pack includes adjustable wattage and color temperature settings, allowing for tailored lighting solutions based on specific site requirements. A built-in photocell provides automatic dusk-to-dawn operation, enhancing energy efficiency by ensuring the fixture operates only when needed. These features offer flexibility in achieving desired lighting levels and ambiance.

Longevity and Reliability

With a lifespan of 50,000 hours (L70), this LED wall pack is designed for long-term performance, reducing the need for frequent replacements. The fixture's robust construction and IP65 rating ensure reliable operation in various weather conditions, while the 5-year warranty provides additional peace of mind regarding its durability and performance.

Build Quality and Physical Characteristics

Constructed from die-cast aluminum, this wall pack is built to withstand harsh environmental conditions. It features a durable bronze or white finish, providing aesthetic flexibility to match building exteriors. The fixture's dimensions are 14.33 inches in length, 9.25 inches in height, and 5.78 inches in width, with a weight of 8 pounds, making it manageable for installation and maintenance.

Where This Product Fits Best

This LED wall pack is well-suited for environments requiring reliable exterior lighting solutions. It is commonly used in commercial and industrial settings where security and building facade illumination are priorities.

• security lighting
• building facade lighting
• commercial exterior wall lighting
• perimeter lighting
• entry lighting
• service area lighting

The fixture's IP65 rating and robust construction make it suitable for outdoor use, providing resistance to dust and water ingress.

Installation and Long-Term Use

Installation is straightforward, with wall mounting as the primary method. The fixture's adjustable wattage and color temperature settings allow for customization based on specific site needs. Over time, the fixture's durable construction and long lifespan minimize maintenance requirements, making it a cost-effective lighting solution.

How This Fixture Is Commonly Used

The LED wall pack is typically mounted at heights ranging from 8 to 20 feet, depending on the desired light distribution and coverage area. Spacing between fixtures can vary based on wattage and required light levels, with higher output settings reducing the number of fixtures needed but potentially increasing glare. This fixture is often deployed in linear patterns along building exteriors to ensure consistent illumination.

Safety, Certifications, and Warranty

This LED wall pack is UL listed and rebate eligible, ensuring compliance with safety standards and potential cost savings through energy efficiency programs. The fixture includes surge protection up to 4kV and operates within a temperature range of -40°F to 113°F. A 5-year warranty covers the fixture, providing assurance of its quality and performance.

Frequently Asked Questions

Q: What is the maximum mounting height for this LED wall pack

A: The fixture is typically mounted at heights between 8 and 20 feet, depending on the desired light distribution and coverage area.

Q: Can the color temperature be adjusted after installation

A: Yes, the fixture allows for color temperature adjustment between 3000K, 4000K, and 5000K, even after installation.

Q: Is this fixture suitable for coastal environments

A: While the fixture is robust and IP65 rated, it is not specifically designed for corrosive environments like coastal areas.

Q: Does the fixture include a dimming option

A: No, this LED wall pack does not include a dimming feature.

Q: How does the photocell function in this fixture

A: The built-in photocell provides automatic dusk-to-dawn operation, turning the fixture on at night and off during the day.

Application Questions and Clarification

Q: What are the primary applications for this LED wall pack

A: The primary applications include security lighting, building facade lighting, and commercial exterior wall lighting.

Q: Can this fixture be used for alley lighting

A: Yes, the fixture is suitable for alley lighting, providing reliable illumination for narrow passageways.

Q: Is this fixture appropriate for multifamily exterior lighting

A: Yes, it can be used for multifamily exterior lighting, offering efficient and durable illumination for residential complexes.

Q: What environmental characteristics should be considered for installation

A: The fixture is IP65 rated, making it suitable for outdoor use in environments with exposure to dust and water.
