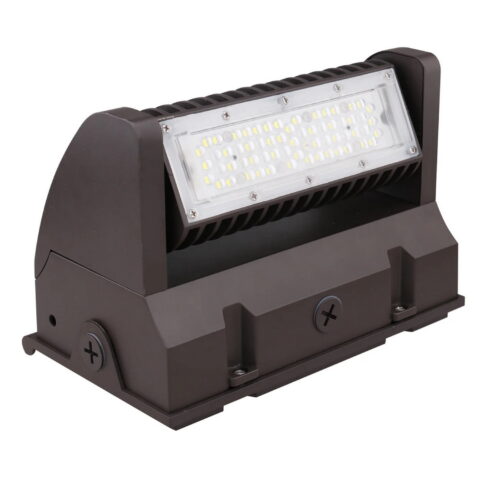

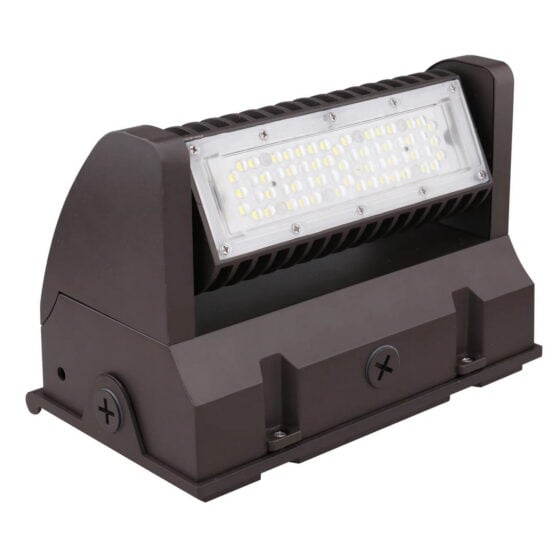

40 Watt Rotatable Full Cutoff LED Wall Pack | 5200 Lumens | 5000K | 100-277V
Cory Peterson | VP of Marketing and Sales Operations
72 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 40 |
| Lumens | 5200 |
| Lumens Per Watt | 130 |
| Replaces | 150 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 hours |
| Mounting | Wall |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 20% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -22°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 5.7 L X 9.2 W X 5.2 D |
| Weight (lbs) | 8 |
Download IES Files
Product Overview
This 40 watt rotatable full cutoff LED wall pack provides 5200 lumens at 5000K for wall-mounted exterior lighting. The full cutoff form directs light downward from the mounting surface.
The fixture operates on 100-277V and replaces a 150 watt metal halide fixture. Its 1-10V dimming capability supports installations requiring adjustable output.
Core Performance and Output
The fixture produces 5200 lumens at 130 lumens per watt. The 5000K color temperature and 70+ CRI provide a cool white output for exterior visibility.
A 120 degree beam distribution spreads light across the wall-mounted area. At low mounting heights, 5200 lumens may create excessive brightness if fixture placement is too close to occupied areas.
The driver operates on 100-277V, 50/60 Hz power. Power factor is greater than 0.90 and total harmonic distortion is below 20%.
Adjustability and Control Options
This wall pack supports 1-10V dimming. Dimming wiring must be included with the installation when output control is required.
The fixture has a rotatable full cutoff design. Final aiming should be set before the fixture is placed into service.
Longevity and Reliability
The rated lifespan is 50,000 hours. Long-term performance depends on correct wiring, secure wall mounting, and maintaining the fixture within its stated operating conditions.
The operating temperature range is -22F to 113F. The fixture is covered by a 5 year warranty.

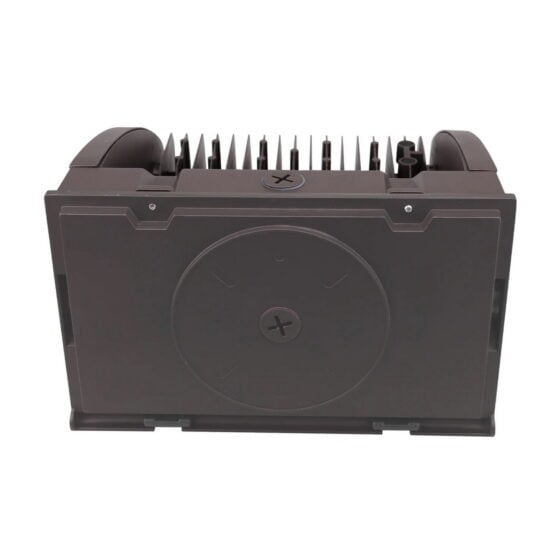

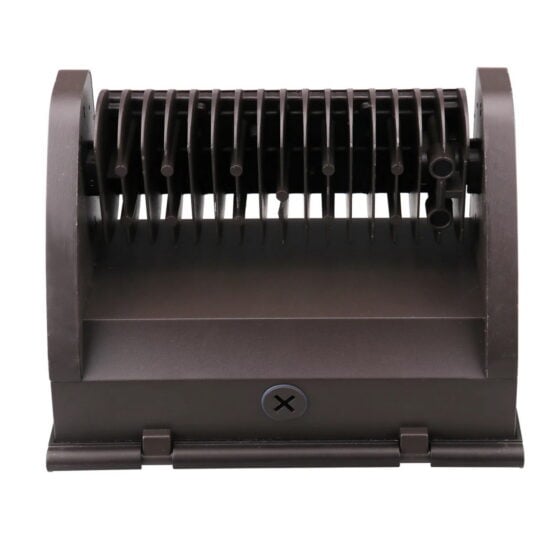

Build Quality and Physical Characteristics
The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the optical assembly.

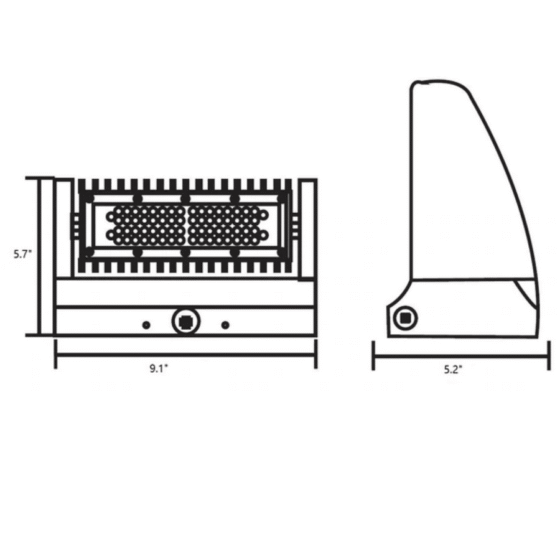

The fixture is IP65 rated. It measures 5.7 inches long by 9.2 inches wide by 5.2 inches deep and weighs 8 pounds.
Where This Product Fits Best
This wall pack is intended for exterior wall-mounted lighting where directed downward illumination is needed. Its IP65 rating supports exposed exterior conditions within the stated operating temperature range.
- security lighting
- building facade lighting
- commercial exterior wall lighting
- perimeter lighting
- entry lighting
- loading area lighting
The full cutoff design is suited to wall locations where upward light control is required. Wall condition, mounting location, and available voltage should be confirmed before installation.
Installation and Long-Term Use
The fixture mounts directly to a wall. The mounting surface must support the 8 pound fixture and provide a suitable location for branch-circuit and dimming connections.
Confirm 100-277V supply voltage before energizing the fixture. Seal wall penetrations and electrical entry points as required for the installation to maintain the exterior installation condition.
How This Fixture Is Commonly Used
For security lighting and perimeter lighting, fixtures are typically arranged along wall runs so their distributions overlap without leaving dark sections between mounting locations. Mounting height and wall geometry determine the final aiming position.
For building facade lighting, commercial exterior wall lighting, entry lighting, and loading area lighting, placement follows access points, facade features, and service-side wall runs. Wider spacing reduces fixture count but can reduce uniformity between fixtures.
Safety, Certifications, and Warranty
This fixture is UL listed and rebate eligible. It is IP65 rated.
The warranty period is 5 years. Disconnect power before installation, inspection, adjustment, or service.
Frequently Asked Questions
Q: What is the light output of this LED wall pack?
A: This fixture produces 5200 lumens while using 40 watts.
Q: What voltage does this wall pack use?
A: The fixture operates on 100-277V, 50/60 Hz power.
Q: Does this fixture support dimming?
A: Yes. It supports 1-10V dimming.
Q: What beam angle does this wall pack have?
A: The standard beam angle is 120 degrees.
Q: What should be reviewed when planning fixture layout?
A: Mounting height, wall geometry, target light levels, and required uniformity affect fixture placement. The supplied product data does not establish a specific spacing value.
Application Questions and Clarification
Q: Is this fixture appropriate for building exterior lighting?
A: Building exterior lighting is a listed primary application. The fixture is wall mounted, IP65 rated, and operates from -22F to 113F.
Q: What should be confirmed for loading area lighting?
A: Confirm the mounting surface, available 100-277V supply voltage, fixture placement, and required light distribution. Loading area lighting is a listed secondary application.
