30 Watt Full Cutoff LED Wall Pack | 4000 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

The 30 Watt Full Cutoff LED Wall Pack is designed for efficient and versatile exterior lighting applications. This fixture provides 4000 lumens with adjustable color temperatures of 3000K, 4000K, or 5000K, making it suitable for various lighting needs. It operates on a voltage range of 100-277V and includes a built-in photocell for automatic dusk-to-dawn operation. This wall pack is ideal for replacing 100 to 150 Watt metal halide fixtures, offering a modern solution for building exteriors.

Constructed with a die-cast aluminum housing and a polycarbonate lens, this LED wall pack is built to withstand harsh outdoor conditions. It is UL listed and IP65 rated, ensuring reliable performance in wet environments. The fixture's compact dimensions and wall mounting capability make it a practical choice for a wide range of architectural and security lighting applications.

Core Performance and Output

This LED wall pack delivers a high output of 4000 lumens at an efficiency of 133 lumens per watt. The fixture features a 120-degree beam angle, providing broad and uniform illumination suitable for building facades and security lighting. The color temperature can be adjusted to 3000K, 4000K, or 5000K, allowing for customization based on specific lighting requirements.

While the fixture is designed for wall mounting, excessive output may occur if installed at low mounting heights, potentially leading to glare. It is recommended to consider the mounting height and surrounding environment to optimize performance and minimize light spill.

Adjustability and Control Options

The 30 Watt Full Cutoff LED Wall Pack includes a built-in photocell for automatic dusk-to-dawn operation, enhancing energy efficiency and reducing manual intervention. The fixture supports 0-10V dimming, allowing for further control over light levels and energy consumption. This adjustability makes it suitable for various exterior lighting scenarios, from security to architectural applications.

Color temperature adjustability between 3000K, 4000K, and 5000K provides flexibility in achieving the desired ambiance and visual comfort. This feature is particularly beneficial for applications requiring specific color rendering or aesthetic considerations.

Longevity and Reliability

With a lifespan of 50,000 hours (L70), this LED wall pack offers long-term reliability and reduced maintenance costs compared to traditional lighting solutions. The fixture's robust construction, including a die-cast aluminum housing and polycarbonate lens, ensures durability in outdoor environments.

The IP65 rating guarantees protection against dust and water ingress, making it suitable for use in various weather conditions. The fixture's performance is further supported by a power factor greater than 0.90 and a total harmonic distortion (THD) of less than 20%, ensuring stable and efficient operation.

Build Quality and Physical Characteristics

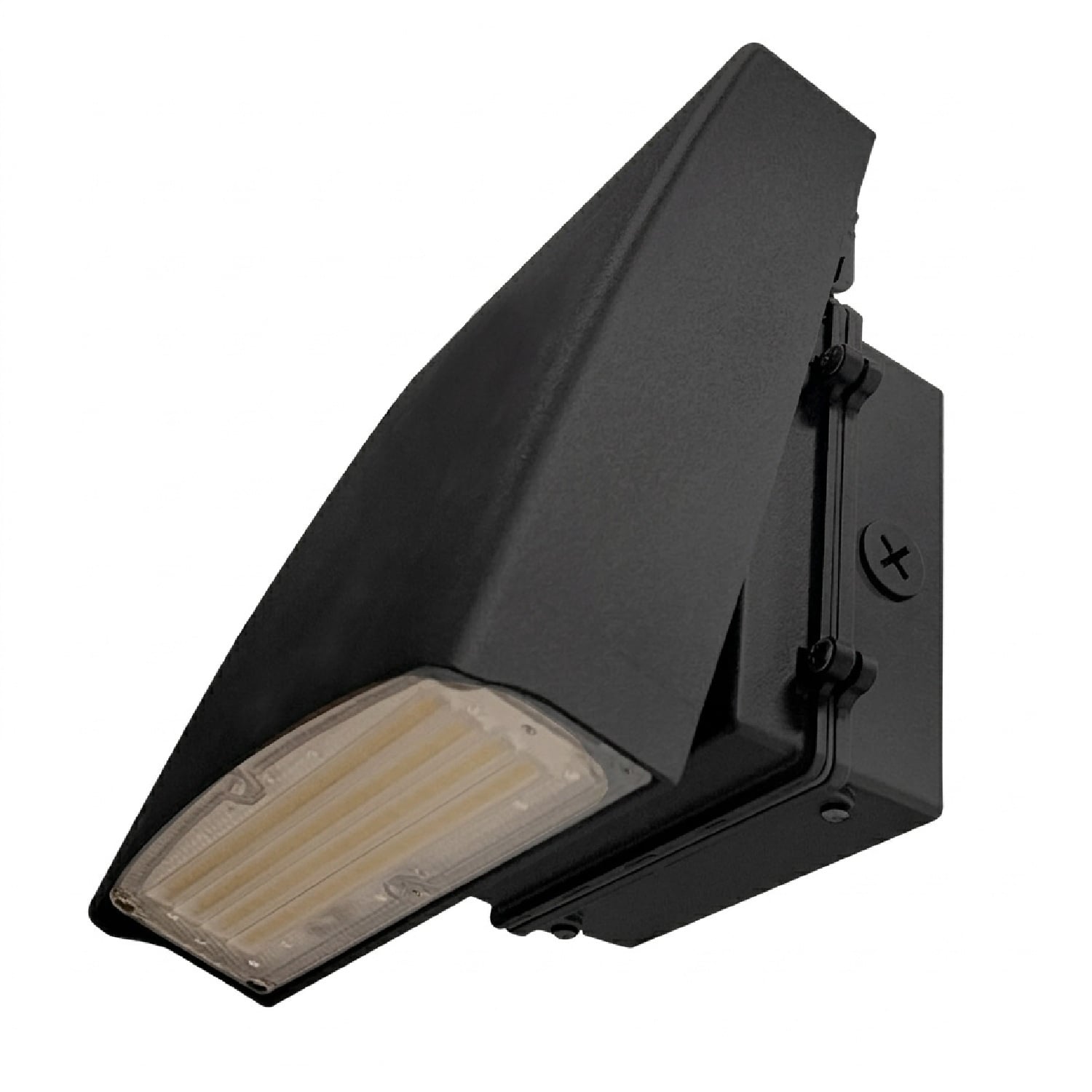

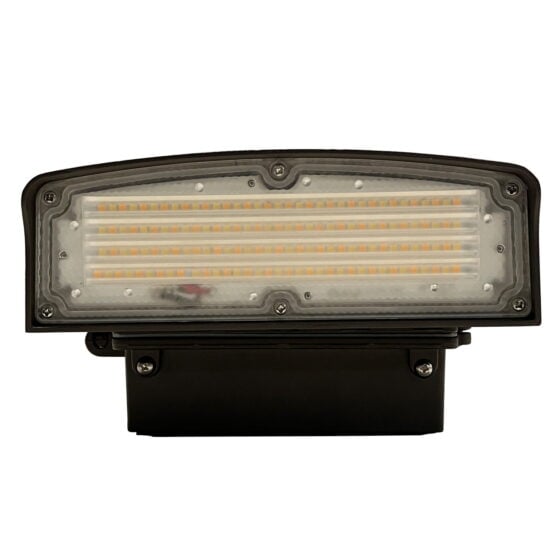

The fixture is constructed with a die-cast aluminum housing, providing strength and resistance to corrosion. Its black finish offers a sleek and modern appearance, suitable for a variety of architectural styles. The polycarbonate lens ensures impact resistance and longevity, even in challenging outdoor conditions.

Measuring 9.2 x 7.7 x 4.7 inches and weighing 4.3 pounds, this wall pack is compact and easy to install. Its design facilitates straightforward wall mounting, making it a practical choice for both new installations and retrofits.

Where This Product Fits Best

This LED wall pack is well-suited for exterior applications where reliable and efficient lighting is required. Its design and performance characteristics make it ideal for:

• security lighting
• building facade lighting
• building exterior lighting
• commercial exterior wall lighting
• perimeter lighting
• entry lighting
• service area lighting
• loading area lighting

The fixture's IP65 rating and durable construction ensure it can withstand exposure to rain, dust, and other environmental factors. Its adjustable color temperature and built-in photocell enhance its adaptability to different lighting needs and conditions.

Installation and Long-Term Use

Installation of the 30 Watt Full Cutoff LED Wall Pack is straightforward, with wall mounting being the primary method. The fixture's compact size and lightweight design facilitate easy handling and positioning during installation. It is important to ensure that the mounting surface is stable and capable of supporting the fixture's weight.

For long-term use, regular cleaning of the lens and housing is recommended to maintain optimal light output and appearance. The fixture's robust construction minimizes the need for frequent maintenance, contributing to lower operational costs over time.

How This Fixture Is Commonly Used

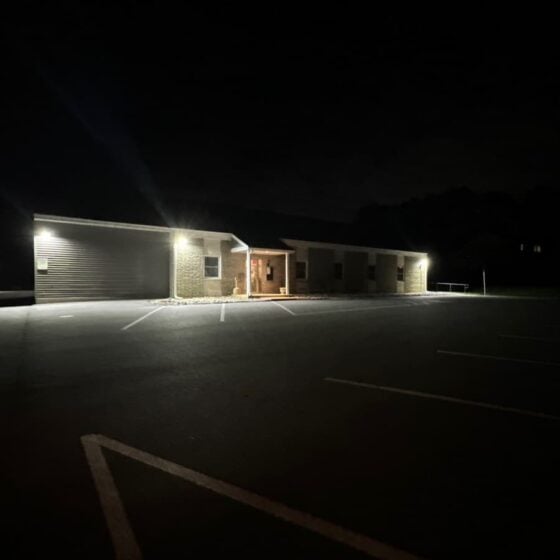

This LED wall pack is typically mounted at heights ranging from 8 to 15 feet, depending on the specific application and desired light distribution. It is commonly used in perimeter lighting setups, where fixtures are spaced to provide uniform coverage along building exteriors or property boundaries.

In applications requiring higher light levels, such as security lighting, closer spacing may be necessary to achieve the desired illumination. Conversely, for general building facade lighting, wider spacing can be employed to reduce fixture count while maintaining adequate coverage.

Safety, Certifications, and Warranty

This LED wall pack is UL listed, ensuring compliance with safety standards for electrical products. It is also rebate eligible, providing potential cost savings through energy efficiency programs. The fixture's IP65 rating certifies its suitability for outdoor use, protecting against dust and water ingress.

A 5-year warranty is included, offering peace of mind and assurance of the product's quality and durability. This warranty covers defects in materials and workmanship, supporting long-term reliability and performance.

Frequently Asked Questions

Q: What is the recommended mounting height for this LED wall pack

A: The recommended mounting height ranges from 8 to 15 feet, depending on the specific application and desired light distribution.

Q: Can the color temperature be adjusted after installation

A: Yes, the color temperature can be adjusted between 3000K, 4000K, and 5000K even after installation.

Q: Is this fixture suitable for use in wet environments

A: Yes, the fixture is IP65 rated, making it suitable for use in wet environments and providing protection against dust and water ingress.

Q: Does the fixture include a photocell for automatic operation

A: Yes, the fixture includes a built-in photocell for automatic dusk-to-dawn operation.

Application Questions and Clarification

Q: What types of applications are best suited for this LED wall pack

A: This LED wall pack is best suited for security lighting, building facade lighting, building exterior lighting, and commercial exterior wall lighting.

Q: Can this fixture be used for perimeter lighting

A: Yes, it is suitable for perimeter lighting, providing uniform coverage along building exteriors or property boundaries.

Q: Is this fixture appropriate for entry lighting

A: Yes, the fixture is appropriate for entry lighting, offering reliable illumination for entryways and access points.
