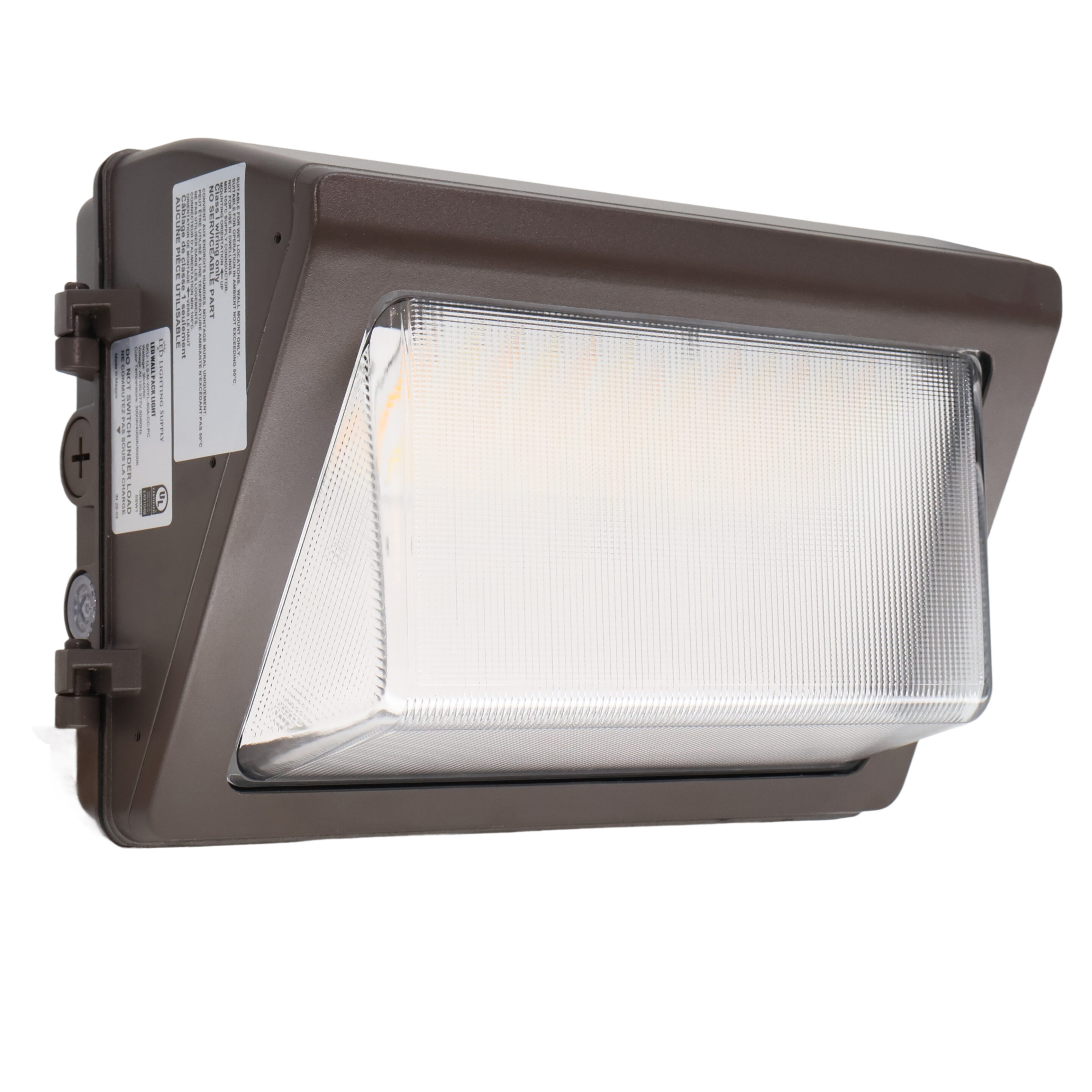

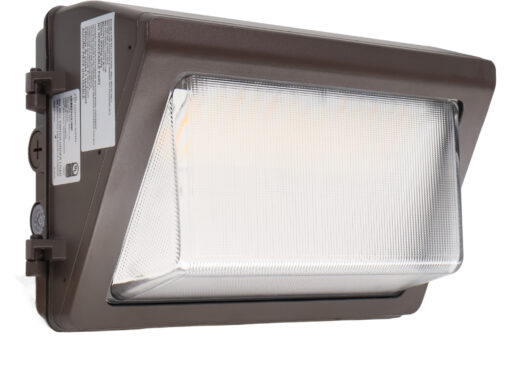

30 / 45 / 60 Watt Adjustable LED Wall Pack | 4200 to 8400 Lumens | 3000K / 4000K / 5000K Adjustable | 120-277V | Built-In Photocell
This wall pack suits pathway and building perimeter lighting where output and color temperature may need adjustment. Select 30, 45, or 60 watts and 3000K, 4000K, or 5000K to match site requirements, with 0-10V dimming and a built-in photocell for control flexibility. Its die-cast aluminum housing, tempered glass lens, IP65 rating, 6kV surge protection, and -40F to 122F operating range support demanding outdoor installations.
Dwayne Kula | President, CTO and Founder
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 30 | 45 | 60 |
| Lumens | 4200 | 6300 | 8400 |
| Lumens Per Watt | 140 |
| Replaces | 150 or 250 Watt Metal Halide |
| Voltage | 120V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Optics | Tempered Glass Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Wall |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 20% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 14.76 L x 9.84 W x 7.68 H |
| Weight (lbs) | 8.5 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Photocell
Download IES Files
Product Overview
This adjustable LED wall pack provides selectable 30W, 45W, or 60W output with selectable 3000K, 4000K, or 5000K color temperature. It is wall-mounted and built for exterior lighting locations requiring a compact fixture with adjustable output.
The fixture produces 4200, 6300, or 8400 lumens and can replace 150W or 250W metal halide wall packs. A built-in photocell supports dusk-to-dawn operation where photocell control is required.
Core Performance and Output
This wall pack delivers 140 lumens per watt across its selectable wattage settings. Output is 4200 lumens at 30W, 6300 lumens at 45W, and 8400 lumens at 60W.
The tempered glass lens protects the optical assembly. No beam distribution designation is supplied for this fixture.
The driver operates on 120V-277V, 50/60 Hz power and supports 0-10V dimming. Power factor is greater than 0.90 and total harmonic distortion is less than 20%.
The 60W setting can produce excessive light at low mounting heights or in confined exterior areas. Output selection should match mounting height, wall location, and required light levels.
Adjustability and Control Options
Field-selectable wattage settings allow output to be set at 30W, 45W, or 60W. Field-selectable color temperature settings include 3000K, 4000K, and 5000K.
The fixture supports 0-10V dimming. A built-in photocell is included.
Longevity and Reliability
Rated life is 50,000 hours L70. The fixture includes 6kV surge protection.
Operating temperature range is -40 degrees F to 122 degrees F. This range supports exterior wall installations exposed to seasonal temperature changes.
Build Quality and Physical Characteristics

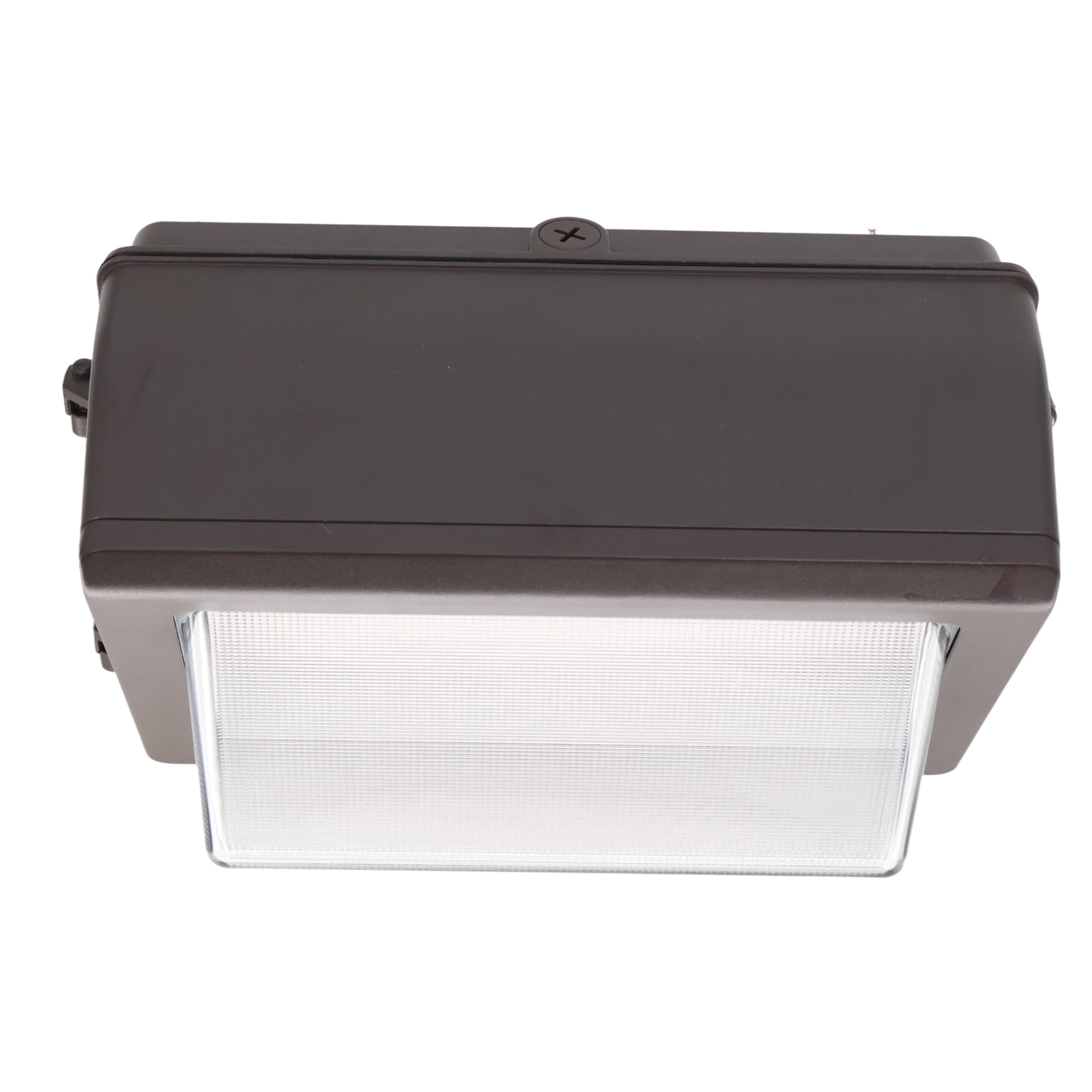

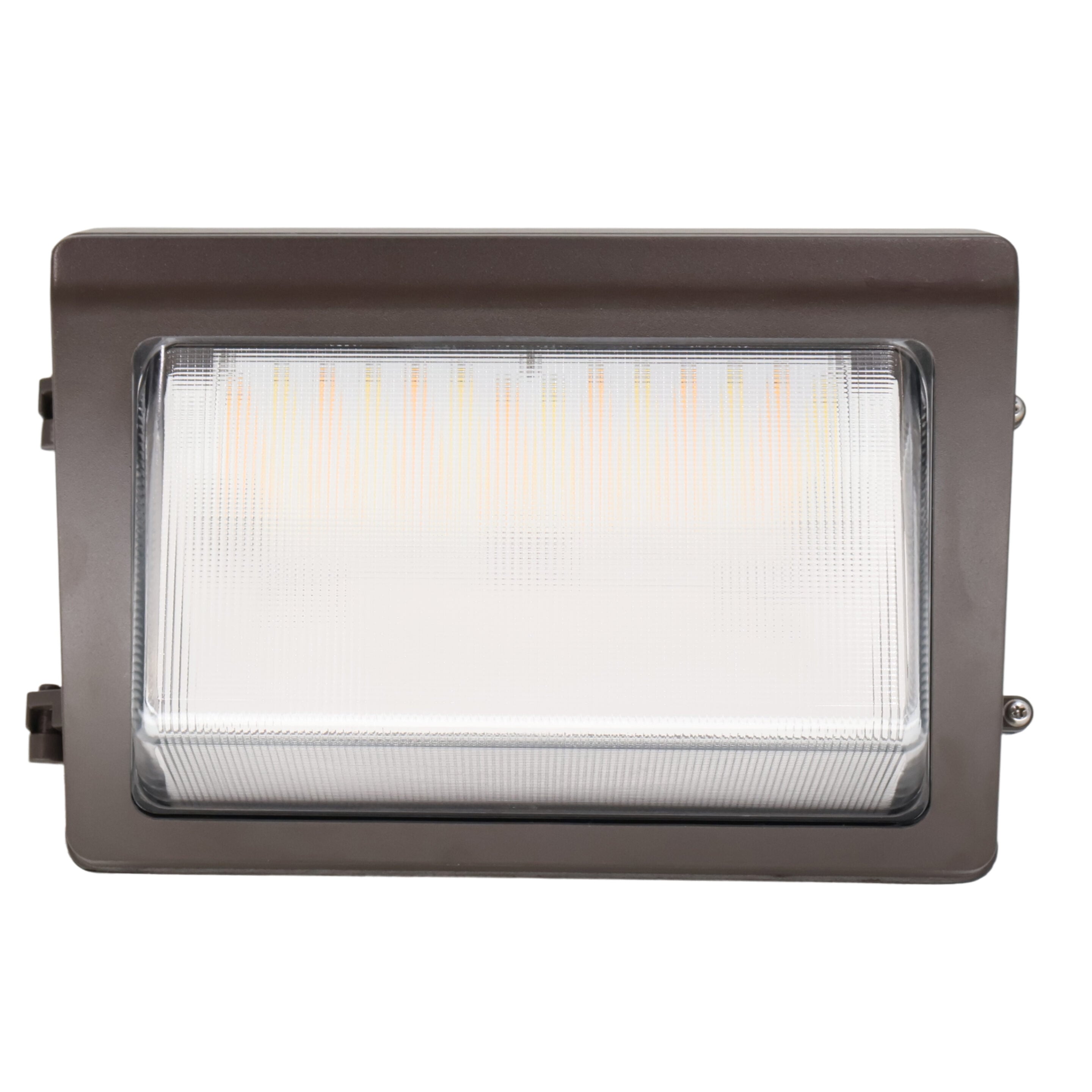

The housing is die-cast aluminum with a bronze finish. The lens is tempered glass.
The fixture measures 14.76 inches long by 9.84 inches wide by 7.68 inches high. Fixture weight is 8.5 pounds.
IP65 protection is provided for exterior exposure. Wall mounting is the specified mounting method.
Where This Product Fits Best
This wall pack fits exterior wall locations where adjustable output, selectable color temperature, and photocell operation are needed. Its wall-mounted form factor is suited to building-mounted perimeter and access lighting.
- building exterior lighting
- commercial exterior wall lighting
- security lighting
- building facade lighting
- perimeter lighting
- entry lighting
- service area lighting
The die-cast aluminum housing, tempered glass lens, IP65 rating, and operating temperature range support exposed exterior wall locations. Fixture placement should account for wall orientation and the amount of light required at the selected wattage.
Installation and Long-Term Use
This fixture mounts directly to a wall and operates on 120V-277V power. Installers should confirm the wall mounting surface and electrical connection location before installation.
The 8.5-pound fixture has a compact wall pack footprint. Wattage and color temperature should be set before final commissioning, along with any 0-10V dimming connection and photocell operation.
How This Fixture Is Commonly Used
For building exterior lighting, commercial exterior wall lighting, and security lighting, fixtures are typically placed at wall-mounted access points, along exterior building sections, and around perimeter areas. Mounting height should be based on the wall geometry, target light levels, and selected wattage.
Entry lighting and service area lighting layouts commonly follow door locations and exterior work access points. Higher output can reduce fixture count, but spacing and placement must be evaluated to control brightness and maintain useful coverage.
Safety, Certifications, and Warranty
This fixture is UL listed and DLC Premium.
The warranty period is 5 years.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 30W, 45W, and 60W settings. Output is 4200, 6300, and 8400 lumens.
Q: What color temperature settings are available?
A: The fixture has selectable 3000K, 4000K, and 5000K color temperature settings.
Q: What voltage does this LED wall pack use?
A: The fixture operates on 120V-277V, 50/60 Hz power.
Q: Does this fixture support dimming?
A: Yes. The fixture supports 0-10V dimming.
Q: Is a photocell included?
A: Yes. A built-in photocell is included.
Application Questions and Clarification
Q: Which exterior applications are identified for this wall pack?
A: Valid applications include security lighting, building facade lighting, building exterior lighting, commercial exterior wall lighting, perimeter lighting, entry lighting, and service area lighting.
Q: What should be considered when planning fixture placement?
A: Mounting height, selected wattage, target light levels, wall location, and layout requirements affect fixture placement. A specific spacing value is not established by the supplied product data.
Q: Can this fixture be used in exposed exterior wall locations?
A: The fixture has an IP65 rating, die-cast aluminum housing, tempered glass lens, and an operating temperature range of -40 degrees F to 122 degrees F.
