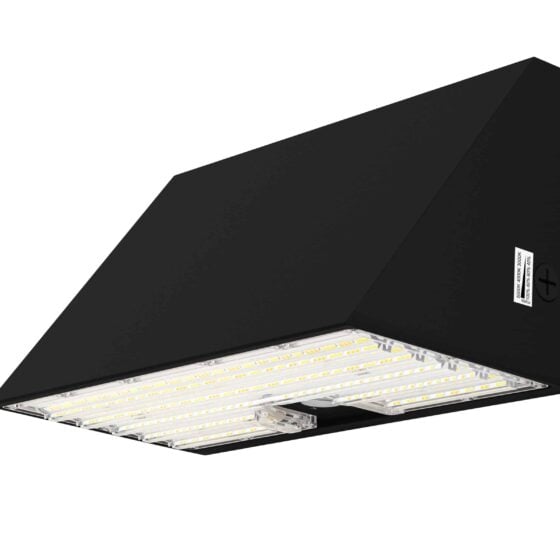

28 / 42 / 56 / 70 Watt Adjustable Full Cutoff Architectural LED Wall Pack | 4760 to 11100 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell | Bronze or Black

Product Overview

This is an adjustable full cutoff architectural LED wall pack designed for exterior wall mounting on commercial and institutional buildings. The fixture supports selectable wattages of 28, 42, 56, or 70 watts, delivering up to 11,100 lumens. Color temperature is field adjustable between 3000K, 4000K, and 5000K. Typical use includes replacing 250W metal halide wall packs on building exteriors, with mounting heights from 8 to 20 feet depending on output setting and site requirements.

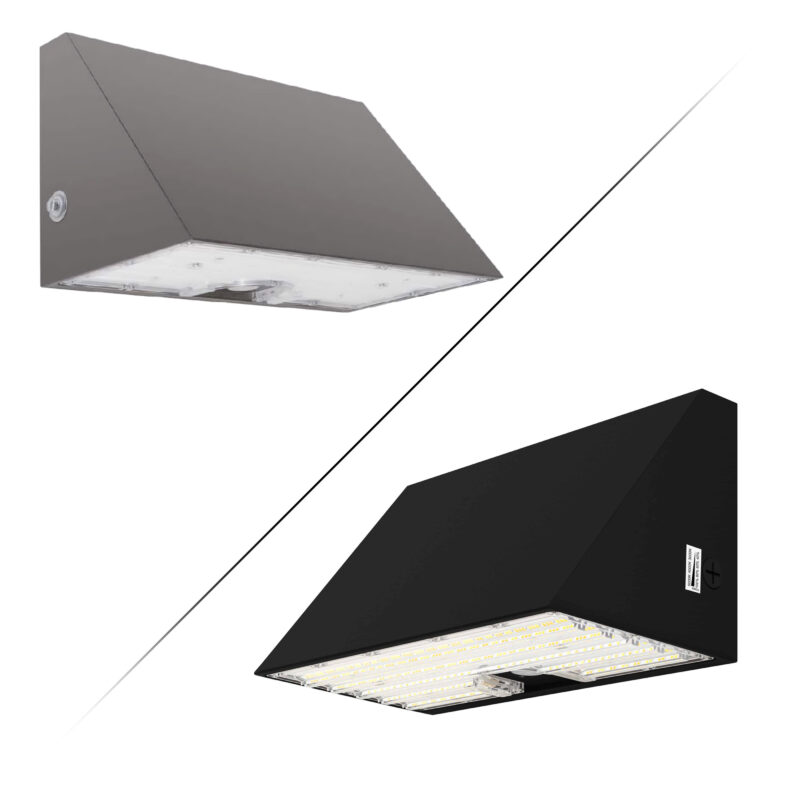

The fixture includes a built-in photocell for dusk-to-dawn operation and is available in bronze or black finish. It is suitable for use in outdoor environments exposed to rain, dust, and temperature fluctuations.

Core Performance and Output

This wall pack provides four selectable output levels: 4760, 6880, 8600, or 11,100 lumens, with efficacy up to 160 lumens per watt. The Type 4 distribution delivers forward-throw coverage suitable for perimeter and building facade lighting. Power factor exceeds 0.90 and THD is below 20% for stable electrical performance on 100-277V circuits.

Color temperature can be set to 3000K, 4000K, or 5000K to match site requirements or existing lighting. At maximum output, the fixture is best suited for mounting heights of 12 to 20 feet. Excessive output may cause glare or over-lighting at lower mounting heights. Uniformity may decrease if spacing exceeds recommended distances for the selected wattage.

Adjustability and Control Options

Wattage and color temperature are field adjustable using onboard switches, allowing adaptation to site-specific needs or future changes. The built-in photocell enables automatic dusk-to-dawn operation, reducing manual intervention. 1-10V dimming is supported for integration with compatible controls.

Adjustability simplifies inventory and maintenance by allowing a single fixture to serve multiple output and color requirements. The photocell can be bypassed if not needed for the application.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70) at ambient temperatures from -22°F to 113°F. The die-cast aluminum housing and polycarbonate lens provide resistance to impact, weather, and UV exposure. All components are sealed to IP65 for protection against dust and water jets.

Long-term reliability is supported by a 5-year warranty. The fixture is UL listed and suitable for exterior wall mounting in commercial environments.

Build Quality and Physical Characteristics

The housing is constructed from die-cast aluminum with a corrosion-resistant finish in bronze or black. The lens is polycarbonate for impact resistance and optical clarity. The fixture measures 12.35 in L x 7.39 in W x 7.1 in H and weighs 8.2 lbs, supporting secure wall mounting on masonry or structural surfaces.

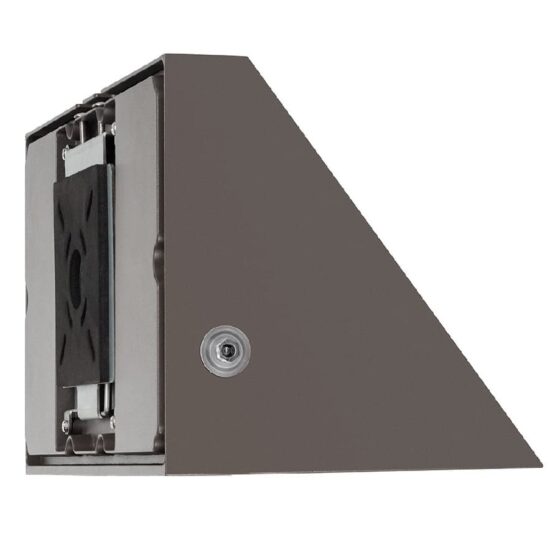

All wiring and adjustment controls are accessible from the rear or side, minimizing exposure to weather during installation and maintenance. The fixture is designed for direct wall mounting with standard hardware.

Where This Product Fits Best

This wall pack is intended for exterior wall mounting on commercial, institutional, and multifamily buildings. It is suitable for perimeter illumination, entry lighting, and security coverage in environments requiring controlled forward-throw distribution and full cutoff performance.

• building facade lighting
• security lighting
• commercial exterior wall lighting
• building exterior lighting
• perimeter lighting
• entry lighting
• service area lighting
• multifamily exterior lighting

The fixture is IP65 rated for wet locations and operates reliably in a wide temperature range. It is not intended for canopy, flood, or area pole mounting.

Installation and Long-Term Use

Wall mounting is direct to masonry, concrete, or structural surfaces using standard anchors. The fixture supports through-wiring and accommodates 100-277V input. All adjustments for wattage and color temperature are made before final closure of the housing.

Routine maintenance is limited to periodic cleaning of the lens and inspection of seals. The built-in photocell can be disabled if site controls require manual or networked operation. The fixture is designed for minimal service requirements over its rated life.

How This Fixture Is Commonly Used

Typical mounting heights range from 8 to 20 feet, with higher wattage settings used for greater mounting heights or wider coverage. Spacing between fixtures is determined by output level and required uniformity, with closer spacing for lower wattage settings or higher security requirements.

Fixtures are often installed in continuous runs along building perimeters, at entry points, or above service doors. Higher output settings reduce fixture count but may increase glare if mounted too low or near pedestrian areas.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It meets requirements for wet location exterior wall mounting. Power factor is greater than 0.90 and THD is less than 20%.

The product is covered by a 5-year warranty. It is eligible for utility rebates where applicable.

Frequently Asked Questions

Q: What is the recommended mounting height for this wall pack?

A: Mounting heights from 8 to 20 feet are typical, with higher wattage settings used for greater heights or wider coverage.

Q: Can the color temperature and wattage be changed after installation?

A: Yes, both color temperature and wattage are field adjustable using onboard switches inside the fixture.

Q: Is the built-in photocell required for operation?

A: The photocell can be bypassed if dusk-to-dawn operation is not needed or if site controls require manual or networked switching.

Q: What is the expected lifespan of this fixture?

A: The fixture is rated for 50,000 hours (L70) at ambient temperatures from -22°F to 113°F.

Q: How should fixtures be spaced for uniform coverage?

A: Spacing depends on mounting height, wattage setting, and required light levels. Closer spacing is needed for lower wattage or higher uniformity.

Application Questions and Clarification

Q: Is this fixture suitable for use in loading area lighting?

A: Yes, it is commonly used for loading area lighting when mounted on exterior walls at appropriate heights.

Q: Can this wall pack be used for multifamily exterior lighting?

A: Yes, it is suitable for multifamily exterior lighting, including building entrances and perimeter walls.

Q: Is this fixture appropriate for alley lighting?

A: Yes, it can be used for alley lighting when mounted on building walls to provide forward-throw illumination.

Q: Is this product intended for pole or canopy mounting?

A: No, this fixture is designed for direct wall mounting only and is not intended for pole or canopy applications.
