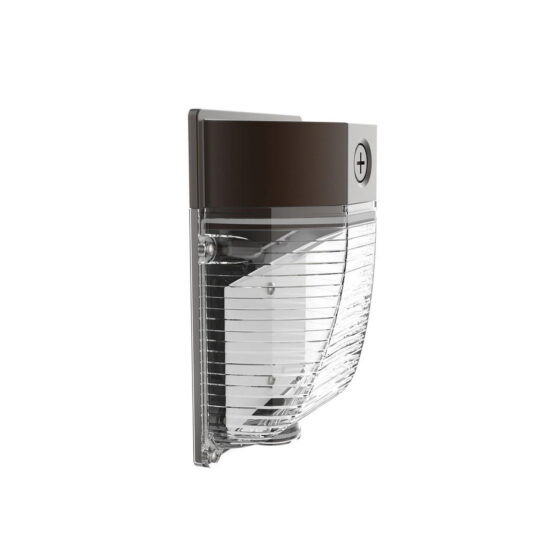

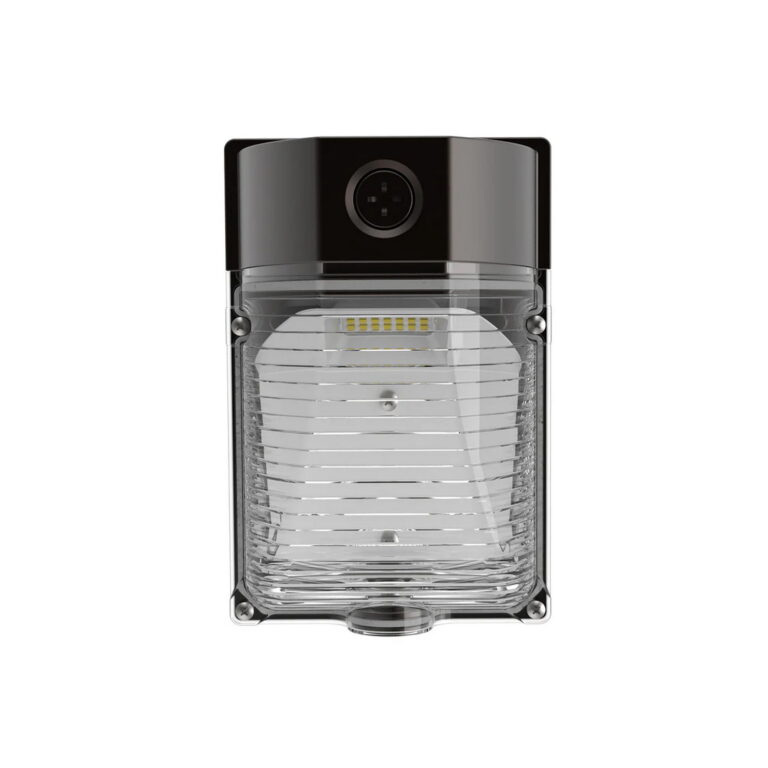

26 Watt LED Security Wall Pack | 3588 Lumens | 5000K | 100-277V | Built-In Photocell
This 26 watt LED wall pack is a practical choice for exterior commercial and industrial applications needing reliable perimeter lighting, especially as a direct replacement for 100 watt metal halide fixtures. Its IP65 rating ensures durability in rain and dust, while the die-cast aluminum housing and impact-resistant polycarbonate lens withstand outdoor conditions. The built-in photocell automates dusk-to-dawn operation, reducing maintenance and manual intervention. Type 5 distribution provides broad, even illumination around entrances, loading docks, and service corridors.
Dwayne Kula | President, CTO and Founder
578 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 26 |
| Lumens | 3588 |
| Lumens Per Watt | 138 |
| Replaces | 100 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | No |
| Beam Angles (Std) | Type 5 |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Wall |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 20% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -4°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 5.25 W X 8.6 H X 3 D |
| Weight (lbs) | 5 |
Download IES Files
Product Overview
This 26-watt LED security wall pack provides 3,588 lumens at 5000K for wall-mounted exterior lighting. It is configured with a Type 5 distribution, bronze die-cast aluminum housing, and a polycarbonate lens.
The fixture replaces a 100-watt metal halide wall pack while operating on 100-277V. Its built-in photocell supports dusk-to-dawn operation without adding a separate photocell.
Core Performance and Output
This wall pack delivers 3,588 lumens at 138 lumens per watt. The 5000K color temperature and 80+ CRI provide clear exterior illumination.
The Type 5 distribution provides broad area coverage from a wall-mounted position. At lower mounting heights, the 3,588-lumen output can create higher brightness directly below the fixture, so placement should account for glare and nearby surfaces.
Adjustability and Control Options
The fixture operates on 100-277V, 50/60Hz power. Power factor is greater than 0.90, and total harmonic distortion is less than 20%.
A built-in photocell is included. This wall pack is not dimmable.
Longevity and Reliability
The LED system is rated for 50,000 hours at L70. This rating supports long-term exterior operation with reduced relamping requirements compared with metal halide wall packs.
The fixture operates from -4 degrees F to 113 degrees F. Long-term performance depends on maintaining the housing, lens, wall connection, and electrical supply condition.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a bronze finish. The polycarbonate lens protects the optical assembly.
This wall pack measures 5.25 inches wide by 8.6 inches high by 3 inches deep and weighs 5 pounds. The fixture is IP65 rated.
Where This Product Fits Best
This fixture fits wall-mounted exterior locations requiring controlled illumination around building edges, entrances, and service-side areas. Its 26-watt output is suited to localized exterior coverage rather than large-area lighting from elevated poles.
- security lighting
- building exterior lighting
- commercial exterior wall lighting
- perimeter lighting
- entry lighting
- service area lighting
The IP65-rated enclosure and -4 degrees F to 113 degrees F operating range support exposed exterior conditions within the stated temperature range. The wall-mounted form factor keeps the fixture close to the area being illuminated.
Installation and Long-Term Use
This fixture mounts directly to a wall. Confirm the mounting surface, electrical supply voltage, fixture orientation, and photocell exposure before installation.
Mounting height affects the distribution pattern and brightness at grade. Keep the photocell clear of direct fixture light and other light sources that can affect its operation.
How This Fixture Is Commonly Used
For security lighting and perimeter lighting, wall packs are typically positioned along exterior walls to maintain continuous coverage at building edges. Layouts commonly follow wall lines, entry points, and service-side access areas.
For building exterior lighting and commercial exterior wall lighting, fixture spacing depends on mounting height, target light levels, wall geometry, and the Type 5 distribution. Wider spacing reduces fixture count but can reduce uniformity between fixtures.
Safety, Certifications, and Warranty
This fixture is UL listed. It is rebate eligible.
The wall pack includes a 5-year warranty. The fixture is IP65 rated.
Frequently Asked Questions
Q: What is the light output of this LED wall pack?
A: This fixture delivers 3,588 lumens while using 26 watts.
Q: What voltage does this wall pack accept?
A: The fixture operates on 100-277V, 50/60Hz power.
Q: Does this wall pack include a photocell?
A: Yes. A built-in photocell is included.
Q: Can this fixture be dimmed?
A: No. This wall pack is not dimmable.
Q: What should be considered when planning fixture placement?
A: Mounting height, target light levels, wall geometry, and the Type 5 distribution affect fixture placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this wall pack appropriate for perimeter lighting?
A: Yes. Perimeter lighting is a listed application for this wall pack. Final placement depends on mounting height, target light levels, and wall layout.
Q: Can this fixture be used for entry lighting?
A: Yes. Entry lighting is a listed application. The 3,588-lumen output and wall-mounted Type 5 distribution should be evaluated against the required brightness at the entry.
Q: What environmental conditions are supported by this fixture?
A: The fixture is IP65 rated and operates from -4 degrees F to 113 degrees F.
