120 Watt Rotatable Full Cutoff LED Wall Pack | 14400 Lumens | 5000K | 100-277V

Product Overview

This 120 Watt Rotatable Full Cutoff LED Wall Pack is designed for exterior wall mounting on commercial and industrial buildings. It delivers 14,400 lumens at 5000K, providing high-output illumination for perimeter and security lighting. The fixture is built for applications where a 400W metal halide replacement is needed, with a form factor suitable for mounting heights typically ranging from 10 to 20 feet along building exteriors.

The rotatable full cutoff design allows for precise light direction, minimizing uplight and spill. This fixture is commonly installed on warehouses, loading docks, and commercial building facades where controlled, efficient exterior lighting is required.

Core Performance and Output

This wall pack outputs 14,400 lumens at 120 watts, achieving 120 lumens per watt. The 5000K color temperature provides a neutral white light suitable for security and exterior visibility. The fixture uses a 120° beam angle, delivering broad coverage along building perimeters and entry points.

Electrical performance includes 100-277V operation, a power factor above 0.90, and THD below 20%. At lower mounting heights, output may be excessive for pedestrian-only areas and may require careful aiming to avoid glare. Uniformity can decrease if spacing exceeds typical wall pack intervals.

Adjustability and Control Options

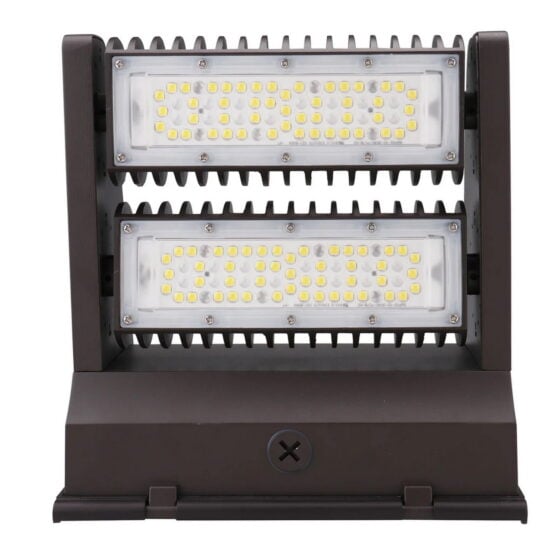

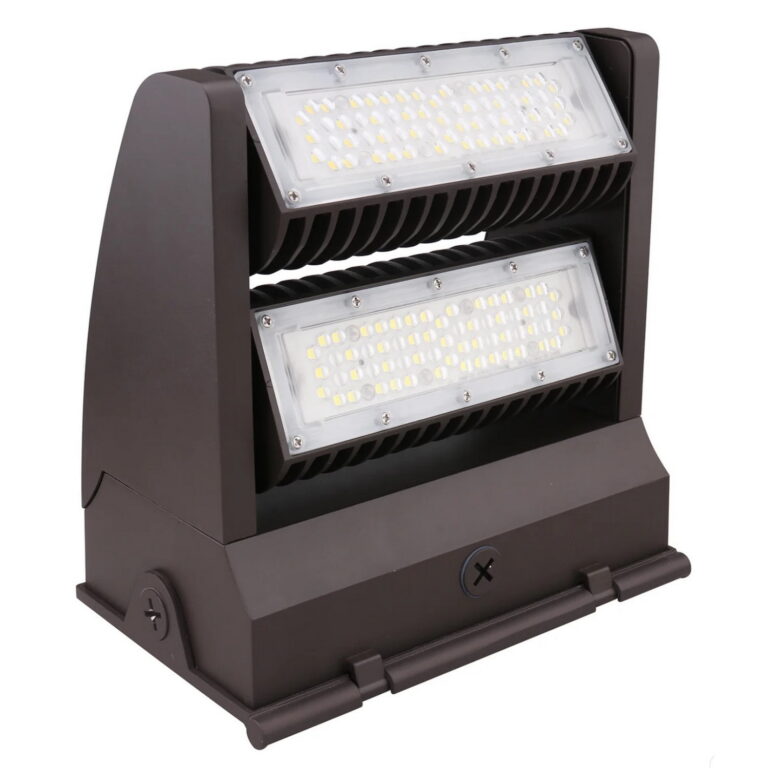

The rotatable housing allows for on-site adjustment of the light direction, supporting both downward and outward aiming. This enables targeted coverage for walkways, loading areas, or building facades. The fixture supports 1-10V dimming for integration with exterior lighting controls or occupancy sensors.

Adjustability is limited to the fixture head rotation; no field-changeable optics are included. Dimming performance is consistent across the full voltage range.

Longevity and Reliability

The fixture is rated for 50,000 hours of operation, supporting long-term exterior use with minimal maintenance. The LED driver and components are selected for consistent performance in outdoor environments.

Operating temperature range is -22°F to 113°F, suitable for most North American climates. The IP65 rating protects against dust and water ingress during rain or washdown events.

Build Quality and Physical Characteristics

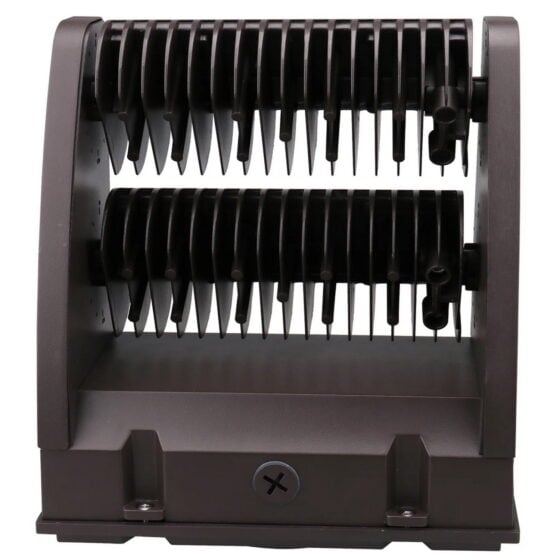

The housing is die-cast aluminum with a bronze finish, providing durability and corrosion resistance for exterior installations. The lens is polycarbonate, offering impact resistance and UV stability.

Fixture dimensions are 9.2 x 8.8 x 5.2 inches, with a weight of 31 lbs. The compact form factor supports direct wall mounting without additional brackets. All hardware is designed for secure attachment to masonry or concrete walls.

Where This Product Fits Best

This wall pack is suited for exterior building applications requiring high-output, controlled lighting. It is commonly used on commercial, industrial, and multifamily properties where perimeter security and visibility are priorities.

• security lighting
• building facade lighting
• building exterior lighting
• commercial exterior wall lighting
• perimeter lighting
• entry lighting
• service area lighting
• loading area lighting

Environmental characteristics include IP65 ingress protection, operation in a wide temperature range, and resistance to weather exposure. The fixture is not intended for hazardous or marine environments.

Installation and Long-Term Use

This fixture is designed for direct wall mounting using standard hardware. The compact size allows for installation on most exterior wall surfaces, including masonry and concrete. Electrical connection is made via 100-277V input, compatible with most commercial building circuits.

Routine maintenance is limited to periodic cleaning of the lens and inspection of mounting hardware. The polycarbonate lens resists yellowing and impact, reducing the need for replacement. Long-term reliability is supported by the sealed housing and robust driver design.

How This Fixture Is Commonly Used

Typical mounting heights range from 10 to 20 feet, depending on the required coverage and site layout. Fixtures are spaced to provide overlapping coverage along building perimeters, entryways, and loading areas. The rotatable head is adjusted on-site to direct light where needed and minimize spill.

Spacing and fixture count vary based on the desired light levels and site security requirements. Higher output can reduce the number of fixtures needed but may increase glare if not aimed properly.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It is eligible for utility rebates where applicable. The product includes a 5-year warranty covering manufacturing defects and component failure under normal use.

All safety and certification markings are present on the product label. The fixture is suitable for exterior wall mounting in commercial and industrial environments.

Frequently Asked Questions

Q: What is the recommended mounting height for this wall pack?

A: Typical mounting heights are 10 to 20 feet, depending on the area to be illuminated and the desired light levels.

Q: Can the fixture be aimed or adjusted after installation?

A: Yes, the rotatable head allows for on-site adjustment to direct light downward or outward as needed.

Q: Is this fixture compatible with lighting controls or sensors?

A: The fixture supports 1-10V dimming and can be integrated with compatible controls or occupancy sensors.

Q: What type of wall surfaces can this fixture be mounted to?

A: The fixture is designed for direct mounting to masonry, concrete, or other solid exterior wall surfaces.

Q: How many fixtures are needed for continuous perimeter coverage?

A: Fixture spacing depends on mounting height and required light levels; typical intervals are 20 to 30 feet for uniform coverage.

Application Questions and Clarification

Q: Is this wall pack suitable for use in loading area lighting?

A: Yes, the output and rotatable design support loading area and service area lighting along building exteriors.

Q: Can this fixture be used for multifamily exterior lighting?

A: The fixture is suitable for multifamily exterior wall applications where high-output perimeter lighting is required.

Q: Is this product appropriate for alley lighting behind commercial buildings?

A: Yes, the fixture is commonly used for alley lighting to improve security and visibility along building rear walls.

Q: Does the fixture provide full cutoff performance for dark sky compliance?

A: The full cutoff design minimizes uplight and spill, supporting dark sky objectives where required.
