90 / 120 / 150 Watt Adjustable LED Flood Light | 15750 to 26250 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This is an adjustable LED flood light designed for exterior area illumination, sports courts, and security applications. The fixture offers selectable wattage settings of 90, 120, or 150 watts, with corresponding lumen outputs from 15,750 to 26,250. Color temperature is field adjustable between 3000K, 4000K, and 5000K. Typical mounting heights range from 15 to 30 feet, making it suitable for mid-scale outdoor sites and sports courts. The built-in photocell supports dusk-to-dawn operation for exterior environments.

Commonly used as a replacement for 250W or 400W metal halide flood lights, this fixture is specified for new installations and retrofit projects where flexibility in output and color is required. The compact form factor and mounting options support both yoke and slip fitter installations on poles, walls, or structural supports.

Core Performance and Output

This flood light delivers up to 175 lumens per watt, with selectable outputs of 15,750, 21,000, or 26,250 lumens. The 120° beam angle provides wide area coverage for open spaces, courts, and perimeter zones. Color temperature can be set to 3000K, 4000K, or 5000K to match site requirements or existing lighting.

Power factor is 0.9 with total harmonic distortion below 15%. The fixture operates on 100-277V, 50/60Hz input. Output at the highest wattage is suitable for mounting heights up to 30 feet; at lower heights, the highest setting may produce excessive brightness or glare. Uniformity may decrease at mounting heights above 30 feet due to the wide beam distribution.

Adjustability and Control Options

Wattage and color temperature are both field adjustable using onboard switches, allowing adaptation to site-specific needs without fixture replacement. The built-in photocell enables automatic dusk-to-dawn operation, reducing manual intervention for exterior lighting schedules.

No onboard dimming is provided. Control is limited to photocell operation and manual wattage/color selection. The fixture supports both yoke and slip fitter mounting for flexible aiming and orientation.

Longevity and Reliability

L70 rated life is 164,000 hours. The fixture is designed for long-term exterior use with minimal maintenance. Surge protection is rated at 6KV line-line and 10KV line-earth, supporting operation in areas with electrical disturbances.

Operating temperature range is -40°F to 122°F. The fixture is ETL and DLC Premium listed, with IP66 ingress protection and IK07 impact resistance. These ratings support reliable operation in exposed outdoor environments, including sports courts and security perimeters.

Build Quality and Physical Characteristics

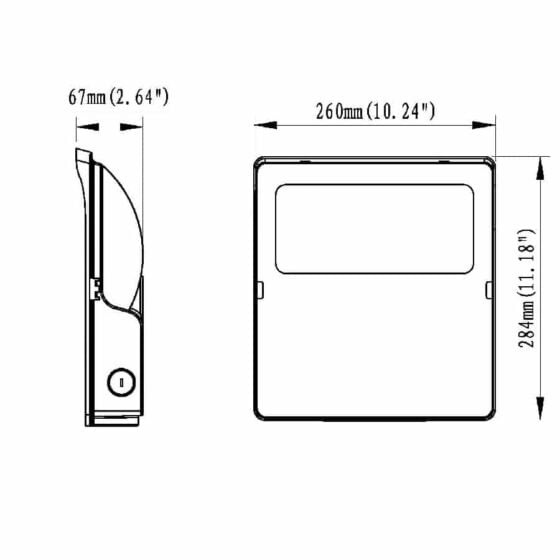

The housing is powder coated aluminum with a bronze finish. The fixture uses tempered glass optics for durability and resistance to impact. Overall dimensions are 10.2 inches wide by 11.2 inches high by 2.6 inches deep, with a weight of 8 lbs.

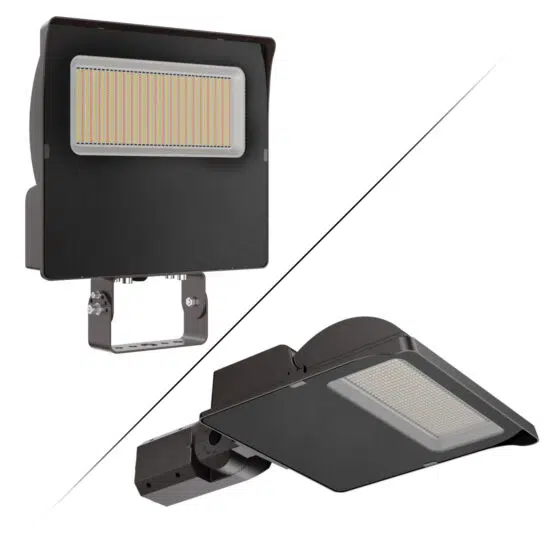

Mounting options include yoke and slip fitter brackets. The fixture has an EPA rating of 0.95, suitable for pole or wall mounting in moderate wind environments. Cord length is 16 inches for connection flexibility during installation.

Where This Product Fits Best

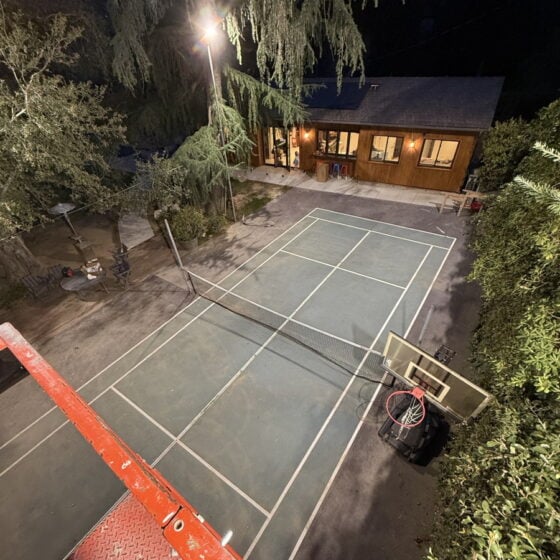

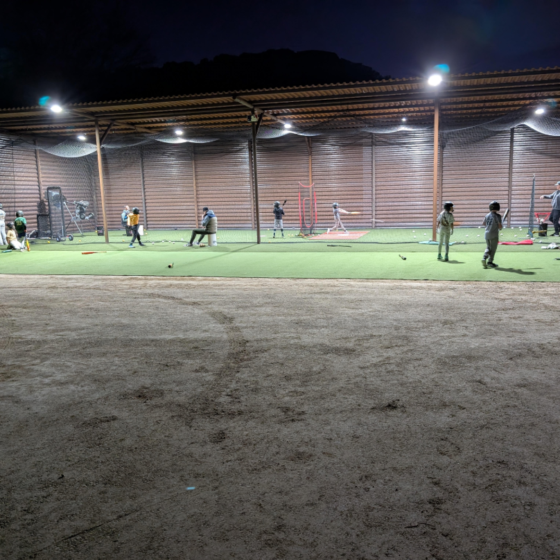

This adjustable LED flood light is intended for exterior area lighting, sports courts, and perimeter security. It is commonly deployed at mid-scale outdoor sites, event venues, and building facades where selectable output and color are required. The fixture is suitable for both new construction and retrofit projects replacing legacy metal halide flood lights.

• area lighting
• security lighting
• building facade lighting
• basketball court lighting
• parking lot lighting
• event venue lighting
• loading area lighting
• tennis court lighting

IP66 and IK07 ratings support use in exposed outdoor locations. The fixture is not intended for high mast or large stadium applications where higher output or specialized optics are required.

Installation and Long-Term Use

The fixture supports yoke and slip fitter mounting for attachment to poles, walls, or structural supports. Typical installation height ranges from 15 to 30 feet, depending on output setting and site requirements. The 16-inch cord allows for flexible wiring during installation.

Routine maintenance is minimal due to the long LED lifespan and sealed construction. The built-in photocell reduces manual switching for dusk-to-dawn operation. For retrofit projects, verify that the mounting surface and electrical supply are compatible with the fixture?s form factor and voltage range.

How This Fixture Is Commonly Used

This flood light is typically installed on poles or building walls at heights between 15 and 30 feet. Spacing and aiming depend on the selected wattage and required light levels for the site. For sports courts and parking lots, fixtures are often spaced 40 to 60 feet apart to achieve uniform coverage.

Higher output settings reduce the number of fixtures needed but may increase glare if mounted at lower heights. For perimeter security, fixtures are aimed outward or downward to minimize spill light and maximize coverage of target zones.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium qualified. It carries an IP66 ingress protection rating and IK07 impact resistance. Surge protection is rated at 6KV line-line and 10KV line-earth. The product includes a 5-year warranty from the manufacturer.

All certifications and ratings are documented for code compliance and site acceptance. The fixture is suitable for use in outdoor environments subject to rain, dust, and moderate impact.

Frequently Asked Questions

Q: What is the recommended mounting height for this flood light?

A: Typical mounting height is 15 to 30 feet, depending on the selected wattage and site requirements.

Q: Can the color temperature and wattage be changed after installation?

A: Yes, both color temperature and wattage are field adjustable using onboard switches.

Q: Does this fixture support dimming controls?

A: No, this model does not include dimming capability. Control is limited to the built-in photocell and manual wattage/color selection.

Q: What mounting options are available?

A: The fixture supports both yoke and slip fitter mounting for attachment to poles or walls.

Q: How should fixtures be spaced for basketball court lighting?

A: Spacing typically ranges from 40 to 60 feet apart, depending on mounting height and desired light levels.

Application Questions and Clarification

Q: Is this flood light suitable for use in parking lot lighting applications?

A: Yes, the output and mounting options support use in parking lot lighting at typical mounting heights.

Q: Can this fixture be used for event venue lighting?

A: Yes, it is commonly specified for event venue lighting where adjustable output and color are required.

Q: Is this fixture appropriate for large stadium or high mast lighting?

A: No, the output and beam distribution are not designed for high mast or large stadium applications.

Q: Does the fixture require any special maintenance?

A: Routine maintenance is minimal due to the sealed construction and long LED lifespan.
