90 / 125 / 155 Watt Adjustable LED Flood Light | 13500 to 23250 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This adjustable LED flood light is designed for exterior area illumination, security, and sports facility lighting. The fixture offers selectable wattage settings of 90, 125, or 155 watts, with a corresponding lumen output range from 13,500 to 23,250 lumens. Color temperature can be set to 3000K, 4000K, or 5000K at installation. Typical mounting heights range from 15 to 30 feet, making it suitable for parking lots, building perimeters, and small to mid-sized outdoor sports courts.

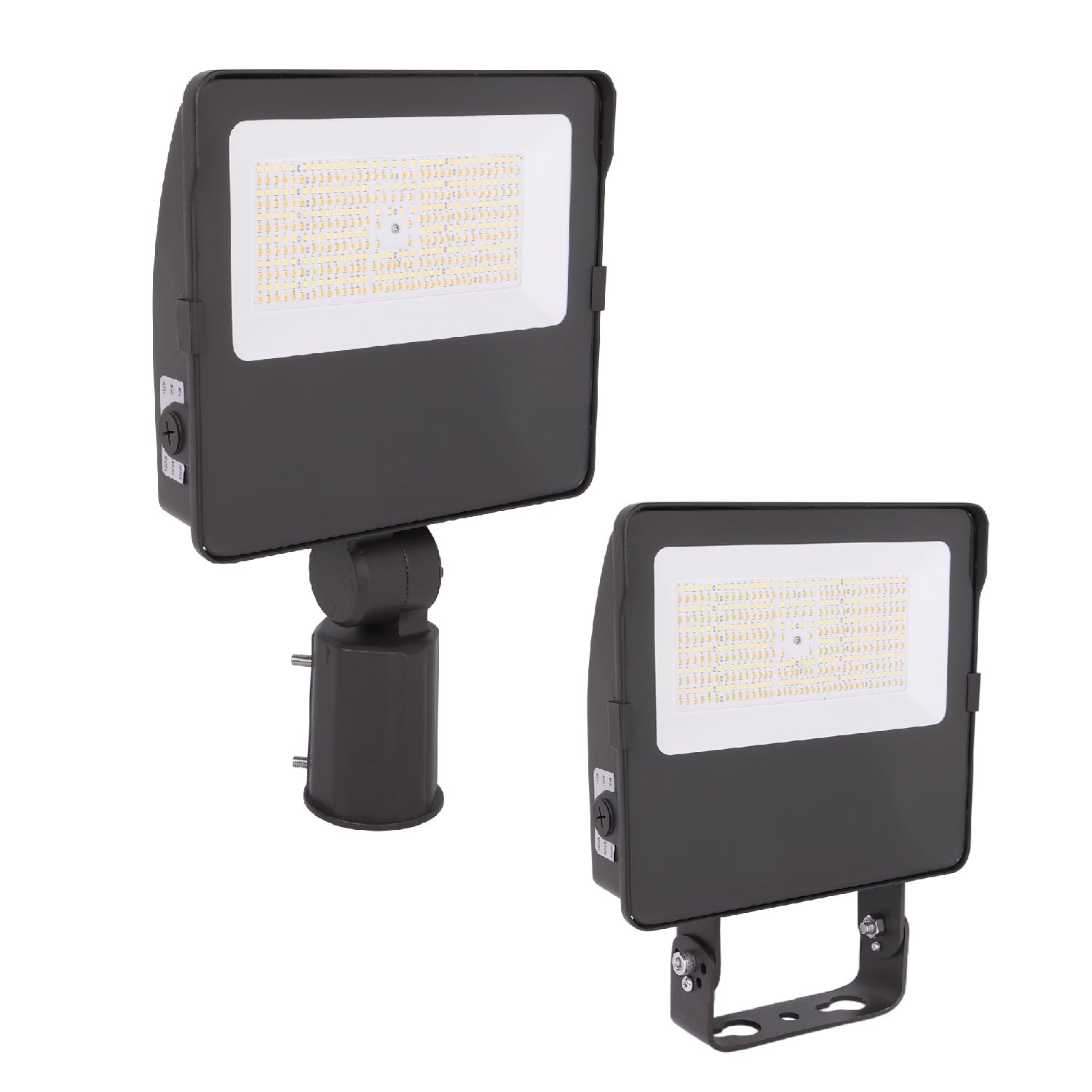

The fixture includes a built-in photocell for dusk-to-dawn operation and is available with either a yoke or slip fitter mount. The die-cast aluminum housing and IP65 rating support use in exposed outdoor environments. This product is commonly used as a direct replacement for 400-watt metal halide flood lights.

Core Performance and Output

This flood light delivers up to 150 lumens per watt, with selectable output levels to match site requirements. The 120° beam angle provides wide area coverage, supporting uniform illumination for open lots, building facades, and sports surfaces. The fixture operates on 100-277V input and maintains a power factor of 0.9.

At the highest output setting, the fixture is best suited for mounting heights above 20 feet to avoid excessive brightness or glare in smaller areas. At lower mounting heights, the wide beam may require careful aiming to control spill light and maintain uniformity.

Adjustability and Control Options

Both wattage and color temperature are field adjustable via onboard switches, allowing adaptation to site-specific needs or future changes in use. The built-in photocell enables automatic dusk-to-dawn operation without external controls. No dimming function is provided.

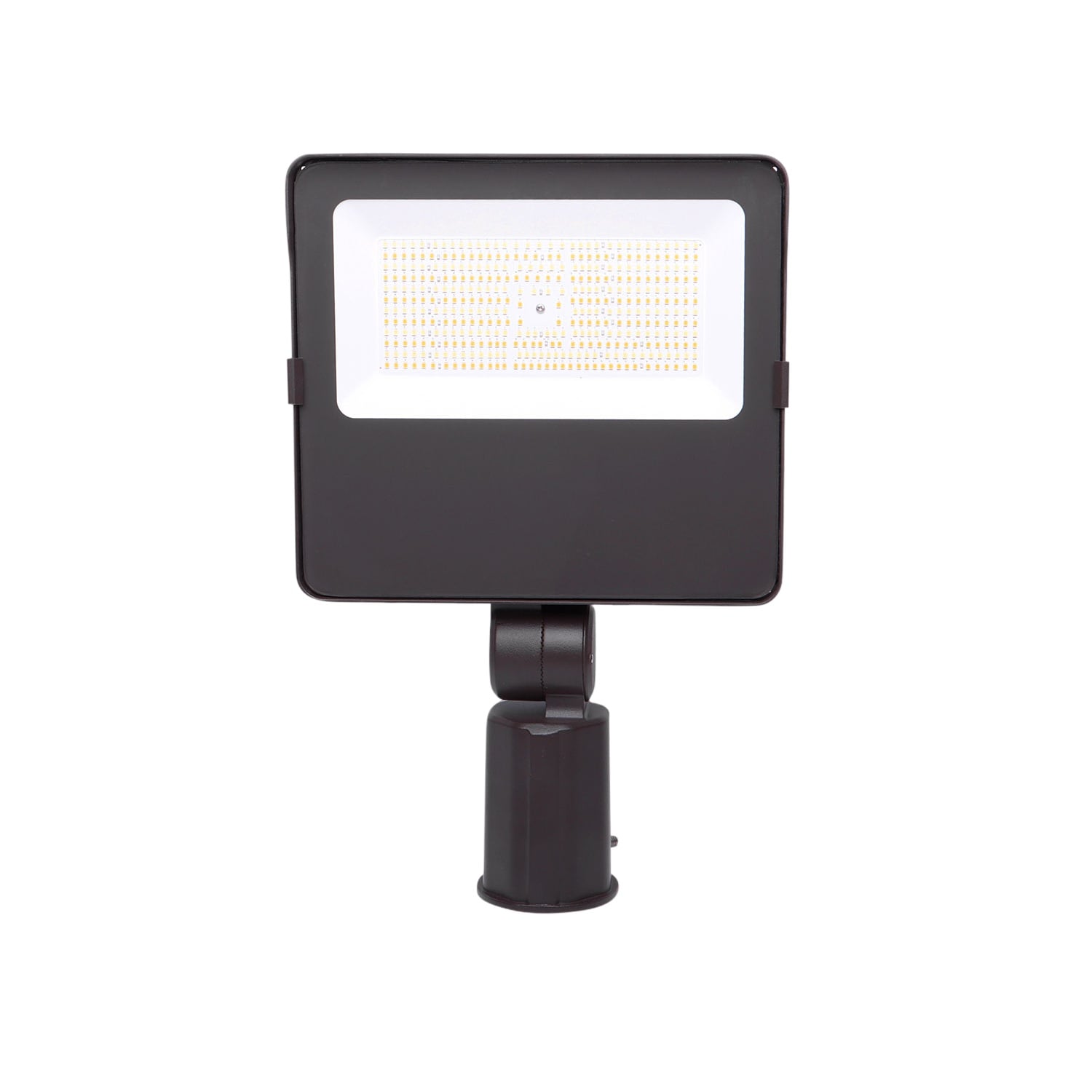

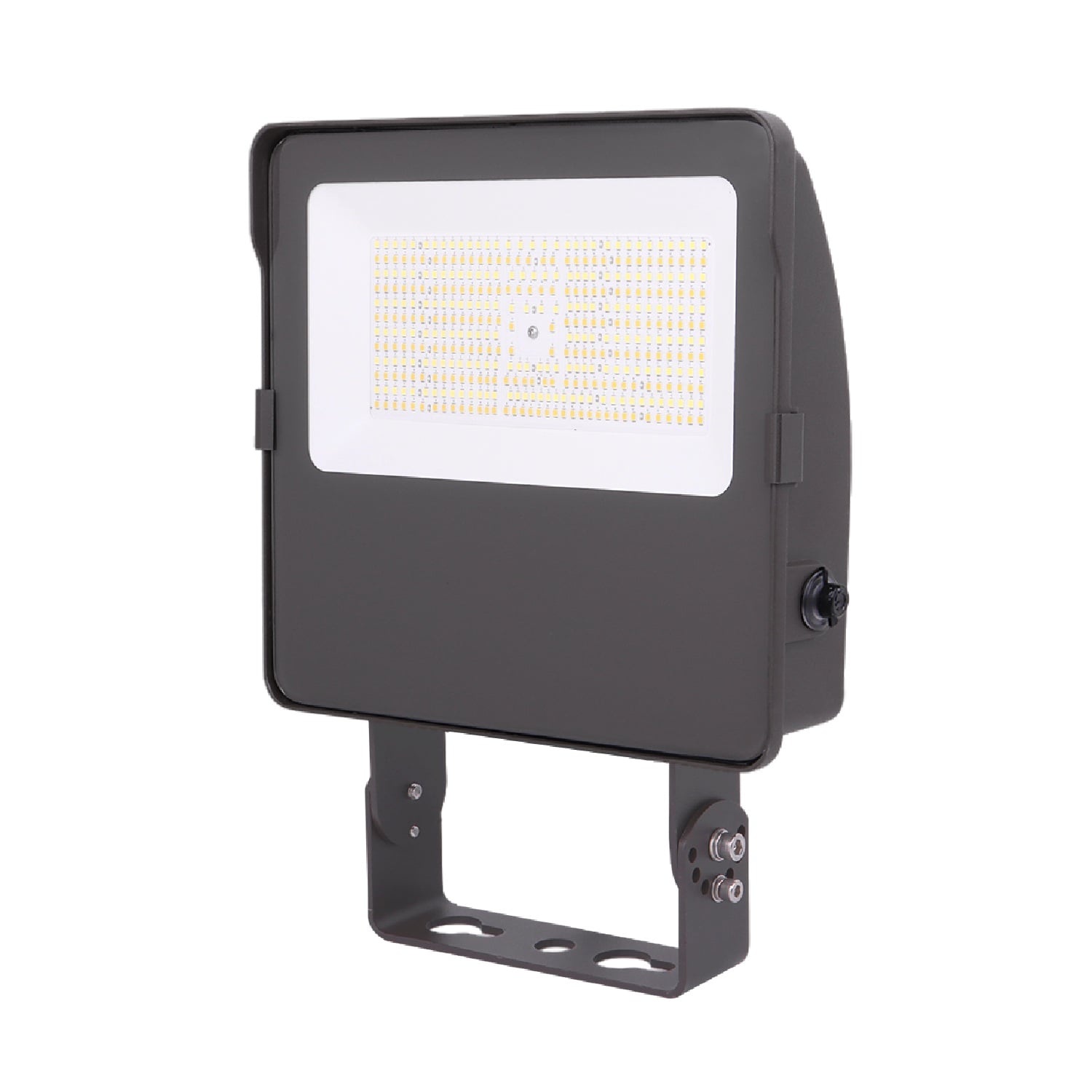

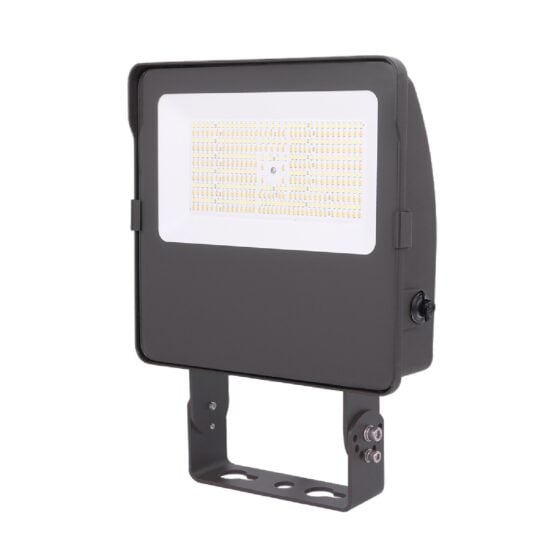

Mounting options include yoke and slip fitter, supporting installation on poles, walls, or structural arms. The fixture can be re-aimed after installation to optimize coverage.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70), supporting multi-year operation in demanding outdoor environments. The die-cast aluminum housing and tempered glass lens provide impact and weather resistance.

Operating temperature range is -40°F to 113°F. The IP65 rating protects against dust and water ingress during rain or washdown. No routine maintenance is required beyond periodic cleaning of the lens and housing.

Build Quality and Physical Characteristics

The fixture measures 13.5 inches high by 10.7 inches wide by 2.9 inches deep and weighs 10 pounds. The bronze finish is standard. The housing is constructed from die-cast aluminum for durability and corrosion resistance.

The tempered glass lens protects the LEDs from impact and environmental exposure. The fixture?s EPA rating is 1.1, supporting use on standard area lighting poles. All hardware is designed for outdoor use.

Where This Product Fits Best

This flood light is intended for outdoor area lighting, building perimeter security, and small to mid-sized sports and event venues. It is suitable for commercial, municipal, and institutional sites requiring reliable, adjustable exterior illumination.

• area lighting
• parking lot lighting
• security lighting
• building facade lighting
• basketball court lighting
• event venue lighting
• loading area lighting
• outdoor sports facility lighting

The fixture is designed for wet locations and can be installed in environments exposed to rain, dust, and temperature extremes. Not intended for marine or hazardous locations.

Installation and Long-Term Use

Mounting options support installation on poles, walls, or structural arms using either the yoke or slip fitter. The fixture?s weight and EPA are compatible with standard 4-inch and 5-inch square or round poles. All wiring is accessible from the rear or side, depending on mount type.

Periodic inspection is recommended to ensure the lens remains clear and the aiming remains correct. The built-in photocell reduces manual intervention for daily operation. No lamp or driver replacement is required during the rated life.

How This Fixture Is Commonly Used

Typical mounting heights range from 15 to 30 feet, depending on the selected wattage and site requirements. For parking lots and area lighting, fixtures are spaced to provide overlapping coverage and minimize dark spots. For sports courts or event venues, aiming is adjusted to avoid glare and maximize uniformity.

Higher output settings reduce the number of fixtures needed but may require careful aiming to control spill light. Spacing and layout should be confirmed based on site photometric analysis and local requirements.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It is eligible for utility rebates where applicable. The product is covered by a 5-year warranty from the date of installation.

All components are rated for outdoor use and meet relevant safety and performance standards for commercial exterior lighting.

Frequently Asked Questions

Q: What is the recommended mounting height for this flood light?

A: Recommended mounting height is 15 to 30 feet, depending on wattage and application.

Q: Can the color temperature and wattage be changed after installation?

A: Yes, both color temperature and wattage are field adjustable using onboard switches.

Q: Is this fixture suitable for continuous operation in wet locations?

A: Yes, the IP65 rating supports use in wet and exposed outdoor environments.

Q: Does the built-in photocell require any additional wiring?

A: No, the photocell is integrated and operates automatically with standard wiring.

Q: How many fixtures are needed for a typical parking lot or sports court?

A: Fixture count depends on area size, mounting height, and required light levels. Photometric analysis is recommended for precise planning.

Application Questions and Clarification

Q: Is this flood light appropriate for use on a building facade or perimeter?

A: Yes, the fixture is commonly used for building facade and perimeter security lighting.

Q: Can this fixture be used for basketball court or event venue lighting?

A: Yes, it is suitable for small to mid-sized outdoor basketball courts and event venues when mounted and aimed correctly.

Q: Is this fixture designed for marine or corrosive environments?

A: No, this product is not intended for marine or corrosive environments.

Q: What mounting options are available for this fixture?

A: Yoke and slip fitter mounts are available for pole, wall, or arm installation.
