800 Watt LED Sports Flood Light | 120000 Lumens | 5700K | 100-277V | Optional Remote Driver
This 800 watt LED stadium light is a strong choice for large outdoor venues and sports fields requiring high lumen output, precise beam control, and robust durability. Its 120,000-lumen output and multiple beam angles enable tailored lighting for both wide-area and focused applications, while the IP66 and IK08 ratings ensure reliable operation in harsh weather and moderate-impact environments. The yoke mount offers flexible installation on poles or structures, and the fixture’s high efficiency and long lifespan minimize maintenance. It is particularly well-suited for stadiums, sports fields, and industrial yards.
Dwayne Kula | President, CTO and Founder
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 800 |
| Lumens | 120000 |
| Lumens Per Watt | 150 |
| Replaces | 1500 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V Optional |
| Color Temperature | 3000K or 4000K or 5700K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 60° |
| Beam Angles (Opt) | 10° or 30° or 45° or Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 200,000 (L70) hours |
| Mounting | Yoke |
| EPA Rating | 1.92 |
| Fixture Color | Black |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Powder Coated Aluminum |
| Corrosion Resistance | C4 Marine Grade Standard |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10KV line-line, 20KV line-earth |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 20 W X 17 H X 9.2 D |
| Weight (lbs) | Fixture: 30.2 lbs Driver Box: 12 |
Product Overview

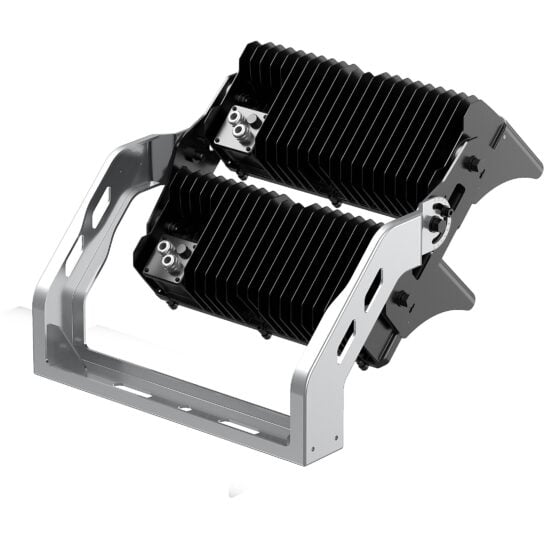

This 800 watt LED sports flood light produces 120,000 lumens for high-output outdoor sports facility lighting, area lighting, and security lighting. It uses a yoke mount and a polycarbonate lens in a black powder coated aluminum housing.
The fixture is configured for 100-277V operation, with 277-480V available as an option. It replaces a 1500 watt metal halide fixture where the existing layout, mounting structure, and electrical system support the installation.
Core Performance and Output
The fixture delivers 120,000 lumens at 150 lumens per watt. Standard distribution is 60 degrees, with 10 degree, 30 degree, 45 degree, and Type 3 optics available for layouts requiring different throw and distribution patterns.
Color temperature options are 3000K, 4000K, and 5700K with 80+ CRI. Input voltage is 100-277V at 50/60Hz, with an optional 277-480V configuration.
This output level requires a layout that controls glare and spill light in outdoor sports facility lighting and security lighting. Narrower optics concentrate light over longer distances, while wider distributions cover broader areas with less long-throw reach.
Adjustability and Control Options
0-10V dimming is provided for installations using compatible dimming controls. The yoke mount allows the fixture angle to be set during installation.
Optical selection should be established before installation because beam angle affects aiming, overlap, and light distribution. The standard 60 degree optic is not interchangeable with the listed optional optical distributions without selecting the correct fixture configuration.
Longevity and Reliability
The LED system is rated for 200,000 L70 hours. Surge protection is rated at 10KV line-line and 20KV line-earth.
The operating temperature range is -22F to 122F. The fixture carries a 5 year warranty.
Build Quality and Physical Characteristics
The housing is powder coated aluminum with C4 marine grade corrosion resistance. The lens is polycarbonate, and the fixture is rated IP66 and IK08.
Fixture dimensions are 20 inches wide by 17 inches high by 9.2 inches deep. Fixture weight is 30.2 pounds; the optional remote driver box weighs 12 pounds.
The fixture EPA rating is 1.92. Mounting structures must be evaluated for fixture weight, EPA, wind loading, and the selected aiming angle.
Where This Product Fits Best
This flood light fits high-output outdoor installations requiring controlled beam distribution, weather protection, and yoke-mounted aiming. Its output and optical options align with larger outdoor lighting layouts.
- outdoor sports facility lighting
- baseball field lighting
- tennis court lighting
- basketball court lighting
- area lighting
- security lighting
- event venue lighting
IP66 protection, IK08 impact resistance, C4 marine grade corrosion resistance, and the listed operating temperature range support exposed outdoor conditions. Final placement depends on the required distribution, mounting structure, and control of glare beyond the lighted area.
Installation and Long-Term Use
The yoke mount requires a mounting surface that supports the fixture weight, EPA rating, and aiming load. Electrical installation must match the selected 100-277V or optional 277-480V fixture configuration.
Where an optional remote driver is used, allow for the separate 12 pound driver box and its mounting location. The fixture should be aimed and secured before final commissioning.
How This Fixture Is Commonly Used

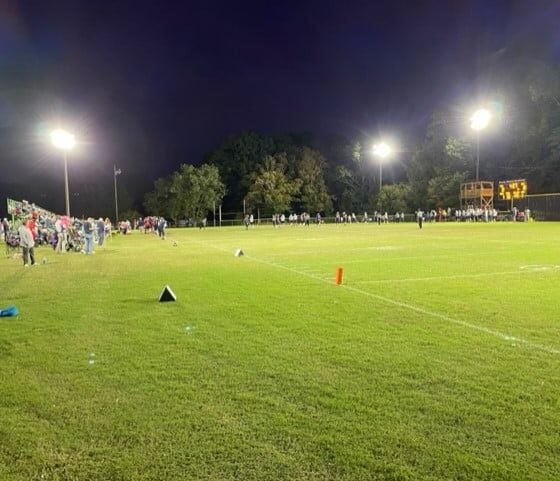

In outdoor sports facility lighting, baseball field lighting, and tennis court lighting, fixtures are mounted at elevations established by the site structure and aimed to create overlapping light patterns. Beam angle selection determines how tightly the light is concentrated across the planned area.
For area lighting and security lighting, yoke-mounted fixtures are aimed toward the required coverage zone while limiting unnecessary light beyond the site boundary. Higher output can reduce fixture count, but it may increase glare when aiming and distribution are not coordinated.
Safety, Certifications, and Warranty
This fixture is ETL listed and DLC Premium listed.
It is rated IP66 and IK08. Surge protection is rated at 10KV line-line and 20KV line-earth.
The warranty period is 5 years.
Frequently Asked Questions
Q: What is the light output of this flood light?
A: The fixture produces 120,000 lumens while operating at 800 watts.
Q: What beam distributions are available?
A: The standard beam angle is 60 degrees. Optional distributions are 10 degrees, 30 degrees, 45 degrees, and Type 3.
Q: Can this fixture be dimmed?
A: Yes. It supports 0-10V dimming.
Q: What should be considered when planning the fixture layout?
A: The selected beam distribution, fixture aiming, mounting structure, and required light pattern affect the layout. The supplied product data does not establish a specific spacing value or fixture quantity.
Q: What mounting method does this fixture use?
A: The fixture uses a yoke mount.
Application Questions and Clarification
Q: Is this fixture appropriate for outdoor sports facility lighting?
A: Outdoor sports facility lighting is a valid application. The 120,000 lumen output, yoke mount, and available optical distributions support layouts requiring aimed flood lighting.
Q: What should be verified for baseball field lighting or tennis court lighting?
A: Verify the selected beam angle, aiming requirements, mounting structure, voltage configuration, and required light pattern. Specific mounting heights and spacing values are not established by the supplied product data.
Q: What environmental ratings apply to area lighting and security lighting installations?
A: The fixture is rated IP66 and IK08, has C4 marine grade corrosion resistance, and operates from -22F to 122F.
