800 Watt LED Oval Sports Light | 124000 Lumens | 5700K | 100V-277V or 277V-480V

Product Overview

This 800 Watt LED Oval Sports Light is engineered for high-output outdoor flood and sports lighting. It delivers 124,000 lumens at 5700K, designed to replace legacy 1500W metal halide fixtures in demanding environments. The fixture is suitable for mounting heights typical of sports fields, stadiums, and large outdoor venues where uniform, high-intensity illumination is required.

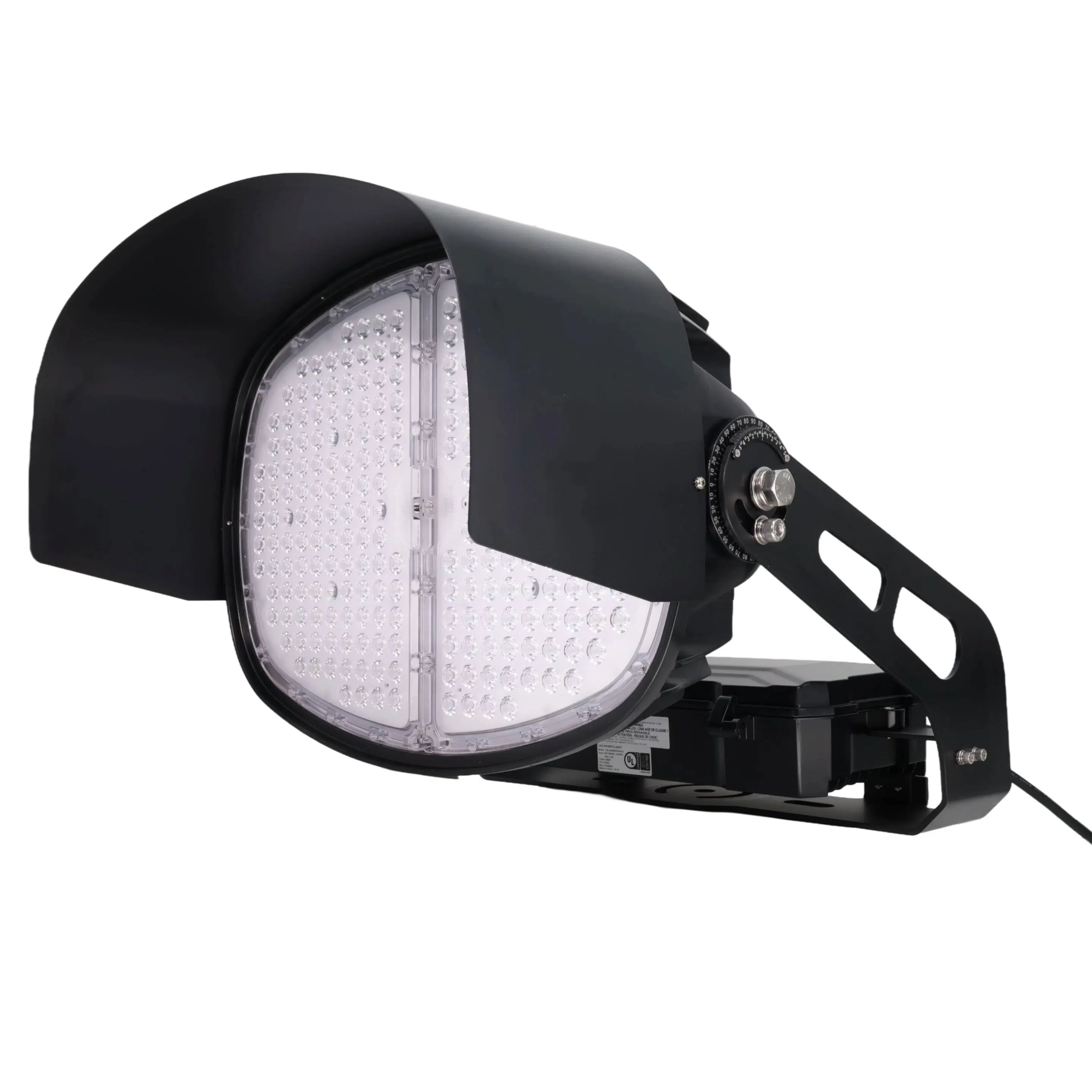

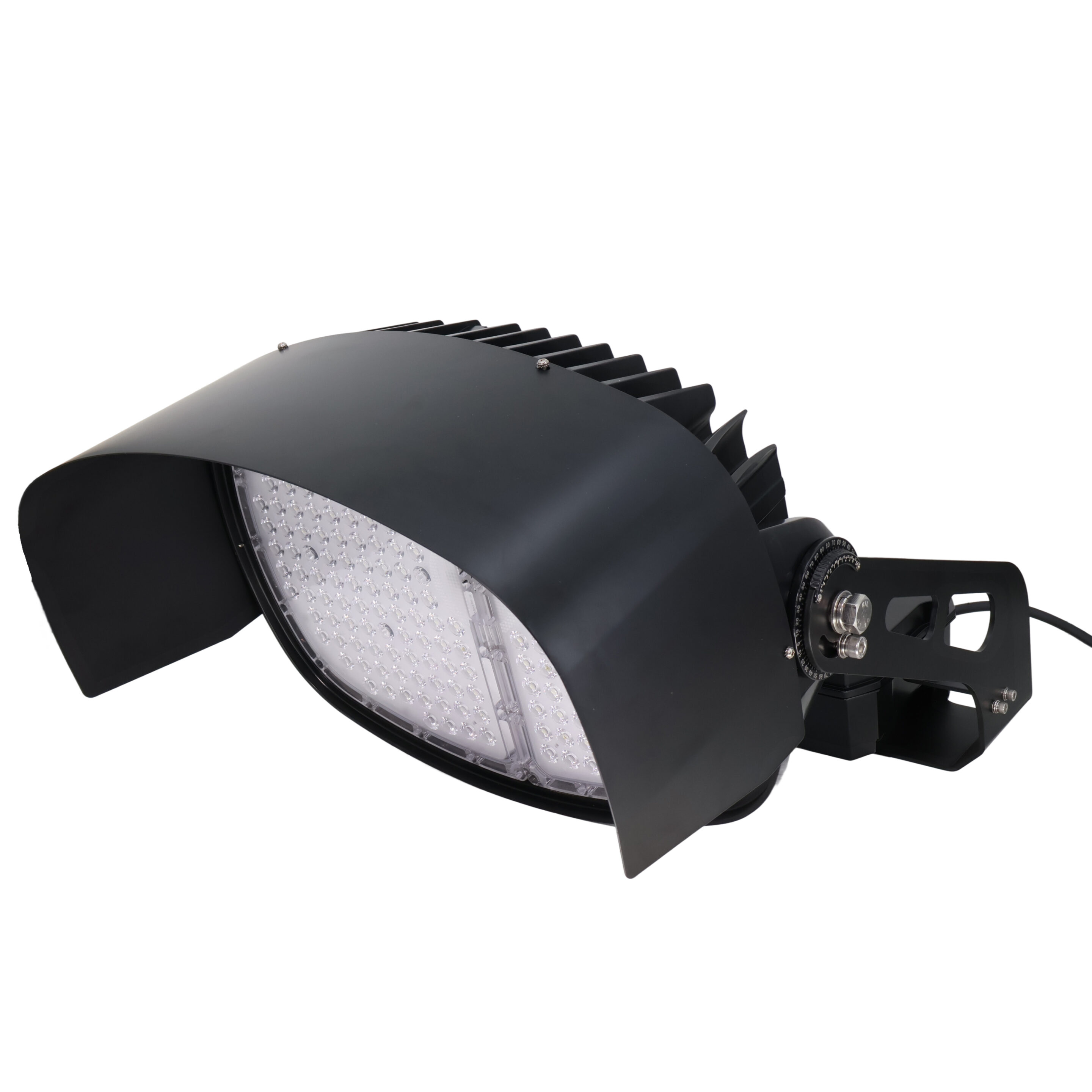

The fixture features a robust yoke mount, polycarbonate optics, and selectable beam angles for targeted coverage. It is built for continuous operation in exposed locations, with a housing and electrical system rated for harsh weather and impact conditions.

Core Performance and Output

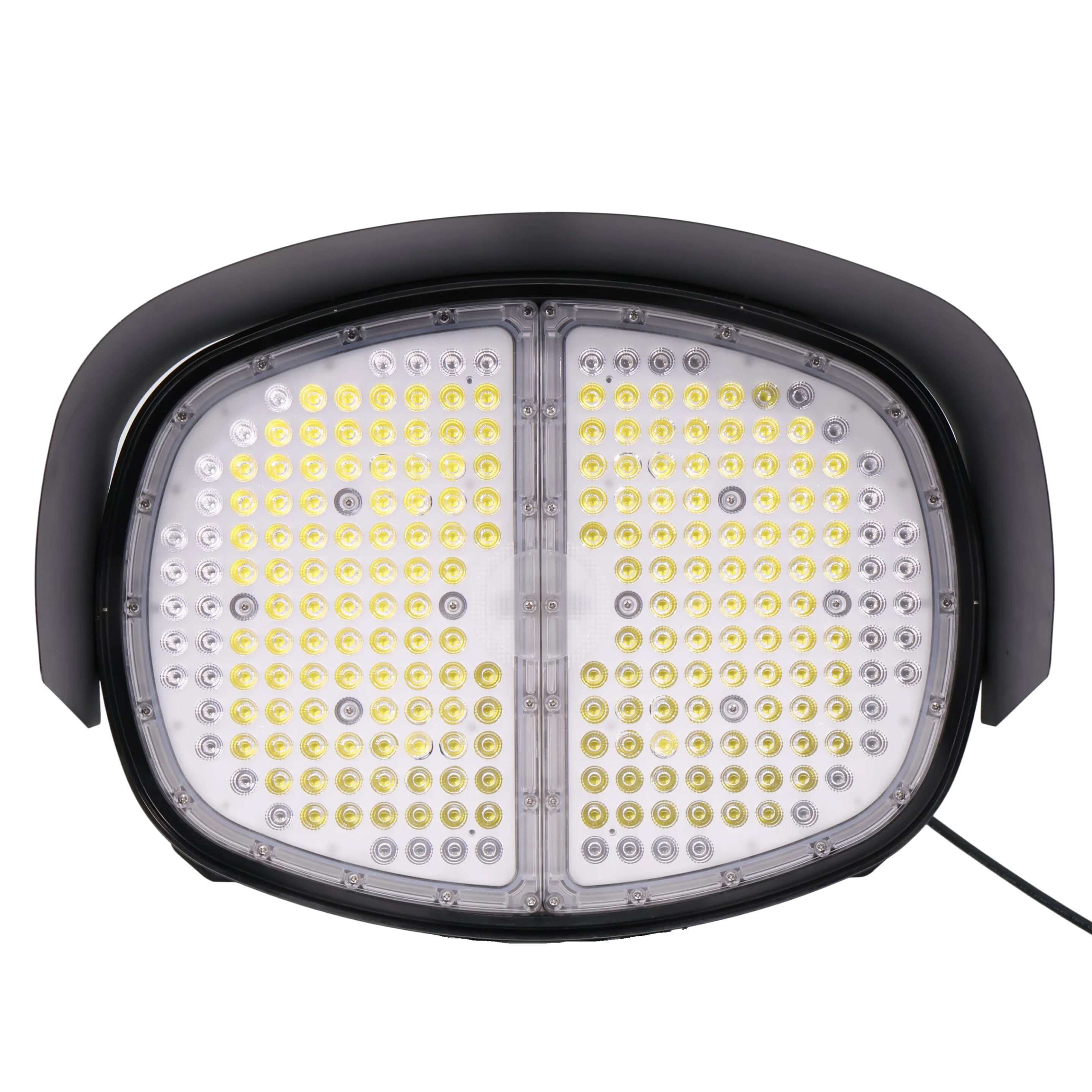

This fixture outputs 124,000 lumens at 800 watts, achieving 155 lumens per watt. The 5700K color temperature supports high-visibility applications. Three beam angle options?20°, 30°, and 60°?allow for precise control of light distribution, with the 30° optic supplied as standard. Polycarbonate optics maintain clarity and resist yellowing over time.

Electrical performance is stable across 100V-277V or 277V-480V input, with 0-10V dimming for output adjustment. The fixture?s output is best suited for mounting heights above 40 feet; at lower heights, intensity may be excessive and uniformity may decrease at extreme heights or wide spacing.

Adjustability and Control Options

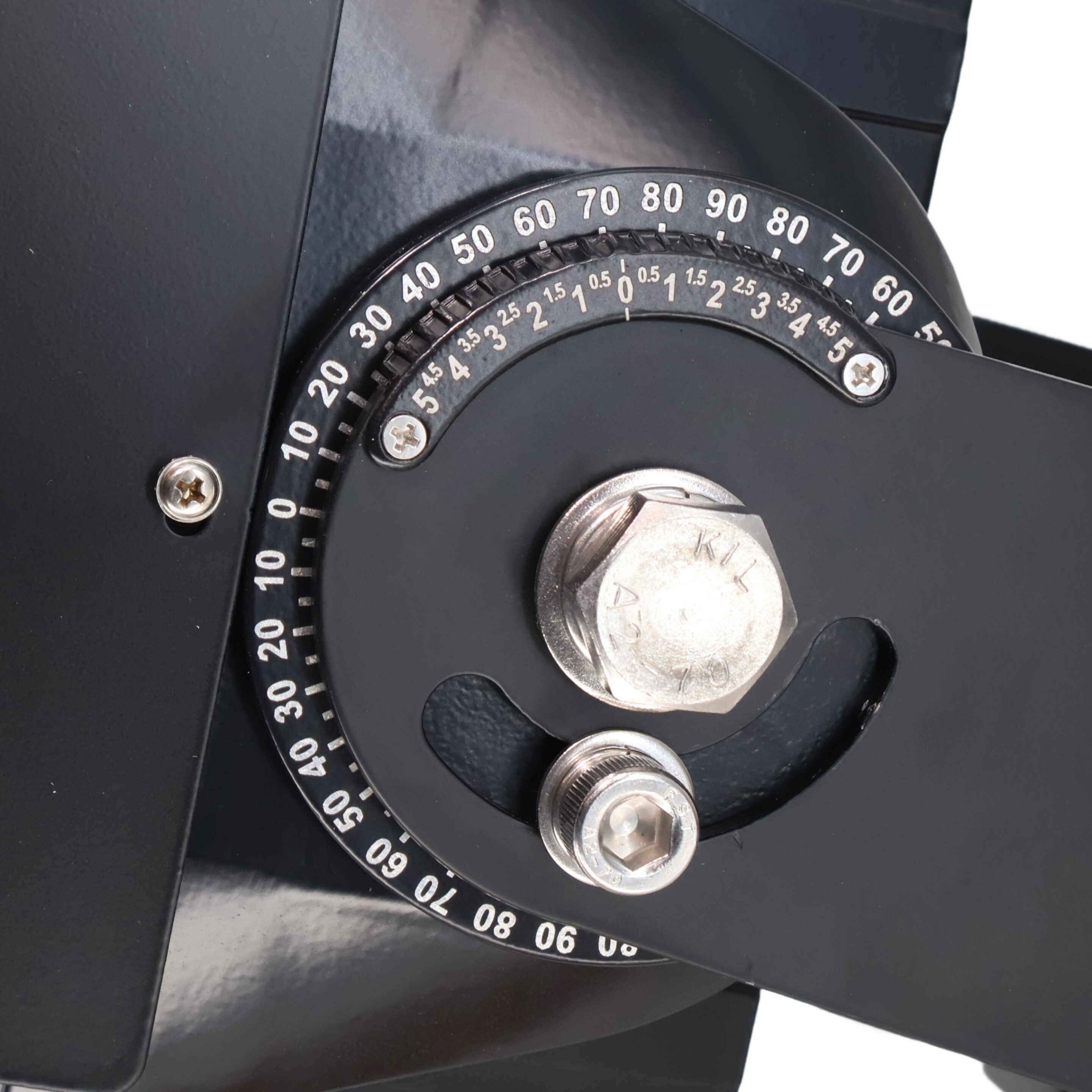

The yoke mount provides flexible aiming for both horizontal and vertical adjustment, supporting precise fixture orientation. 0-10V dimming is standard, enabling integration with lighting controls for scheduling, zoning, or manual adjustment as required by the application.

Beam angle can be changed by swapping optics (20°, 30°, or 60°), allowing adaptation to different field sizes or lighting layouts. The fixture is compatible with standard control systems used in sports and area lighting projects.

Longevity and Reliability

The fixture is rated for 170,000 hours (L70), supporting long-term operation with minimal maintenance. The LED driver and surge protection (20kV) are designed for environments with frequent power fluctuations or lightning exposure.

IP66 and IK08 ratings confirm resistance to water, dust, and impact, supporting reliable performance in outdoor and high-activity locations. The fixture operates in ambient temperatures from -40°F to 122°F without derating.

Build Quality and Physical Characteristics

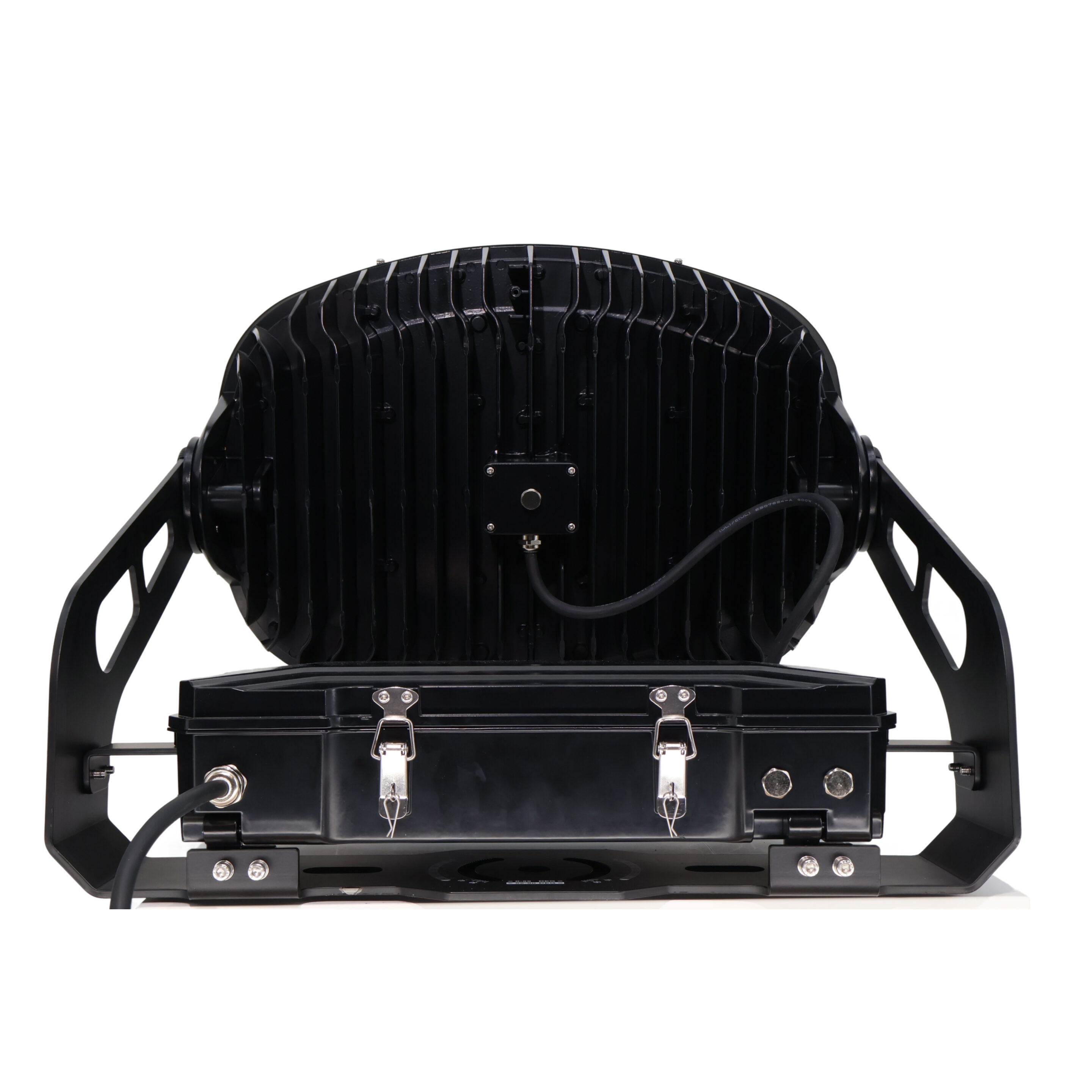

The housing is powder-coated aluminum for corrosion resistance and durability. Polycarbonate optics provide impact resistance and maintain optical performance. The fixture measures 24.4 in W x 18.9 in H x 25.6 in D and weighs 60 lbs, supporting stable installation on poles or structural mounts.

EPA rating is 2.5, which should be considered when specifying pole and mounting hardware. The fixture is supplied with a 3-foot cord for wiring flexibility. Black finish is standard for reduced glare and visual integration with most mounting structures.

Where This Product Fits Best

This fixture is designed for large-scale outdoor environments requiring high-output, uniform illumination. It is commonly deployed in sports fields, stadiums, and event venues where precise aiming and robust construction are required.

• outdoor sports facility lighting
• baseball field lighting
• tennis court lighting
• event venue lighting
• area lighting
• parking lot lighting
• airport apron lighting
• security lighting

Environmental characteristics include exposure to rain, dust, and impact. The fixture is suitable for both new construction and retrofit projects where legacy HID flood lights are being replaced.

Installation and Long-Term Use

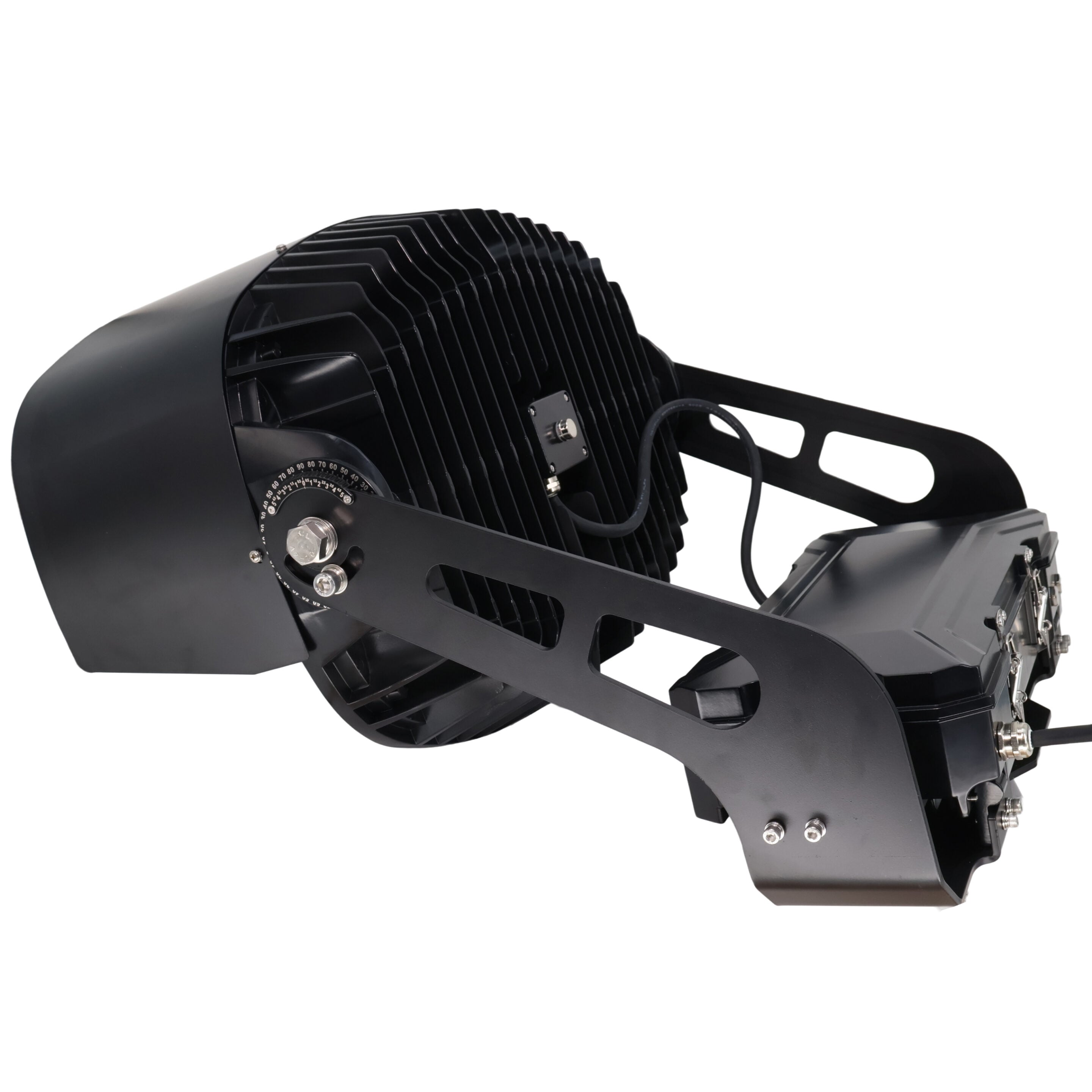

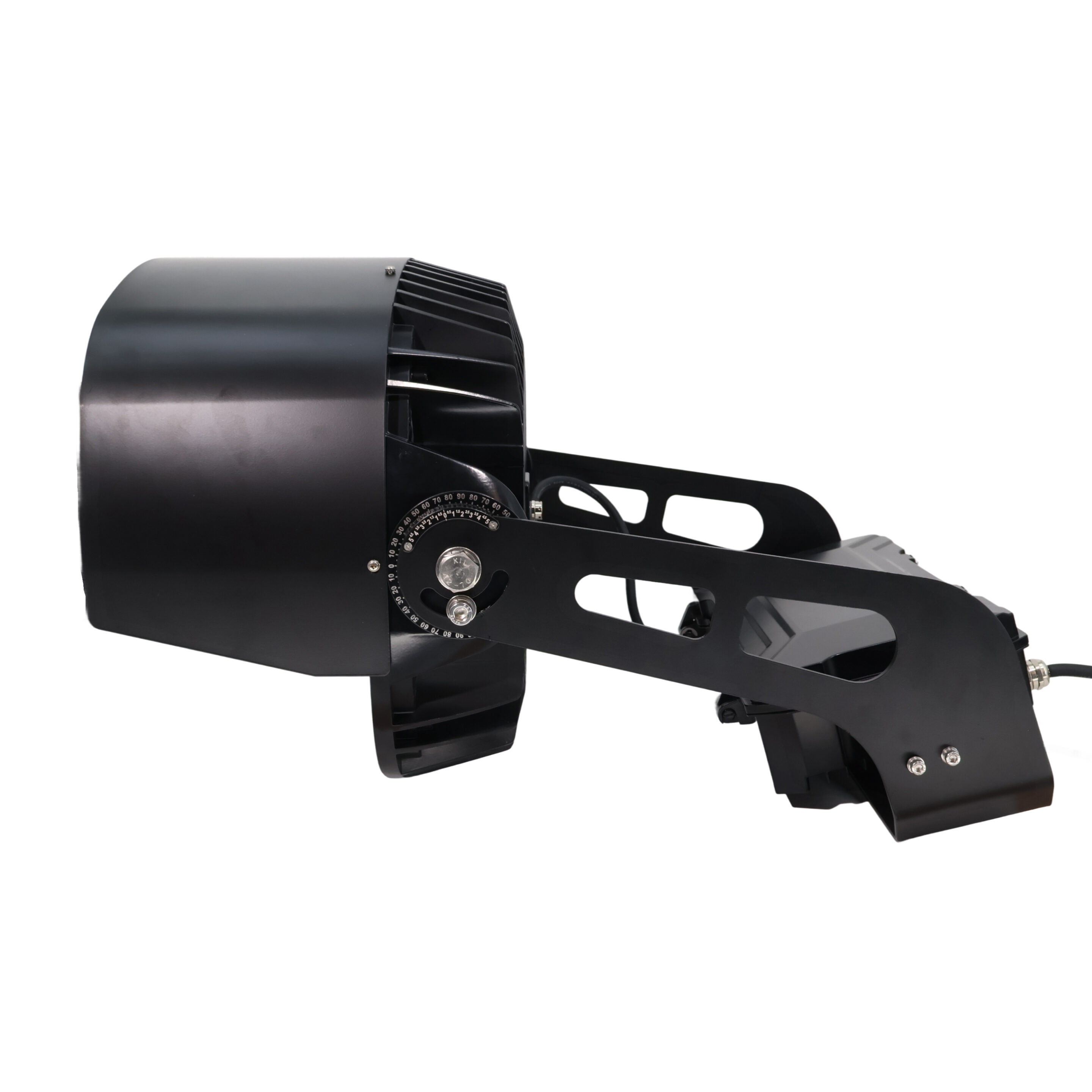

The yoke mount supports attachment to poles, cross arms, or structural brackets. The fixture?s weight and EPA require secure mounting hardware and consideration of wind load when installed at height. Standard 3-foot cord allows for flexible wiring during installation.

Routine maintenance is minimal due to the sealed housing and long LED life. Polycarbonate optics resist breakage and yellowing. Surge protection and robust driver design reduce the risk of failure in electrically unstable environments.

How This Fixture Is Commonly Used

Typical mounting heights range from 40 to 80 feet, depending on the application and required coverage. Fixtures are spaced and aimed to achieve uniform light levels across playing surfaces or large outdoor areas. Beam angle selection is based on field size and pole layout.

In sports field applications, higher output allows for fewer fixtures per pole but may require careful aiming to control glare and spill. Layouts are often designed to meet specific footcandle and uniformity targets for each sport or event type.

Safety, Certifications, and Warranty

This fixture is UL listed and IP66 rated. IK08 impact rating and 20kV surge protection are standard. The product is eligible for utility rebates where applicable.

Operating temperature range is -40°F to 122°F. A 5-year warranty covers manufacturing defects and component failure under normal use.

Frequently Asked Questions

Q: What is the recommended mounting height for this 800W sports flood light?

A: Mounting heights between 40 and 80 feet are typical, depending on the application and required coverage.

Q: Which beam angle is supplied with the fixture?

A: The fixture comes standard with a 30° optic. 20° and 60° optics are available separately.

Q: Can this fixture be used with 480V power?

A: Yes, a 277V-480V driver option is available for high-voltage installations.

Q: How should pole selection account for fixture EPA and weight?

A: The fixture has an EPA of 2.5 and weighs 60 lbs. Ensure the pole and mounting hardware are rated for the combined EPA and total fixture load at the intended mounting height.

Q: What is the expected maintenance interval?

A: With a rated life of 170,000 hours and sealed construction, routine maintenance is limited to periodic inspection and cleaning as needed.

Q: How does fixture spacing affect light levels and uniformity?

A: Closer spacing improves uniformity but may increase fixture count. Wider spacing can reduce uniformity, especially at higher mounting heights or with narrow beam angles.

Application Questions and Clarification

Q: Is this fixture suitable for use on a baseball field?

A: Yes, this fixture is commonly specified for baseball field lighting at appropriate mounting heights and with suitable beam angle selection.

Q: Can this light be used for airport apron or event venue lighting?

A: The fixture is suitable for airport apron lighting and event venue lighting where high-output, uniform illumination is required.

Q: Is the fixture appropriate for parking lot lighting at large commercial sites?

A: Yes, this fixture is used for parking lot lighting in large-scale commercial or event settings where high mounting and wide coverage are needed.

Q: Are there any environmental limitations for this fixture?

A: The fixture is rated for outdoor use in wet and dusty environments, with an operating range of -40°F to 122°F. It is not intended for corrosive or marine environments.
